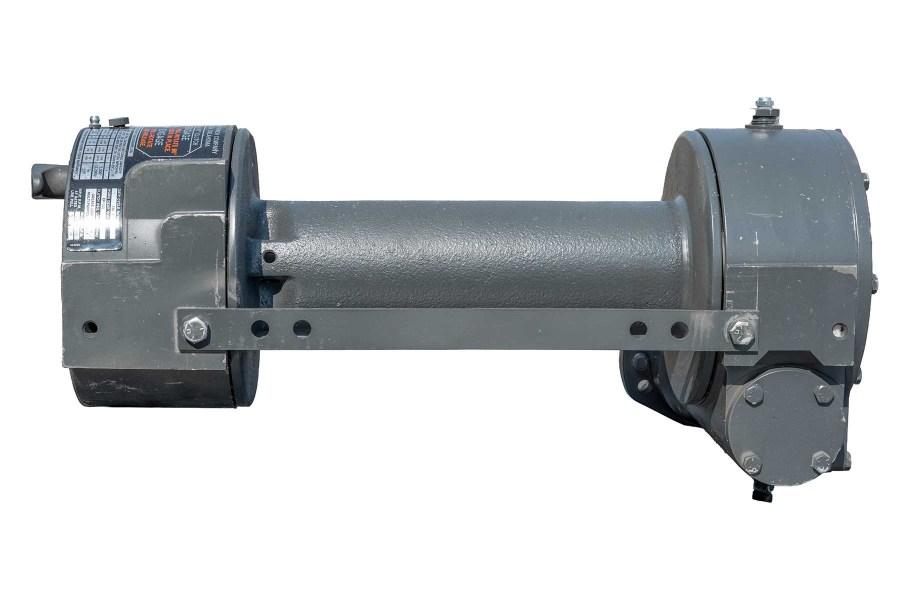

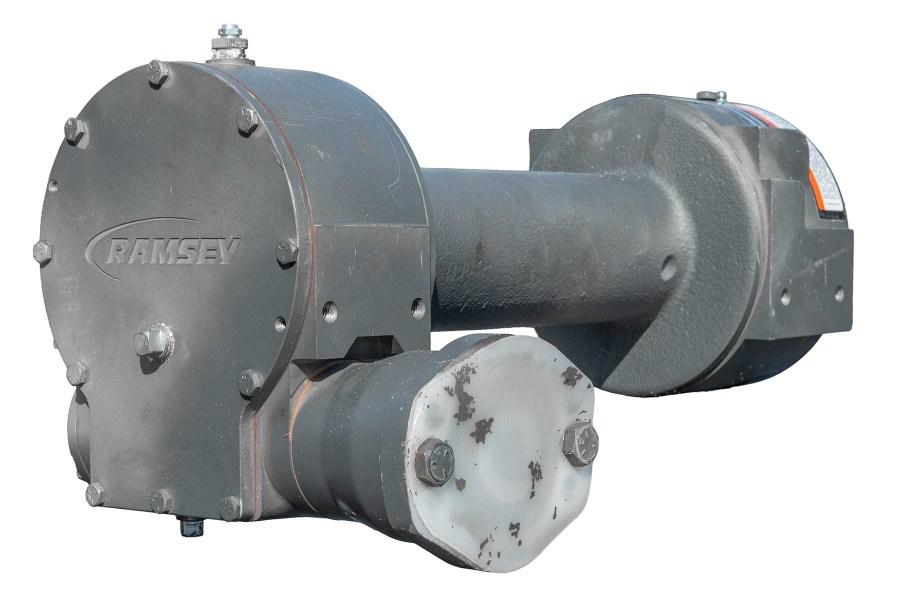

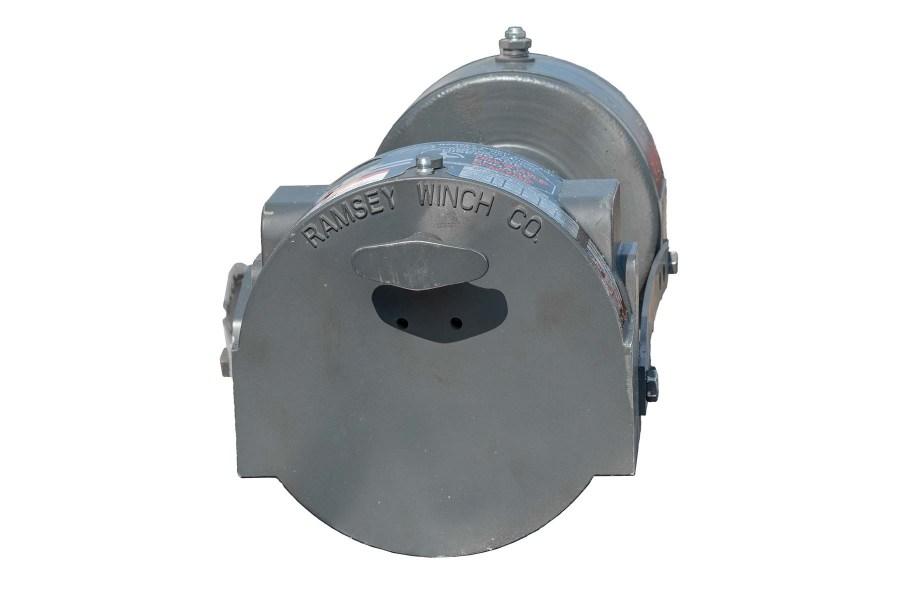

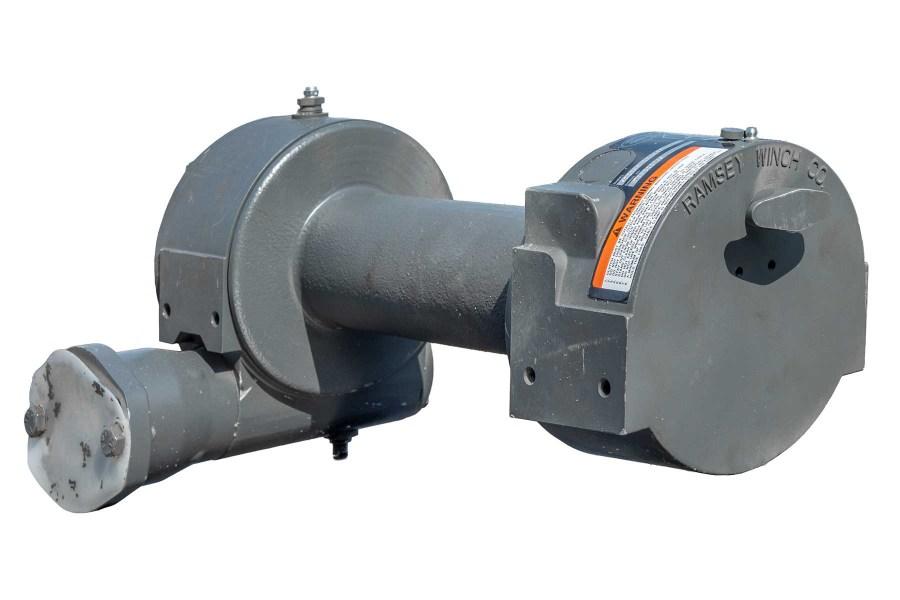

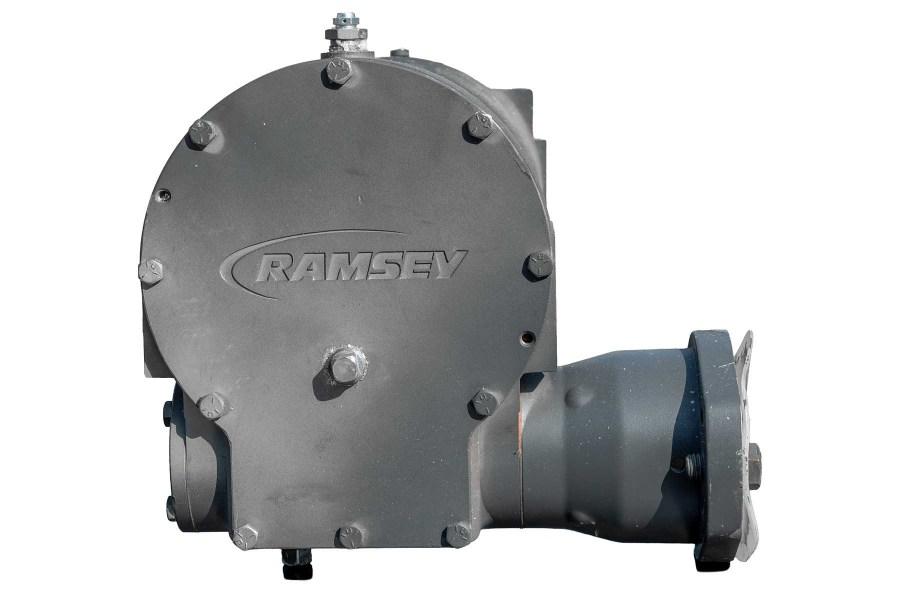

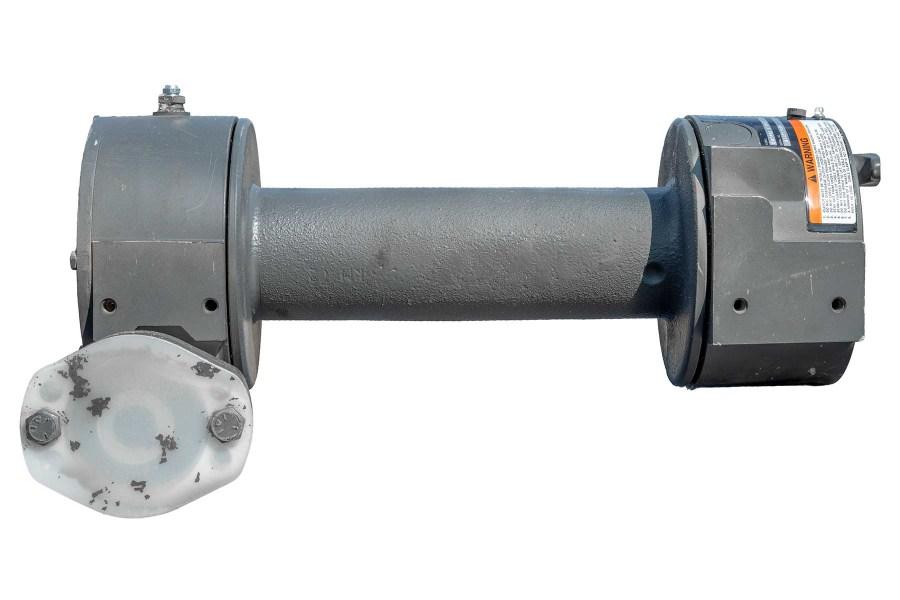

Ramsey HD-234R 8,000 lb. FOLS Hydraulic Worm Winch w/ Ram-Lok Release - Winch Only

Price: $1,268.99

SKU: HD-234R LH

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

One of the most popular winches in the industry. These 8000 lb. Ramsey Ram-Lok Winches are used on most Chevron and many other tow trucks and car carriers. These winches are just the basic winch with no hydraulic motor. This makes it more economical to replace your old winch rather than to repair it.

Ramsey Part Number: 124047
Model: HD-234R
Line Pull: 8,000 lbs
Clutch: Ram-Lok

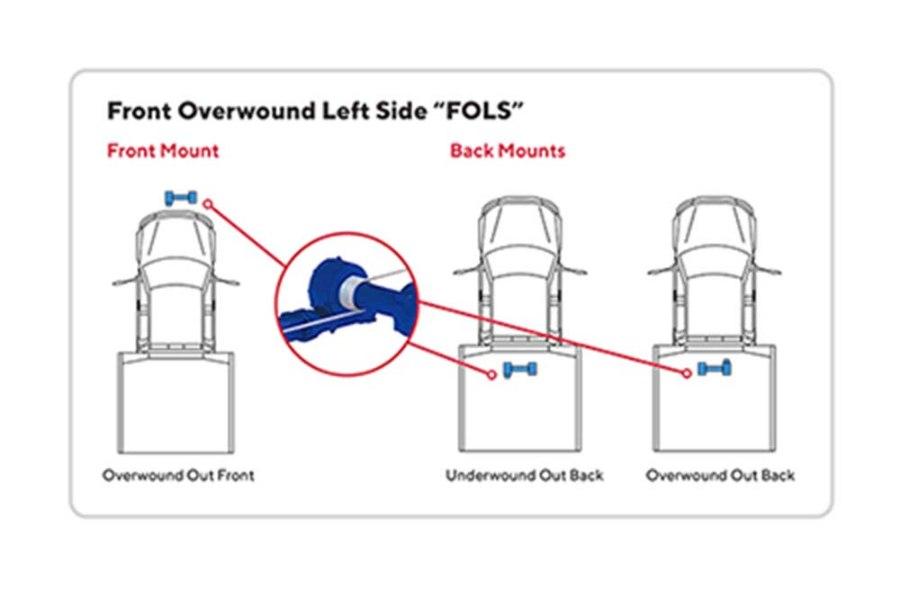

Mounting Configuration: Front Overwind Left Side
Gear Ratio: 34:1
Motor Included: No
Angles Included: No
Drum Length: 11.125"+-/16"
Adjustable/Automatic Brake: No
Fast Line Speed
Recommended Cable: 3/8"
Meets SAE-J706
Made in the USA

Winch Mount Configuration

Applications
Replaces Chevron Car Carrier OEM Winches
Replaces Jerr-Dan Car Carrier OEM Winches
General Industrial
Mining & Construction
Railroad
Specialty Vehicle
Towing & Recovery
Towing & Recovery (Carrier)
Towing & Recovery (Light Wrecker)
Trailer

Model HD-234 Specifications
Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
1st Layer Line Speed: 28'/min / 8.5m/min
Gear Ratio: 34:1
Weight w/o Cable: 110 lbs / 50 Kg
Brake: "Optional auxiliary brake is available", Yes - brake is self-locking ( auxiliary brake)
Cable: None
Drum Size (L x F x B): 11.31" x 7.25" x 3.50" / 287.3mm x 184.2mm x 88.9mm
Cable Capacity: 140' / 42.7m
Recommend Cable Size: 3/8" / 9.5mm
Hydraulic Pressure Required: 2,375 PSI (164 Bar)
Hydraulic Flow Required: 15.0 GPM (57 LPM)
Motor Size: 3.6 Cu. In. (59 cc)
Additional Motor Options: Must Call
Clutch Type: Blocked, RAM-LOK?, DOW-LOK?, Lever Style
Clutch Control: Air, Manual, Electric
