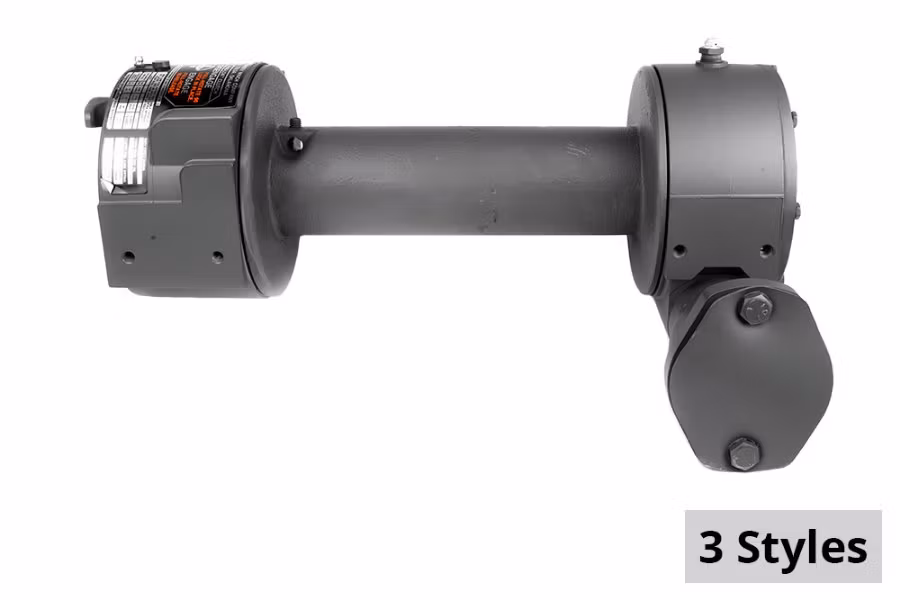

Ramsey HD-234R 8,000 lb. FORS Hydraulic Worm Winch

Price: $1,207.99–$1,674.99

SKU: HD-234R-FORS

STYLE *

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Note: Special Handling Fees Apply for Specific Items

One of the most popular winches in the Towing & Recovery industry. These 8000 lb. Ramsey Winches are used on most Chevron and many other tow trucks and car carriers. These winches are just the basic winch with no hydraulic motor. This makes it more economical to replace your old winch rather than to repair it.

Model: HD-234R
Line Pull: 8,000 lbs
Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
Gear Ratio: 34:1
Motor Included: No
Angles Included: No
Drum Length: 11"+-/16"
See Brochures for Product Drawings
Adjustable/Automatic Brake: No
Fast Line Speed
Recommended cable 3/8
Meets SAE-J706
Made in the USA

Applications
Replaces Chevron Car Carrier OEM Winches
Replaces Jerr-Dan Car Carrier OEM Winches
General Industrial
Mining & Construction
Railroad
Specialty Vehicle
Towing & Recovery
Towing & Recovery (Carrier)
Towing & Recovery (Light Wrecker)
Trailer

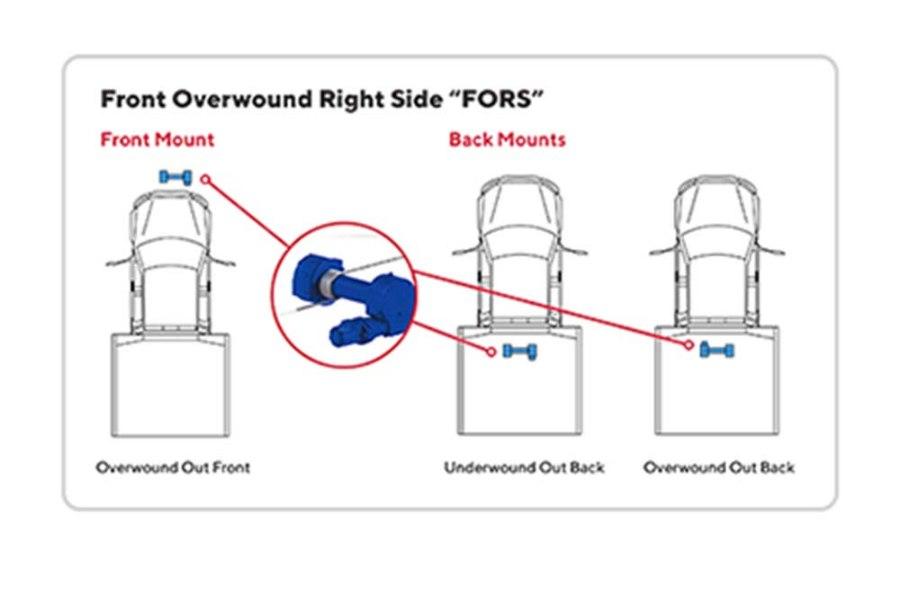

Winch Mount Configuration

Model Specifications
Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
1st Layer Line Speed: 28'/min / 8.5m/min
Gear Ratio: 34:1
Weight w/o Cable: 110 lbs / 50 Kg
Brake: "Optional auxiliary brake is available", Yes - brake is self-locking (Includes auxiliary brake)
Cable: None
Drum Size (L x F x B): 11.31" x 7.25" x 3.50" / 287.3mm x 184.2mm x 88.9mm
Cable Capacity: 140' / 42.7m
Recommend Cable Size: 3/8" / 9.5mm
Hydraulic Pressure Required: 2,375 PSI (164 Bar)
Hydraulic Flow Required: 15.0 GPM (57 LPM)
Motor Size: 3.6 Cu. In. (59 cc)
Clutch Type: Blocked, RAM-LOK?, DOW-LOK?, Lever Style
Clutch Control: Air, Manual, Electric

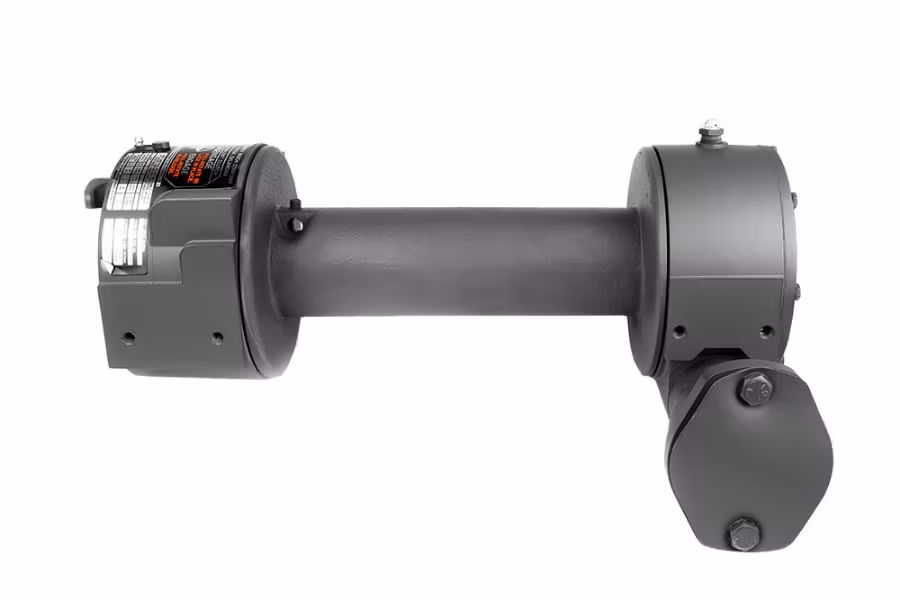

HD-234R Specifications:
Ramsey Part Number: 121807
Model: HD-234R
Line Pull: 8,000 lbs
Clutch: Ram-Lok
Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
Gear Ratio: 34:1
Motor Included: No
Angles Included: No
Drum Length: 11"+-/16"
Adjustable/Automatic Brake: No
Fast Line Speed
Recommended cable 3/8
Meets SAE-J706
Made in the USA

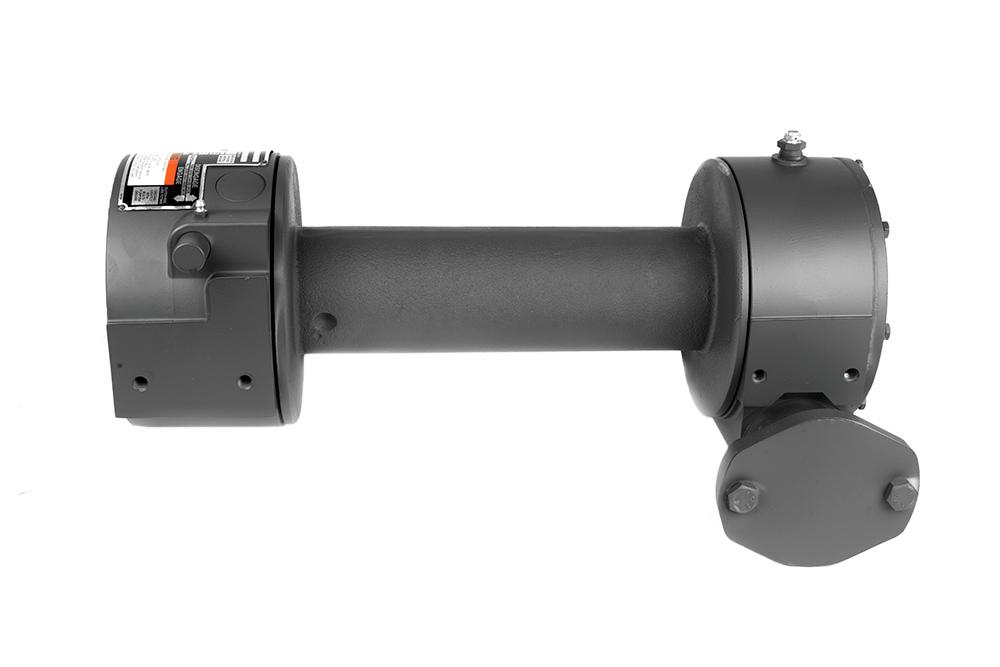

HD-200R Specifications:
Ramsey Part Number: 121818
Model: HD-234R
Line Pull: 8,000 lbs
Clutch: Lever
Mounting Configuration: Front Right Overwind Side/Rear Overwind Left Side
Gear Ratio: 34:1
Motor Included: No
Angles Included: No
Drum Length: 11"+-/16"
Adjustable/Automatic Brake: No
Fast Line Speed
Recommended Cable: 3/8"
Meets SAE-J706
Made in the USA
For an alternative winch see part number H-246
Replaces part number 12-0300250

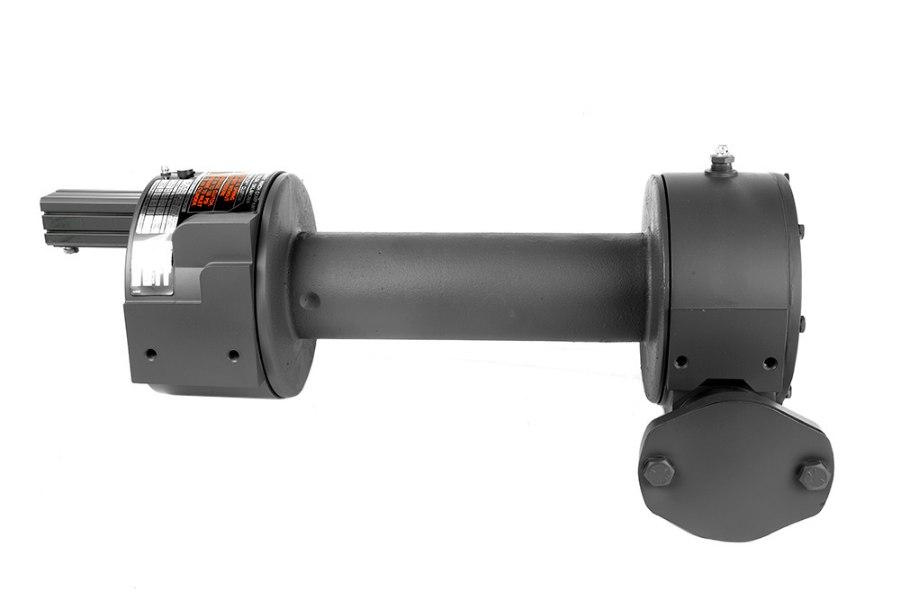

HD-234RA Specifications:
Ramsey Part Number: 121797
Model: HD-234R
Line Pull: 8,000 lbs
Clutch: Air Shift
Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
Gear Ratio: 34:1
Motor Included: No
Angles Included: No
Drum Length: 11.125"+-/16"
Adjustable/Automatic Brake: No
Fast Line Speed
Recommended Cable: 3/8"
Meets SAE-J706
Made in the USA
