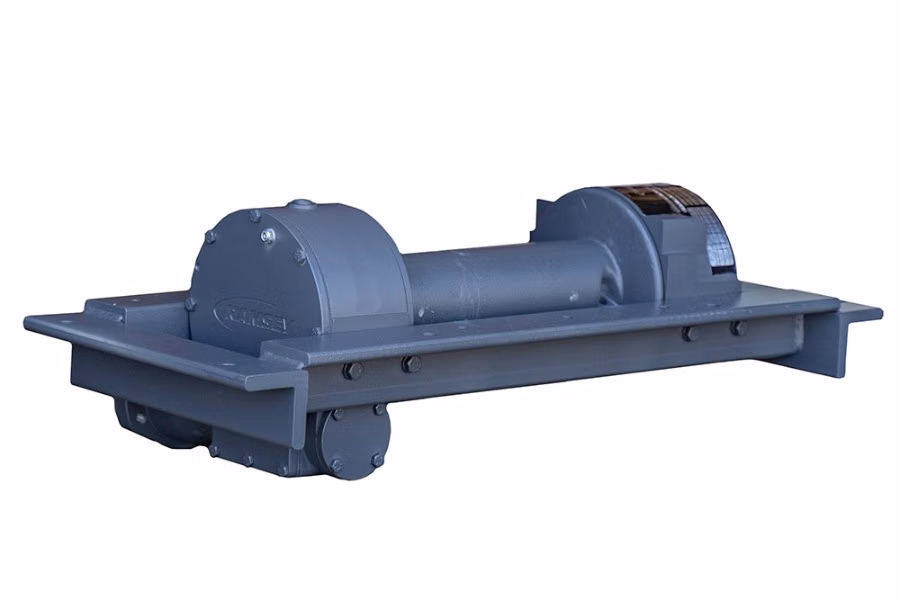

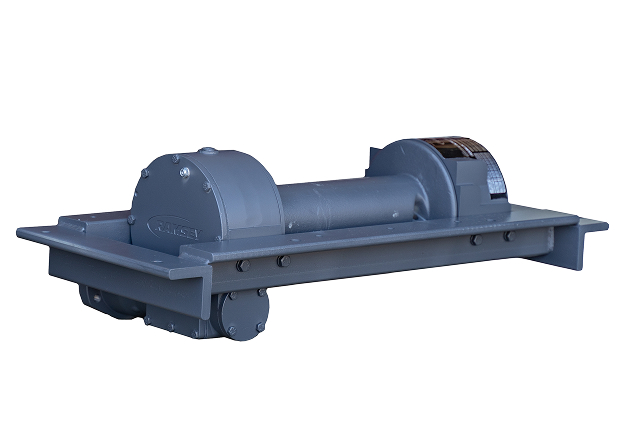

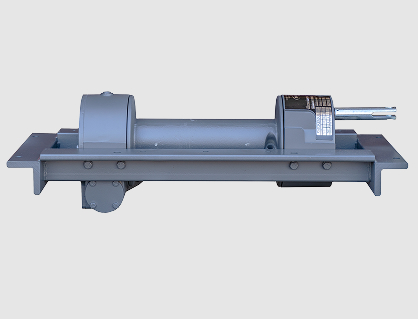

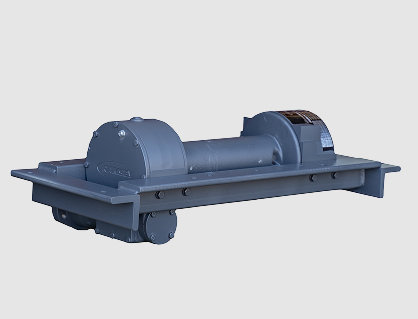

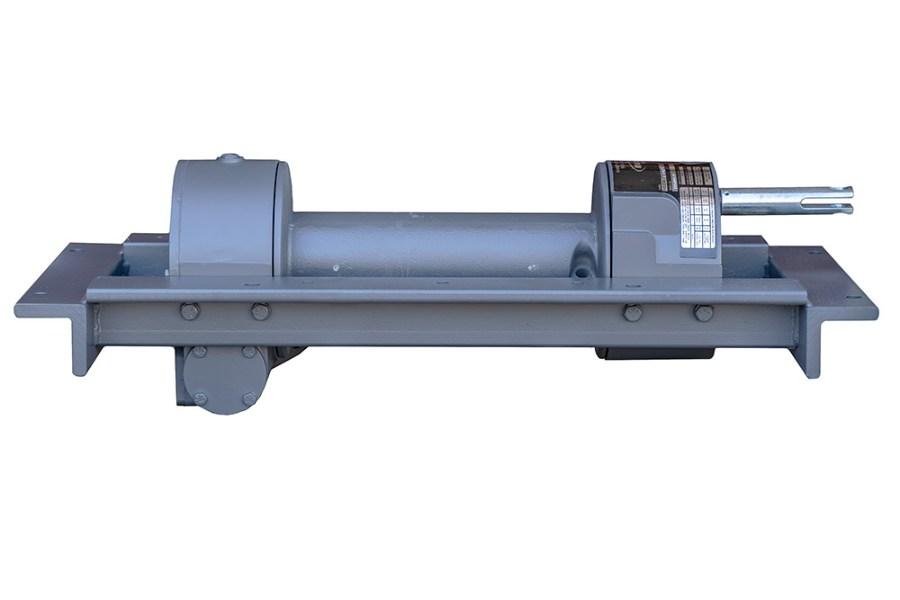

Ramsey HD234 8,000 lb. Hydraulic Worm Winch w/ Ram-Lok - Jerr-Dan w/ Adapter Rod and Box Frame

Leave a Review
Shop all Ramsey Winch products
SKU: 121795
$1,269.99
0 In Your Cart   →
Go Straight to Checkout
Truck Freight Required
View Similar Products
Description

The Ramsey HD234 Complete 8,000 lb. Hydraulic Worm Winch Package provides an all-in-one replacement solution for Jerr-Dan car carriers and custom rollback decks. This commercial assembly includes the 8K self-locking worm winch, the Jerr-Dan clutch adapter rod and the full protective steel box frame mount. This setup is ideal for complete carrier overhauls, custom bed builds or replacing damaged factory mounting structures.

Product Highlights

8,000-lb. Rated Line Pull

Built to handle heavy passenger cars, SUVs and commercial equipment, giving rollback operators full pulling authority across standard 10-series and 12-series carrier duties.

Fast Line Recovery Speed

Engineered for optimum hydraulic efficiency, retrieving line at up to 28 feet per minute (at 15 GPM) to speed up hookups and reduce hazardous dwell time on highway shoulders.

High-Volume Drum Capacity

Generous 11.31" x 7.25" x 3.5" drum dimensions accommodate up to 140 feet of 3/8" wire rope, allowing long-reach snatch block setups and deep ditch recoveries.

Self-Locking Mechanical Security

Features Ramsey’s precision-machined worm gear drive that automatically locks the drum in place the moment hydraulic pressure stops, preventing accidental freespooling under heavy tension.

Ram-Lok® Spring-Loaded Manual Clutch

Features Ramsey’s proven pull-and-rotate Ram-Lok® mechanism, giving operators smooth, instant drum disengagement for fast free-spooling wire rope payout.

Complete Drop-In Jerr-Dan Assembly

Standardized package includes both the Jerr-Dan adapter rod and full box frame mount for hassle-free replacement on damaged decks or custom carrier builds.

Heavy-Duty Protective Steel Box Frame

Includes a precision-formed structural steel housing that fully encloses the drum assembly. This prevents frame flex, protects the drive components and absorbs structural twisting under severe off-angle pulls.

SAE J706 Compliant & Made in USA

Manufactured in the United States to meet rigid SAE J706 towing safety standards, guaranteeing long service life, field durability and operator safety under continuous commercial use.

Specifications

  • Rated Line Pull: 8,000 lbs. (3,628 kg) — 1st Layer
  • Gear Reduction Ratio: 34:1 Worm Gear
  • Line Speed (1st Layer): 28 FT/MIN @ 15 GPM
  • Hydraulic Requirement: 2,375 PSI @ 15 GPM
  • Drum size: 11.31"L x 7.25" flange x 3.5" barrel
  • Clutch Type & Control: Ram-Lok® manual pull-and-rotate
  • Recommended Wire Rope: 3/8" (Up to 140' drum capacity)
  • Weight (Without Cable): 110 lbs.
  • Included hardware: Full steel box frame mount + Jerr-Dan adapter rod

Dimensions & Drum Spec

  • Drum barrel diameter: 3.5"
  • Drum flange diameter: 7.25"
  • Drum length: 11.31"
  • Cable capacity: 140 ft. of 3/8" wire rope

Equipment Compatibility

Complete drop-in replacement package for Jerr-Dan 10-Series and 12-Series rollback carriers, car haulers and custom bed builds requiring a full protective mounting housing.
Note: If your existing Jerr-Dan steel box frame is in good structural condition and you only need to replace the winch core and adapter rod to save on hardware costs, order Zip's Part # 121815.

Questions & answers

What is the rated capacity of the Ramsey HD234 winch?
The Ramsey HD234 hydraulic worm winch features an 8,000 lb. (3,628 kg) rated line pull on the first layer, giving rollback operators plenty of pulling authority for heavy passenger cars, SUVs and commercial equipment.
Is this winch a direct replacement for Jerr-Dan rollback carriers?
This specific Ramsey HD234 is designed as a direct core replacement for Jerr-Dan 10-series and 12-series rollback carriers. It includes the integrated adapter rod required to interface directly with standard Jerr-Dan manual clutch linkages.
How does the Ram-Lok clutch mechanism work?
The winch utilizes Ramsey’s proven pull-and-rotate Ram-Lok® spring-loaded manual clutch. This allows operators to achieve smooth and instant drum disengagement for fast, free-spooling wire rope payout.
How fast is the line recovery speed on the Ramsey HD234?
When supplied with the required 15 GPM of hydraulic flow, the Ramsey HD234 retrieves line at up to 28 feet per minute on the first layer, helping to speed up hookups and reduce dwell time on the road.
Does the Ramsey HD234 have a brake system?
Yes, it features self-locking mechanical security. The precision-machined worm gear drive automatically locks the drum in place the moment hydraulic pressure stops, preventing accidental freespooling under tension.
