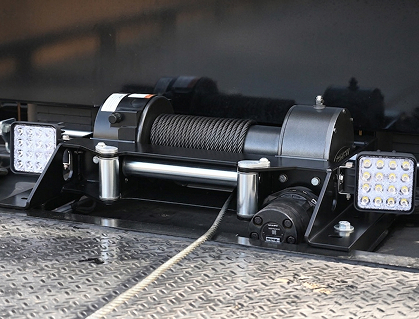

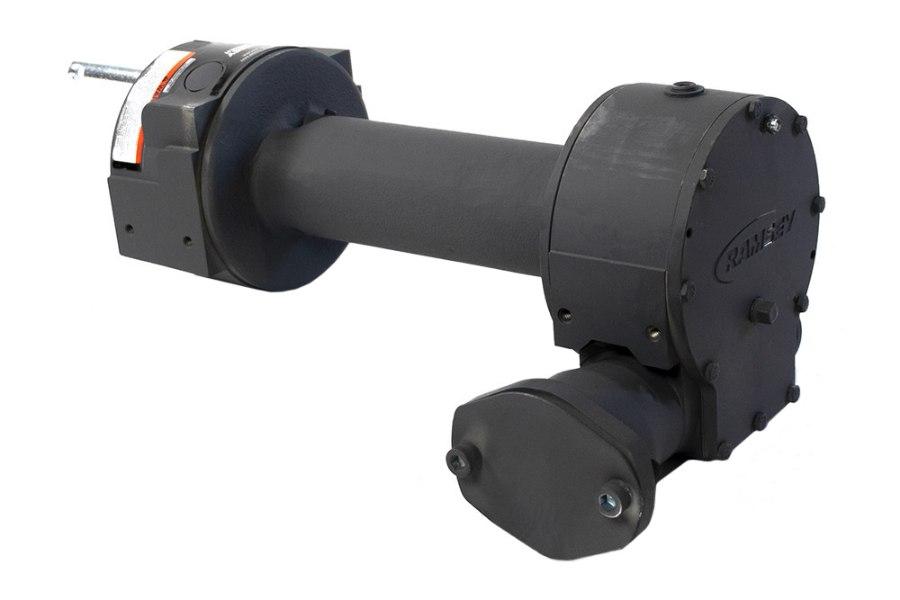

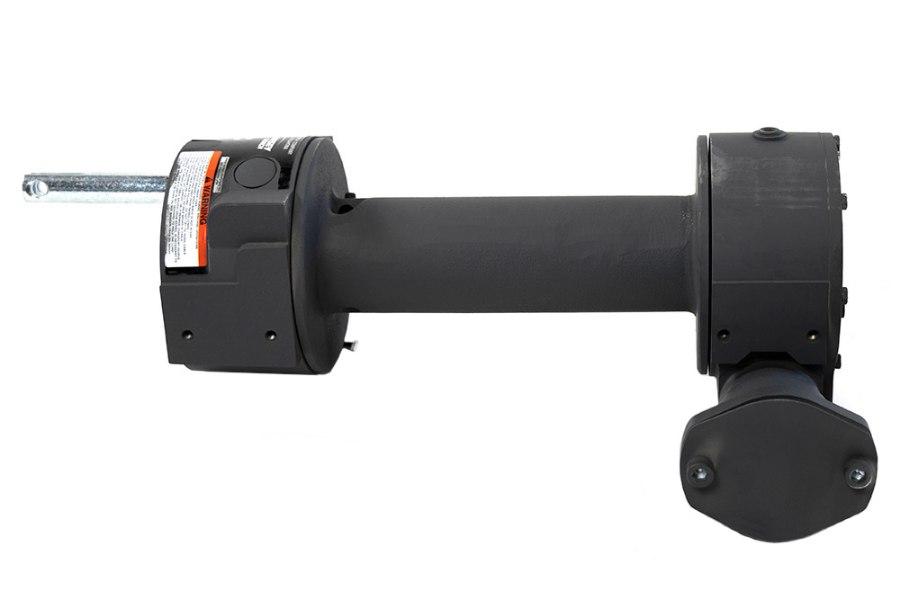

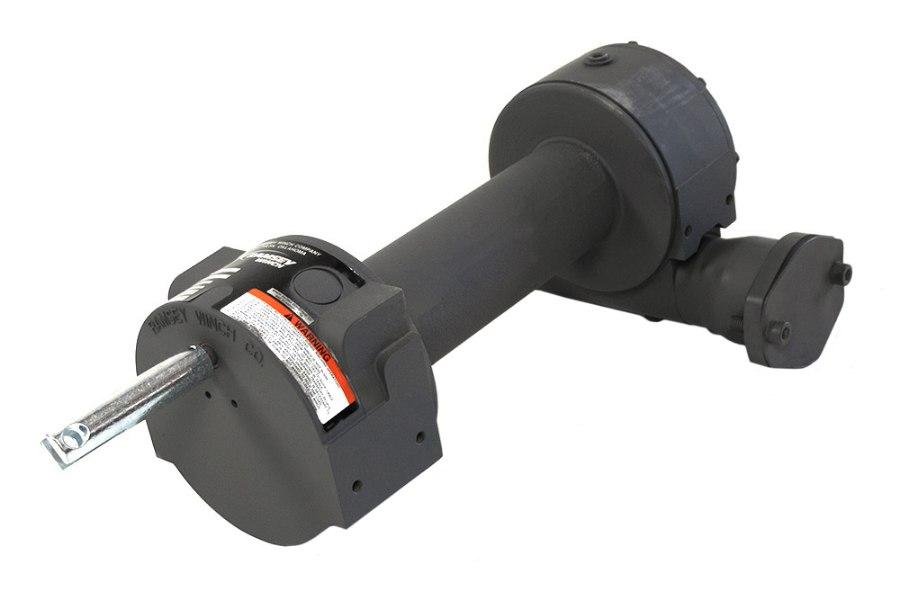

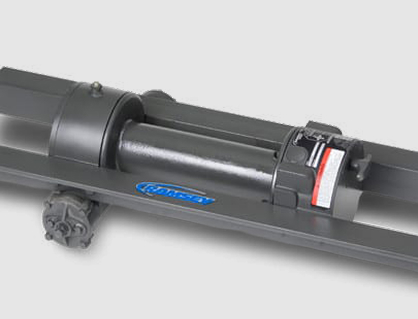

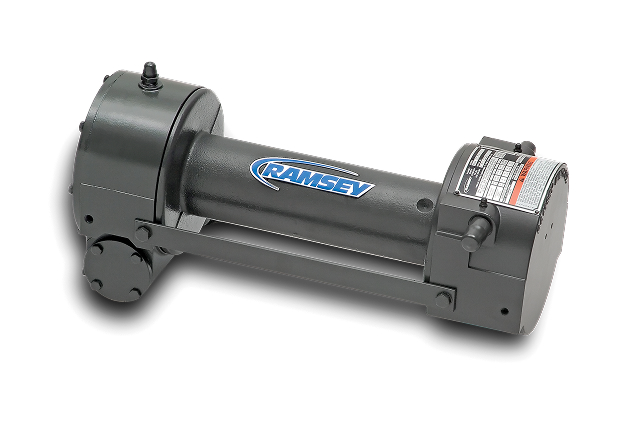

Ramsey HD234 with Adapter Rod

The Ramsey HD234 8,000 lb. Hydraulic Worm Winch with Adapter Rod is built specifically for operators needing a direct core replacement on Jerr-Dan rollback carriers and car haulers. Designed to re-use your carrier’s existing operational mounting frame, this heavy-duty 8K winch comes pre-fitted with the specialized Jerr-Dan adapter rod extension for direct linkage to factory manual clutch controls.

Product Highlights

8,000 lbs. Rated Line Pull

Built to handle heavy passenger cars, SUVs and commercial equipment, giving rollback operators full pulling authority across standard 10-series and 12-series carrier duties.

Self-Locking Mechanical Security

Features Ramsey’s precision-machined worm gear drive that automatically locks the drum in place the moment hydraulic pressure stops, preventing accidental freespooling under heavy tension.

Ram-Lok® Spring-Loaded Manual Clutch

Features Ramsey’s proven pull-and-rotate Ram-Lok® mechanism, giving operators smooth, instant drum disengagement for fast free-spooling wire rope payout.

Fast Line Recovery Speed

Engineered for optimum hydraulic efficiency, retrieving line at up to 28 feet per minute (at 15 GPM) to speed up hookups and reduce hazardous dwell time on highway shoulders.

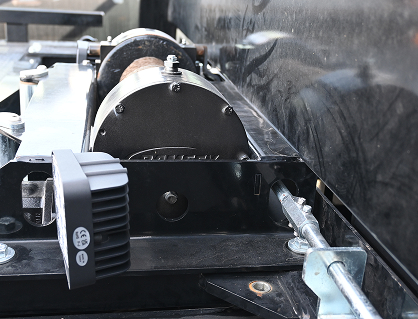

Integrated Jerr-Dan Adapter Rod Assembly

Comes factory-equipped with the extending adapter rod required to interface directly with standard Jerr-Dan manual clutch linkages, eliminating custom shop fabrication.

Cost-Effective Drop-In Assembly

Keeps repair costs low by allowing you to replace a worn or damaged winch core while keeping your intact Jerr-Dan subframe box structure.

Specifications

• Rated Line Pull: 8,000 lbs. (3,628 kg) — 1st Layer
• Gear Reduction Ratio: 34:1 Worm Gear
• Line Speed (1st Layer): 28 FT/MIN @ 15 GPM
• Hydraulic Requirement: 2,375 PSI @ 15 GPM
• Motor Displacement: 3.6 cu. in./rev.
• Clutch Type & Control: Ram-Lok® Manual Pull-and-Rotate
• Recommended Wire Rope: 3/8" (Up to 140' Drum Capacity)
• Weight (Without Cable): 110 lbs.
• Included Hardware: Jerr-Dan Adapter Rod (Box Frame Not Included)

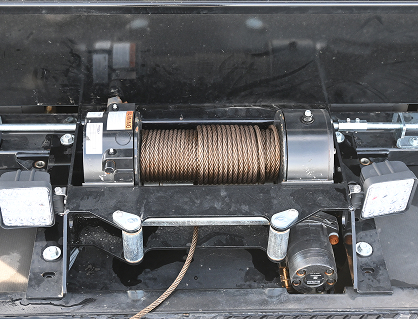

Dimensions & Drum Spec

• Drum Barrel Diameter: 3.5"
• Drum Flange Diameter: 7.25"
• Drum Length: 11.31"
• Cable Capacity: 140 ft. of 3/8" wire rope

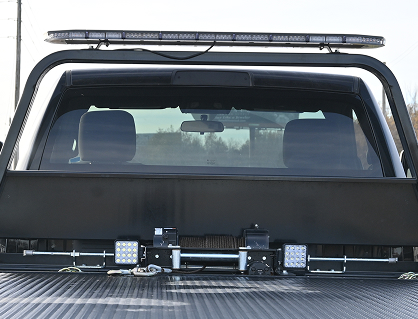

Equipment Compatibility

Direct core replacement for Jerr-Dan 10-Series and 12-Series rollback carriers equipped with factory manual clutch controls and an intact, undamaged mounting box structure.
To note: If your mounting structure is damaged or missing, order Zip's Part #121795 for the complete assembly with box frame.

FAQ

Q: What is the rated capacity of the Ramsey HD234 winch?

A: The Ramsey HD234 hydraulic worm winch features an 8,000 lb. (3,628 kg) rated line pull on the first layer, giving rollback operators plenty of pulling authority for heavy passenger cars, SUVs and commercial equipment.

Q: Is this winch a direct replacement for Jerr-Dan rollback carriers?

A: This specific Ramsey HD234 is designed as a direct core replacement for Jerr-Dan 10-series and 12-series rollback carriers. It includes the integrated adapter rod required to interface directly with standard Jerr-Dan manual clutch linkages.

Q: How does the Ram-Lok clutch mechanism work?

A: The winch utilizes Ramsey’s proven pull-and-rotate Ram-Lok® spring-loaded manual clutch. This allows operators to achieve smooth and instant drum disengagement for fast, free-spooling wire rope payout.

Q: How fast is the line recovery speed on the Ramsey HD234?

A: When supplied with the required 15 GPM of hydraulic flow, the Ramsey HD234 retrieves line at up to 28 feet per minute on the first layer, helping to speed up hookups and reduce dwell time on the road.

Q: Does the Ramsey HD234 have a brake system?

A: Yes, it features self-locking mechanical security. The precision-machined worm gear drive automatically locks the drum in place the moment hydraulic pressure stops, preventing accidental freespooling under tension.
