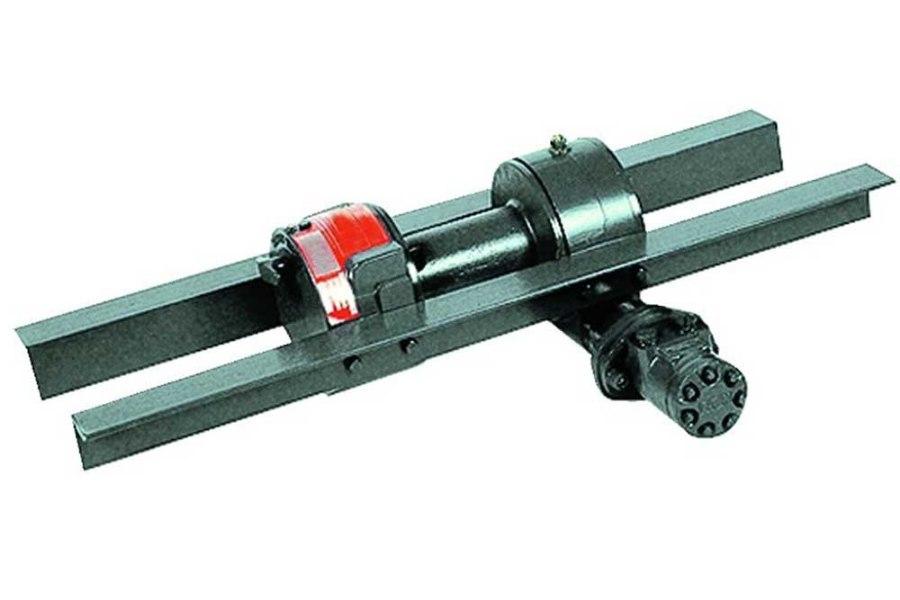

Ramsey HDG-350R FURS with Ram-Lok

Rugged worm gearing means faster line speeds to get you to your next job sooner.

• Ramsey Part Number: 121521
• Model: HDG-350R
• Line Pull: 10,000 lbs
• Clutch: Ram-Lok
• Mounting Configuration: Front Underwind Right Side/Rear Underwind Left Side
• Gear Ratio: 30:1
• Motor Included: Yes
• Angles Included: Yes
• Drum Length: 11.125"+-/16"
• Adjustable/Automatic Brake: Yes
• Fast Line Speed
• Standard Drum
• Includes Brake
• Recommended Cable: 7/16"
• Meets SAE-J706
• Made in the USA

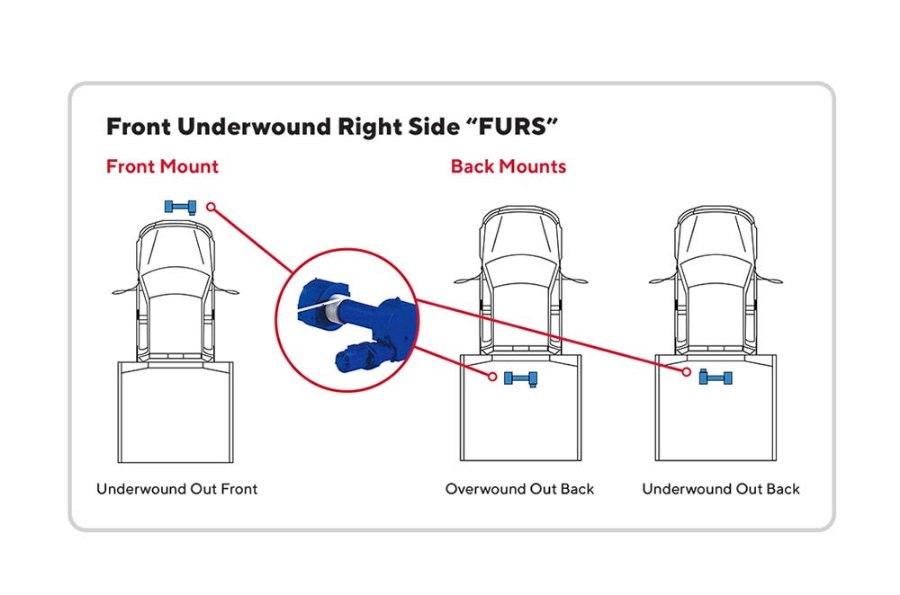

  Winch Mount Configuration





  Applications

• General Industrial
• Mining & Construction
• Railroad
• Specialty Vehicle
• Towing & Recovery
• Towing & Recovery (Carrier)
• Towing & Recovery (Light Wrecker)
• Towing & Recovery (Medium Wrecker)
• Trailer



  Model HDG-350 Specifications

• Rated Line Pull: 10,000 lbs / 4,536 Kg (1st Layer of Cable)
• 1st Layer Line Speed: 32'/min / 9.7m/min
• Gear Ratio: 30:1
• Weight w/o Cable: 110 lbs / 50 Kg
• Brake: Yes - brake is self-locking (Includes auxiliary brake)
• Cable: None
• Drum Size (L x F x B): 11.31" x 7.25" x 3.50" / 287.3mm x 184.2mm x 88.9mm
• Cable Capacity: 125' / 38.1m
• Recommend Cable Size: 7/16" / 11.1mm
• Hydraulic Pressure Required: 2,100 PSI (145 Bar)
• Hydraulic Flow Required: 15.0 GPM (57 LPM)
• Motor Size: 3.6 Cu. In. (59 cc)
• Additional Motor Options: Must Call
• Clutch Type: Blocked, RAM-LOK?, DOW-LOK?, Lever Style
• Clutch Control: Air, Manual, Electric
