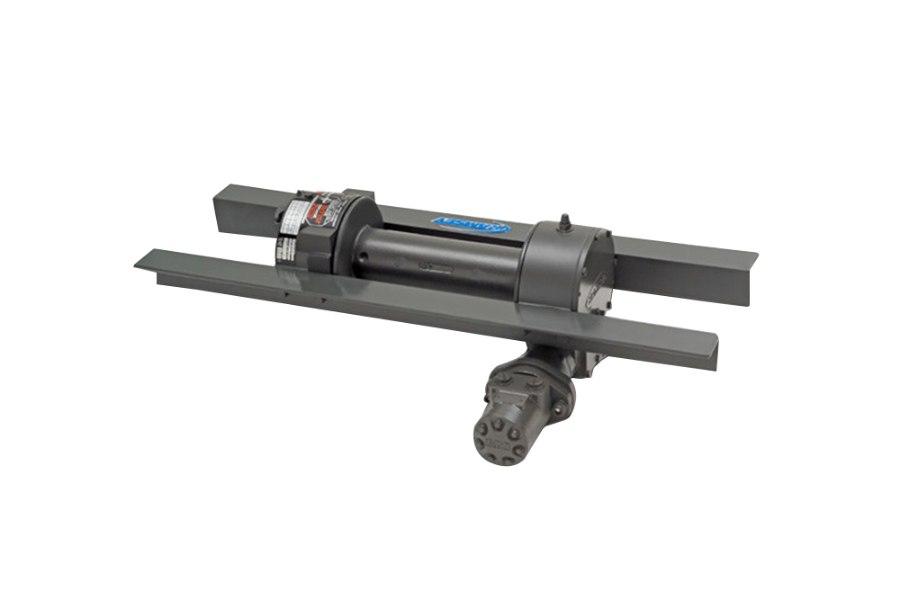

Ramsey HY-246R FOLS with Lever without Motor/Angles

SKU: HY-246 LH
$979.99
0 In Your Cart   →
Go Straight to Checkout
Qualifies for Free Shipping
with $199.00 minimum order
Description
Ramsey 8,000?lb-rated hydraulic worm winch is a front-overwind left-hand lever-release configuration—excellent for towing rigs or heavy vehicle installs demanding strong, controlled pulling power.
  • Ramsey Part Number: 121829
  • Model: HY-246R
  • Line Pull: 8,000 lbs
  • Clutch: Lever
  • Mounting Configuration: Front Overwind Left Side
  • Gear Ratio: 34:1
  • Motor Included: No
  • Angles Included: No
  • Drum Length: 6.175"+-/16"
  • Adjustable/Automatic Brake: No
  • Compact Short Drum
  • Recommended Cable: 3/8"
  • Meets SAE-J706
  • Made in the USA

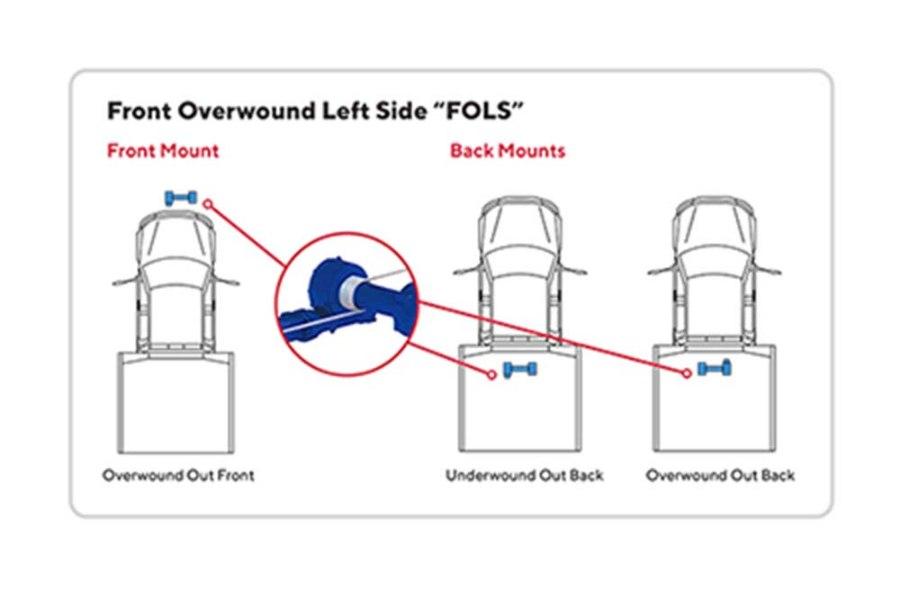

    Winch Mount Configuration



    Applications

  • General Industrial
  • Mining & Construction
  • Railroad
  • Specialty Vehicle
  • Towing & Recovery
  • Towing & Recovery (Carrier)
  • Towing & Recovery (Light Wrecker)
  • Trailer

    Model HY-200 Specifications

  • Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
  • 1st Layer Line Speed: 12.6'/min / 3.8m/min
  • Gear Ratio: 60:1 (HY-246 = 46:1)
  • Weight w/o Cable: 80 lbs / 36 Kg
  • Brake: "Optional auxiliary brake is available"
  • Cable: None
  • Drum Size (L x F x B): 6.31" x 7.25" x 3.50" / 160.3mm x 184.2mm x 88.9mm
  • Cable Capacity: 75' / 22.9m
  • Recommend Cable Size: 3/8" / 9.5mm
  • Hydraulic Pressure Required: 1,600 PSI (110 Bar)
  • Hydraulic Flow Required: 15.0 GPM (57 LPM)
  • Motor Size: 4.5 Cu. In. (74 cc)
  • Additional Motor Options: Must Call
  • Clutch Type: Blocked, RAM-LOK, DOW-LOK, Lever Style
  • Clutch Control: Air, Manual
