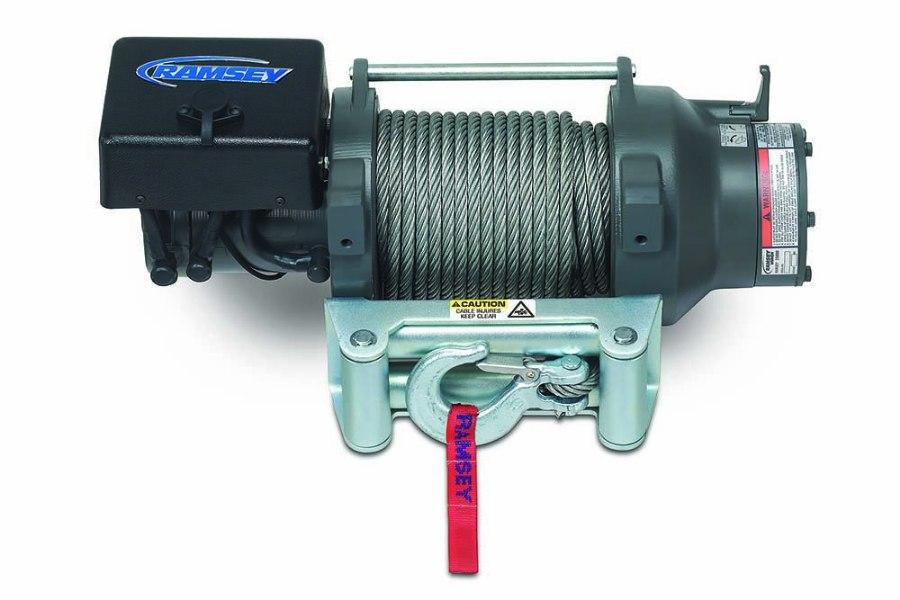

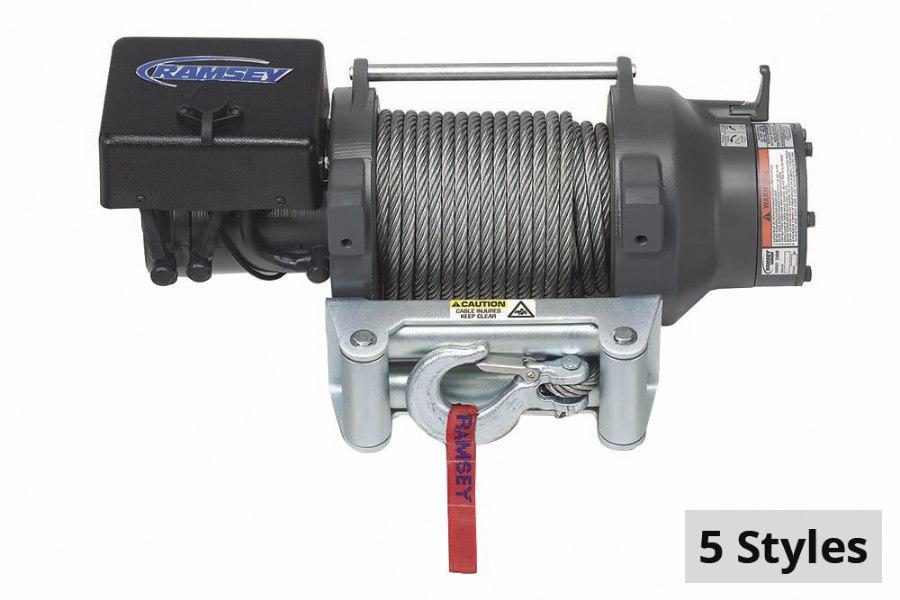

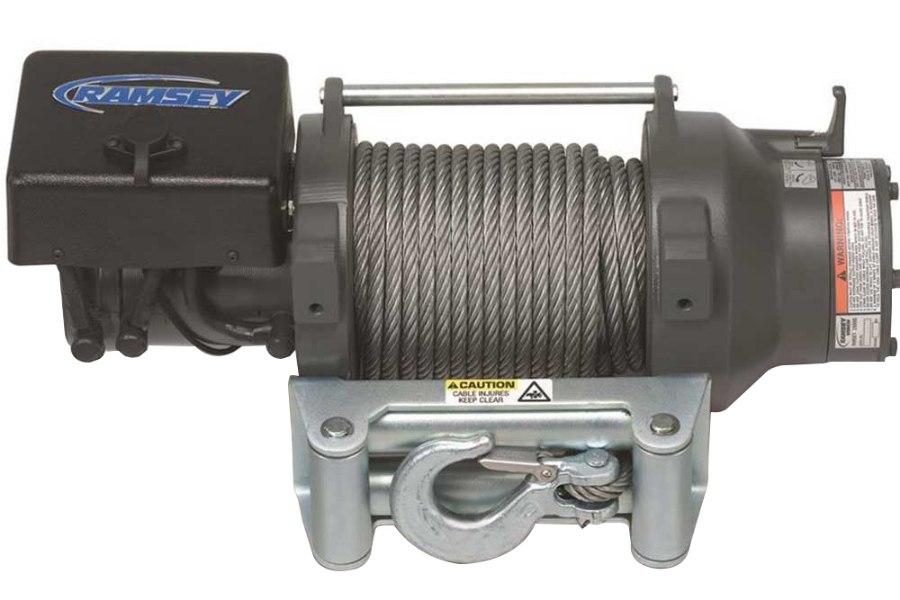

Ramsey Patriot 15000 Electric Planetary Winch

Patriot 15,000 - Proven three-stage planetary gear system design for fast line speed. Easy to use and verify engagement spring loaded pull and rotate clutch design for free spooling-Patriot 15,000. Weather resistant solenoid assembly.

• Efficient 5.5 HP 12 V DC series wound electric reversible motor for increased pulling power
• Proven three-stage planetary gear system design for fast line speed
• Motor and solenoids are grounded directly to battery
• Strong automatic load-holding brake for strength
• Weather resistant solenoid assembly
• Cam action clutch disengages planetary gear system for free spooling
• 12 ft. pendant or the patented (US # 6,995,682) wireless remote
• 6 ft. (1,83 M) 2 gauge battery cables with connectors
• 4-way roller fairlead
• Limited lifetime warranty
• Made in the USA



  Applications

• Off-Road
• Specialty Vehicle



  Specifications

• Rated Line Pull: 15,000 lbs / 6,804 Kg (1st Layer of Cable)
• Gear Ratio: 251:1
• Brake: Yes
• Cable: Includes Cable
• Drum Size (L x F x B): 8" x 8" x 3.5" / 203.2mm x 203.2mm x 88.9mm
• Cable Capacity: 90' / 27.4m
• Recommend Cable Size: 7/16" / 11.1mm
• 1st Layer Line Speed: 25'/min / 7.6m/min
• Motor Output: 5.5 HP
• Motor Type: Series Wound
• Voltage: 12V / 24V
• Fairlead: Roller
• Clutch Type: Pull and Rotate
• Clutch Control: Manual



  Style

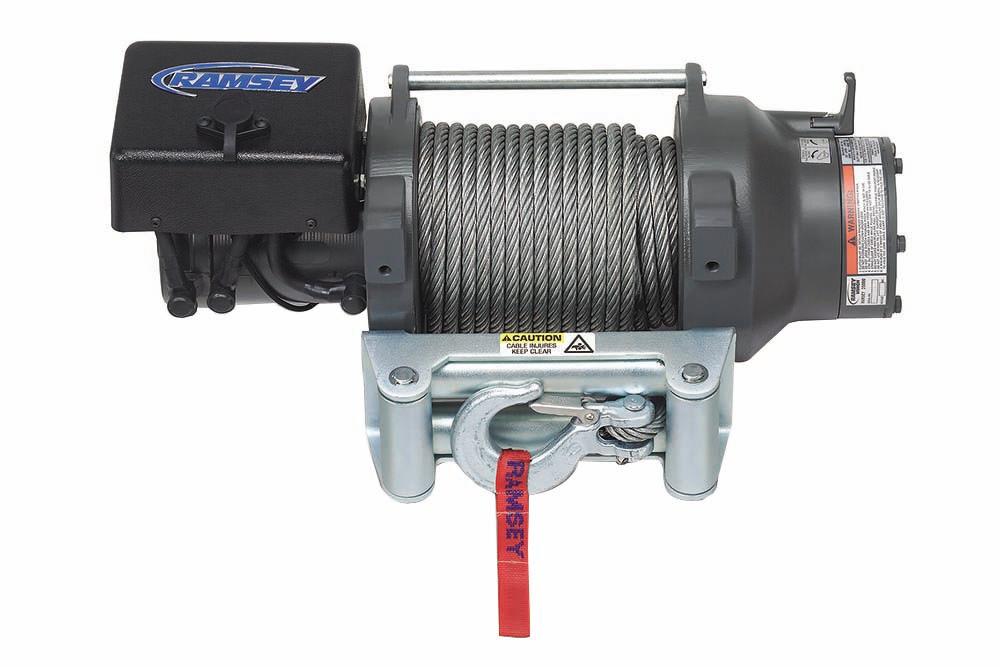

• RW-109159: 12v with 12' Pendant

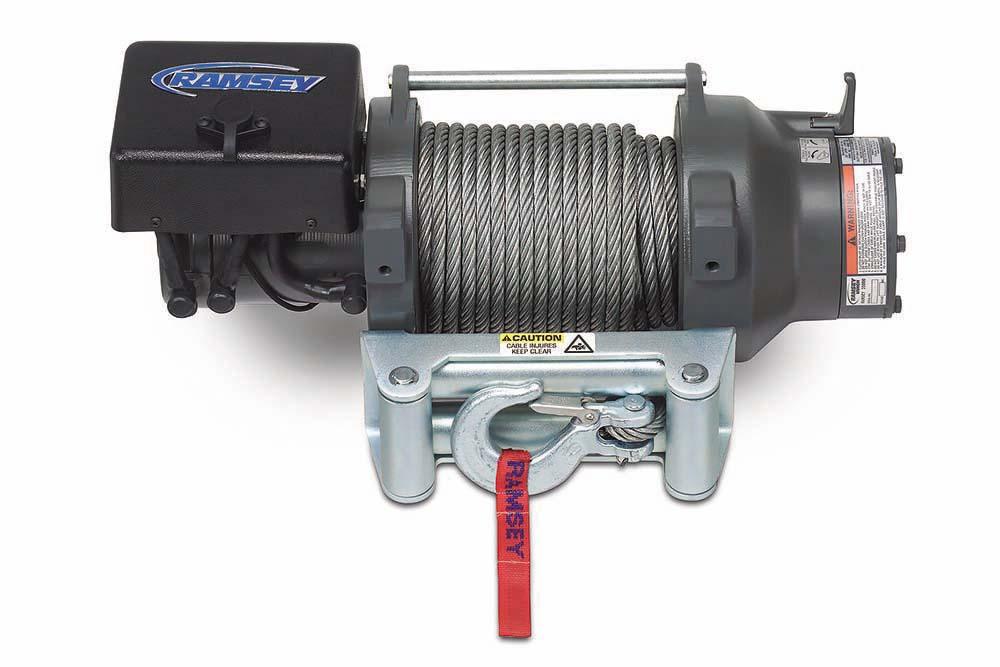

• RW-109190: 24v CE with 12' Pendant
• RW-109172: 24v with 12' Pendant
• RW-109160: 12v with Wireless Remote
• RW-109177: 12v CE with 12' Pendant
