Ramsey Patriot 9500 Electric Planetary Winch

Leave a Review

Shop all Ramsey Winch products

Picture of Ramsey Patriot 9500 Electric Planetary Winch

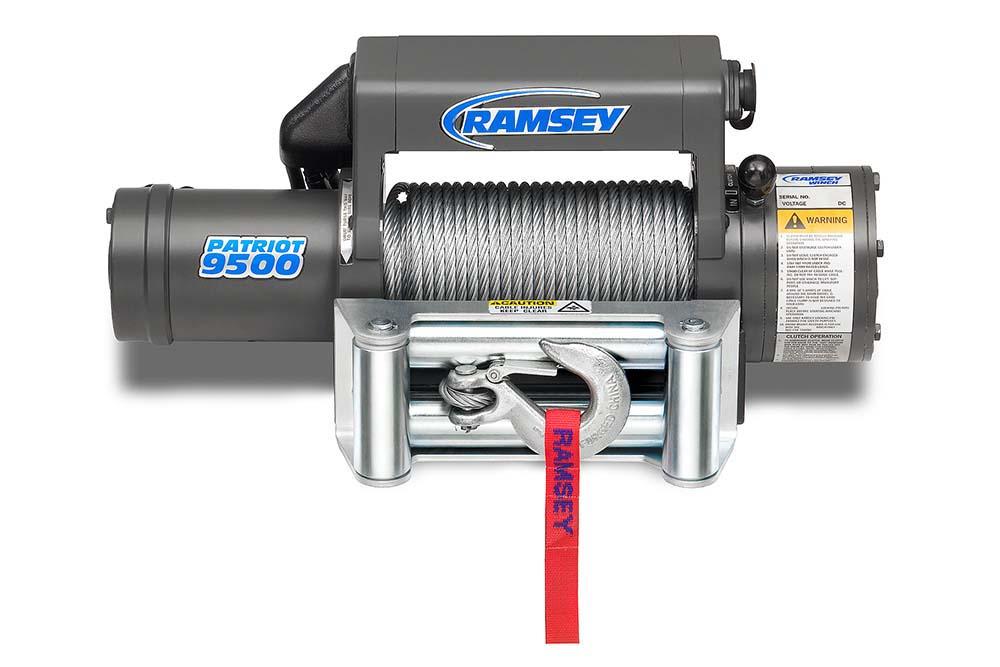

Choose STYLE *: 12v with 4-Roller Remote and Wireless Remote

12v with 4-Roller Remote and Wireless Remote

Not available

12v with Hawse Fairlead and 12' Pendant

12v with Hawse Fairlead and 12' Pendant

Not available

24v with 4-Roller and 12' Pendant

24v with 4-Roller and 12' Pendant

Not available

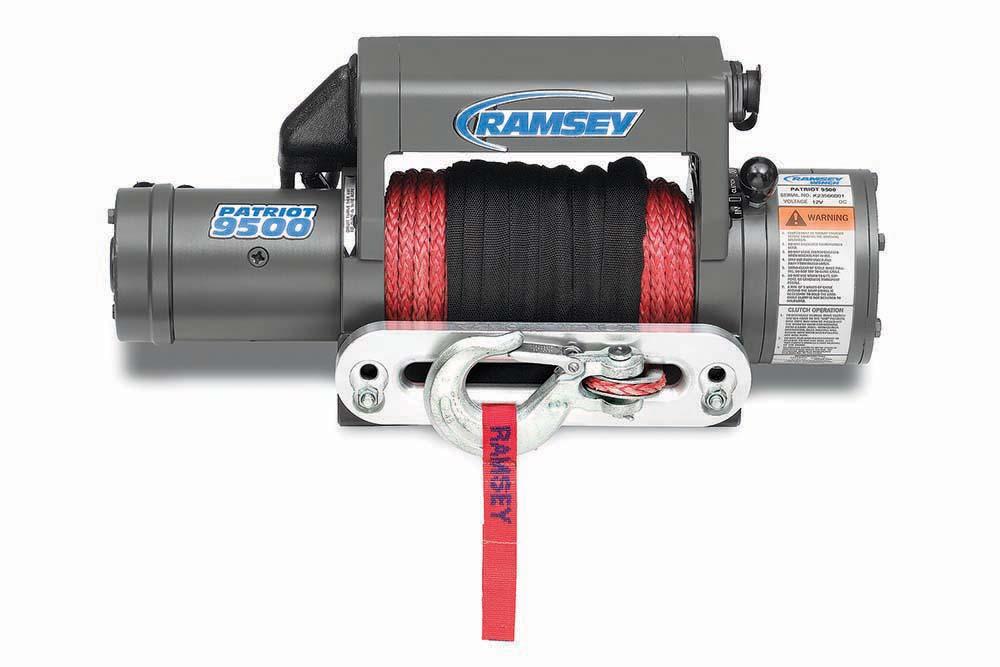

12v with Hawse Fairlead and Wireless Remote

12v with Hawse Fairlead and Wireless Remote

Not available

SKU: RW-PATRIOT 9500

Price: $2,064.99–$3,114.99

Qty:

View Cart

Qualifies for Free Shipping
with $199.00 minimum order

Description

Ramsey Patriot 9500 with proven three-stage planetary gear system design for fast line speed. Cam action clutch disengages planetary gear system for free spooling. Weather resistant integrated solenoid assembly.

Efficient 5.5 HP 12 V DC series wound electric reversible motor for increased pulling power
Proven three-stage planetary gear system designed for fast line speed
Motor and solenoids are grounded directly to battery
Strong automatic load-holding brake for strength
Weather resistant solenoid assembly
Cam action clutch disengages planetary gear system for free spooling
The Patriot Profile Series comes with either a 12 ft. pendant or the patented (US # 6,995,682) wireless remote
6 ft. (1,83 M) 2 gauge battery cables with connectors
4 roller fairlead
Limited lifetime warranty
Made in the USA

Applications
Off-Road
Specialty Vehicle

Specifications
Rated Line Pull: 9,500 lbs / 4,309 Kg (1st Layer of Cable)
Gear Ratio: 138:1
Brake: Yes
Cable: Includes Cable
Drum Size (L x F x B): 9" x 5.5" x 2.5" / 229mm x 140mm x 64mm
Cable Capacity: 105' / 32m
Recommend Cable Size: 5/16" / 7.9mm
1st Layer Line Speed: 35.4'/min / 10.8m/min
Motor Output: 5.5 HP
Motor Type: Series Wound
Voltage: 12V / 24V
Fairlead: Roller
Clutch Type: Cam Action
Clutch Control: Manual

Style
RW-109192: 12v with Hawse Fairlead and 12' Pendant
RW-109154: 12v with Roller Fairlead and Wireless Remote
RW-109171: 24v with Roller Fairlead and 12' Pendant
RW-109193: 12v with Hawse Fairlead and Wireless Remote

Documents

Shipping & Returns

Orders requiring Expedited Shipping must be placed by 12 p.m. CST. Orders weighing under 150 lbs. ship via UPS Ground, while orders exceeding that weight may ship via motor freight. All orders must be inspected within 10 days of arrival. Requests to return products must be filed within 45 days. See our full Shipping and Returns Policy by clicking the button below.

Learn More

Product Information

Item #	MFG #	STYLE
RW-109154	109154	12v with 4-Roller Remote and Wireless Remote
RW-109192	109192	12v with Hawse Fairlead and 12' Pendant
RW-109171	109171	24v with 4-Roller and 12' Pendant
RW-109193	109193	12v with Hawse Fairlead and Wireless Remote
