Ramsey Patriot 9500UT 9,500 lb. 12V Electric Planetary Winch

Leave a Review

Shop all Ramsey Winch products

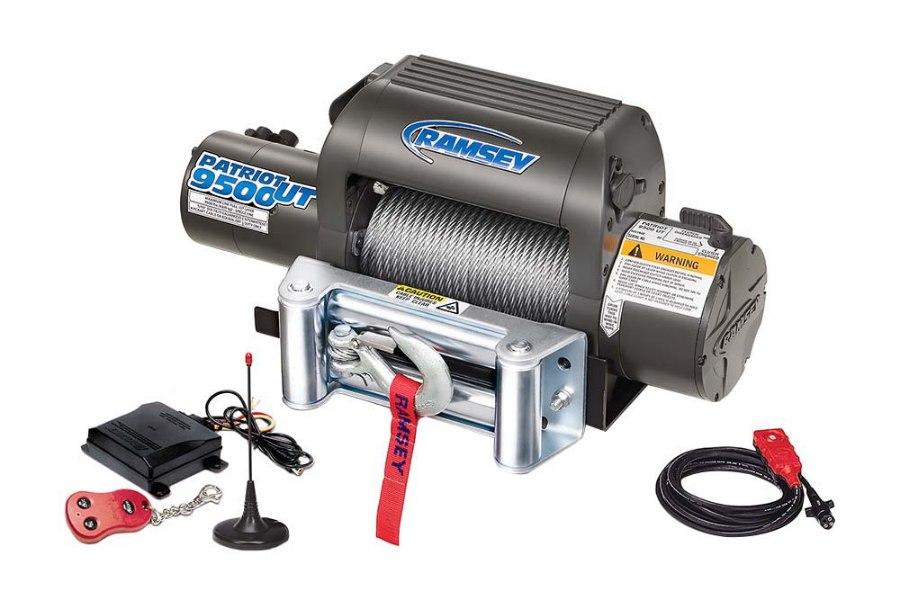

Picture of Ramsey Patriot 9500UT 9,500 lb. 12V Electric Planetary Winch

SKU: RW-109198

Price: $2,399.99

Qty:

Go Straight to Checkout

Qualifies for Free Shipping
with $199.00 minimum order

Description

Patriot 9500 UT - Semi-Automatic Clutch revolutionary design reduces winching time. Wireless Remote can operate winch from up to 50' away. Sleek new solenoid housing increases structural integrity of the winch. Sealed high torque 5.5 HP 12 V DC series wound electric reversible motor for increased pulling power. Sealed drum & gear housing assembly to keep the elements out of the winch.

Patented Semi-Automatic Clutch revolutionary design reduces winching time increases user convenience
Patented (US # 6,995,682) Wireless Remote can operate winch from up to 50' away
Sleek solenoid housing increases structural integrity of the winch
Sealed high torque 5.5 HP 12 V DC series wound electric reversible motor for increased pulling power
Sealed drum & gear housing assembly to keep the elements out of the winch
Motor and solenoids are grounded directly to battery
Strong automatic load-holding brake for strength
6 ft. (1,83 M) 2 gauge battery cables with connectors
4-way roller fairlead
Limited lifetime warranty
Made in the USA

Applications
Off-Road
Specialty Vehicle

Specifications
Rated Line Pull: 9,500 lbs / 4,309 Kg (1st Layer of Cable)
Gear Ratio: 138:1
Brake: Yes
Cable: Includes Cable
Drum Size (L x F x B): 9" x 5.5" x 2.5" / 229mm x 140mm x 64mm
Cable Capacity: 105' / 32m
Recommend Cable Size: 5/16" / 7.9mm
1st Layer Line Speed: 33'/min / 10.1m/min
Motor Output: 5.5 HP
Motor Type: Series Wound
Voltage: 12V
Fairlead: Roller
Clutch Type: Semi-Automatic (Patented)
Clutch Control: Semi-Automatic (Patented)
