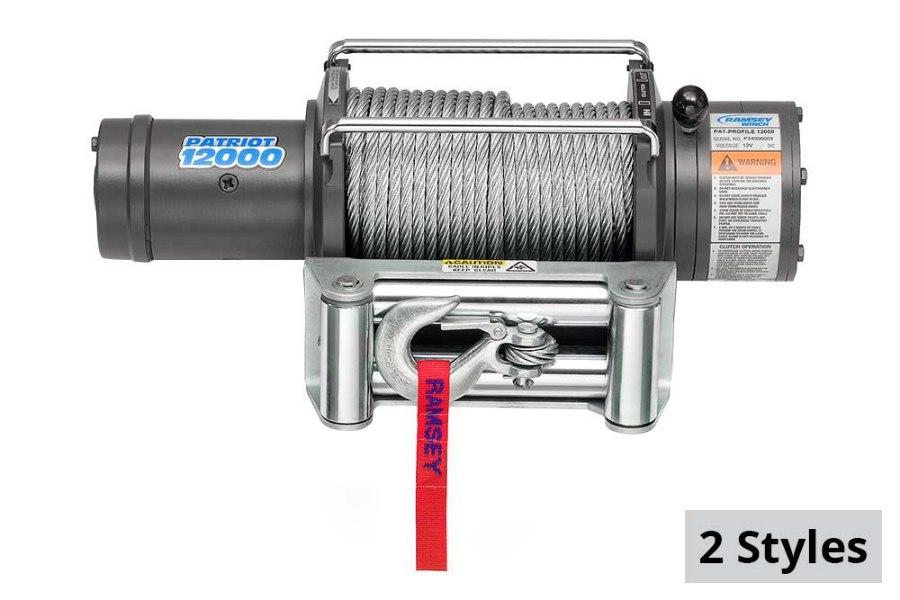

Ramsey Patriot Profile 12000 Electric Planetary Winch

Patriot Profile 12,000 R with efficient 5.5 HP 12V/24V series wound electric reversible motor for increased pulling power. Proven three-stage planetary gear system design for fast line speed. Cam action clutch disengages planetary gear system for free spooling-Patriot 12,000. Available in 12' pendant wired or wireless controller.

• Efficient 5.5 HP 12 V DC series wound electric reversible motor for increased pulling power
• Proven three-stage planetary gear system design for fast line speed
• Motor and solenoids are grounded directly to battery
• Strong automatic load-holding brake for strength
• Weather resistant solenoid assembly
• Cam action clutch disengages planetary gear system for free spooling
• 12 ft. pendant or the patented (US # 6,995,682) wireless remote
• 6 ft. (1,83 M) 2 gauge battery cables with connectors
• 4-way roller fairlead
• Limited lifetime warranty
• Made in the USA



  Applications

• Off-Road
• Specialty Vehicle



  Specifications

• Rated Line Pull: 12,000 Lbs / 5,443 Kg (1st Layer of Cable)
• Gear Ratio: 194:1
• Brake: Yes
• Cable: Includes Cable
• Drum Size (L x F x B): 9" x 7.5" x 3" / 229mm x 191mm x 76mm
• Cable Capacity: 125' / 38.1m
• Recommend Cable Size: 7/16" / 11.1mm
• 1st Layer Line Speed: 29'/min / 8.8m/min
• Motor Output: 5.5 HP
• Motor Type: Series Wound
• Voltage: 12V / 24V
• Fairlead: Roller
• Clutch Type: Pull and Rotate
• Clutch Control: Manual



  Style

• RW-109194: 12v with 12' Pendant

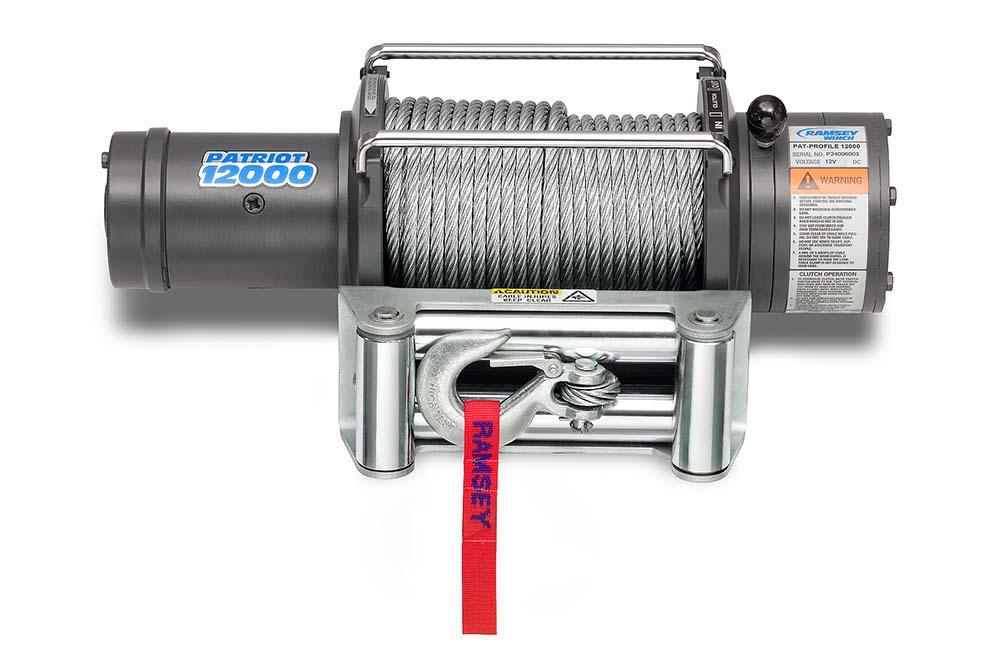

• RW-109197: 24v with 12' Pendant
