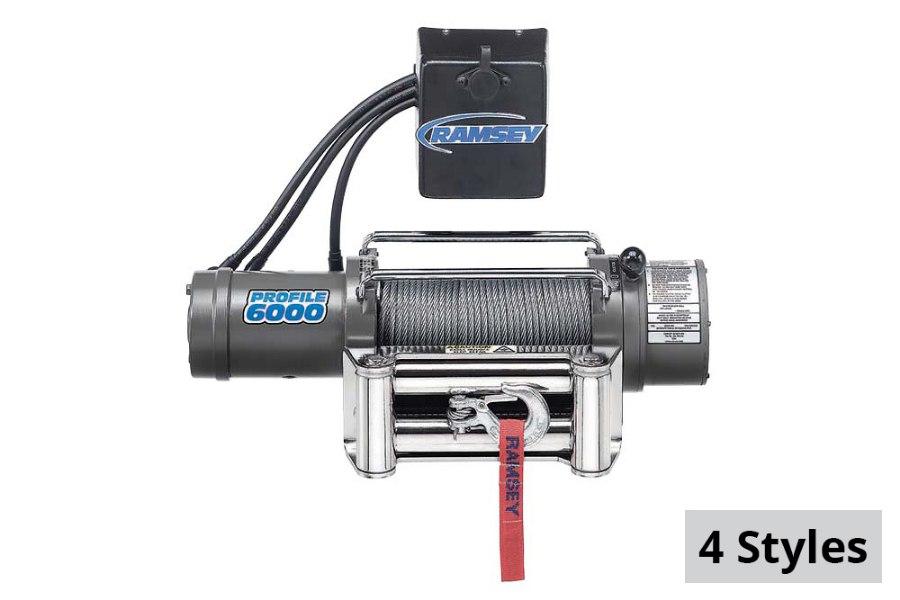

Ramsey Patriot Profile 6000R 6,000 lb. Electric Planetary Winch

$1,727.99$1,897.99
SKU: RW-PATRIOT PRO 6000R
*
View Cart
Qualifies for Free Shipping
with $199.00 minimum order
Description
Patriot Profile 6000 R with 12V or 24V option. Proven three-stage planetary gear system design for fast line speed. Cam action clutch disengages planetary gear system for free spooling. Available with 12' pendant wired remote or wireless remote option.

  • Efficient series wound electric reversible motor
  • Proven three-stage planetary gear system, designed for fast line speed
  • Motor and solenoids are grounded directly to battery
  • Strong automatic load-holding brake for strength
  • Weather resistant solenoid assembly
  • Cam action clutch disengages planetary gear system for free spooling
  • Includes either a 12 ft. pendant or the patented (US # 6,995,682) wireless remote
  • 6 ft. (1,83 M) 2 gauge battery cables with connectors
  • 4-way roller fairlead
  • Limited lifetime warranty
  • Made in the USA

    Applications

  • Off-Road
  • Specialty Vehicle

    Specifications

  • Rated Line Pull: 6,000 lbs / 2,722 Kg (Based on first layer of cable)
  • 1st Layer Line Speed: 45'/min / 13.7m/min
  • Gear Ratio: 90:1
  • Brake: Yes
  • Cable: Includes Cable
  • Drum Size (L x F x B): 9" x 5.5" x 2.5" / 229mm x 140mm x 64mm
  • Cable Capacity: 100' / 30.5m
  • Recommend Cable Size: 1/4" / 6.4mm
  • Motor Output: 5.5 HP
  • Motor Type: Series Wound
  • Voltage: 12v / 24v
  • Clutch Type: Cam Action
  • Clutch Control: Manual

    Style

  • RW-109162: 12v with Wireless Remote
  • RW-109178: 12v CE with 12' Pendant
  • RW-109161: 12v with 12' Pendant

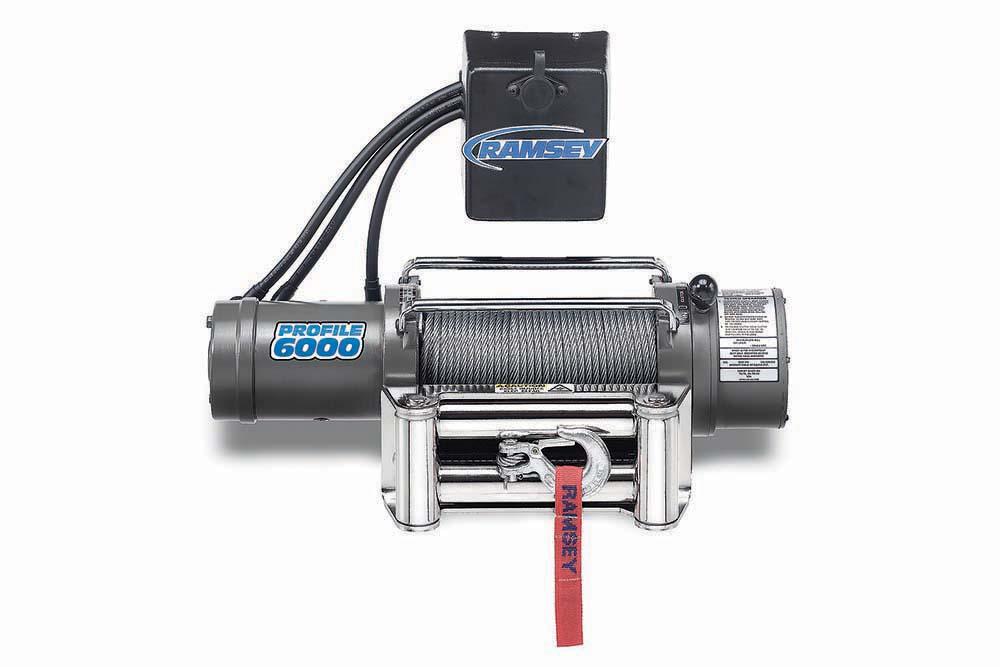

  • RW-109173: 24v with 12' Pendant
