Ramsey Patriot Profile 8000R 8,000 lb. Electric Planetary Winch

Patriot Profile 8000R 12V with 12' Pendant or Wireless Option-Efficient 5.5 HP 12 V DC series wound electric reversible motor for increased pulling power. Proven three-stage planetary gear system design for fast line speed. Cam action clutch disengages planetary gear system for free spooling.

• Efficient series wound electric reversible motor
• Proven three-stage planetary gear system, designed for fast line speed
• Motor and solenoids are grounded directly to battery
• Strong automatic load-holding brake for strength
• Weather resistant solenoid assembly
• Cam action clutch disengages planetary gear system for free spooling
• Includes either a 12 ft. pendant or the patented (US # 6,995,682) wireless remote
• 6 ft. (1,83 M) 2 gauge battery cables with connectors
• 4-way roller fairlead
• Limited lifetime warranty
• Made in the USA



  Applications

• Off-Road
• Specialty Vehicle



  Specifications

• Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
• Gear Ratio: 126:1
• Brake: Yes
• Cable: Includes Cable
• Drum Size (L x F x B): 9" x 5.5" x 2.5" / 229mm x 140mm x 64mm
• Cable Capacity: 95' / 29.0m
• Recommend Cable Size: 5/16" / 7.9mm
• 1st Layer Line Speed: 35'/min / 10.7m/min
• Motor Output: 5.5 HP
• Motor Type: Series Wound
• Voltage: 12V / 24V
• Fairlead: Roller
• Clutch Type: Cam Action
• Clutch Control: Manual



  Style

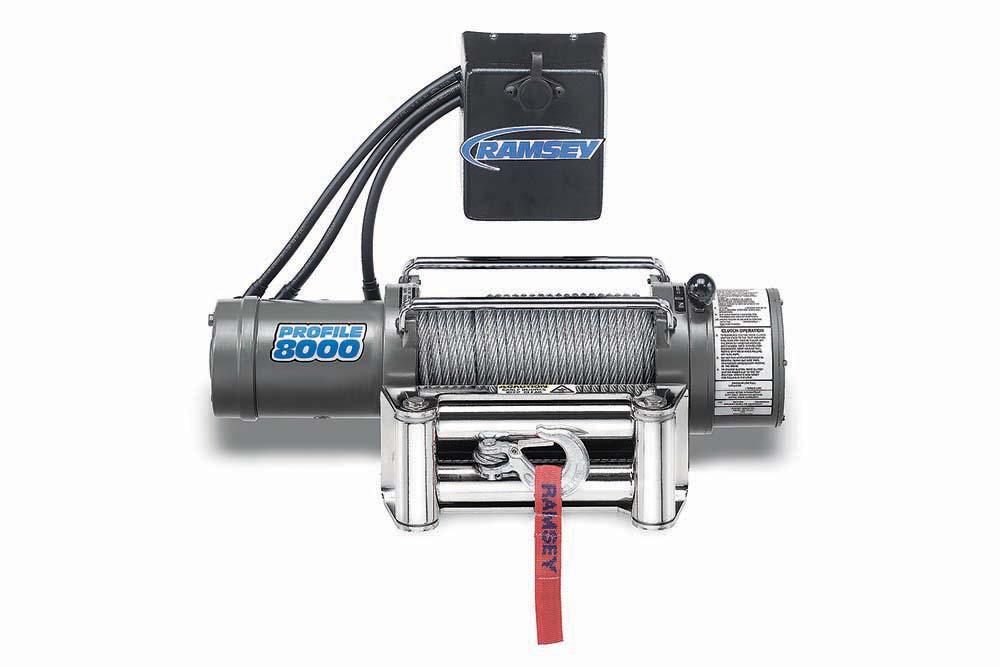

• RW-109164: 12v with Wireless Remote

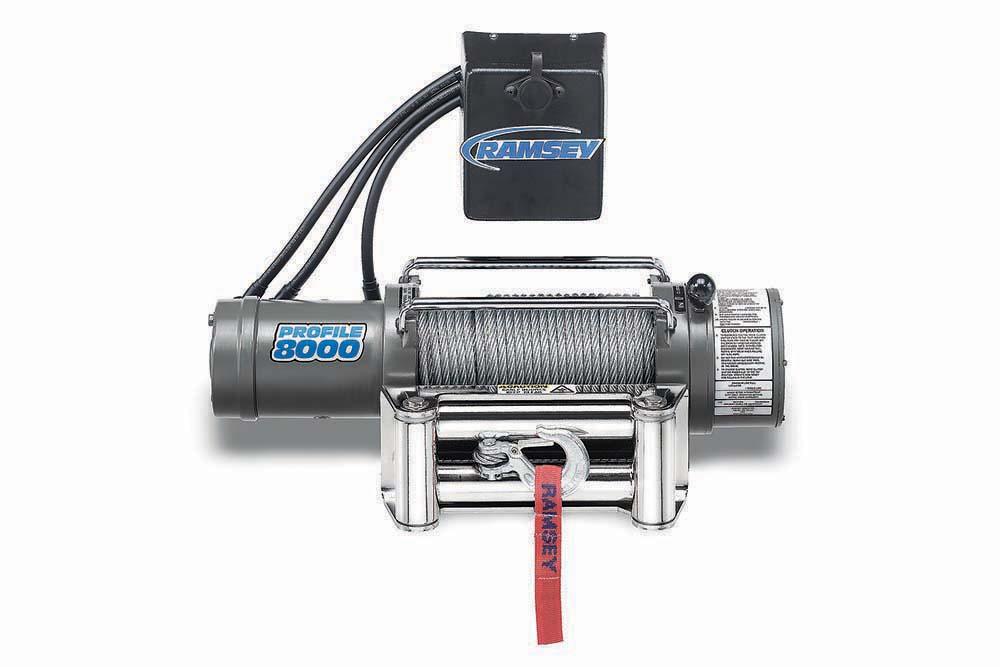

• RW-109179: 12v CE with 12' Pendant
• RW-109163: 12v with 12' Pendant
• RW-109174: 24v with 12' Pendant
