Ramsey Patriot Profile 9000 R 12V Winch

Patriot Profile 9000 R with 12V Efficient 4.4 HP 12 V DC series wound electric reversible motor for increased pulling power. Proven three-stage planetary gear system design for fast line speed. Cam action clutch disengages planetary gear system for free spooling. Available with 12' pendant wired or wireless remote.

• Efficient series wound electric reversible motor for increased pulling power
• Proven three-stage planetary gear system design for fast line speed
• Motor and solenoids are grounded directly to battery
• Strong automatic load-holding brake for strength
• Weather resistant solenoid assembly
• Cam action clutch disengages planetary gear system for free spooling
• The Patriot Profile Series comes with either a 12 ft. pendant or the patented (US # 6,995,682) wireless remote
• 6 ft. (1,83 M) 2 gauge battery cables with connectors
• 4-way roller fairlead
• Limited lifetime warranty
• Made in the USA



  Applications

• Off-Road
• Specialty Vehicle



  Specifications

• Rated Line Pull: 9,000 lbs / 4,083 Kg (1st Layer of Cable)
• Gear Ratio: 138:1
• Brake: Yes
• Cable: Includes Cable
• Drum Size (L x F x B): 9" x 5.5" x 2.5" / 229mm x 140mm x 64mm
• Cable Capacity: 105' / 32m
• Recommend Cable Size: 5/16" / 7.9mm
• 1st Layer Line Speed: 29'/min / 8.8m/min
• Motor Output: 4.4 HP
• Motor Type: Series Wound
• Voltage: 12V
• Fairlead: Roller
• Clutch Type: Cam Action
• Clutch Control: Manual



  Style

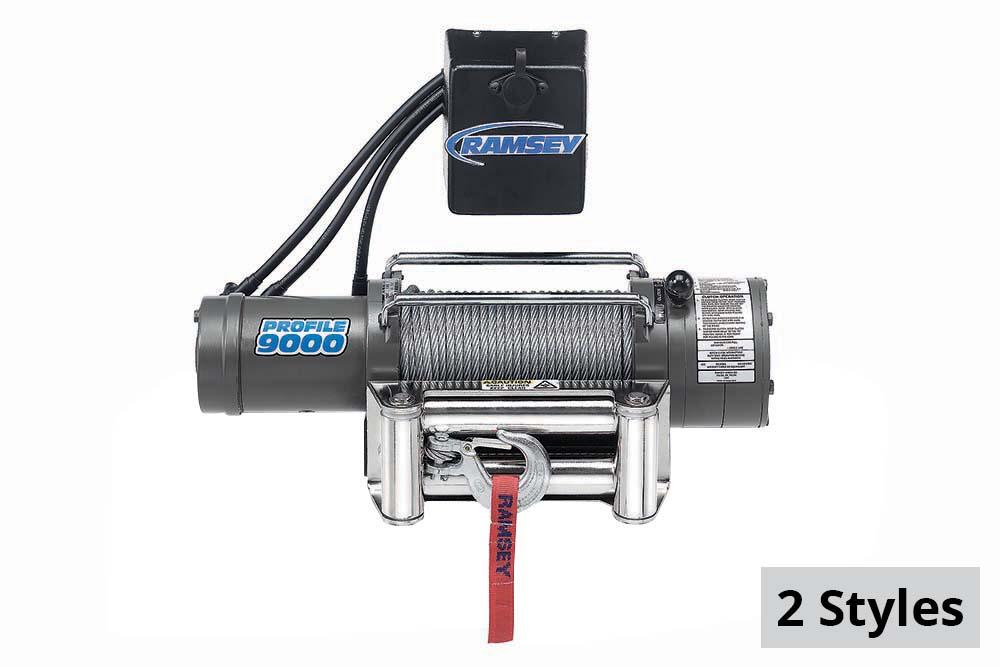

• RW-109165: 12v with 12' Pendant

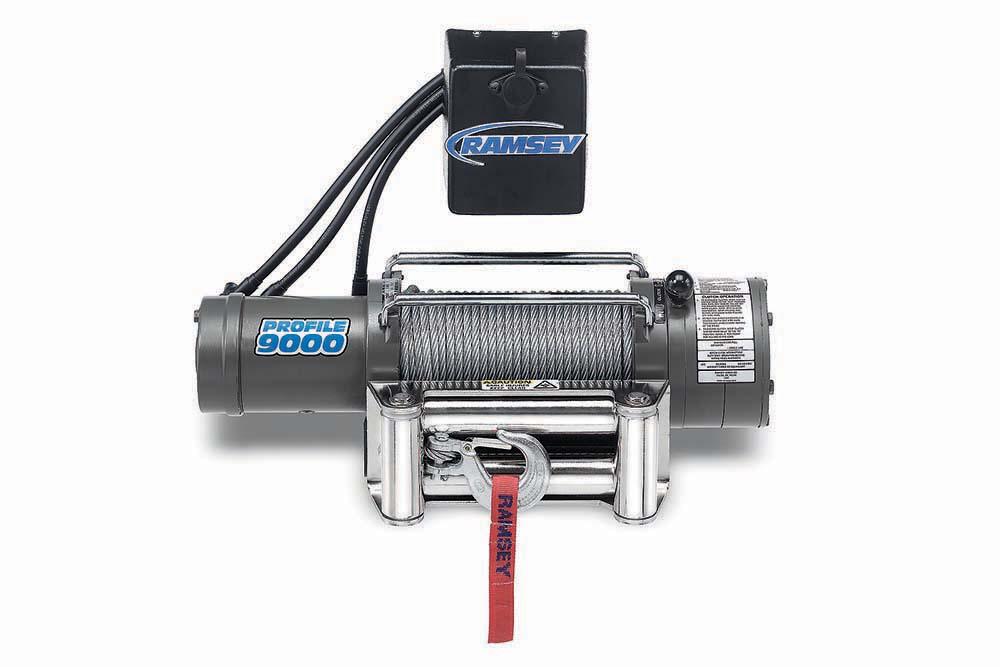

• RW-109166: 12v with Wireless Remote
