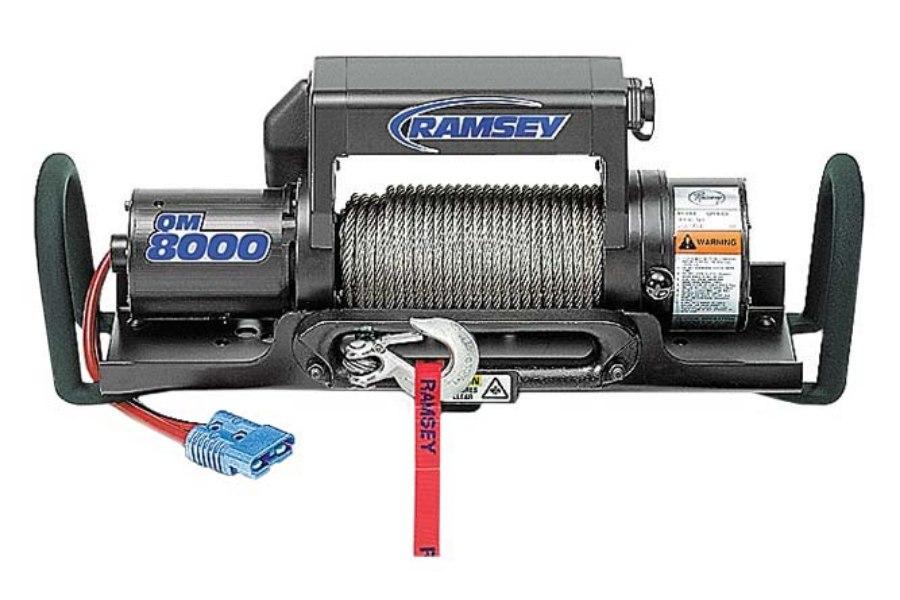

Ramsey QM8000 8,000 lb. 12V Electric Planetary Winch

QM 8000 12V w/12' Wire Pendant- Used with a class-three rear receiver hitch with 5,000 lbs. minimum weight carrying (WC) rating (Receiver must not be recessed more than 1 1/4" from bumper face). Proven three-stage planetary gear system design for fast line speed. Cam action clutch disengages planetary gear system for free spooling.

• Use with a class-three rear receiver hitch with 5,000 lbs. minimum weight carrying (WC) rating
  (Receiver must not be recessed more than 1 1/4 from bumper face)
• Cam action clutch disengages planetary gear system for free spooling
• Proven 3-stage planetary gear system design for fast line speed
• Weather resistant fully integrated solenoid assembly
• Strong automatic load-holding brake
• 12 Ft. wire pendant remote
• Anti-theft locking pin
• Hawse fairlead
• Limited lifetime warranty
• Made in the USA



  Applications

• Off-Road
• Specialty Vehicle



  Specifications

• Rated Line Pull: 8,000 lbs / 3,629 Kg (Based on first layer of cable)
• Gear Ratio: 126:1
• Brake: Yes
• Cable: Includes Cable
• Drum Size (L x F x B): 9" x 5.5" x 2.5" / 229mm x 140mm x 64mm
• Cable Capacity: 95' / 29m
• Recommend Cable Size: 5/16" / 7.9mm
• 1st Layer Line Speed: 35'/min / 10.7m/min
• Motor Output: 5.5 HP
• Motor Type: Series Wound
• Voltage: 12V
• Fairlead: 4-Roller
• Clutch Type: Cam Action
• Clutch Control: Manual
