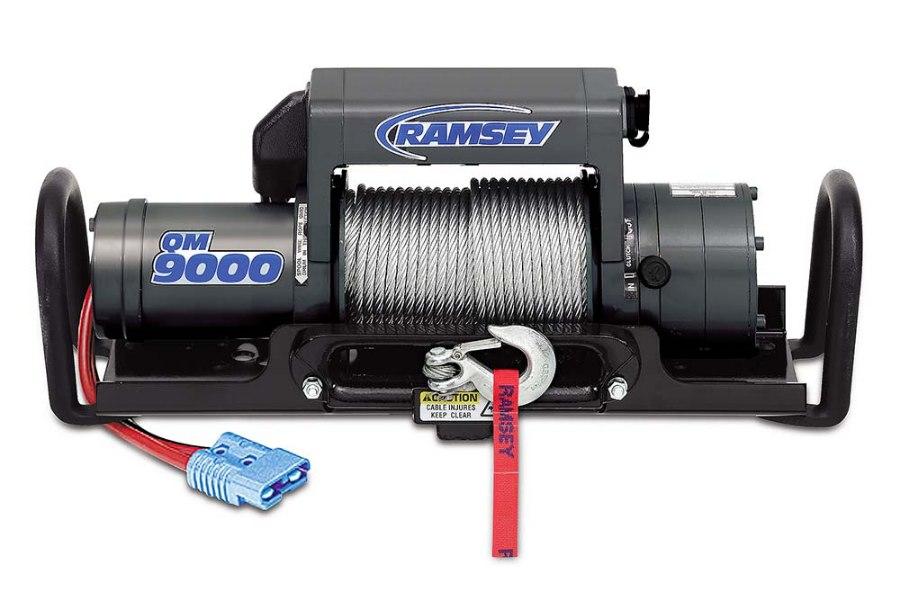

Ramsey QM9000 9,000 lb. 12V Electric Planetary Winch

QM 9000 12V with 12' Wire Pendant-Used with a class-three rear receiver hitch with 5,000 lbs. minimum weight carrying (WC) rating (Receiver must not be recessed more than 1 1/4" from bumper face). Proven three-stage planetary gear system design for fast line speed. Cam action clutch disengages planetary gear system for free spooling.

• Use with a class-three rear receiver hitch with 5,000 lbs. minimum weight carrying (WC) rating
  (Receiver must not be recessed more than 1 1/4 from bumper face)
• Cam action clutch disengages planetary gear system for free spooling
• Proven 3-stage planetary gear system design for fast line speed
• Weather resistant fully integrated solenoid assembly
• Strong automatic load-holding brake
• 12 Ft. wire pendant remote

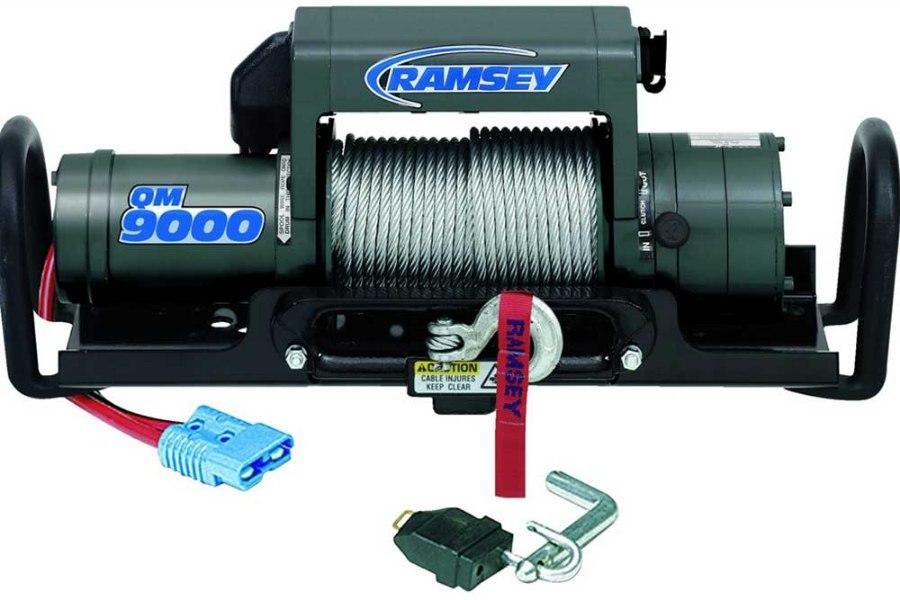

• Anti-theft locking pin
• Hawse fairlead
• Limited lifetime warranty
• Made in the USA



  Applications

• Off-Road
• Specialty Vehicle



  Specifications

• Rated Line Pull: 9,000 lbs / 4,083 Kg (1st Layer of Cable)
• Gear Ratio: 138:1
• Brake: Yes
• Cable: Includes Cable
• Drum Size (L x F x B): 9" x 5.5" x 2.5" / 229mm x 140mm x 64mm
• Cable Capacity: 105' / 32m
• Recommend Cable Size: 5/16" / 7.9mm
• 1st Layer Line Speed: 29'/min / 8.8m/min
• Motor Output: 4.4 HP
• Motor Type: Series Wound
• Voltage: 12V / 24V
• Fairlead: Hawse
• Clutch Type: Cam Action
• Clutch Control: Manual
