Ramsey RE 8000R 8,000 lb. Electric Planetary Winch w/ 12' Wire Pendant

RE Series of worm gear winches has set the standard for rugged reliability for the consumer self-recovery and light industrial applications. The Ramsey RE series of winches share many of the same components from our industrial rated line of worm gear winches making the RE the best choice for those who need a rugged and dependable winch for tough off-road applications, Self-recovery and light industrial use.

RE 8000R 12V and 24 V w/ 12' Wire Pendant-Strong worm gear provides load reversing protection. Exclusive semi-automatic RAM-LOK clutch disengages for free spooling.

• Strong worm gear - provides load reversing protection
• Motor and solenoids grounded directly to battery
• Exclusive RAM-LOK clutch disengages for free spooling
• Weather resistant solenoid assembly
• 12ft. Pendent
• 6ft. 2 gauge battery cable with connectors
• 4 way roller fairlead or Hawse fairlead
• Available in 12 or 24 VDC
• Made in the USA



  Applications

• General Industrial
• Off-Road
• Specialty Vehicle
• Trailer



  Specifications

• Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
• 1st Layer Line Speed: 20'/min / 6.1m/min
• Gear Ratio: 360:1
• Brake: Yes - brake is self-locking
• Cable: Includes Cable
• Drum Size (L x F x B): 8.25" x 7.25" x 3.50" / 209.6mm x 184.2mm x 88.9mm
• Cable Capacity: 150' / 45.7m
• Recommend Cable Size: 5/16" / 7.9mm
• Motor Output: 2.5 HP / 4.8 HP
• Motor Size: Series Wound
• Voltage: 12V / 24V
• Fairlead: Hawse / Roller
• Clutch Type: RAM-LOK?
• Clutch Control: Manual



  Style

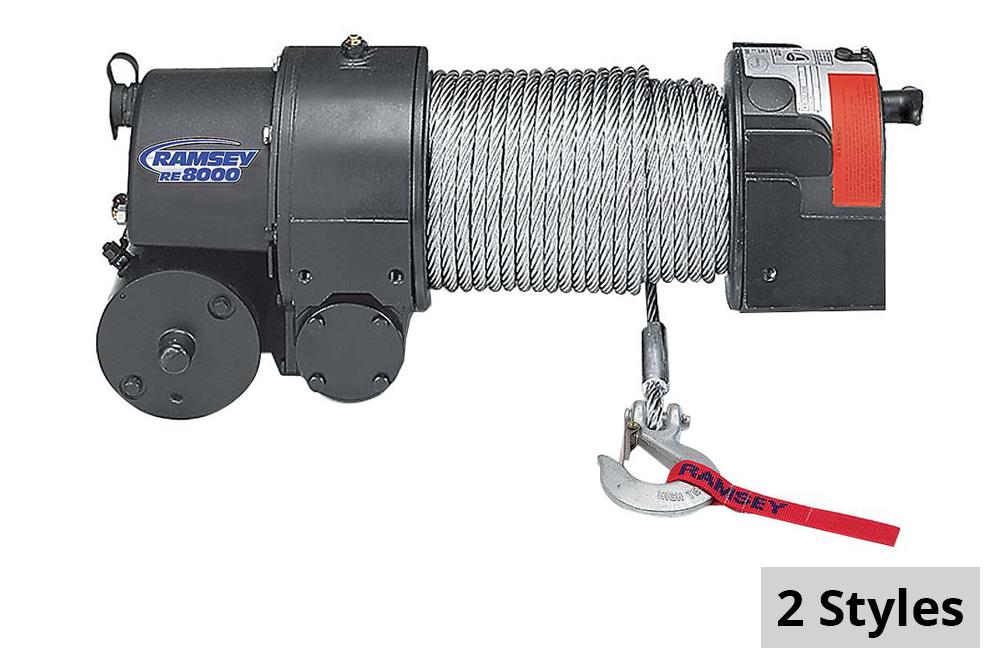

• RW-112158: 12v with 12' Pendant

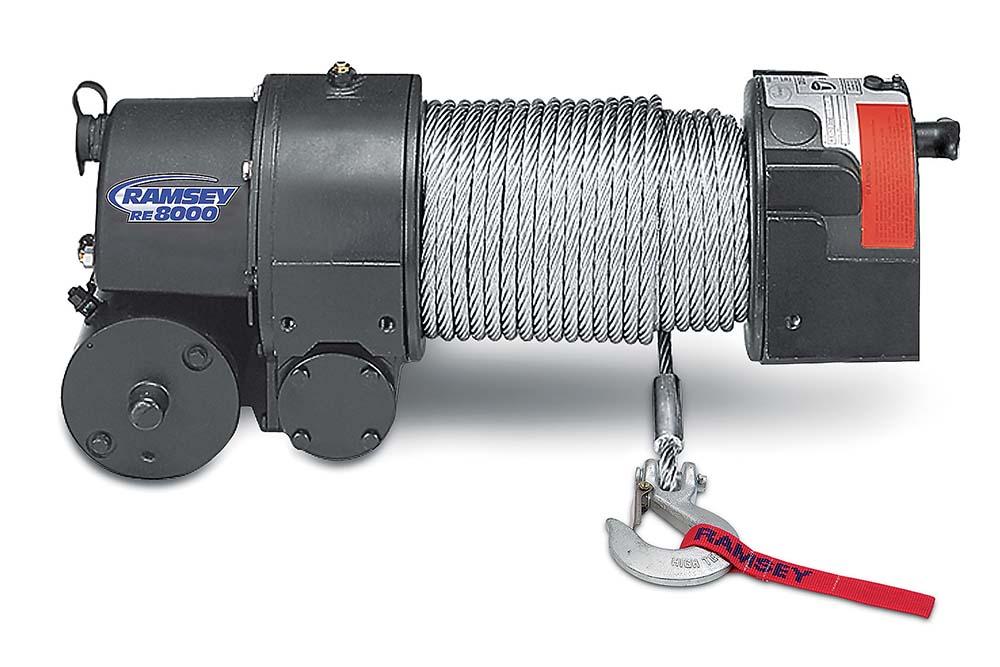

• RW-110414: 24v with 12' Pendant
