Ramsey REP 5000 Electric Planetary Winch

Ramsey REP 5000 with proven three-stage planetary gear system design for fast line speed. Strong automatic load-holding brake for strength. Cam action clutch disengages planetary gear system for free spooling. Available in 12V or 24V with 12' Pendant.

• Cam action clutch disengages planetary gear system for free spooling
• Proven 3-stage planetary gear system design for fast line speed
• Motor and solenoids are grounded directly to battery
• Strong automatic load-holding brake for strength
• Weather resistant solenoid assembly
• 12 Ft. wire pendant remote
• 6 ft. (1,83 M) 2 gauge battery
• 4-way roller fairlead
• Limited lifetime warranty
• Made in the USA



  Applications

• Off-Road
• Specialty Vehicle



  Specifications

• Rated Line Pull: 5,000 lbs / 2,268 Kg (Based on first layer of cable)
• Gear Ratio: 294:1
• Brake: Yes
• Cable: Includes Cable
• Drum Size (LxFxB): 5.5" x 5.5" x 2.5" / 140mm x 140mm x 64mm
• Cable Capacity: 80' / 24.4m
• Recommended Cable Size: 1/4" / 6.4mm
• 1st Layer Line Speed: 39'/min / 11.9m/min
• Motor Output: 3.8 HP
• Motor Type: Series Wound
• Voltage: 12v / 24v
• Clutch Type: Cam Action
• Clutch Control: Manual



  Style

• RW-110903: 12v with Hawse and 12' Pendant

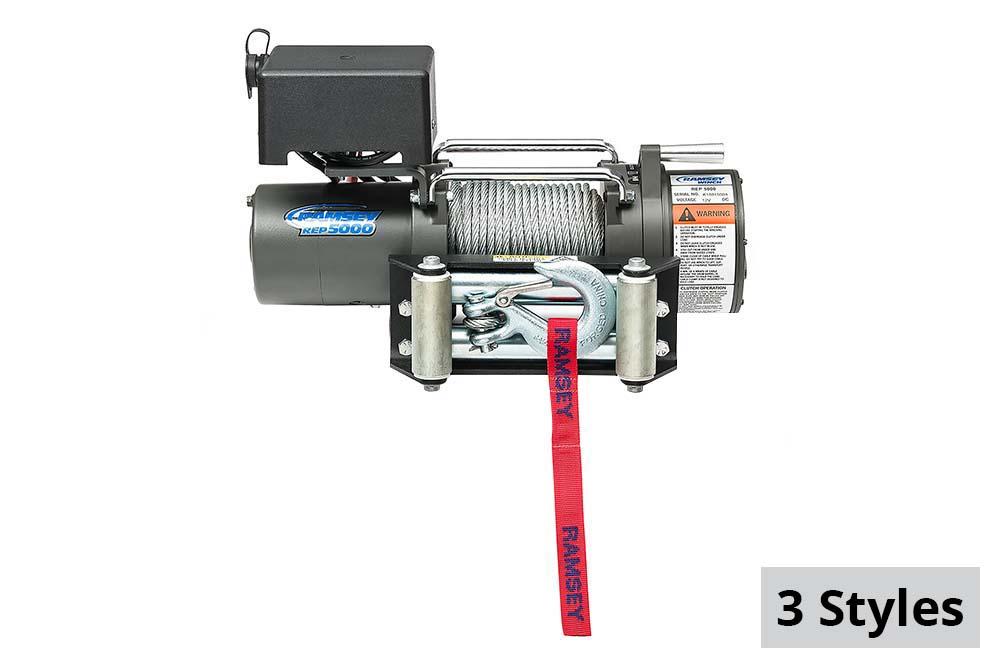

• RW-110904: 12v with 4-Roller Fairlead and 12' Pendant

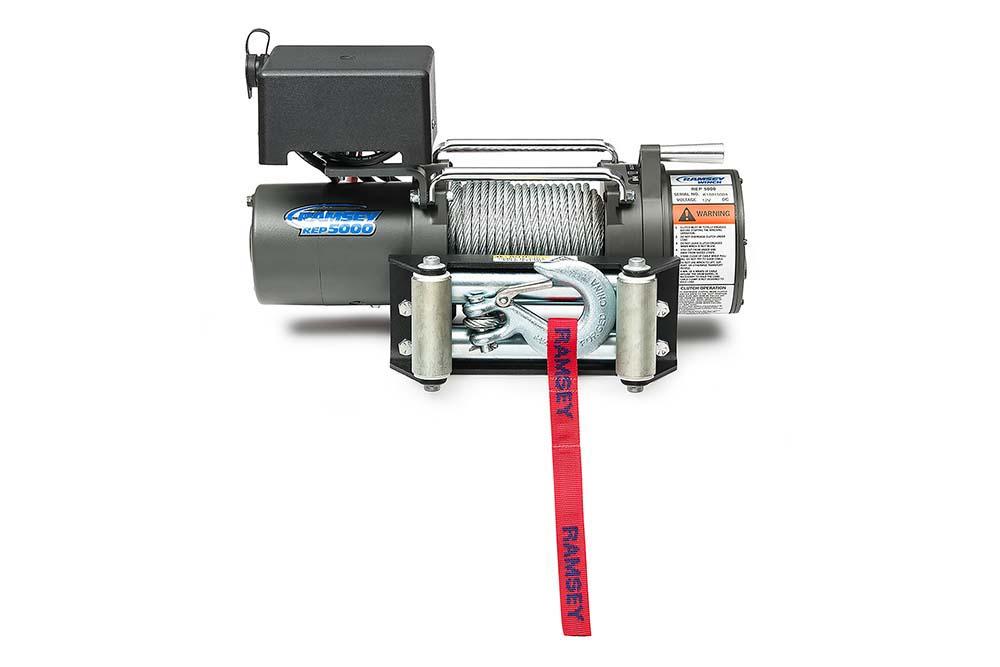

• RW-110906: 24v with 4-Roller Fairlead and 12' Pendant
