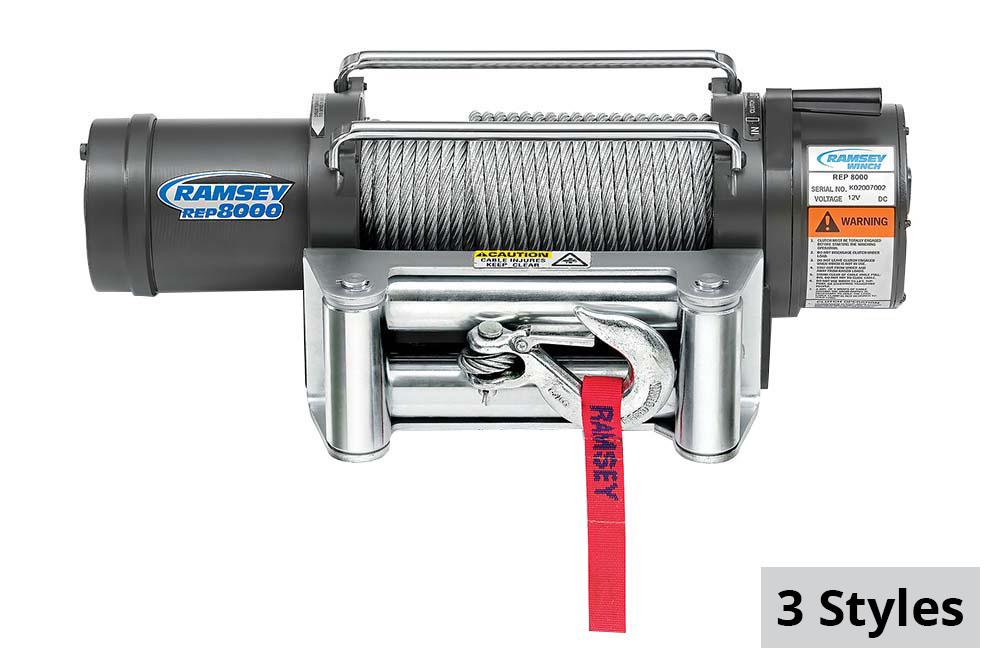

Ramsey REP 8000 Electric Planetary Winch

Ramsey REP 8000 with 12' Wire Pendant-Proven three-stage planetary gear system design for fast line speed. Cam action clutch disengages planetary gear system for free spooling.

• Cam action clutch disengages planetary gear system for free spooling
• Proven 3-stage planetary gear system design for fast line speed
• Motor and solenoids are grounded directly to battery
• Strong automatic load-holding brake for strength
• Weather resistant solenoid assembly
• 12 Ft. wire pendant remote
• 6 ft. (1,83 M) 2 gauge battery
• 4-way roller fairlead
• Limited lifetime warranty
• Made in the USA



  Applications

• Off-Road
• Specialty Vehicle



  Specifications

• Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
• Gear Ratio: 126:1
• Brake: Yes
• Cable: Includes Cable
• Drum Size (L x F x B): 9" x 5.5" x 2.5" / 229mm x 140mm x 64mm
• Cable Capacity: 95' / 29m
• Recommend Cable Size: 5/16" / 7.9mm
• 1st Layer Line Speed: 36'/min / 10.9m/min
• Motor Output: 3.8 HP
• Motor Type: Series Wound
• Voltage: 12V / 24V
• Fairlead: Roller / Hawse
• Clutch Type: Cam Action
• Clutch Control: Manual



  Style

• RW-111035: 12v with Hawse Fairlead

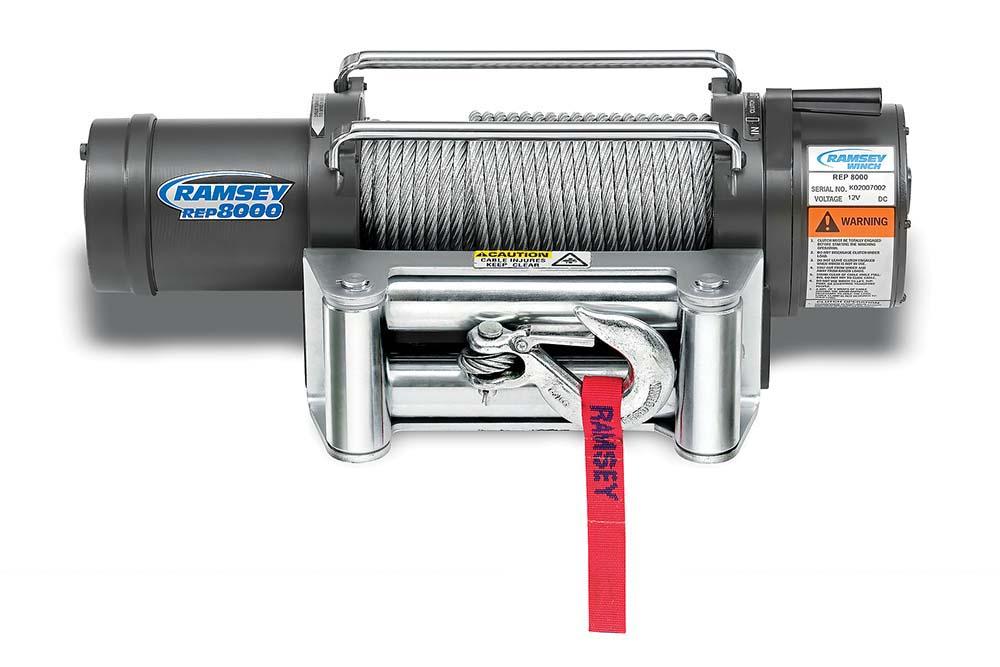

• RW-111071: 12v CE with Roller Fairlead
• RW-111036: 12v with Roller Fairlead
