Ramsey REP 8.5E 8,500 lb. Electric Planetary Winch

Ramsey REP 8.5E H with 12' Wire Pendant-Cam action clutch disengages planetary gear system for free spooling. Proven 3-stage planetary gear system design for fast line speed.

• Cam action clutch disengages planetary gear system for free spooling
• Proven 3-stage planetary gear system design for fast line speed
• 5 Ft. (1.52 M) 4-gauge battery cables with connectors
• Weather resistant solenoid assembly
• Automatic load-holding brake
• 12 Ft. wire pendant remote
• Limited lifetime warranty
• Made in the USA



  Applications

• Off-Road
• Specialty Vehicle



  Specifications

• Rated Line Pull: 8,500 lbs / 3,856 Kg (1st Layer of Cable)
• Gear Ratio: 294:1
• Brake: Yes
• Cable: Includes Cable
• Drum Size (L x F x B): 9" x 5.5" x 2.5" / 229mm x 140mm x 64mm
• Cable Capacity: 95' / 29m
• Recommend Cable Size: 5/16" / 7.9mm
• 1st Layer Line Speed: 15'/min / 4.6m/min
• Motor Output: 2.5 HP
• Motor Type: Permanent Magnet
• Voltage: 12V
• Fairlead: Hawse
• Clutch Type: Cam Action
• Clutch Control: Manual



  Style

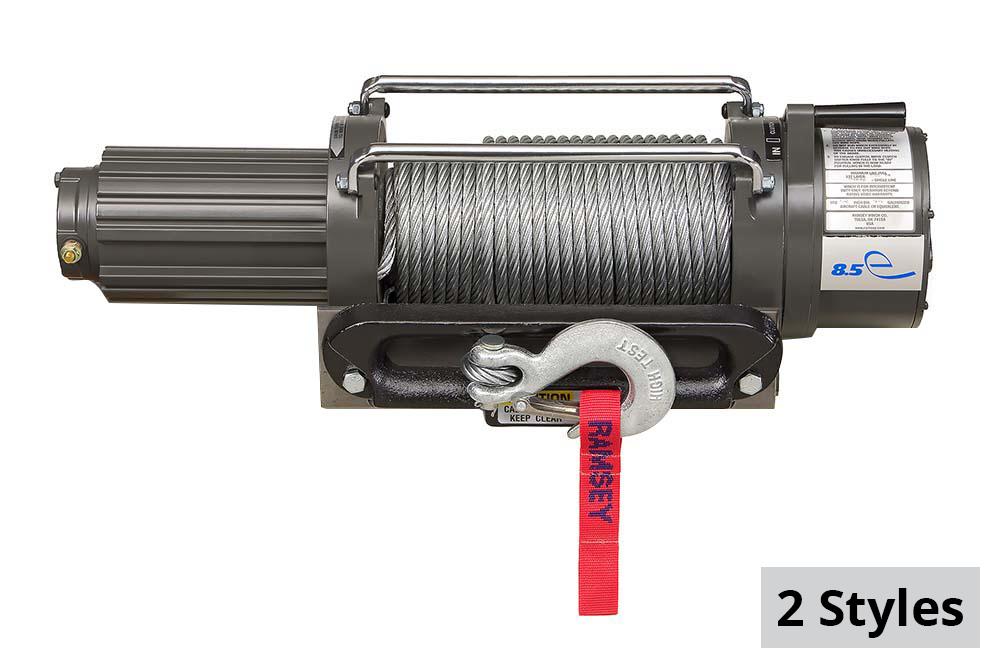

• RW-111073: 12v with 12' Pendant

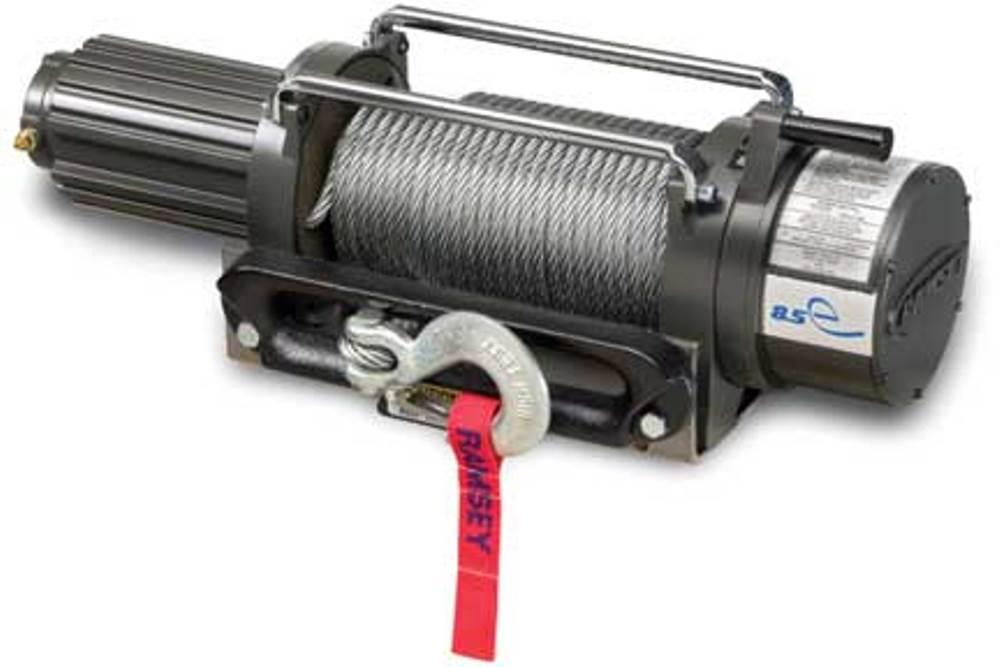

• RW-111076: 24v with 12' Pendant
