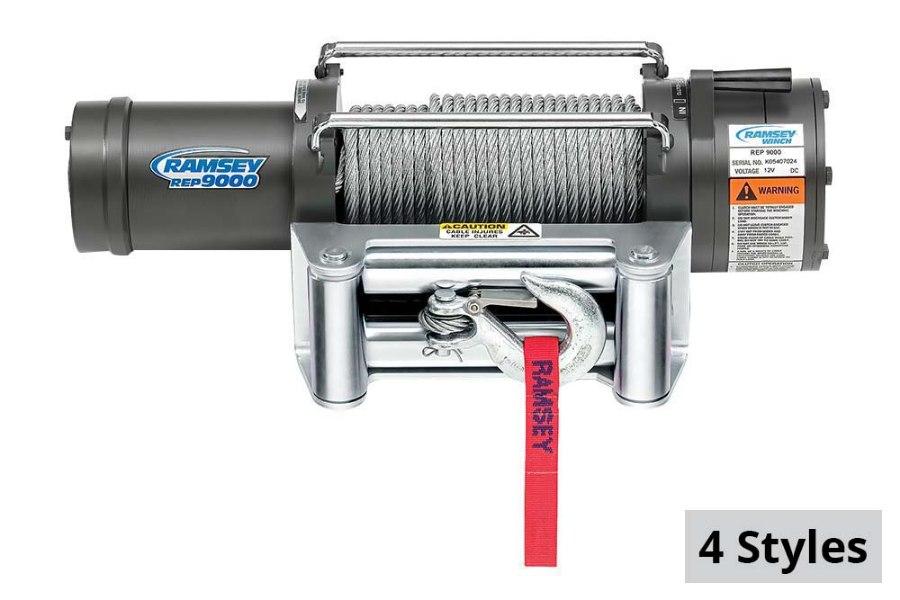

Ramsey REP 9000 Electric Planetary Winch

Ramsey REP 9000 with 12' Wire Pendant-Proven three-stage planetary gear system design for fast line speed. Strong automatic load-holding brake for strength. Cam action clutch disengages planetary gear system for free spooling.

• Cam action clutch disengages planetary gear system for free spooling
• Proven 3-stage planetary gear system design for fast line speed
• Motor and solenoids are grounded directly to battery
• Strong automatic load-holding brake for strength
• Weather resistant solenoid assembly
• 12 Ft. wire pendant remote
• 6 ft. (1,83 M) 2 gauge battery
• Limited lifetime warranty
• Made in the USA



  Applications

• Off-Road
• Specialty Vehicle



  Specifications

• Rated Line Pull: 9,000 lbs / 4,083 Kg (1st Layer of Cable)
• Gear Ratio: 138:1
• Brake: Yes
• Cable: Includes Cable
• Drum Size (L x F x B): 9" x 5.5" x 2.5" / 229mm x 140mm x 64mm
• Cable Capacity: 95' / 29m
• Recommend Cable Size: 5/16" / 7.9mm
• 1st Layer Line Speed: 33'/min / 10.1m/min
• Motor Output: 4.8 HP
• Motor Type: Series Wound
• Voltage: 12V / 24V
• Fairlead: Roller
• Clutch Type: Cam Action
• Clutch Control: Manual



  Style

• RW-111072: 12v CE with 12' Pendant

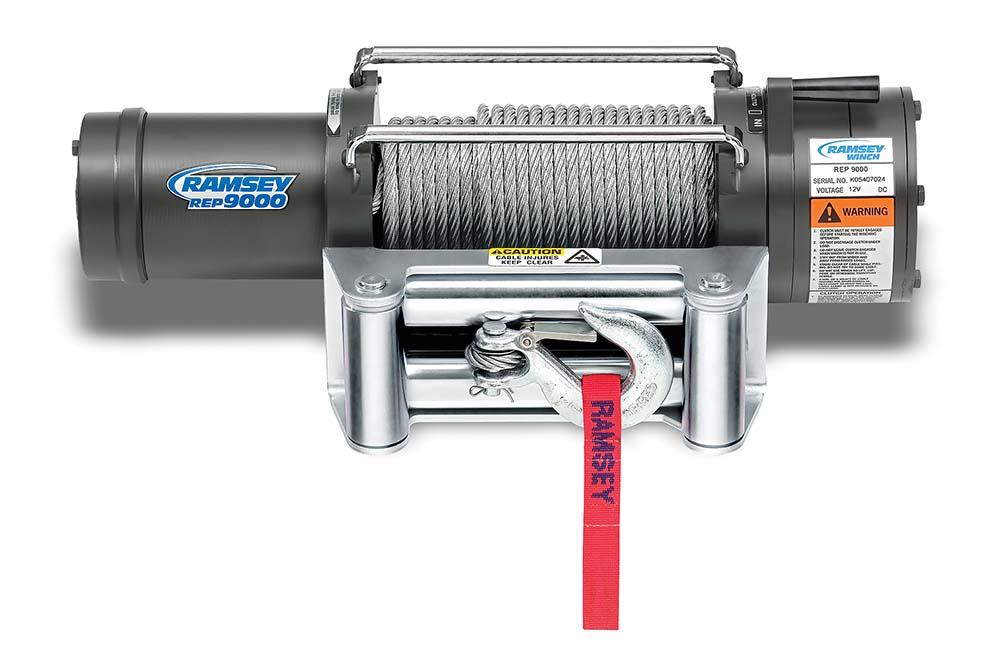

• RW-111070: 24v CE with 12' Pendant
• RW-111038: 12v with 12' Pendant
• RW-110976: 24v with 12' Pendant
