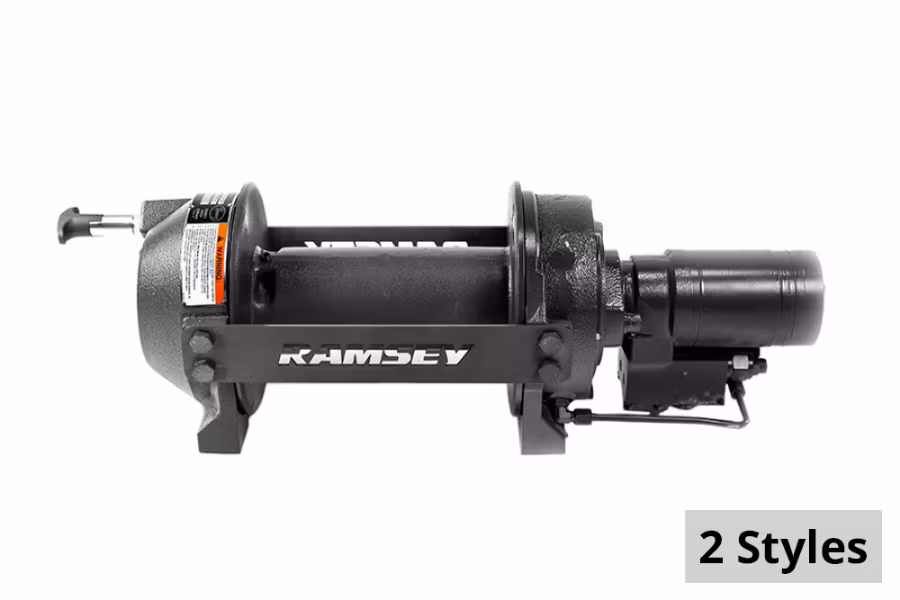

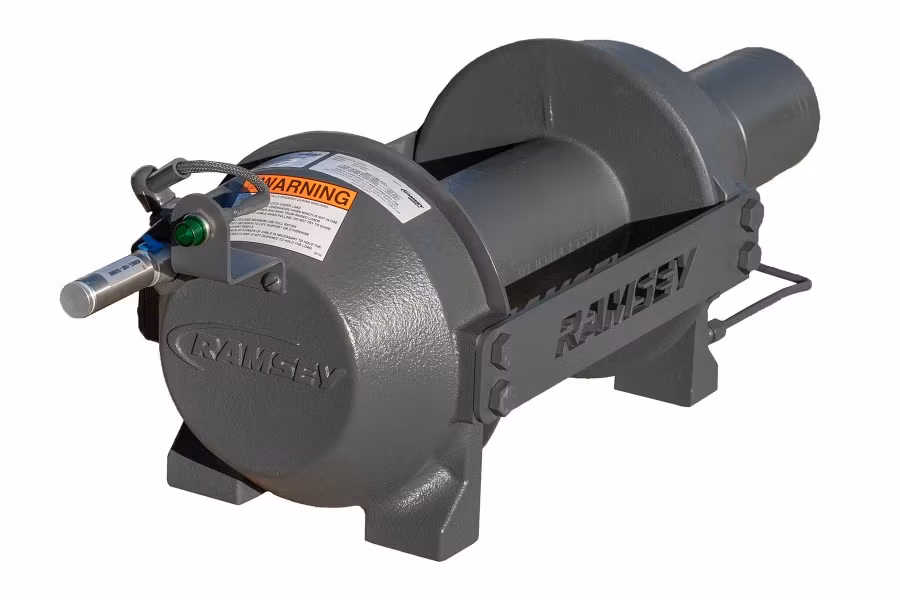

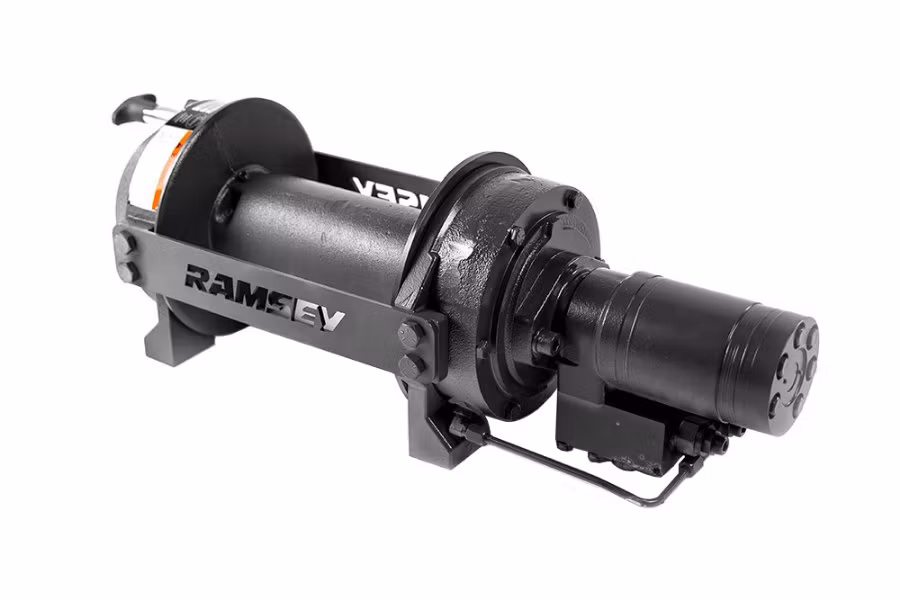

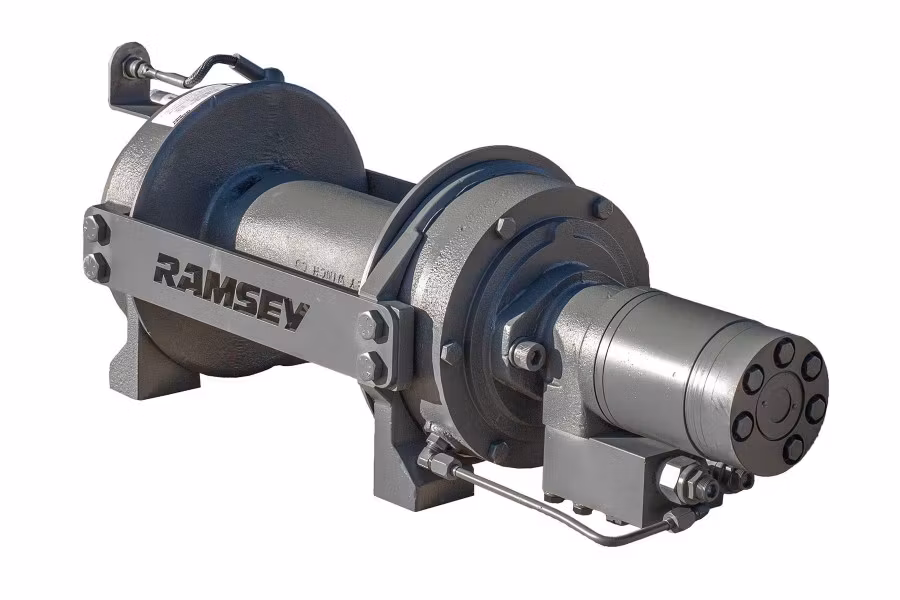

Ramsey RPH 12,000 Hydraulic Planetary Winch

This Industrial-Grade Winch features a planetary gear for the fastest line speeds available getting you out of hazardous traffic quicker. Winch has a disc brake for sure-load holding and a free spooling clutch on the driver's side. Use with 9-3/4" drum width and 7/16" x 125' rope capacity.

• Rated Line pull 12,000 lbs
• Standard Drum
• Recommended cable 7/16

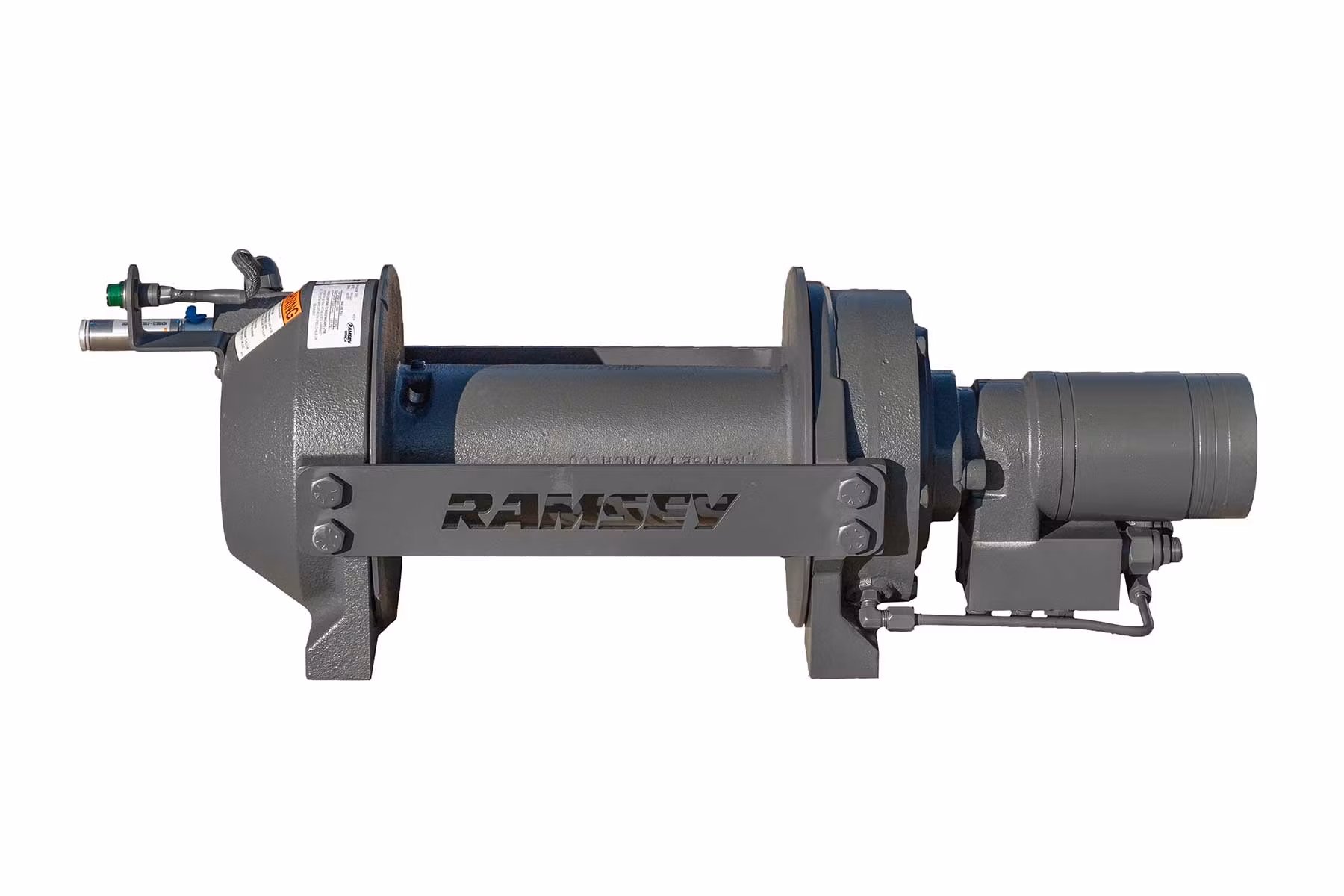

• Available with air shift
• Meets SAE J706
• Made in the USA



  Applications

• General Industrial
• Mining & Construction
• Railroad
• Specialty Vehicle
• Towing & Recovery
• Towing & Recovery (Heavy Wrecker)
• Towing & Recovery (Medium Wrecker)
• Trailer
• Utility



  Specifications

• Rated Line Pull: 12,000 Lbs / 5,443 Kg (1st Layer of Cable)
• 1st Layer Line Speed: 32 Ft/Min / 9.7 M/Min
• Gear Ratio: 5.1:1
• Weight w/o Cable: 110 Lbs / 50 Kg
• Brake: Yes
• Cable: None
• Drum Size (L x F x B): 9.75" x 9.00" x 3.94" / 247.7mm x 228.6mm x 100.1mm
• Cable Capacity: 160 Ft / 48.8 M
• Recommend Cable Size: 7/16 In / 11.1 MM
• Hydraulic Pressure Required: 2,500 PSI (172 Bar)
• Hydraulic Flow Required: 15.0 GPM (57 LPM)
• Motor Size: 24.0 Cu. In. (393 cc)
• Additional Motor Options: None
• Clutch Type: Sliding Pin
• Clutch Control: Air, Manual
