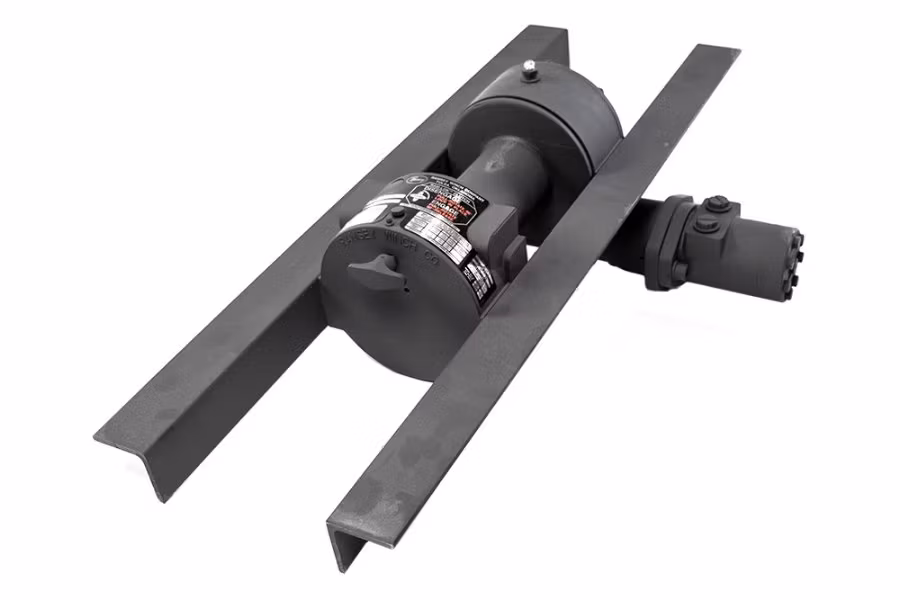

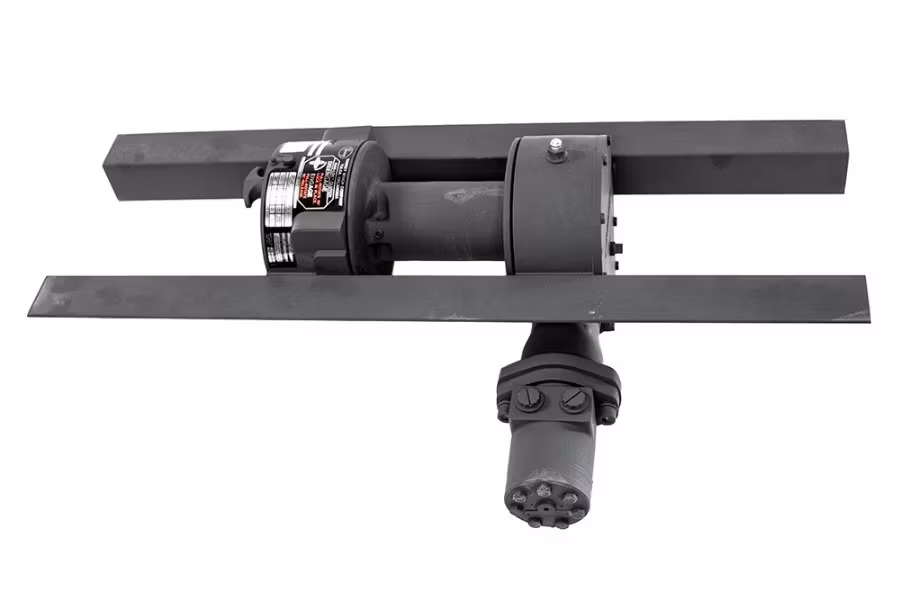

Ramsey Winch 8,000-Lb. Hydraulic Industrial-Grade Winch, Series H246Y, Clockwise Rotation

Price: $1,797.99

SKU: RW-124006

Qty:

View Cart

Truck Freight Required

Description

Rugged worm gearing results in faster line speeds that get you to your next job faster. These 8,000- and 10,000-lb. Hydraulic Industrial-Grade Winches allow you to operate from driver side of truck and feature Ram-Lok? clutch, which provides easy freespooling. Low mount in your truck bed with L-shaped mounting channels. Spool direction is counterclockwise (over the drum) rotation. Retracted height is 1,800 psi. Options: Series H234 features 3/8" x 140' wire rope capacity and passenger side mount. Series H246Y features 3/8" x 75' wire rope capacity and passenger side mount. Series H246 features 3/8" x 140' wire rope capacity and passenger side or driver side mount.

Ramsey Part Number: 124006
Model: HY-246R
Line Pull: 8,000 lbs
Clutch: Ram-Lok
Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
Gear Ratio: 46:1
Motor Included: Yes
Angles Included: Yes
Drum Length: 6.175"+-/16"
Adjustable/Automatic Brake: No
Compact Short Drum
Recommended Cable: 3/8"
Meets SAE-J706
Made in the USA

Winch Mount Configuration

Applications
General Industrial
Mining & Construction
Railroad
Specialty Vehicle
Towing & Recovery
Towing & Recovery (Carrier)
Towing & Recovery (Light Wrecker)
Trailer

Model HY-200 Specifications
Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
1st Layer Line Speed: 12.6'/min / 3.8m/min
Gear Ratio: 60:1 (HY-246 = 46:1)
Weight w/o Cable: 80 lbs / 36 Kg
Brake: "Optional auxiliary brake is available"
Cable: None
Drum Size (L x F x B): 6.31" x 7.25" x 3.50" / 160.3mm x 184.2mm x 88.9mm
Cable Capacity: 75' / 22.9m
Recommend Cable Size: 3/8" / 9.5mm
Hydraulic Pressure Required: 1,600 PSI (110 Bar)
Hydraulic Flow Required: 15.0 GPM (57 LPM)
Motor Size: 4.5 Cu. In. (74 cc)
Additional Motor Options: Must Call
Clutch Type: Blocked, RAM-LOK?, DOW-LOK?, Lever Style
Clutch Control: Air, Manual
