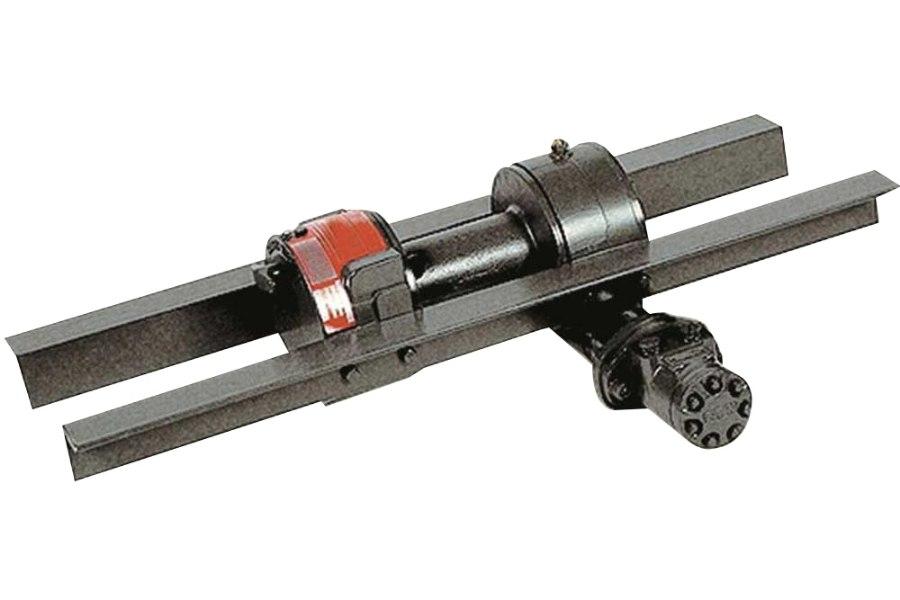

Ramsey Winch 8,000-Lb. Hydraulic Industrial-Grade Winch, Series H246, Clockwise Rotation

Rugged worm gearing results in faster line speeds that get you to your next job faster. These 8,000- and 10,000-lb. Hydraulic Industrial-Grade Winches allow you to operate from driver side of truck and feature Ram-Lok? clutch, which provides easy freespooling. Low mount in your truck bed with L-shaped mounting channels. Spool direction is counterclockwise (over the drum) rotation. Retracted height is 1,800 psi.Options:Series H234 features 3/8" x 140' wire rope capacity and passenger side mount. Series H246Y features 3/8" x 75' wire rope capacity and passenger side mount.Series H246 features 3/8" x 140' wire rope capacity and passenger side or driver side mount.

• Ramsey Part Number: 124018 FORS
• Model: H246R
• Line Pull: 8,000 lbs
• Clutch: Ram-Lok
• Mounting Configuration: Front Overwind Right Side / Rear Overwind Left Side
• Gear Ratio: 46:1
• Motor Included: Yes
• Angles Included: Yes
• Drum Length: 11.125"+-/16"
• Adjustable/Automatic Brake: No
• Recommended cable 3/8
• Meets SAE-J706
• Made in the USA

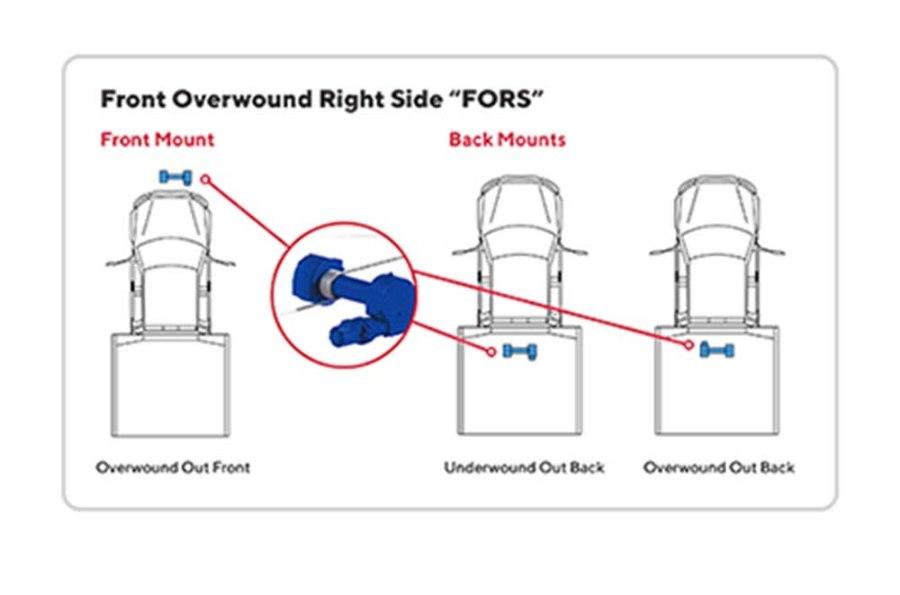

  Winch Mount Configuration





  Applications

• General Industrial
• Mining & Construction
• Railroad
• Specialty Vehicle
• Towing & Recovery
• Towing & Recovery (Carrier)
• Towing & Recovery (Light Wrecker)
• Trailer



  Model H246 Specifications

• Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
• 1st Layer Line Speed: 16.5'/min / 5.0m/min
• Gear Ratio: 46:1
• Weight w/o Cable: 110 lbs / 50 Kg
• Brake: "Optional auxiliary brake is available", Yes - brake is self-locking
• Cable: None
• Drum Size (L x F x B): 11.31" x 7.25" x 3.50" / 287.3mm x 184.2mm x 88.9mm
• Cable Capacity: 140' / 42.7m
• Recommend Cable Size: 3/8" / 9.5mm
• Hydraulic Pressure Required: 1,800 PSI (124 Bar)
• Hydraulic Flow Required: 15.0 GPM (57 LPM)
• Motor Size: 4.5 Cu. In. (74 cc)
• Clutch Type: Blocked, RAM-LOK?, DOW-LOK?, Lever Style
• Clutch Control: Air, Manual, Electric
