Reelcraft 4000 Series Air/Water Premium Hose Duty Reels

The worst part about a hose is how often it gets tangled and twisted. With the Reelcraft 4000 Series Air/Water Premium Hose Duty Reel, that concern is a thing of the past. Its bent tube swivel design offers a smooth hose transition onto the spool. This design makes sure the hose lasts a lot longer!

If that wasn't enough, the heavy-duty steel construction and corrosion-resistant finish ensures that the reel can handle just about anything. No matter what elements you're exposing it to, the Reelcraft 4000 Series Air/Water Premium Hose Duty Reels can handle it with ease. Plus the buna seal prevents any water or air from leaking out. The reel is perfect at preventing any major issues simply due to how sturdy it's built.

A lot of products are hard to handle, but not the Reelcraft 4000 Series Air/Water Premium Hose Duty Reels. This reel can easily be mounted just about anywhere you want it to, and due to the latching mechanism, the hose can easily extend and hold in place. Plus, with its "pull and release" retraction, rewinding the hose is a breeze as it does the work for you.

• Bent tube swivel
• Swivel nestled inside spool design
• Steel internal fluid path
• Buna seal
• Max temp of 150 degrees
• Hose included
• 300 PSI
• Series 4000
• 20 lbs
• 25 or 35 foot hose
• NPT(M) Hose Outlet: 1/4"
• NPT(F) Reel Inlet: 3/8"
• NPT(F) Reel Outlet: 1/4"
• Powder-coated and corrosion resistant
• Heavy-duty steel construction (robotically welded)
• Cam and disc latch and tension spring
• Adjustable guide arm
• Compact
• Mounting capabilities
• Bumper stop
• Hose plumbed into the base

Available in the following sizes

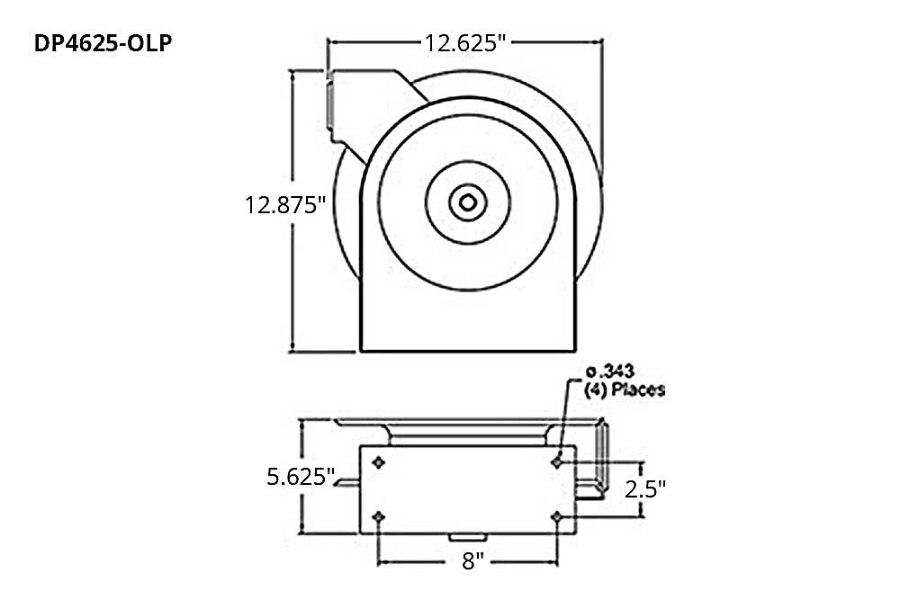

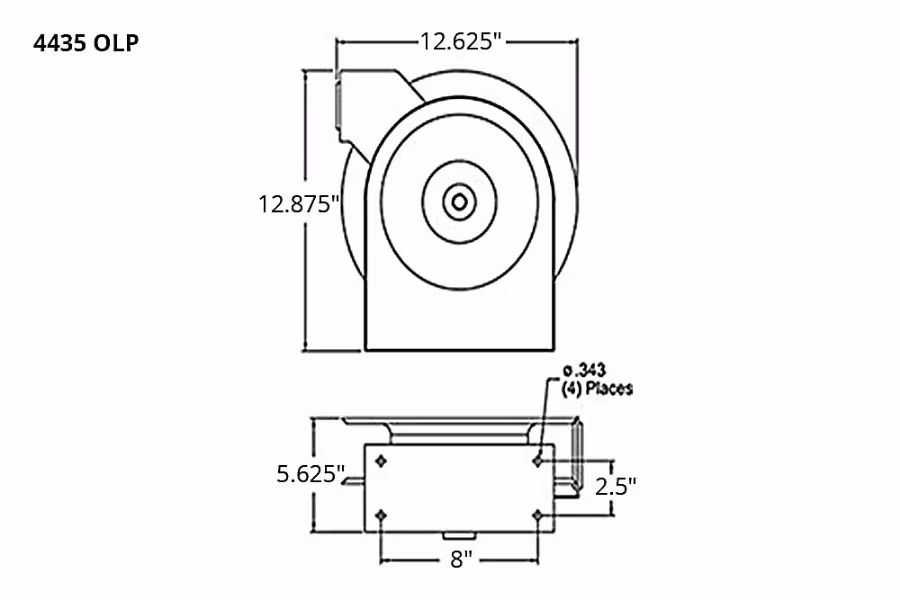

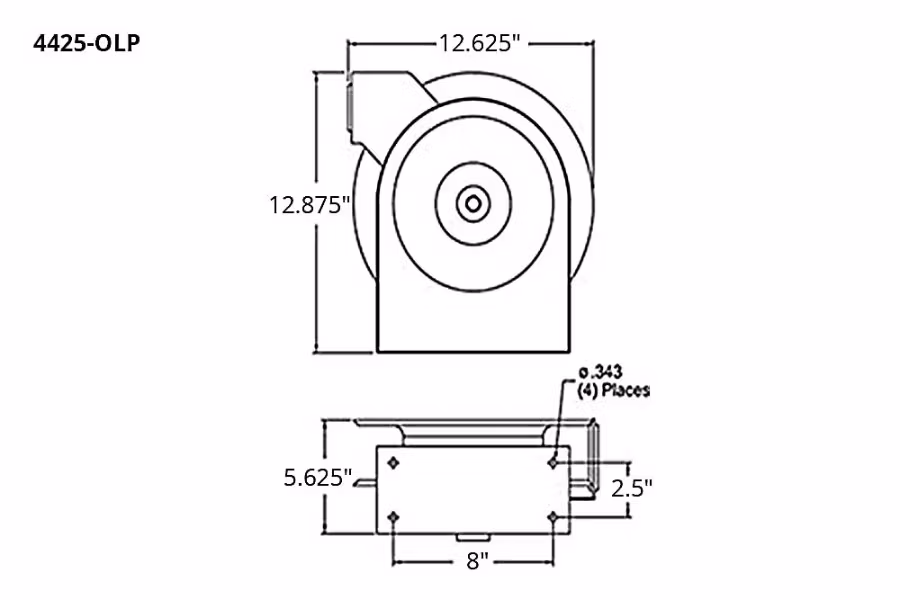

Part #	4435 OLP	DP4625-OLP	4425-OLP
Hose I.D. (in)	1/2	3/8	1/4
Hose O.D. (in)	0.475	0.600	0.475
Hose Length (ft.)	35	25	25
