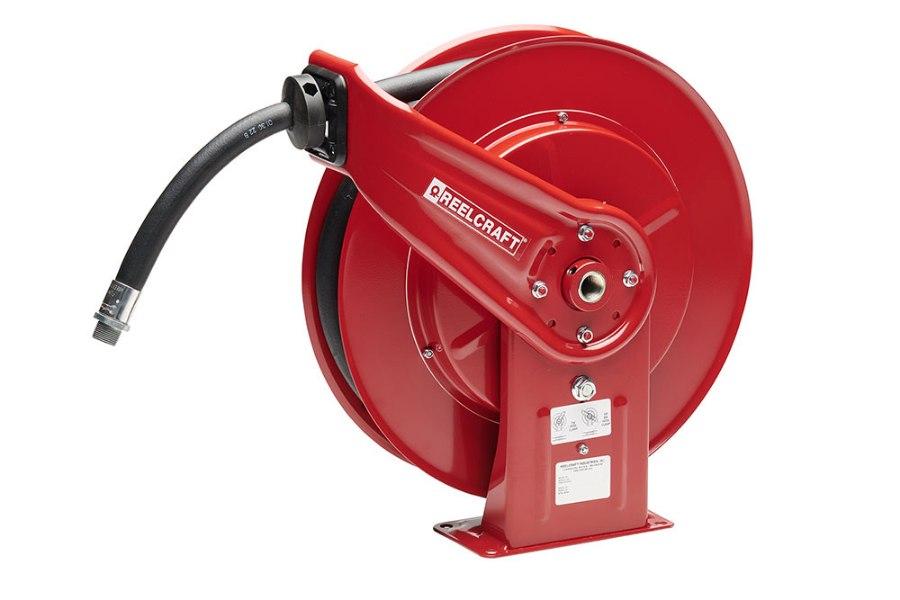

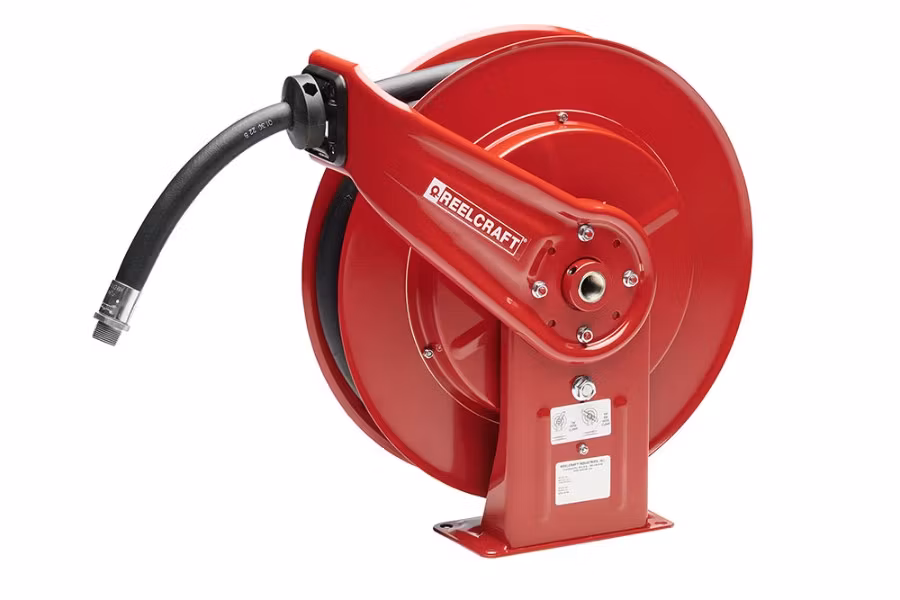

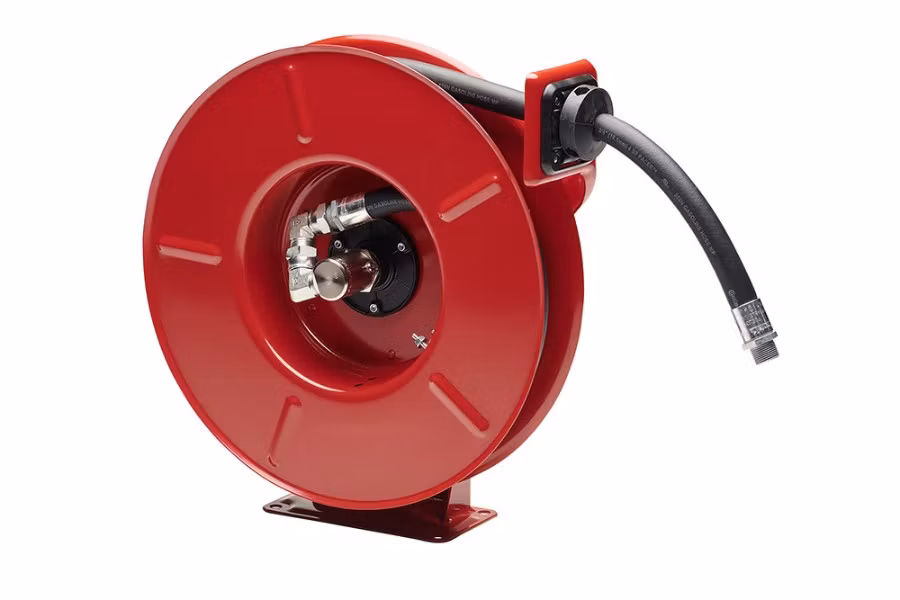

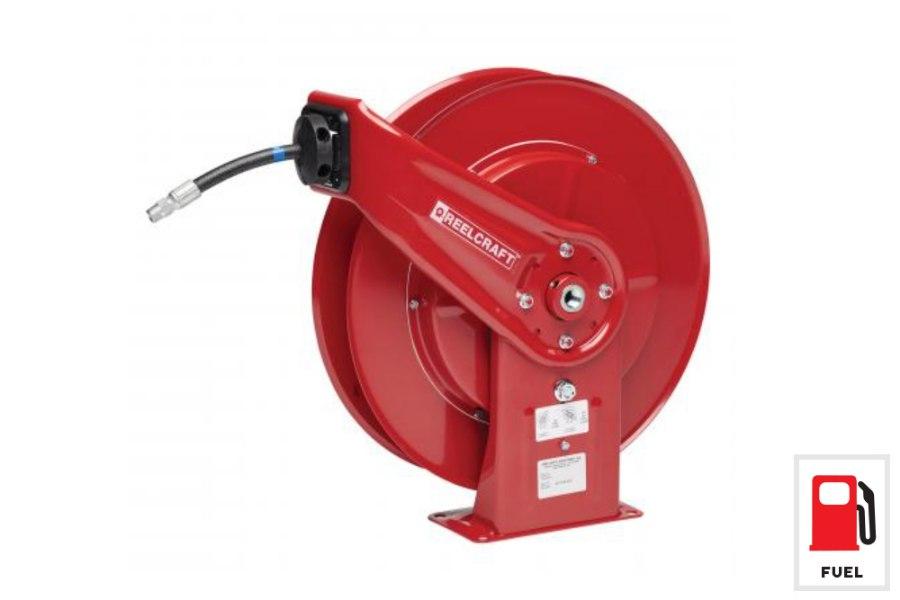

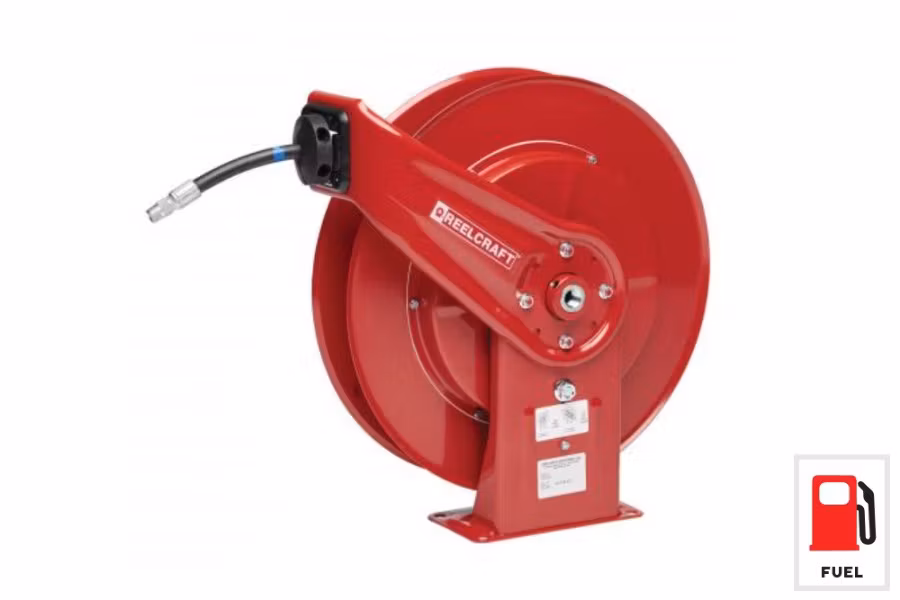

Reelcraft F Series Fuel Hose Reel

Nobody should have to worry about parts breaking down on them anymore. With the Reelcraft F Series Fuel Hose Reel, you’ll have a tool that should last a lifetime. It comes with a heavy-duty steel construction and corrosion-resistant finish ensuring the reel can handle just about anything. And if that wasn’t enough, the chemical, temperature and abrasion-resistant AFK seal prevents fuel from leaking.

Not only is it sturdy, but the Reelcraft F Series Fuel Hose Reel is also very customizable. Due to its light and compact design, you can mount it just about anywhere. Plus, with its massive hose, you can get your fuel wherever you need it. Not to mention, the guide arm the hose comes out of, is adjustable!

Finally, it’s super easy to use! All you have to do is pull out the hose to unreel it. When it’s time to reel it back in, the aluminum ratchet and latch mechanism will practically do the work for you. It automatically begins to recoil the hose preventing tangles, twists, and kinks. Lastly, the bumper stop ensures the hose won’t retract too quickly or too far, and the impact will be absorbed when retracted.

• 64 lbs
• 7000 series
• Compact
• Bumper stop
• Adjustable guide arm
• Hose ID of 3/4"
• Hose OD of 1.188"
• Hose length of 25'
• 50 psi
• Hose end 3/4" NPT(M)
• Reel inlet 3/4" NPT (F)
• Reel outlet 3/4" NPT (F)
• Hose included
• 150 degrees Fahrenheit max temperature
• Steel internal fluid path
• Steel swivel
• FKM seal
• Powder-coat finish
• Heavy-duty steel construction
• Aluminum ratchet and latch mechanism
• Mounting capabilities
