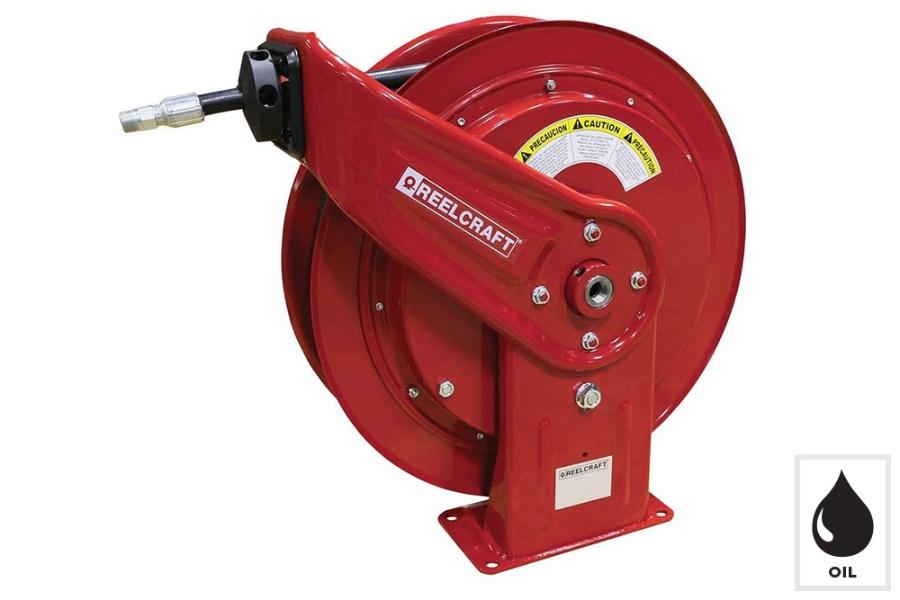

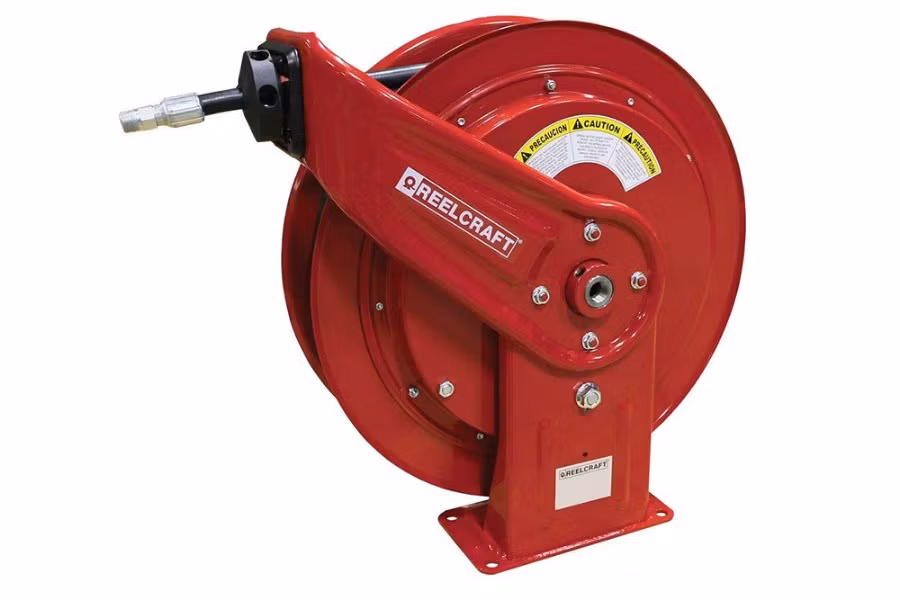

Reelcraft HD70000 Series Oil Hose Reel

You never know where you’ll need some oil, and with the Reelcraft HD70000 Series Oil Hose Reel, that’s easier than ever. This reel is perfect for your oil hose needs. Its compact and lightweight design makes it ideal for tight workspaces. With multiple mounting possibilities, you can put this mount wherever you need it, and due to its adjustable arm bracket, you don’t have to worry about wearing out your hose due to unnecessary pressure on it.

Made of heavy-duty steel and a corrosion-resistant finish, the Reelcraft HD70000 Series Oil Hose Reel can take what the job demands. Not to mention, with its steel internal fluid path, steel swivel, and AFLAS seal, this reel is guaranteed to have a long life span.

Finally, this is a very straightforward reel to use! All you have to do is pull out the hose to unreel it, eventually catching it on one of eight spots. When it’s time to reel it back in, the spring latch mechanism will practically do the work for you. With a pull, it automatically begins to recoil the hose preventing tangles, twists, and kinks. Lastly, the bumper stop ensures the hose won’t retract too quickly or too far, and the impact will be absorbed when retracted.

• 75 lbs
• Series HD70000
• Hose I.D. 3/8"
• Hose O.D. .69"
• 75' hose
• 2600 psi
• Hose end 3/8" NPT(M)
• Reel inlet 1/2" NPT(F)
• Reel outlet 1/2" NPT(F)
• Hose included
• Max temperature of 210 degrees Fahrenheit
• Steel internal fluid path
• Steel swivel
• AFLAS seal
• Compact (25% smaller than heavy-duty series 80000 reels)
• Adjustable arm bracket
• Bumper stop
• Heavy-duty steel construction
• Powder-coated finish
• Spring-retractable hose reels
• Mounting-capabilities
