Reelcraft Series E9000 Medium Pressure Oil Reel

Leave a Review

Shop all Reelcraft Industries products

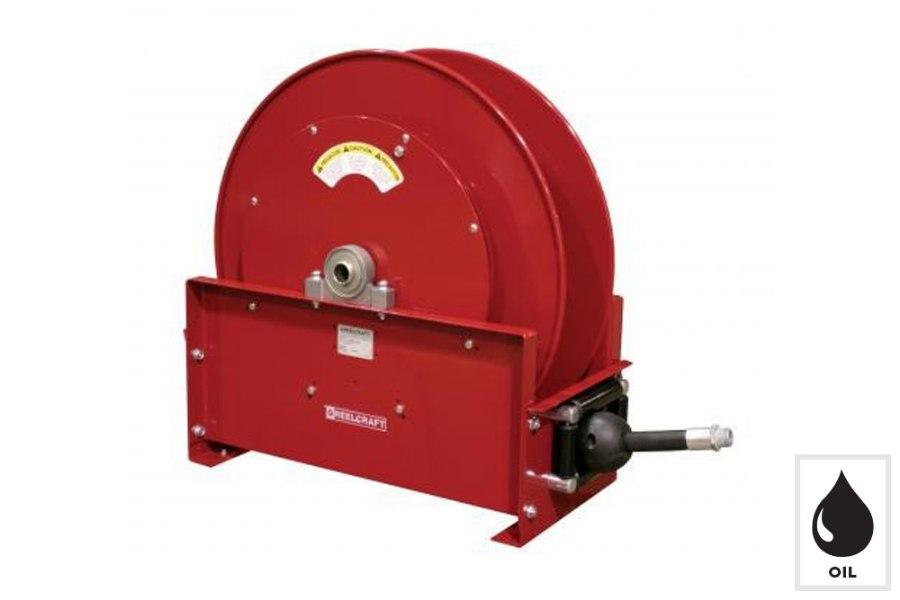

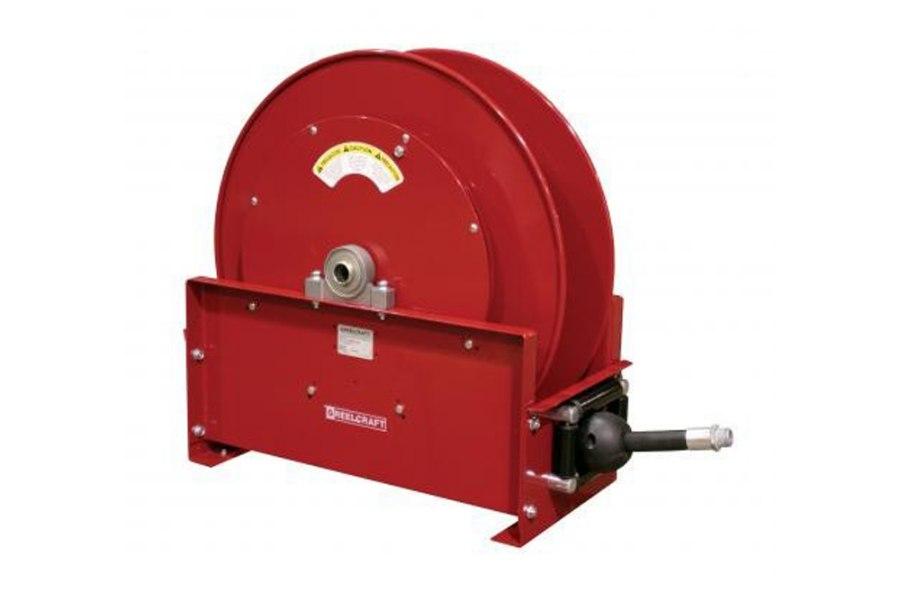

Picture of Reelcraft Series E9000 Medium Pressure Oil Reel

SKU: E9275 OMP

Price: $1,297.99

Qty:

Go Straight to Checkout

Truck Freight Required

Description

With a substantial base frame, the Reelcraft Series E9000 Medium Pressure Oil Reel isn’t going anywhere. Steady and sturdy is the name of the game with this heavy-duty steel reel. Due to its corrosion-resistant finish, steel swivel, and AFLAS seal, this reel is built to last.

Given how compact it is, this reel is perfect for wherever you need to mount it. It excels in cramped, tight environments, but can shine wherever you place it. On top of that, its 75-foot-long hose will reach just about anywhere without having to move the source of the oil any closer.

Finally, its a breeze to use. Thanks to its aluminum ratchet and latch mechanism, winding and unwinding the hose couldn’t be easier. All you have to do is pull out the hose and use the declutching arbor to reel it back in.

Substantial base frame
Mounting capabilities
9000 series
131 lbs
1/2" hose inner diameter
.82" hose outer diameter
75 foot hose
3000 psi
Hose end 1/2" NPT (M)
Reel inlet 1/2" NPT (F)
Reel outlet 1/2" NPT (F)
Hose included
Max temp of 210 degrees Fahrenheit
AFLAS seal
Steel swivel
Heavy-duty steel construction
Aluminum ratchet and latch mechanism
Declutching arbor
Powder-coat finish
Compact
Steel internal fluid path
Bumper stop

Shipping & Returns

This product requires truck freight delivery. Standard parcel carriers are not available for this item.

Expedited orders must be placed by 12 p.m. CST. Items under 110 lbs ship via standard parcel (UPS Ground). Items 110–150 lbs may ship via ground or truck freight depending on size and destination.
Larger or heavier items ship via truck freight, which may require additional delivery time.

Please inspect all shipments within 10 days of delivery. Return requests must be submitted within 45 days.

For full details, view our Shipping & Returns Policy.

Learn More

Product Information

Item #	MFG #	GTIN #
E9275 OMP	E9275 OMPBW	699567001935
