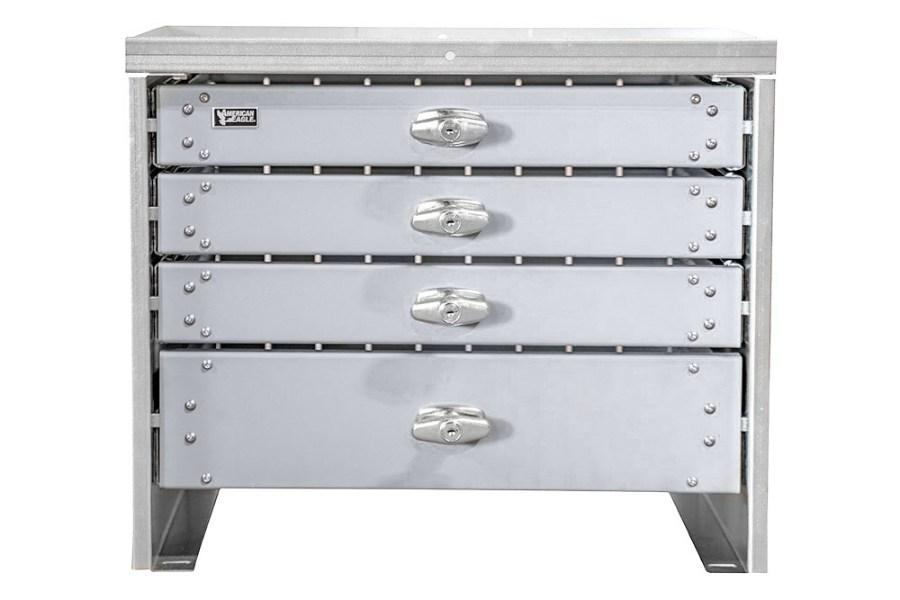

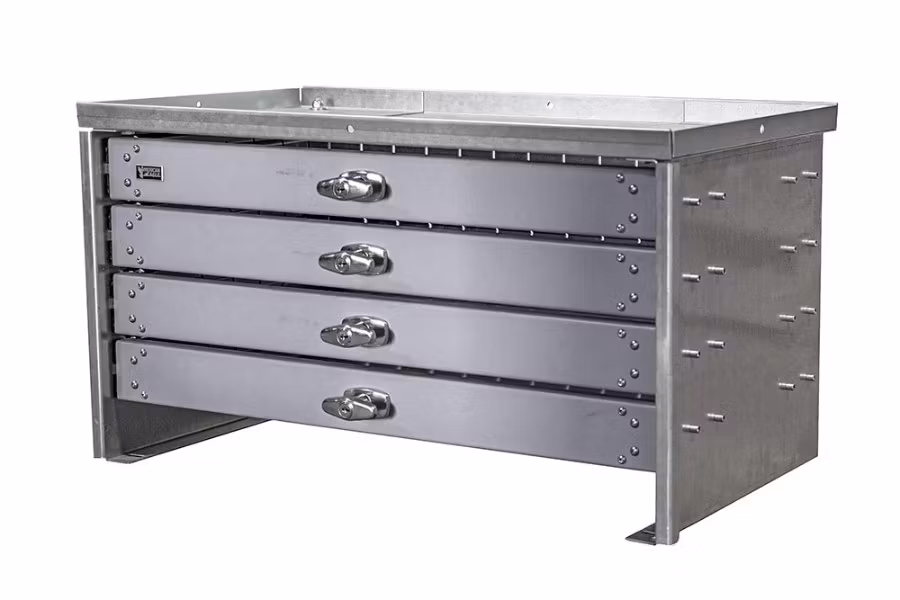

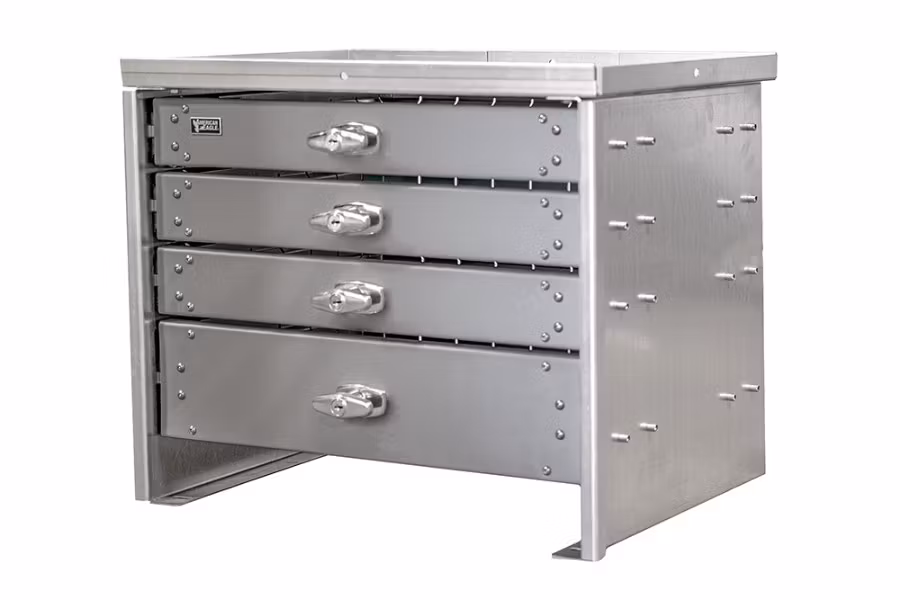

Stellar 4 Drawer Toolbox Systems

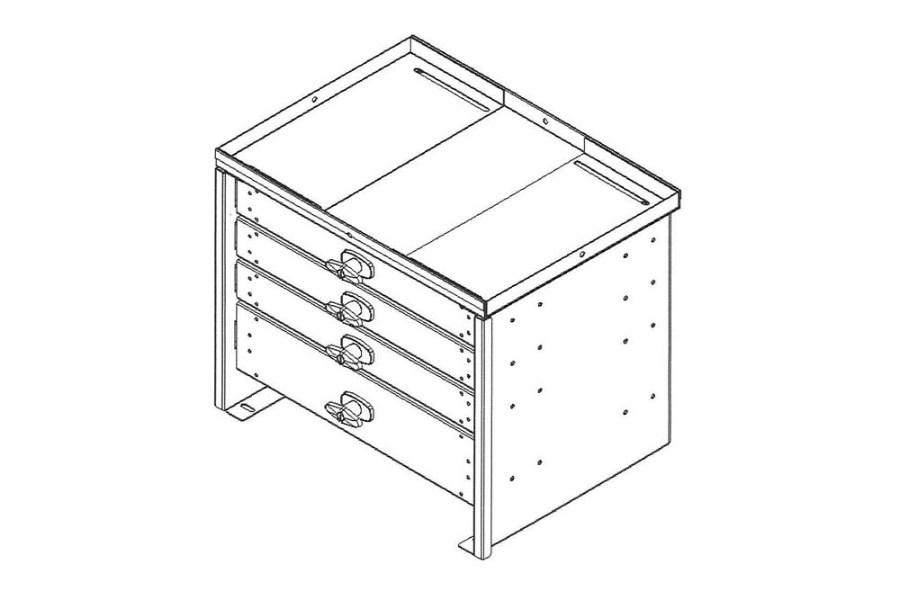

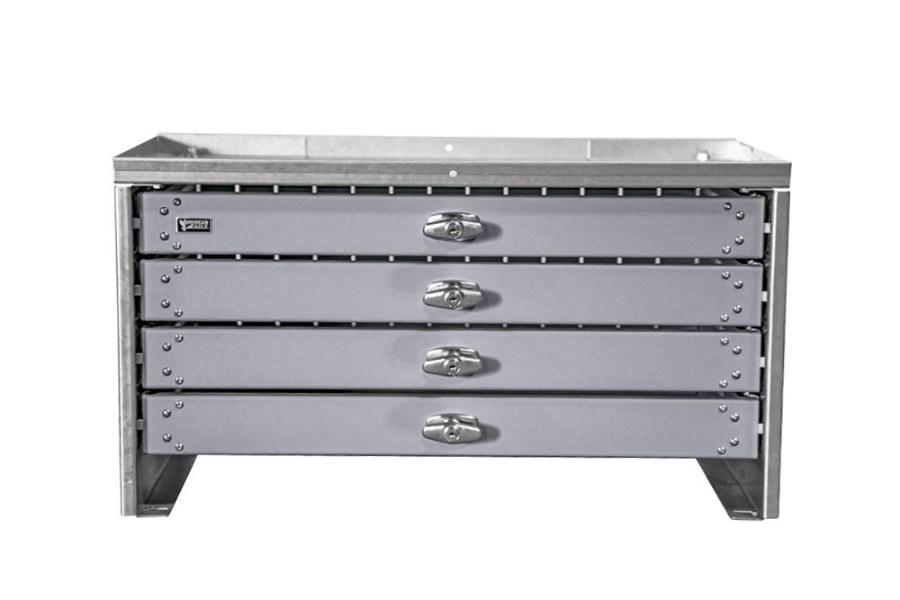

This Stellar (formerly American Eagle) heavy duty steel drawer system has a standard top shelf. 2.5" high riser. All drawer widths in the product line utilize our unique key locking T handle. This feature provides a one-handed operation and conceals the latch mechanism for heavy-duty protection and an attractive appearance. Drawer systems are custom-made to your specifications. Each drawer system is engineered to fit your truck s compartment and configured with the drawer sizes that will work best for you.

Chart Below Have Actual Dimensions (T-Handle And Risers Not Included In Dimensions) Drop Downs Above Are Rounded Up (Riser and T-Handle Included)

The Toolbox Drawer System Consists of:

Top Shelf

Built-In Risers

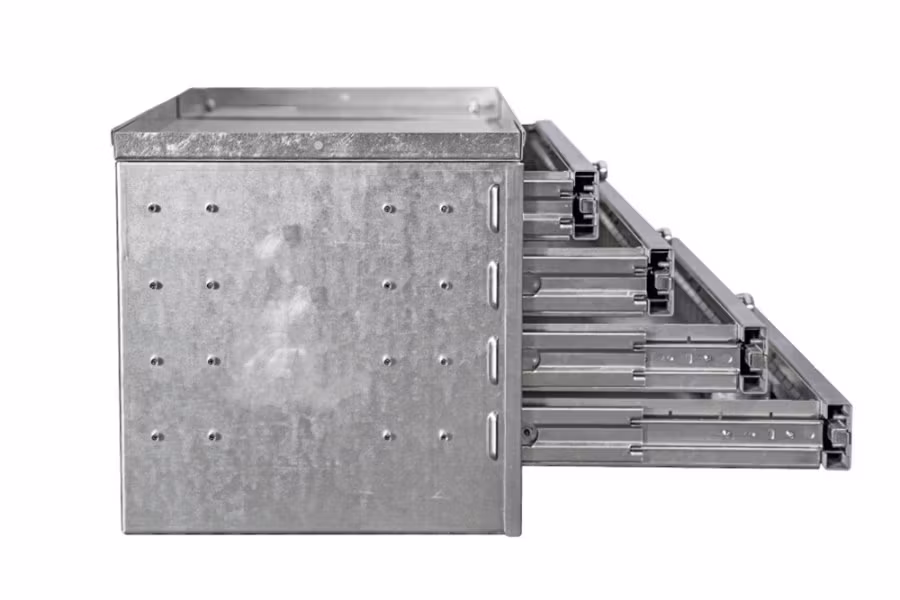

Heavy Duty 500 lb. Ball Bearing Slides

Key Lockable Chrome Plated T-Handle(s) With Concealed Latching Hardware

Removable Drawers

Gray Powder Coated Front Panels and Galvanized Components

Each Drawer Includes Front-To-Back Dividers

Lifetime Warranty (Original Owner) On Slides, Handles, and Latches

Used In Place of The Miller Toolbox Part Number 124004166

Drawer Set Enclosure: 14GA Galvanized Steel

Drawer Pull-Out: 12GA Galvanized Steel

Made in the USA

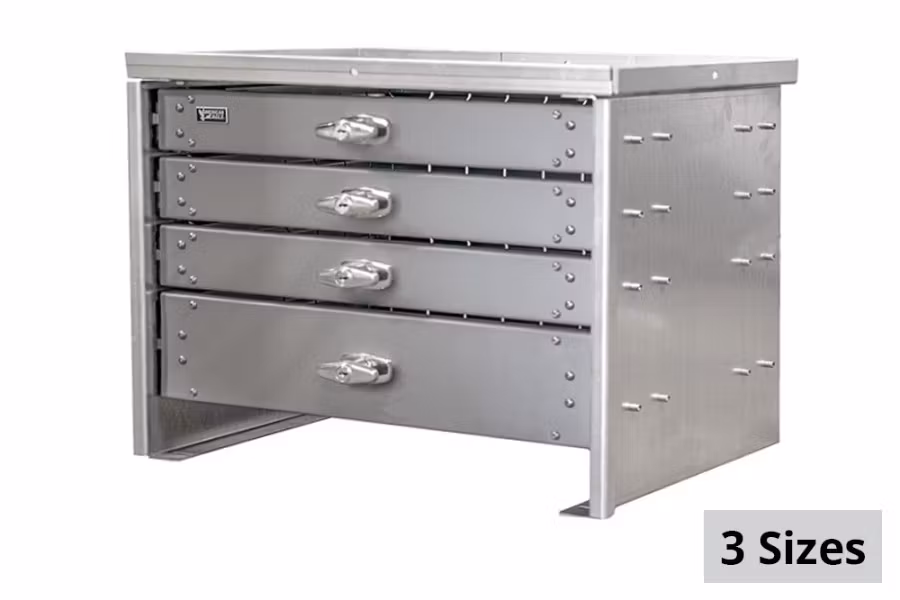

Avaiable below in the actual dimensions (t-handle and risers not included in DIM)

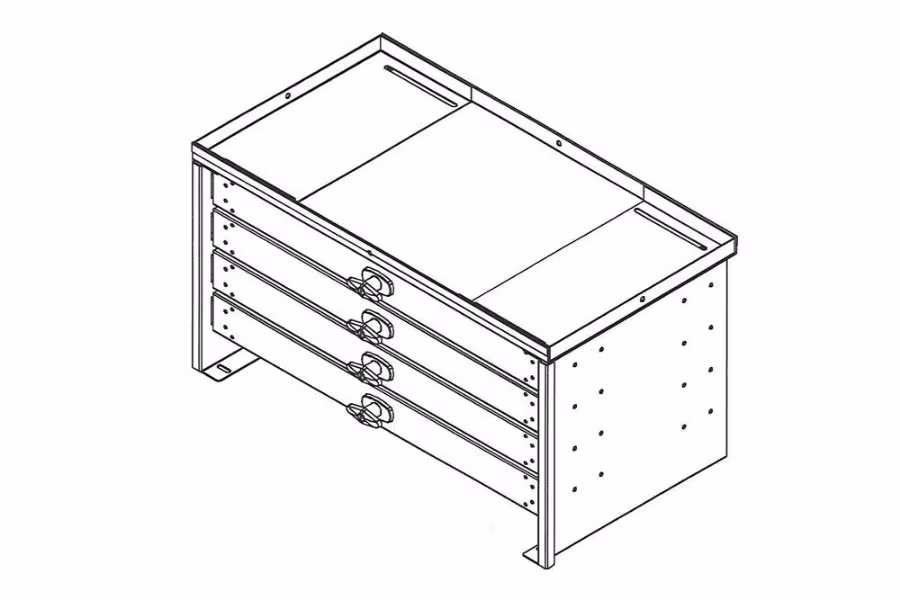

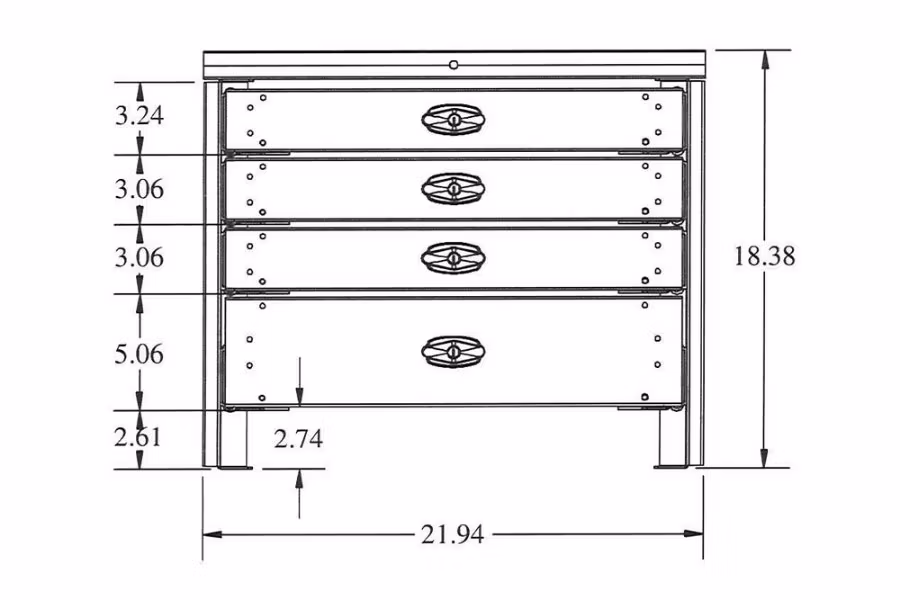

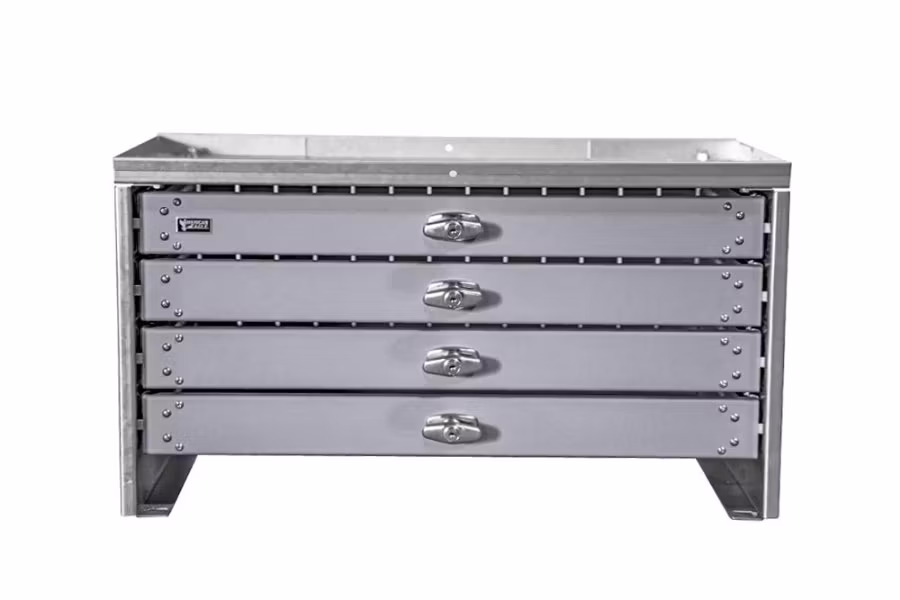

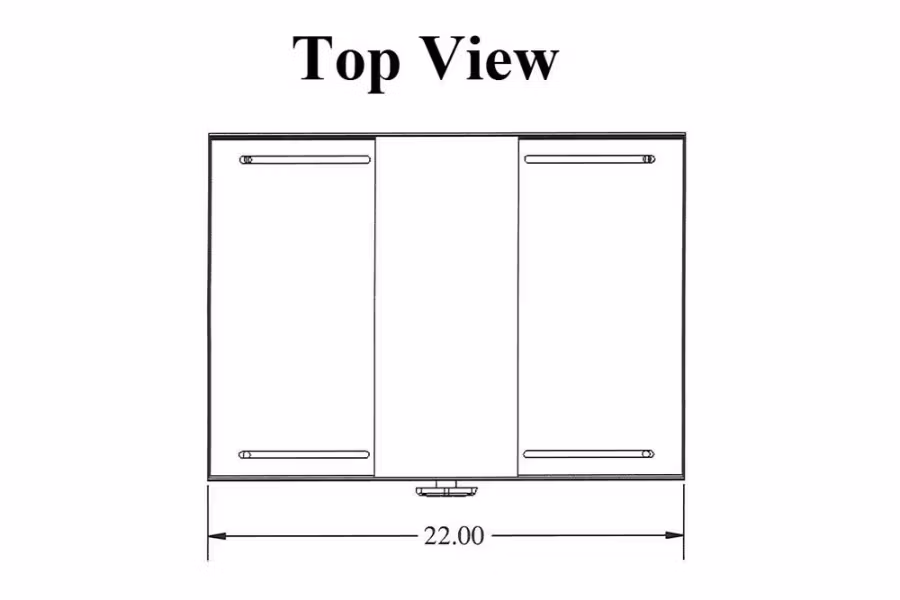

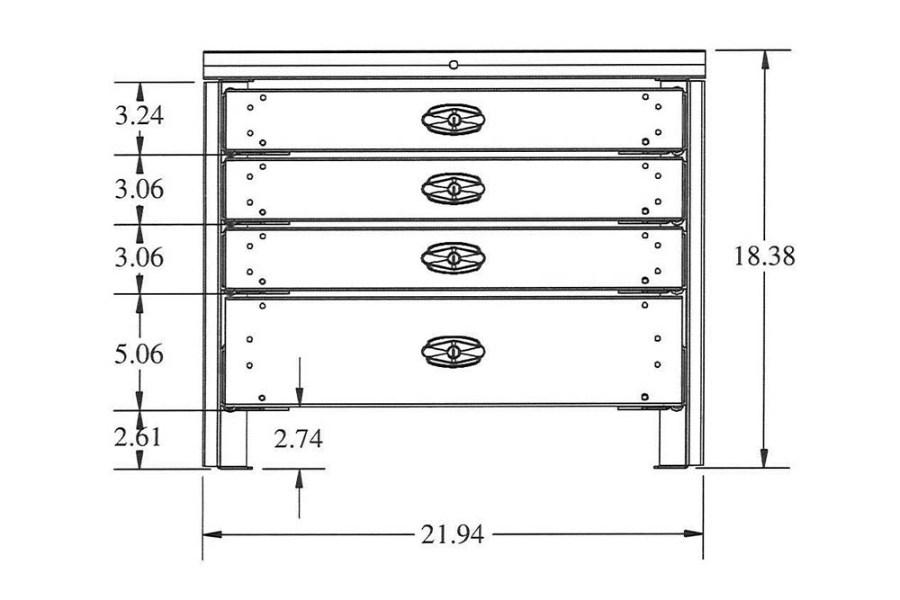

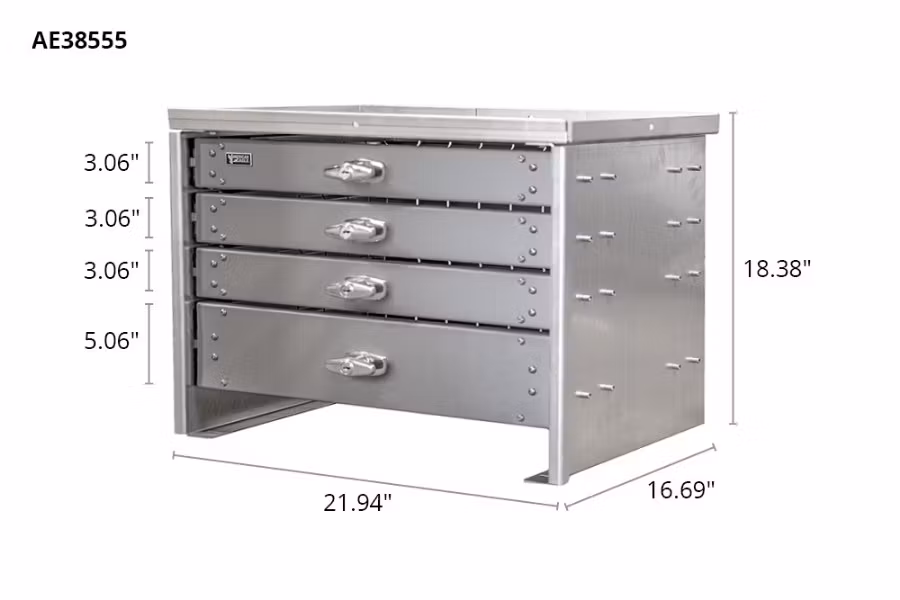

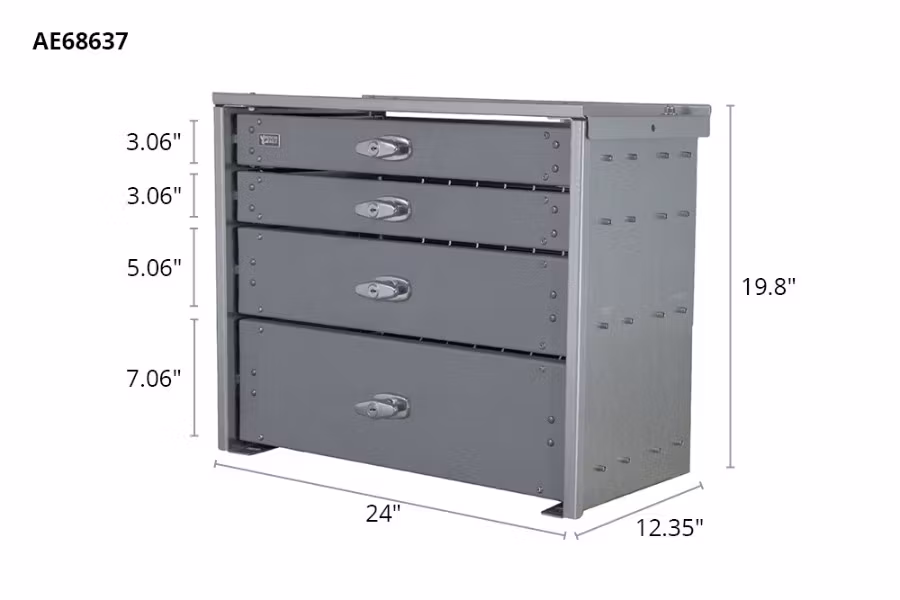

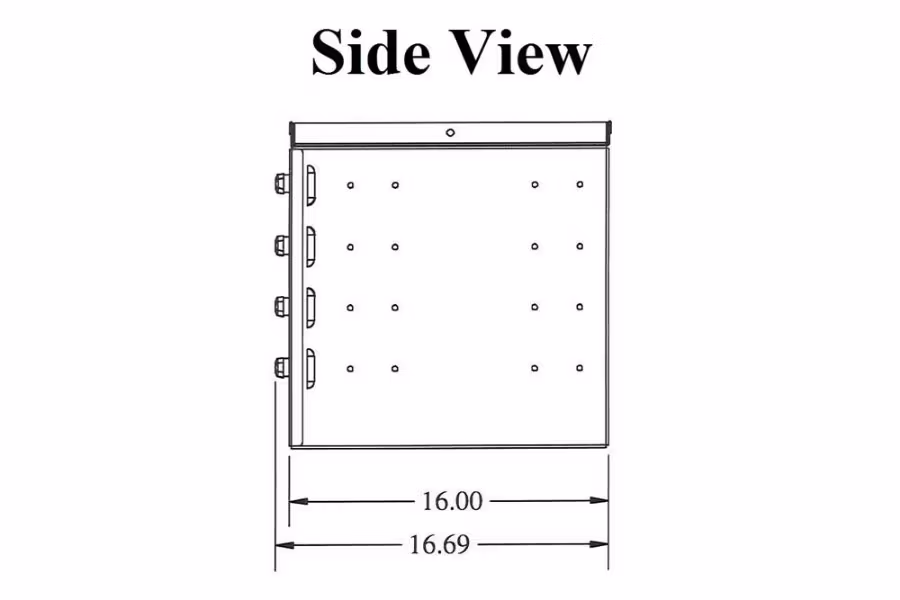

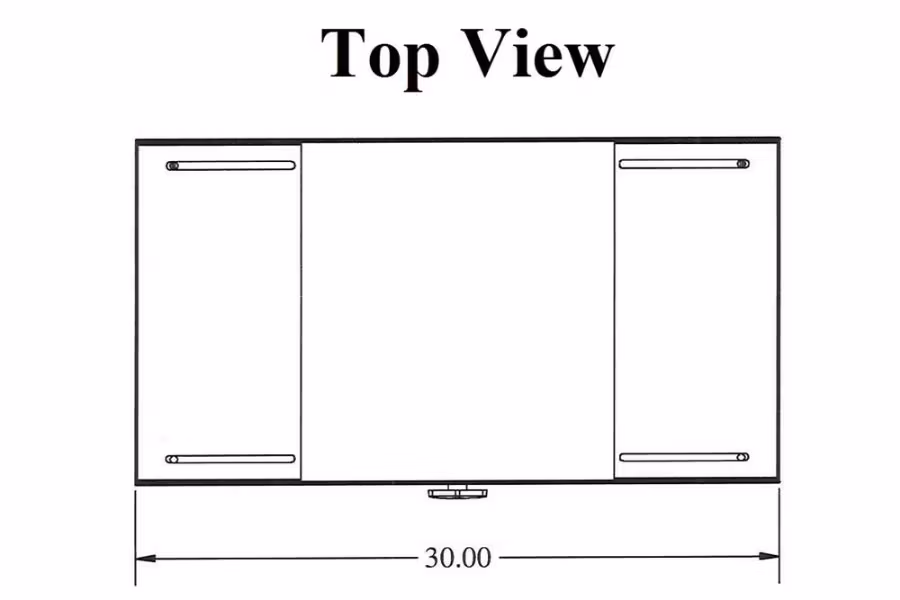

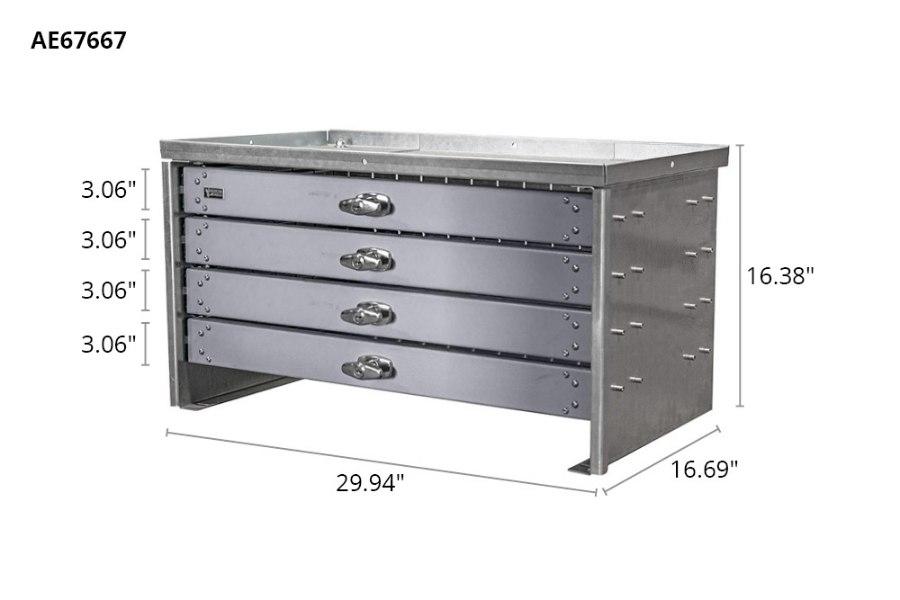

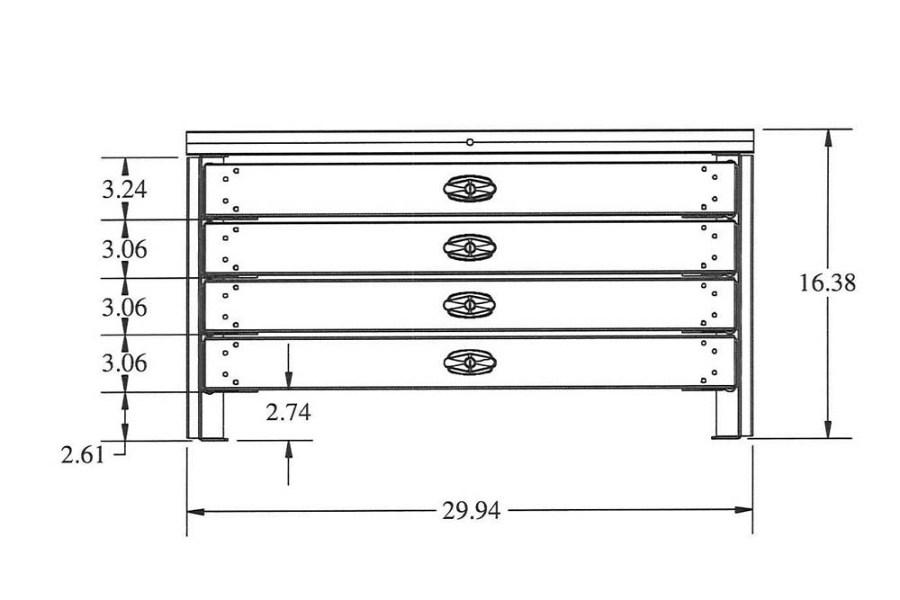

Part #	AE38555	AE67667	AE68637
Height	18.5"	16.5"	19.8"
Width	22"	30"	24"
Depth	17"	17"	13"
Riser	2.5"	2.5"	NR
Drawer Size	3-3", 1-5"	4-3"	2-3", 1-5",1-7"
