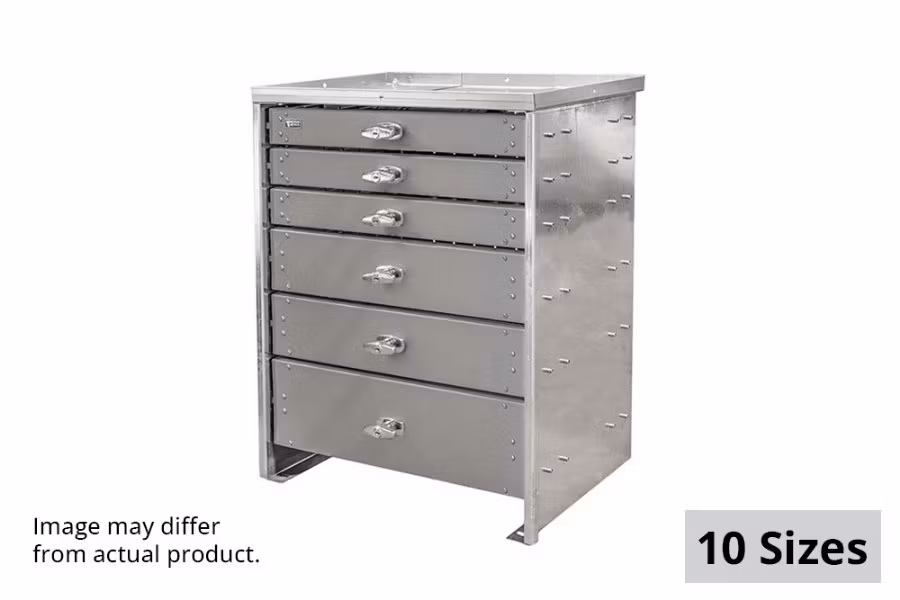

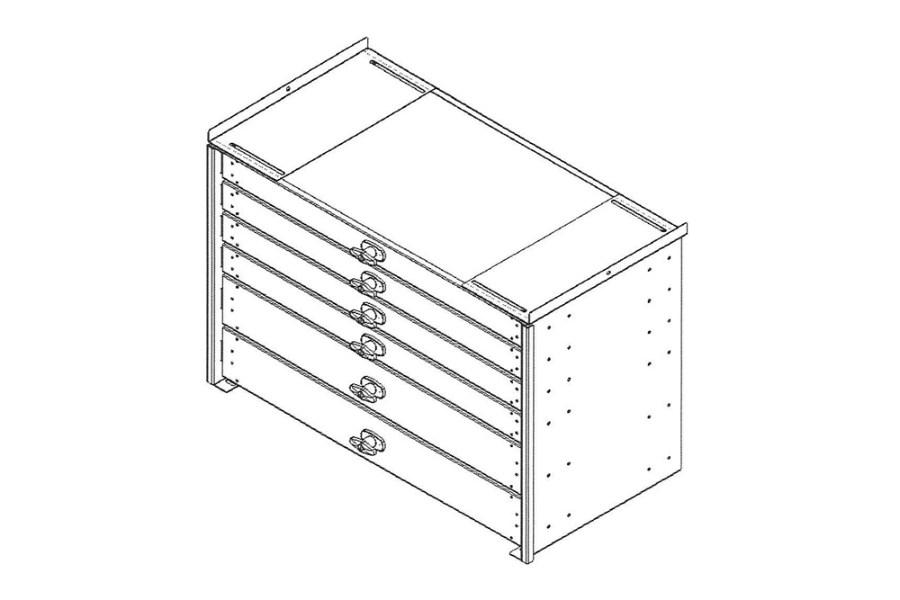

Stellar 6 Drawer Toolbox Systems

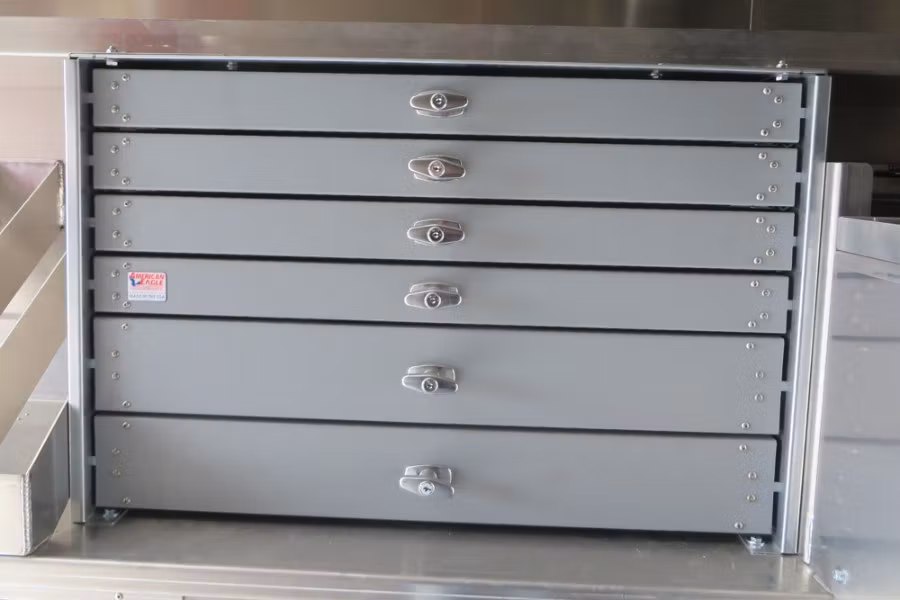

This Stellar (formerly American Eagle) heavy duty steel drawer system has a standard top shelf, 2.5" or .5" high riser. All drawer widths in the product line utilize our unique key locking T handle. This feature provides a one-handed operation and conceals the latch mechanism for heavy-duty protection and an attractive appearance. Drawer systems are custom-made to your specifications. Each drawer system is engineered to fit your truck s compartment and configured with the drawer sizes that will work best for you.

Chart Below Have Actual Dimensions (T-Handle And Risers Not Included In Dimensions) Drop Downs Above Are Rounded Up (Riser and T-Handle Included)

Heavy Duty 500 lb. Ball Bearing Slides

Key Lockable Chrome Plated T-Handle(s) With Concealed Latching Hardware

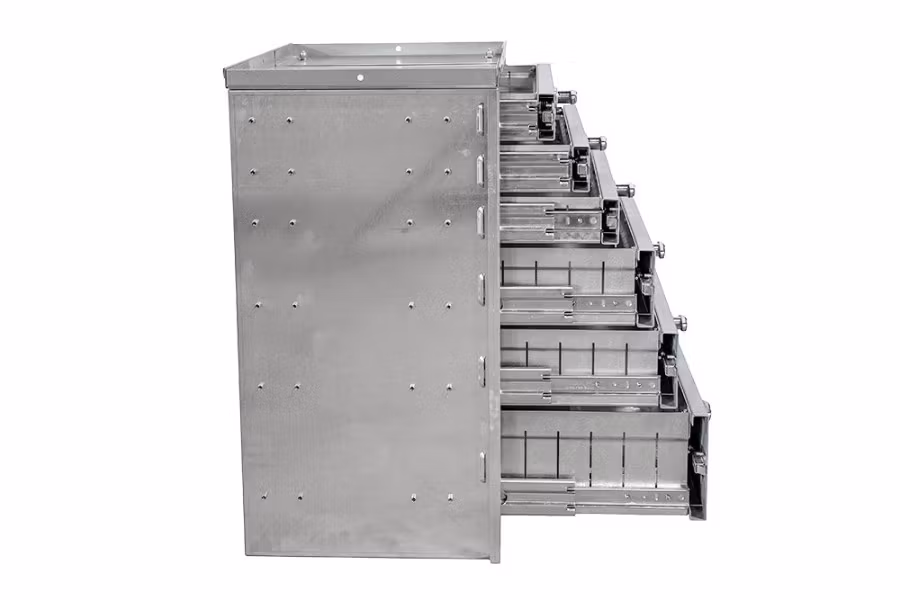

Removable Drawers

Gray Powder Coated Front Panels and Galvanized Components

Each Drawer Includes Front-To-Back Dividers

Lifetime Warranty (Original Owner) On Slides, Handles, and Latches

Drawer Set Enclosure: 14GA Galvanized Steel

Drawer Pull-Out: 12GA Galvanized Steel

Made in the USA

Available below in the actual dimensions (t-handle and risers not included in DIM)

Item #	Height	Width	Depth	Riser	Drawer Size

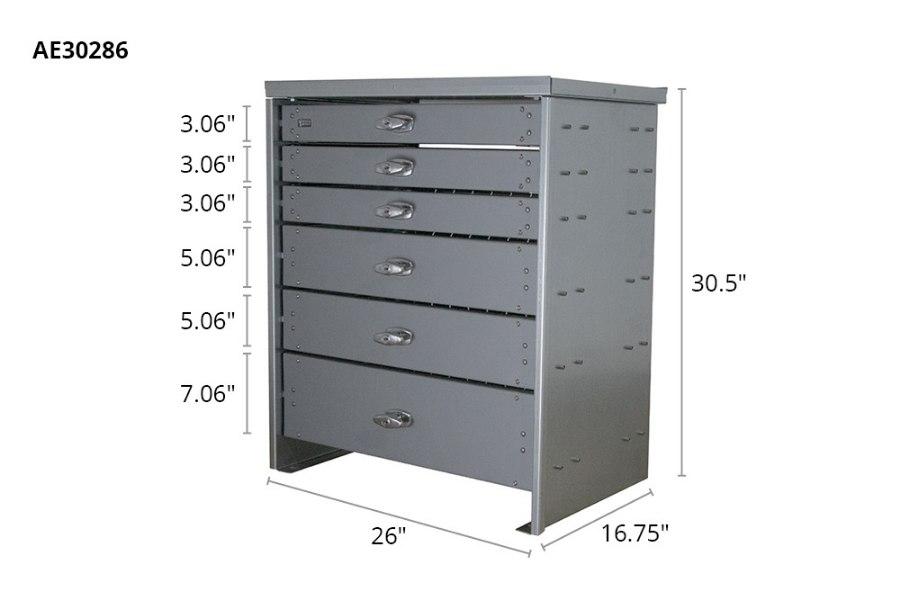

AE30286	31"	26"	16"	2.5"	3-3", 2-5", 1-7"

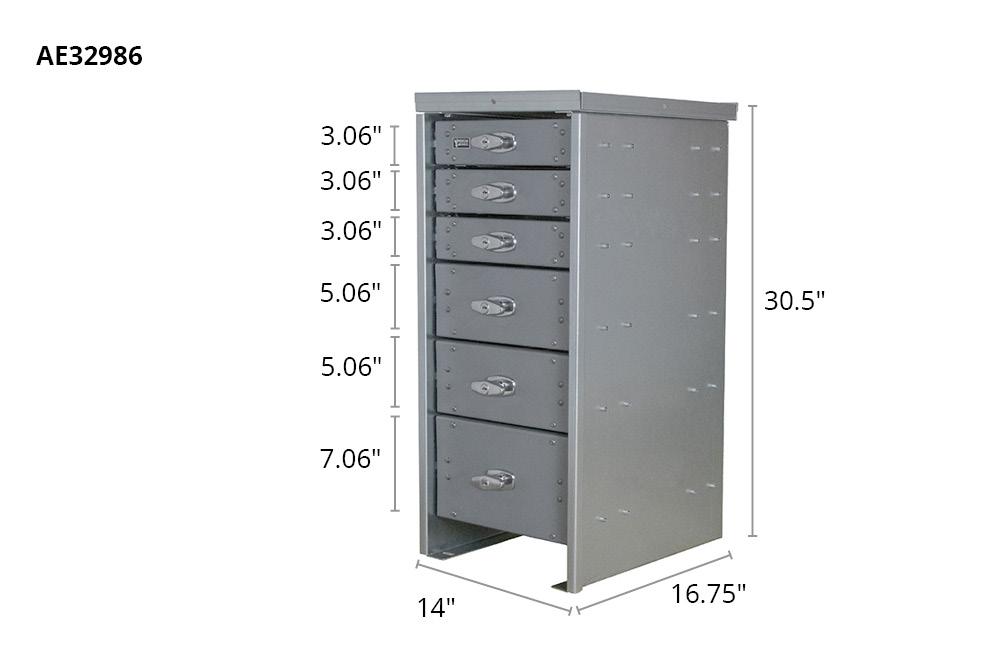

AE32986	30.5"	14"	16"	2.5"	3-3", 2-5", 1-7"

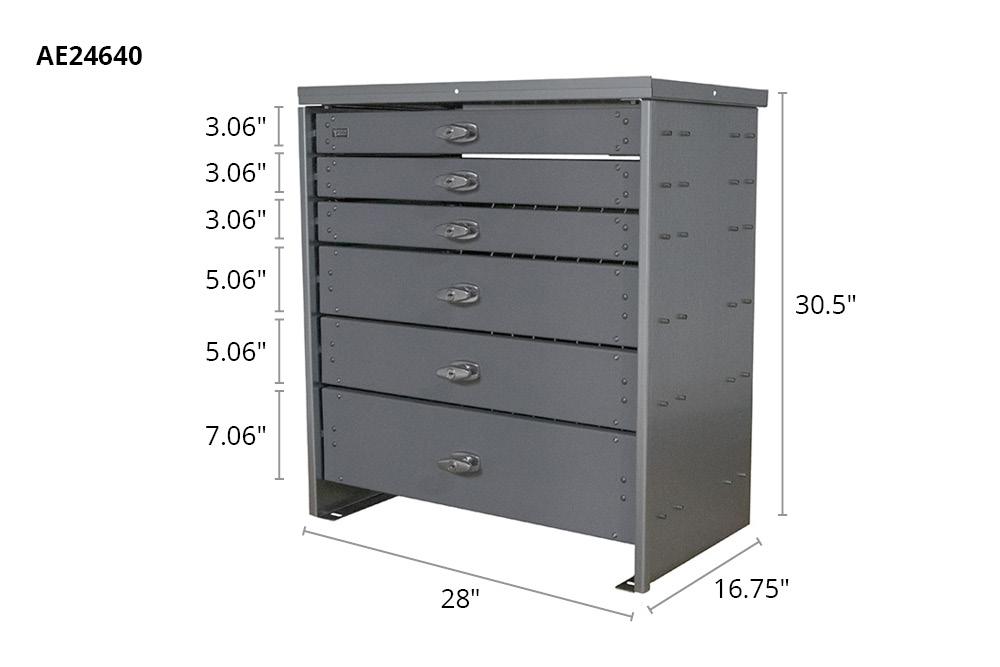

AE24640	30.5"	28"	16"	2.5"	3-3", 2-5", 1-7"
AE39909	30.5"	26"	18"	2.5"	3-3", 2-5", 1-7"

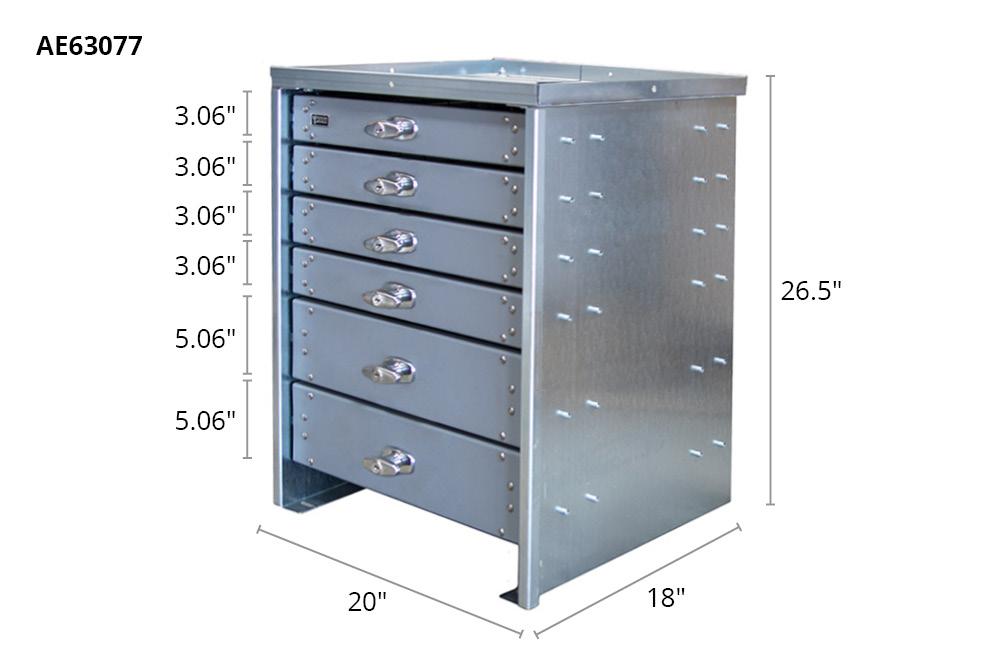

AE63077	26.5"	20"	18"	2.5"	4-3", 2-5"

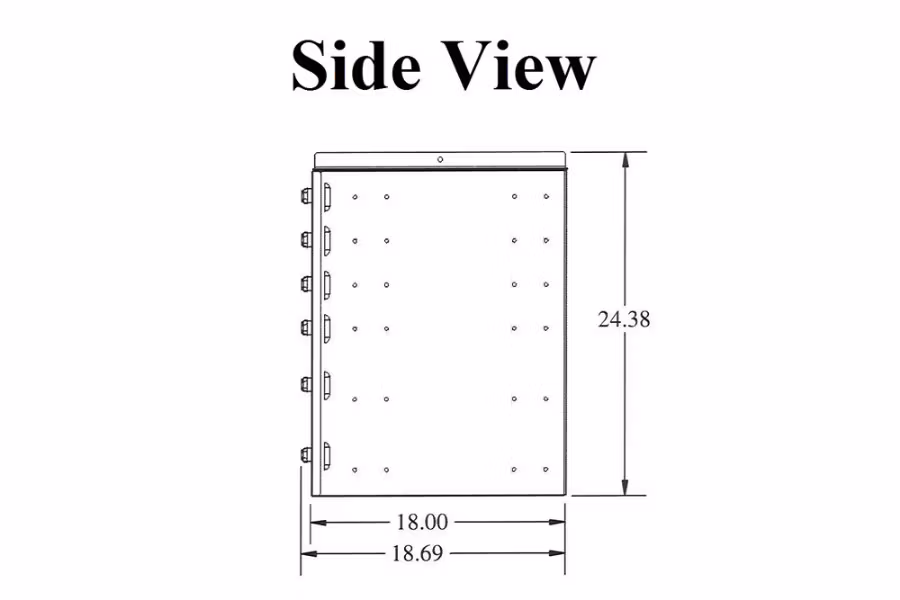

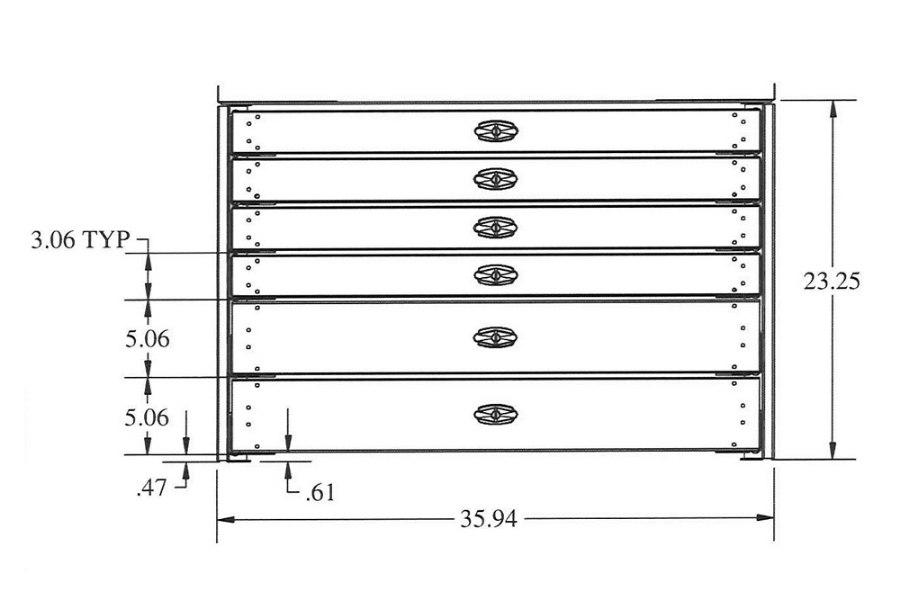

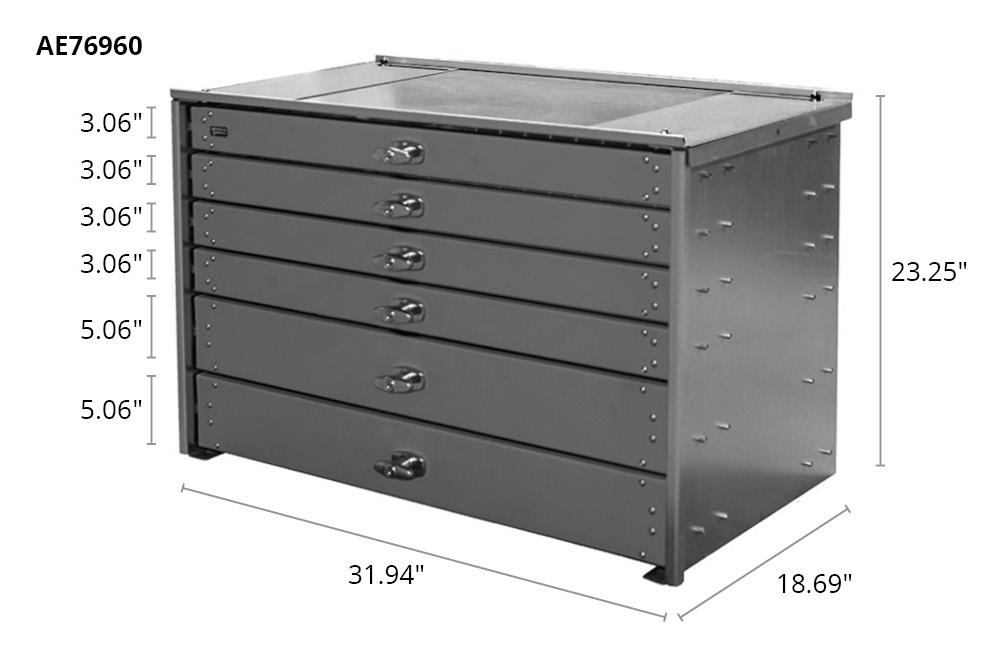

AE76960	24"	36"	18"	NR	4-3", 2-5"
AE81717	26"	44"	18"	.5"	4-3", 1-5", 1-7"
AE133221	26.5"	33"	14.75"	2.5"	4-3", 2-5"

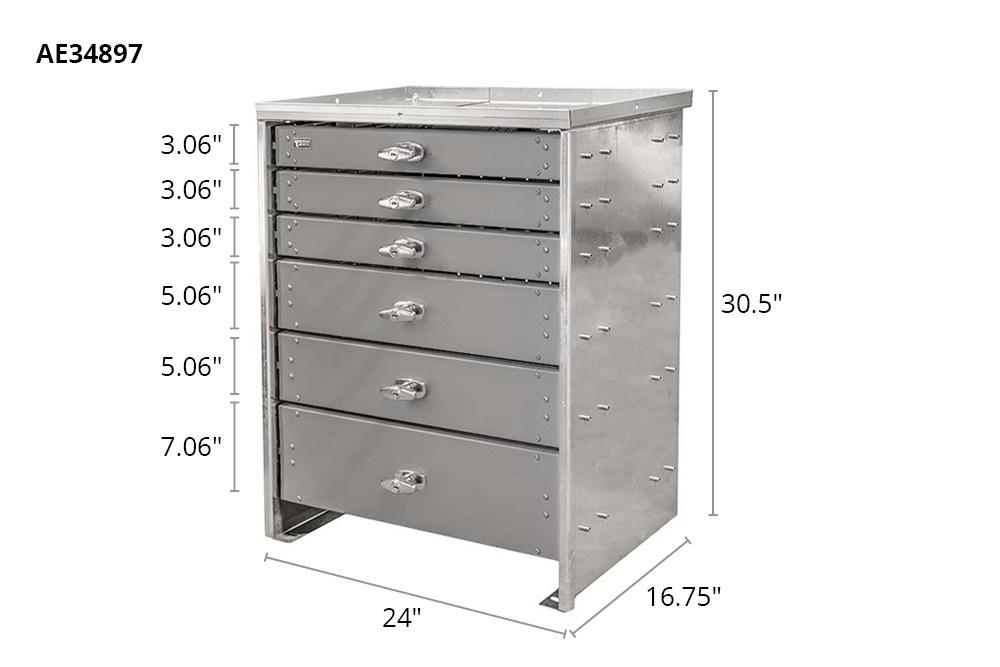

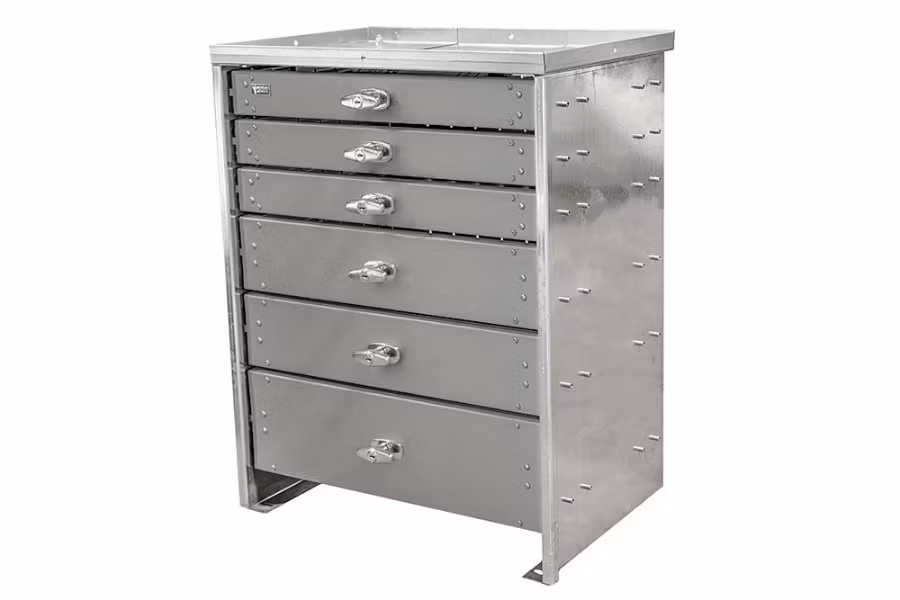

AE34897	30.5"	24"	16"	2.5"	4-3", 1-5", 1-7"
