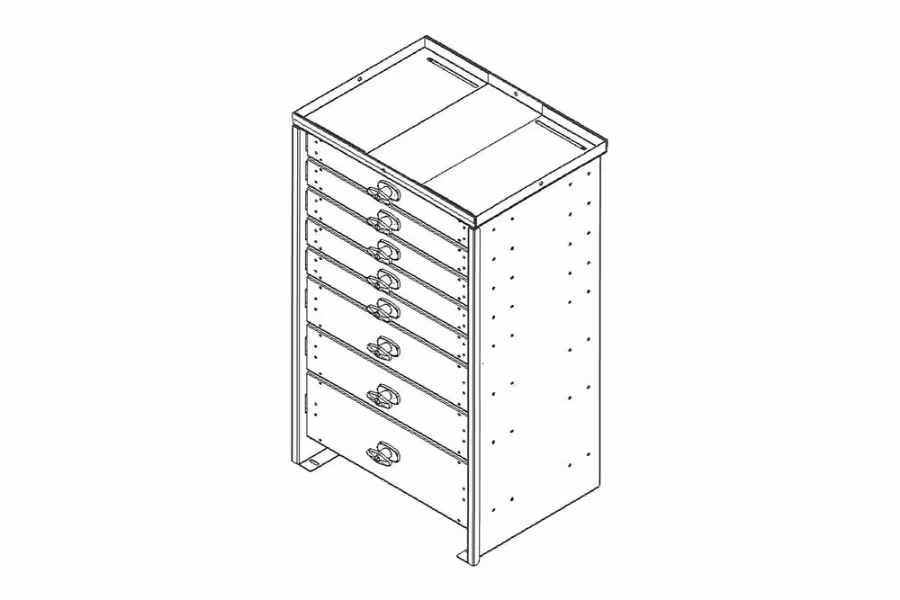

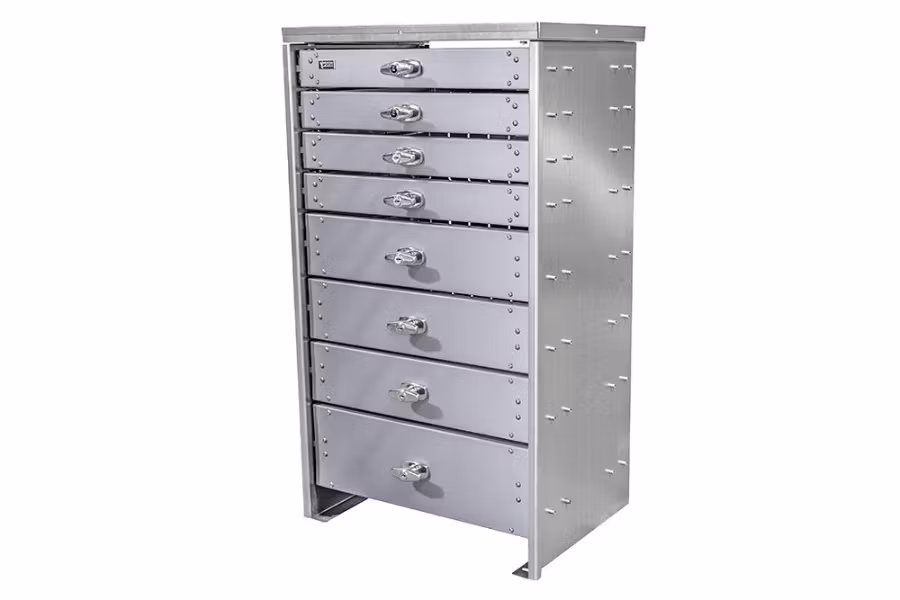

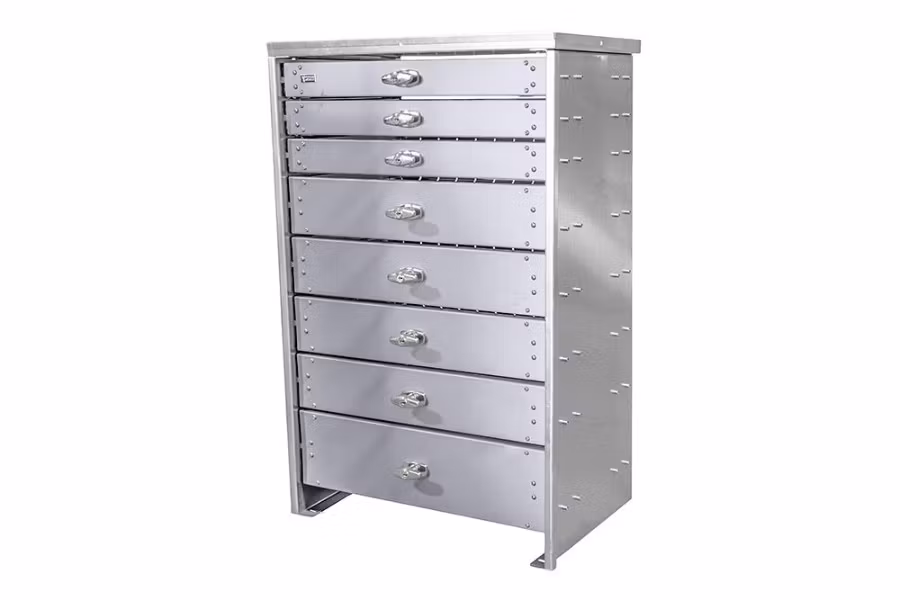

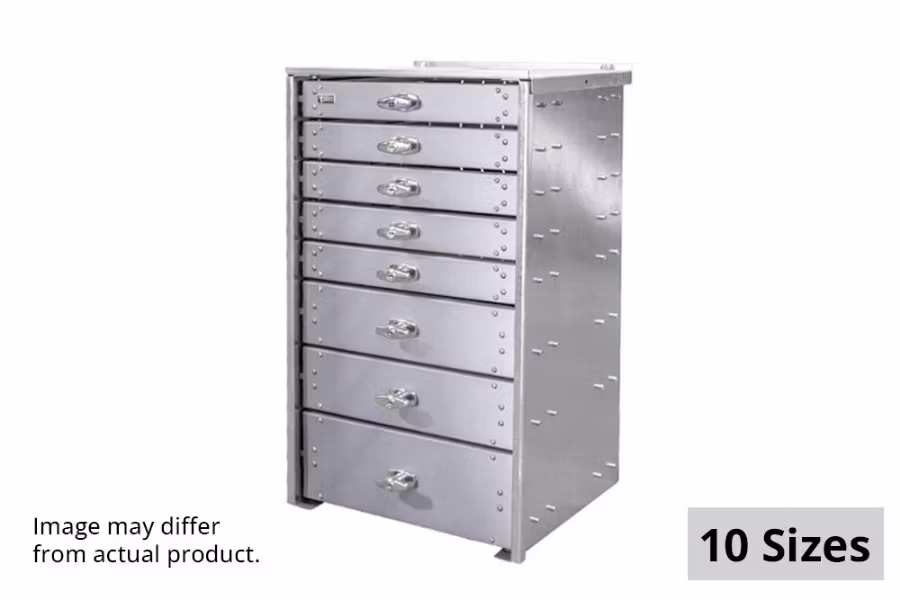

Stellar 8 Drawer Toolbox Systems

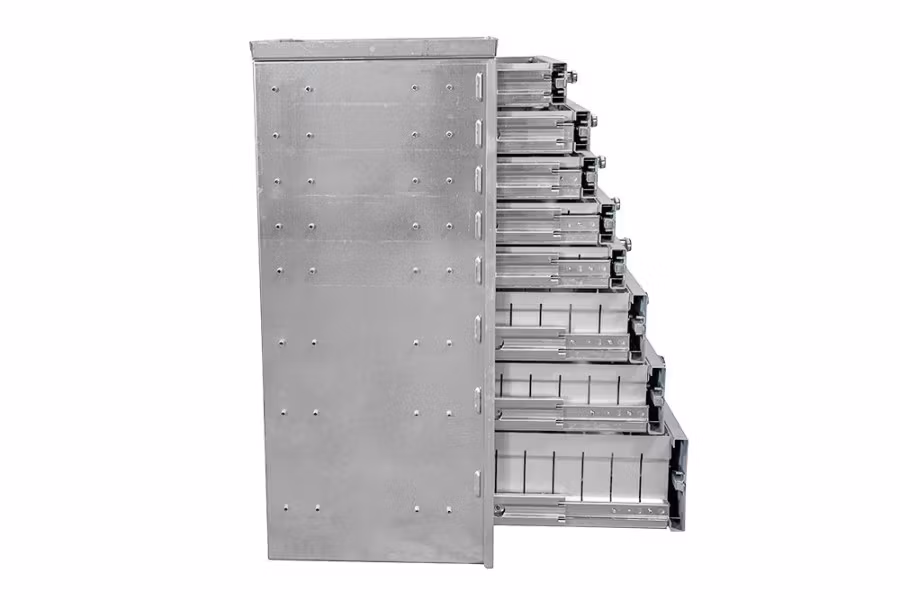

This Stellar (formerly American Eagle) heavy duty steel drawer system has a flat top shelf. Has a .5" or a 2.5" high riser. All drawer widths in the product line utilize our unique key locking T handle. This feature provides a one-handed operation and conceals the latch mechanism for heavy-duty protection and an attractive appearance. Drawer systems are custom-made to your specifications. Each drawer system is engineered to fit your truck s compartment and configured with the drawer sizes that will work best for you.

Chart Below Have Actual Dimensions (T-Handle And Risers Not Included In Dimensions) Drop Downs Above Are Rounded Up (Riser and T-Handle Included)

The Toolbox Drawer System Consists of:

Top Shelf

Built-In Risers

Heavy Duty 500 lb. Ball Bearing Slides

Key Lockable Chrome Plated T-Handle(s) With Concealed Latching Hardware

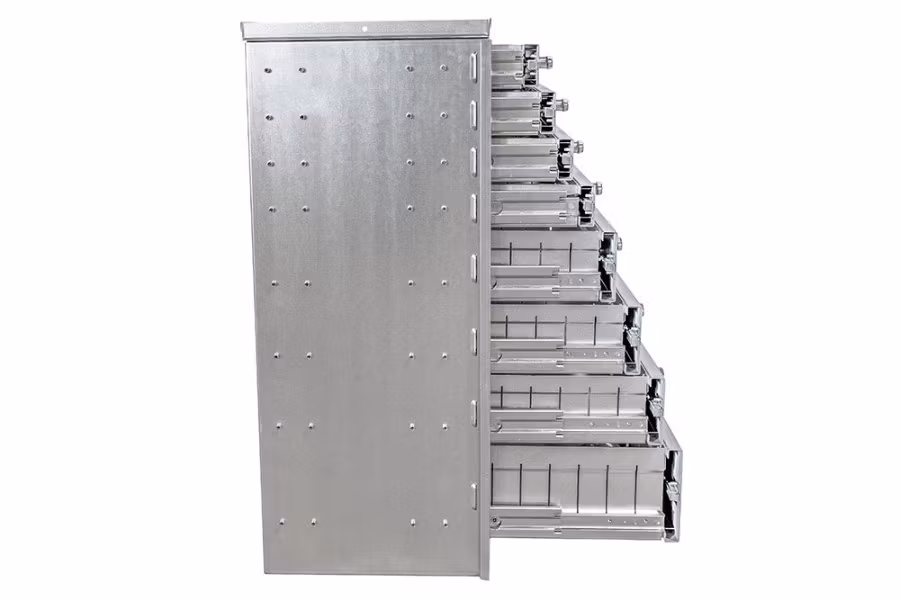

Removable Drawers

Gray Powder Coated Front Panels and Galvanized Components

Each Drawer Includes Front-To-Back Dividers

Lifetime Warranty (Original Owner) On Slides, Handles, and Latches

Drawer Set Enclosure: 14GA Galvanized Steel

Drawer Pull-Out: 12GA Galvanized Steel

Made in the USA

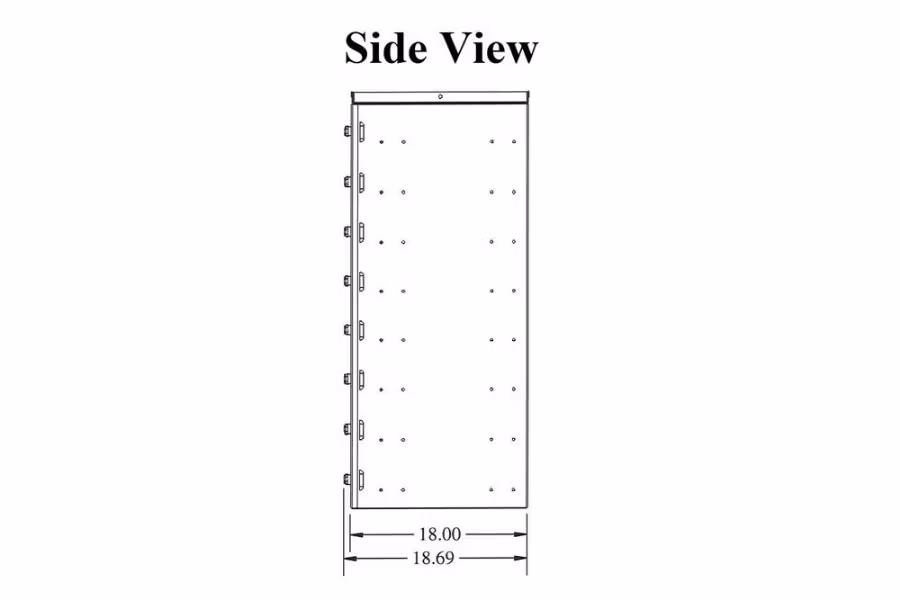

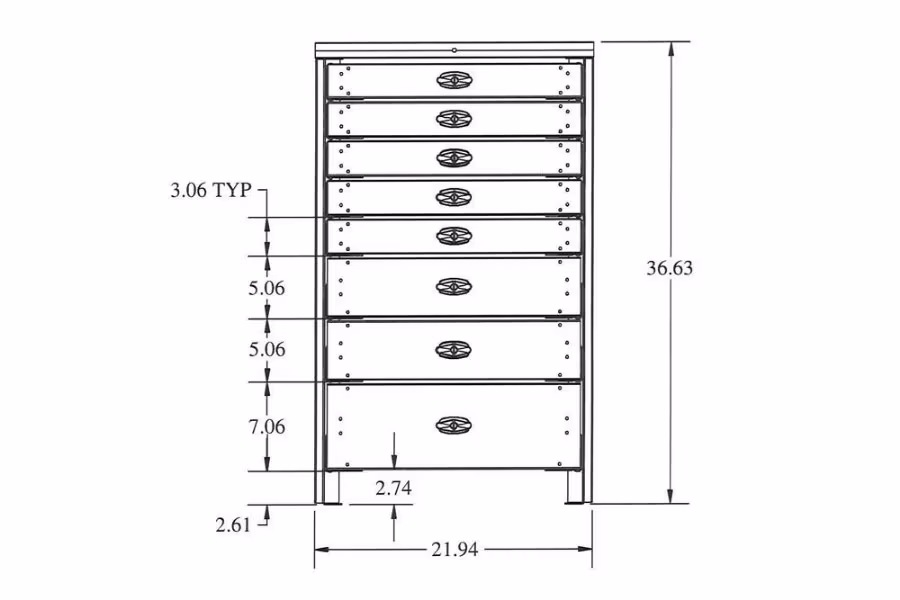

Available below in the actual dimensions (t-handle and risers not included in DIM)

Part #	Height	Width	Depth	Riser	Drawer Size

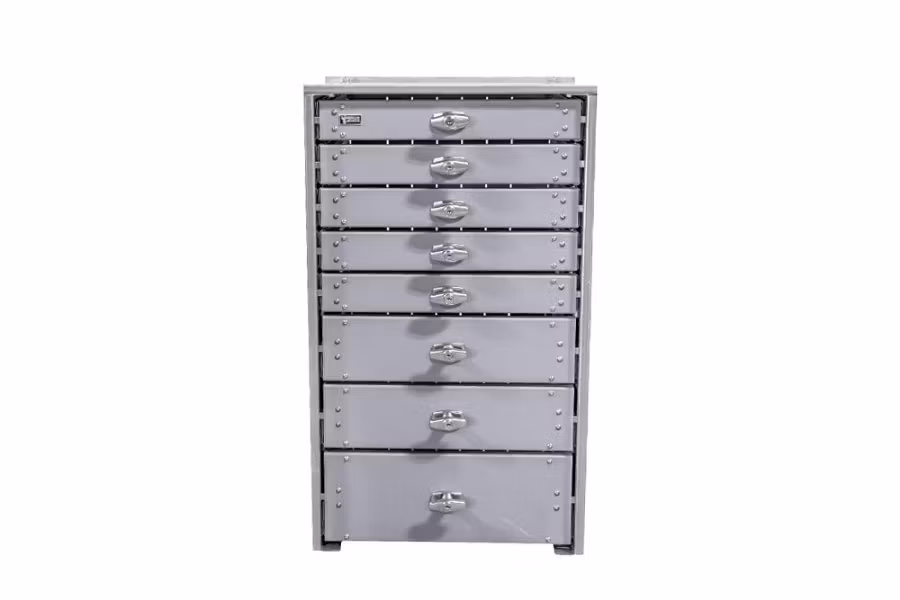

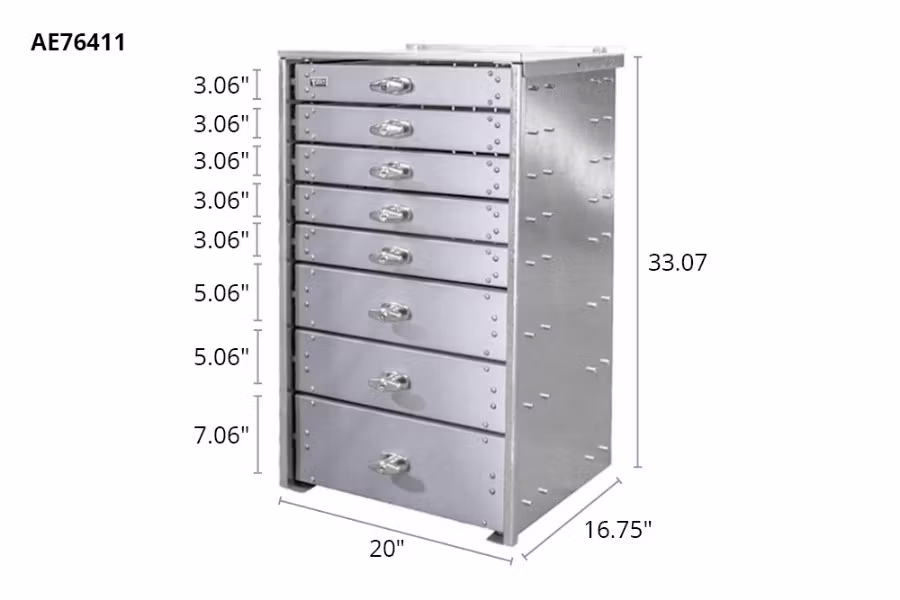

AE76411	34"	20"	16"	.5"	5-3", 2-5", 1-7"

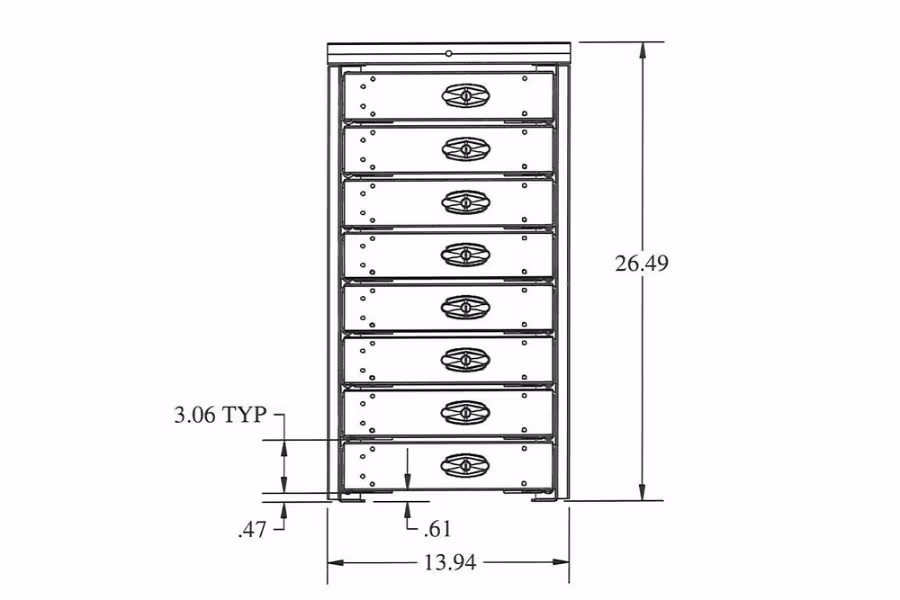

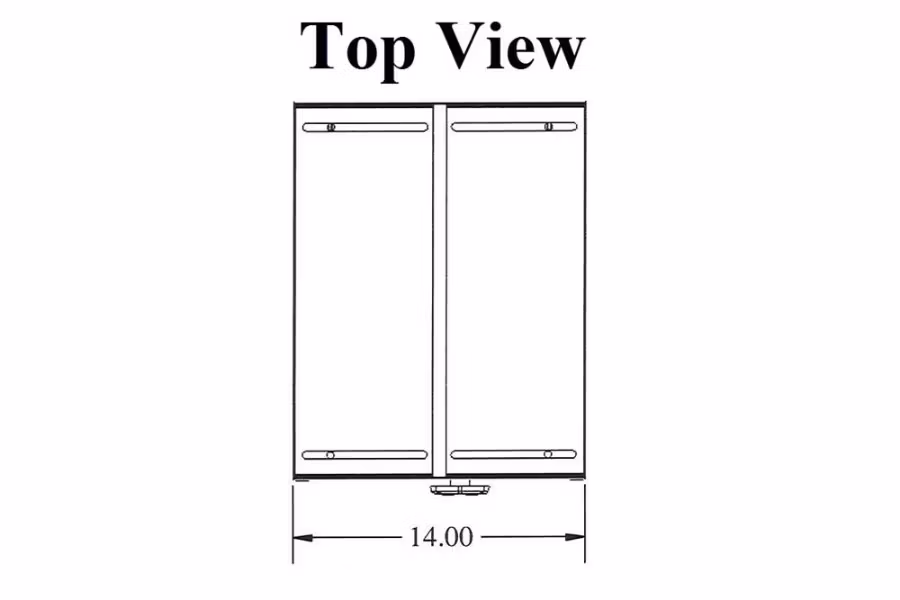

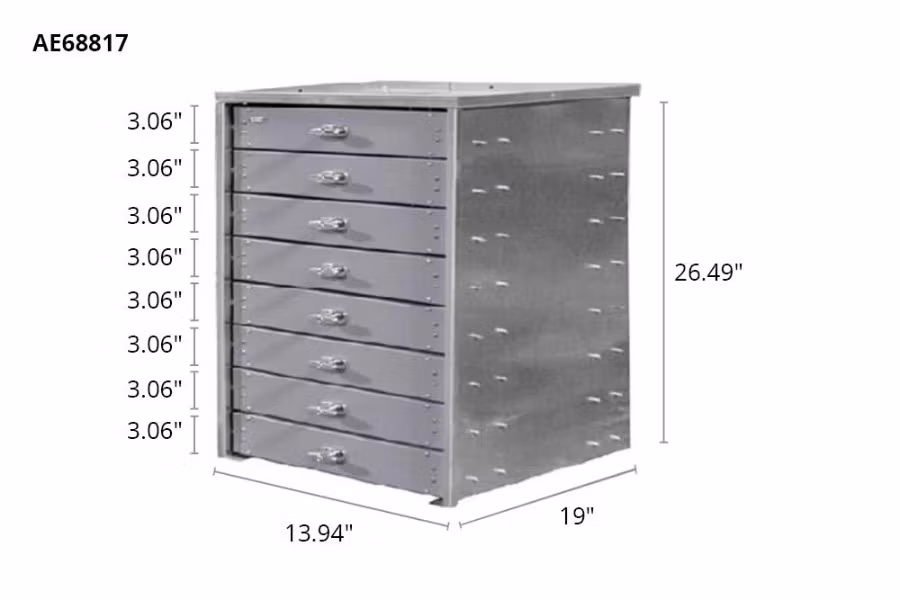

AE68817	26.5"	14"	18"	.5"	8-3"

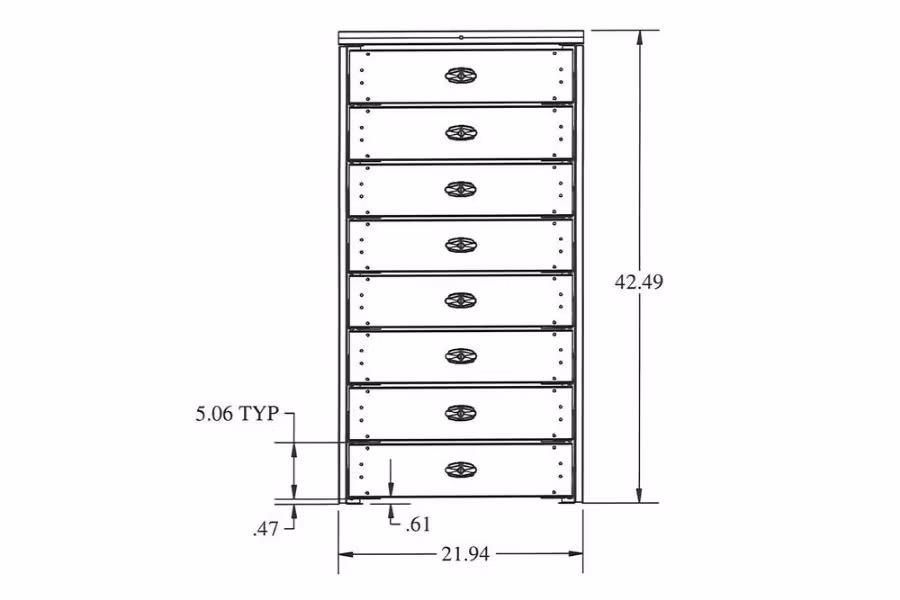

AE68818	42.5"	22"	18"	.5"	8-3"

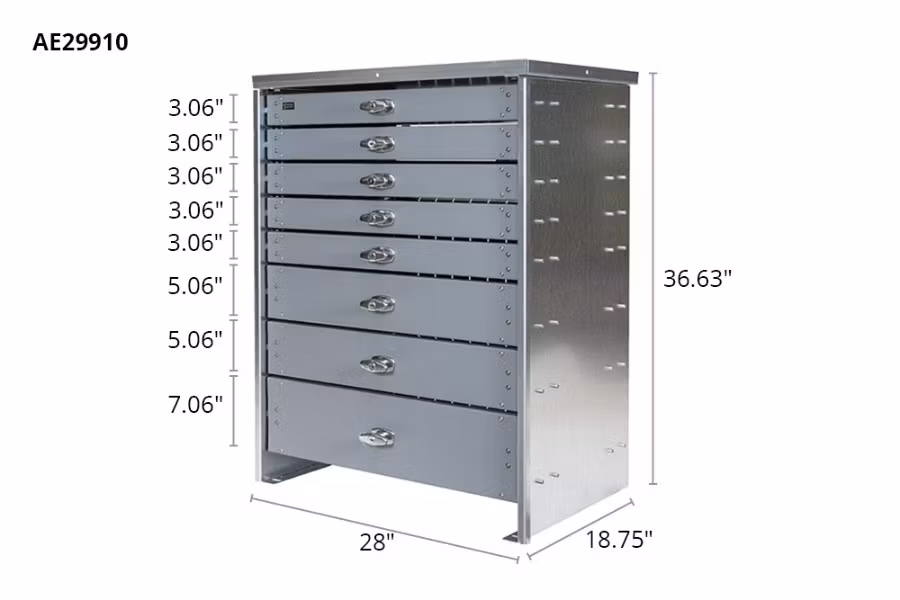

AE29910	37"	28"	18"	2.5"	5-3", 2-5", 1-7"
AE37762	36.5"	24"	14"	2.5"	5-3", 2-5", 1-7"

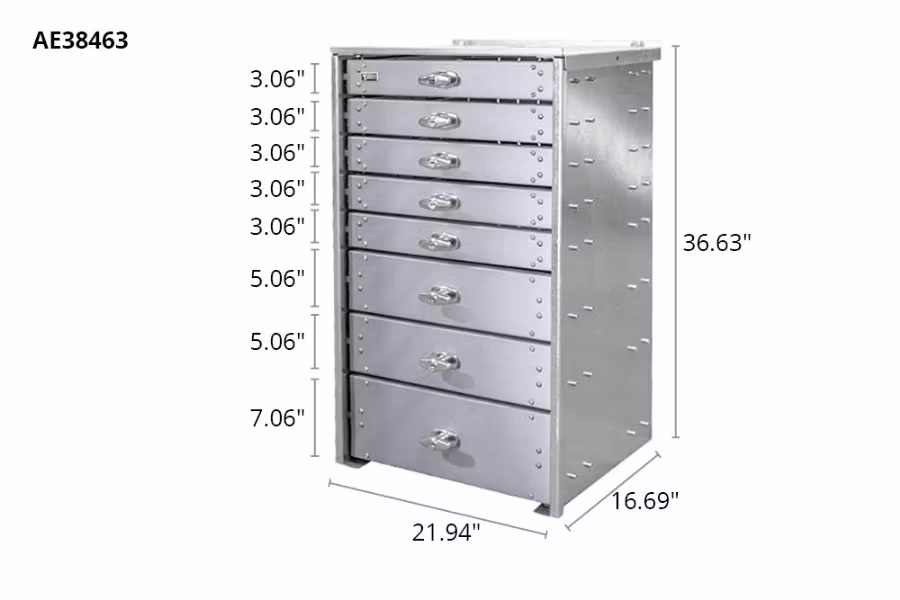

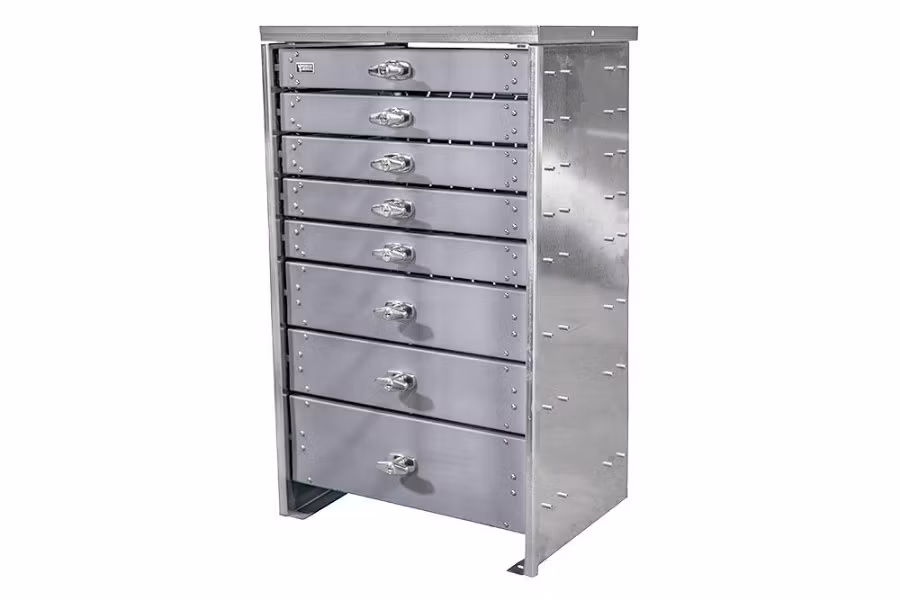

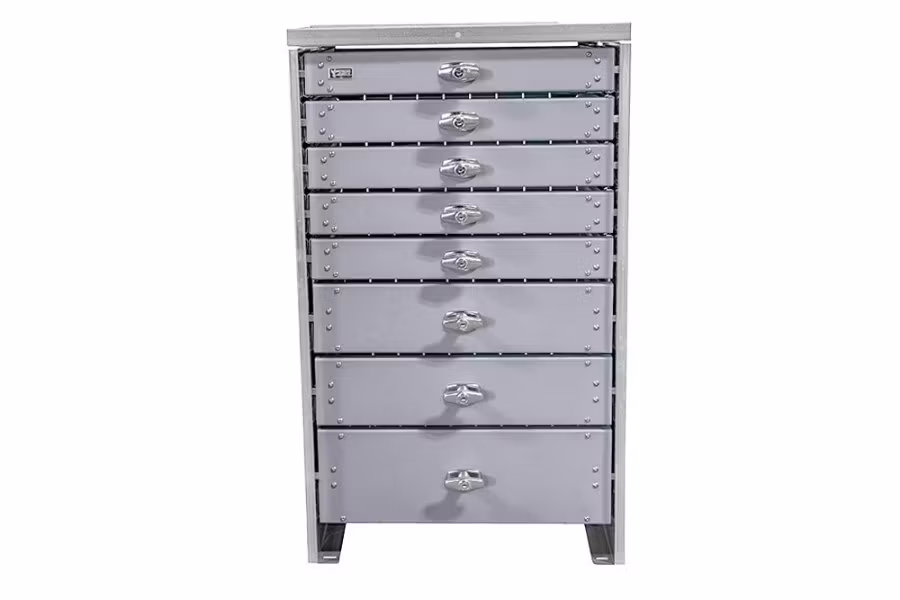

AE38463	36.5"	22"	16"	2.5"	5-3", 2-5", 1-7"
AE41141	36.5"	20"	18"	2.5"	3-3", 2-5", 1-7"

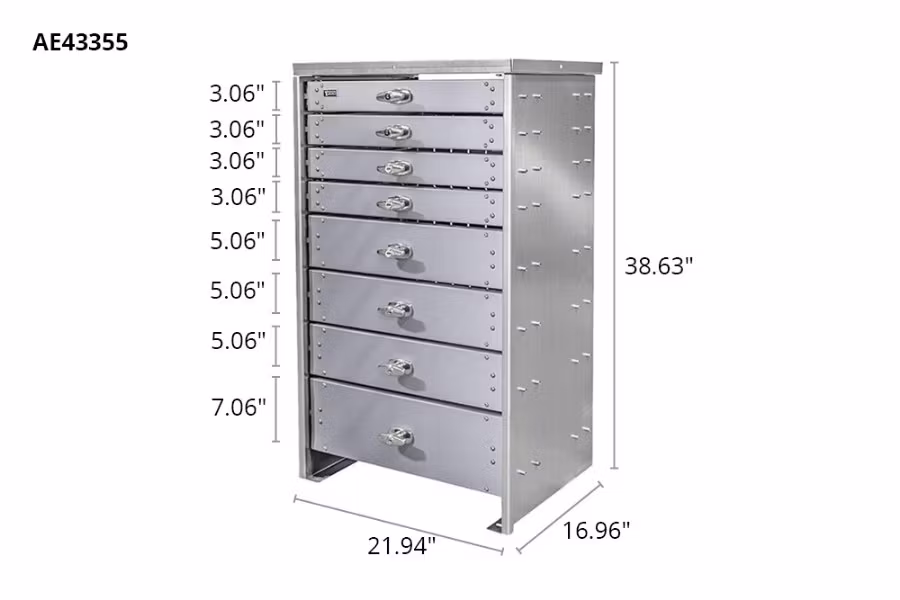

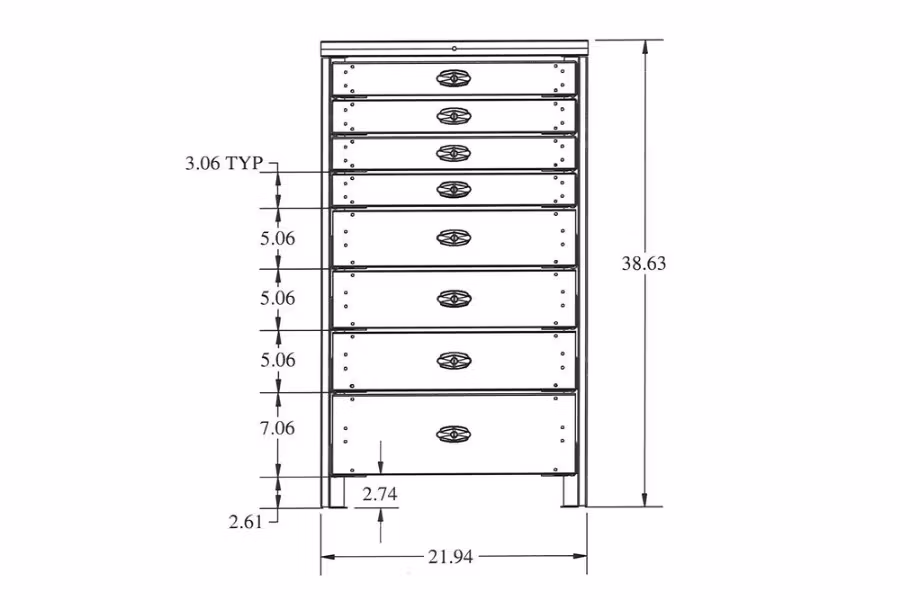

AE43355	39"	22"	18"	2.5"	4-3", 3-5", 1-7"

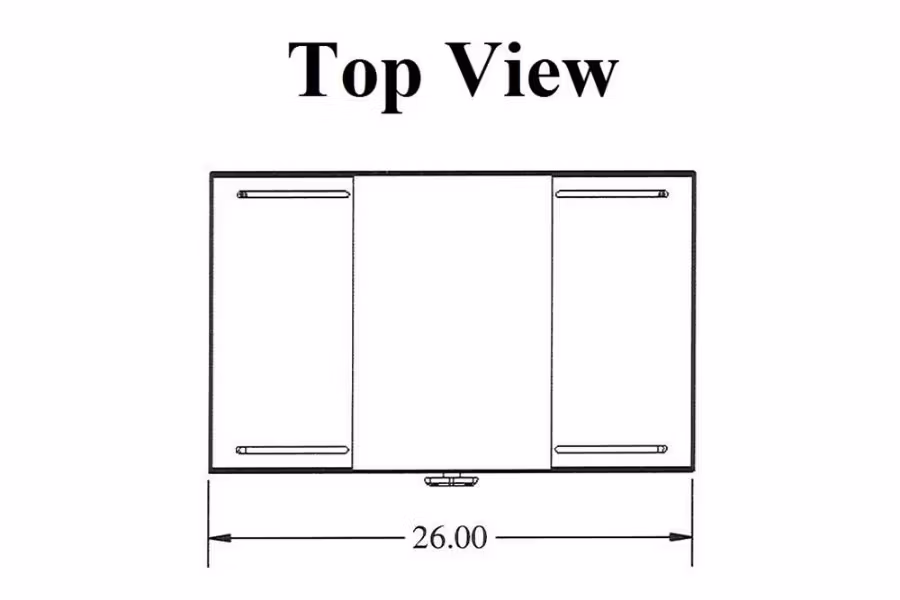

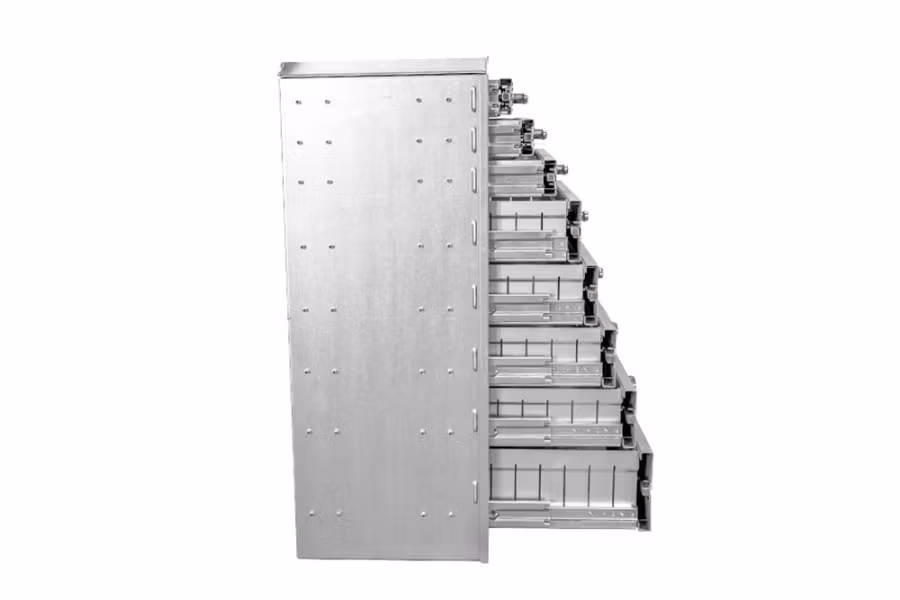

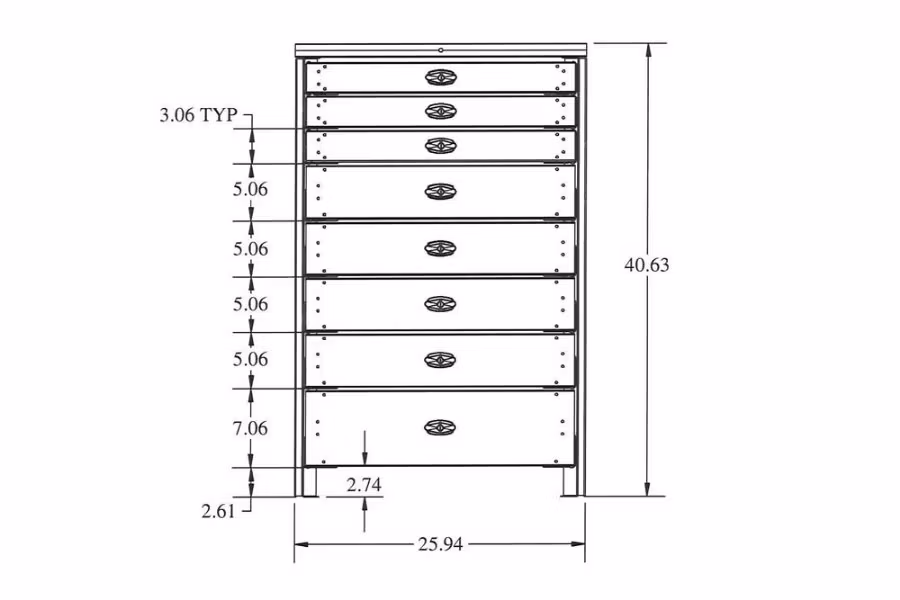

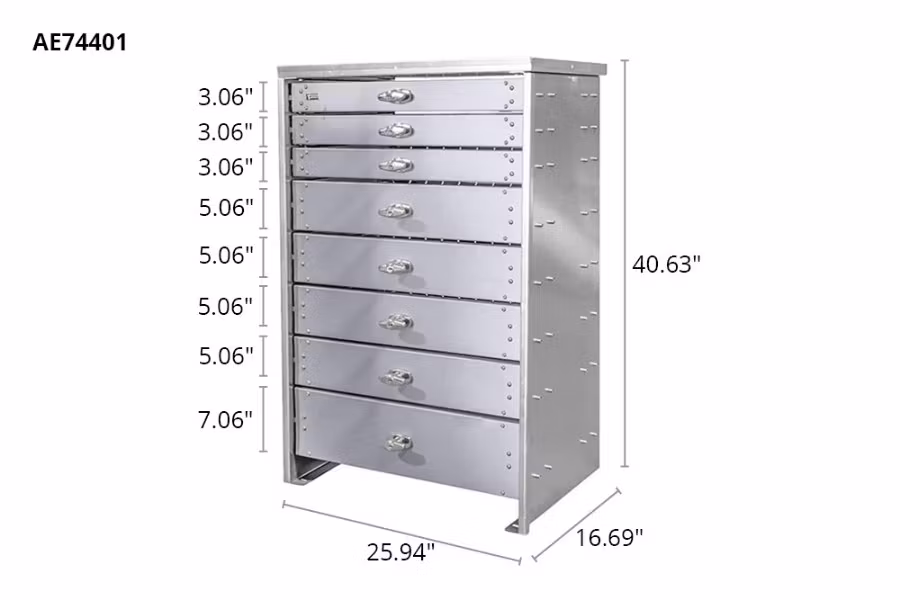

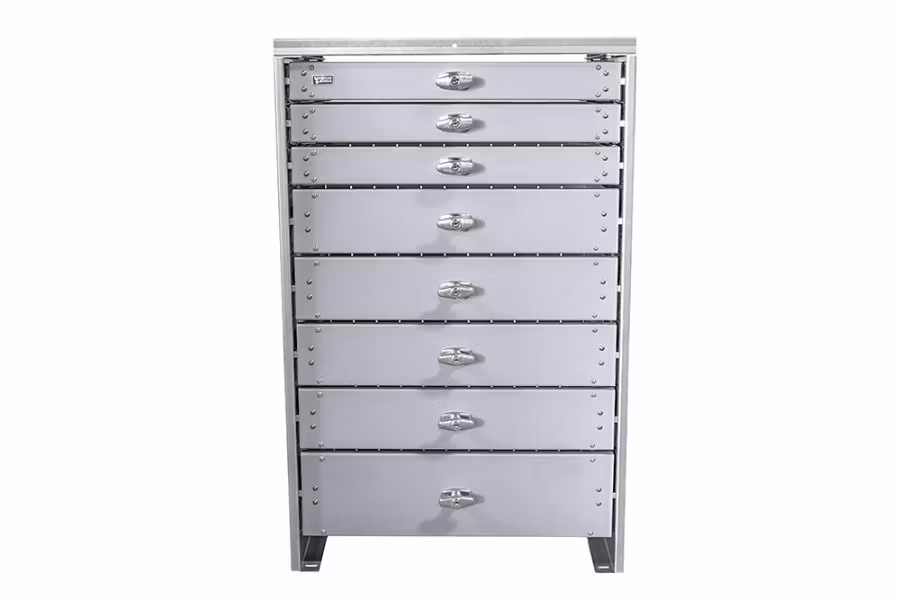

AE74401	41"	26"	16"	2.5"	3-3", 4-5", 1-7"

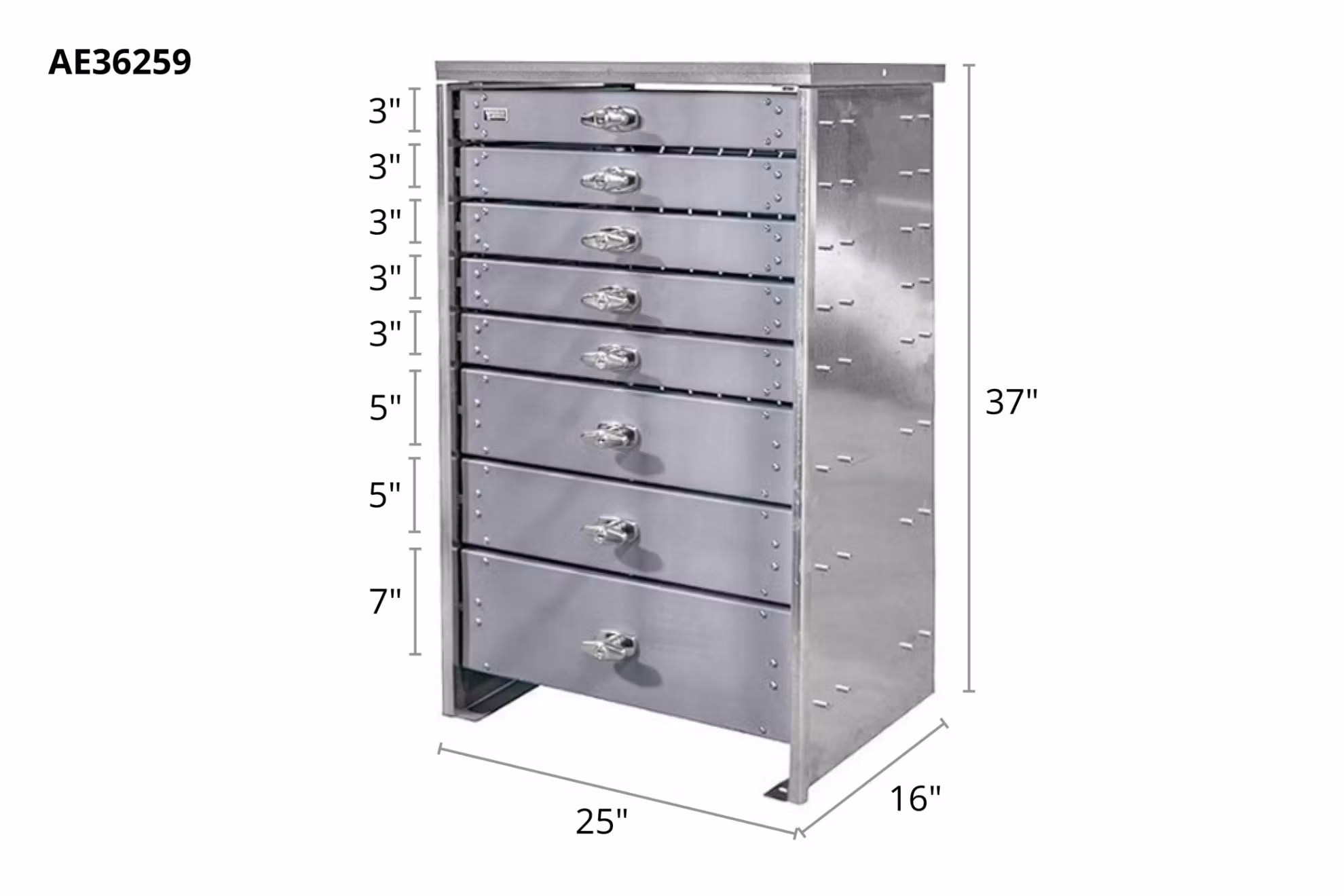

AE36259	36.5"	24"	14"	2.5"	5-3", 2-5", 1-7"
