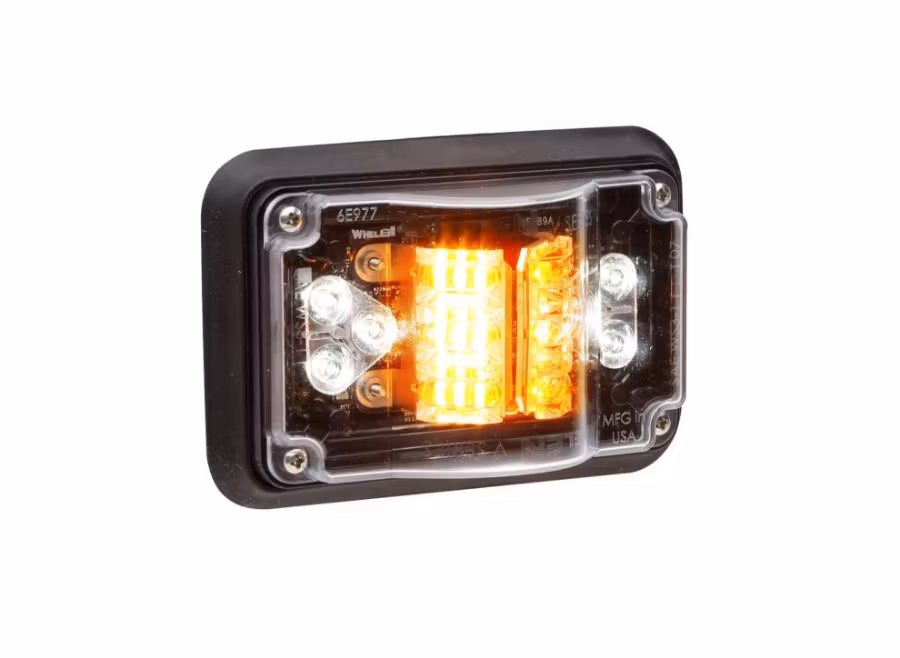

Whelen 400 V-Series Warning Light

The 400 V-Series™ Light by Whelen offers a 180° warning, illumination and puddle light functionality in a compact and durable design. It features 25 Scan-Lock™ flash patterns for the warning segment. On top of that, its 12” 6-wire pigtail with sync wire enables synchronization with up to eight light heads for seamless coordination. It is available in multiple colors and utilizes LED technology.

Built to withstand harsh conditions, the 400 V-Series™ Light features hard-coated lenses for durability and longevity. Operating at 12 VDC voltage, it delivers consistent performance, with average amp draws varying based on the specific mode it’s used for. With dimensions of 3″ x 1.614″ x 4.875″, this compact light can fit where you need it to. Finally, it’s backed by a five-year warranty.

• Combination models have 180° wide-angle warning, illumination, and puddle light
• Flash patterns warning segment: 25 Scan-Lock™ flash patterns
• 12” 6-wire pigtail with sync wire allows up to eight light heads to be synchronized together for the warning segment of the light head
• Surface mount, includes rubber gasket
• Multiple colors
• LED
• Hard-coated lenses

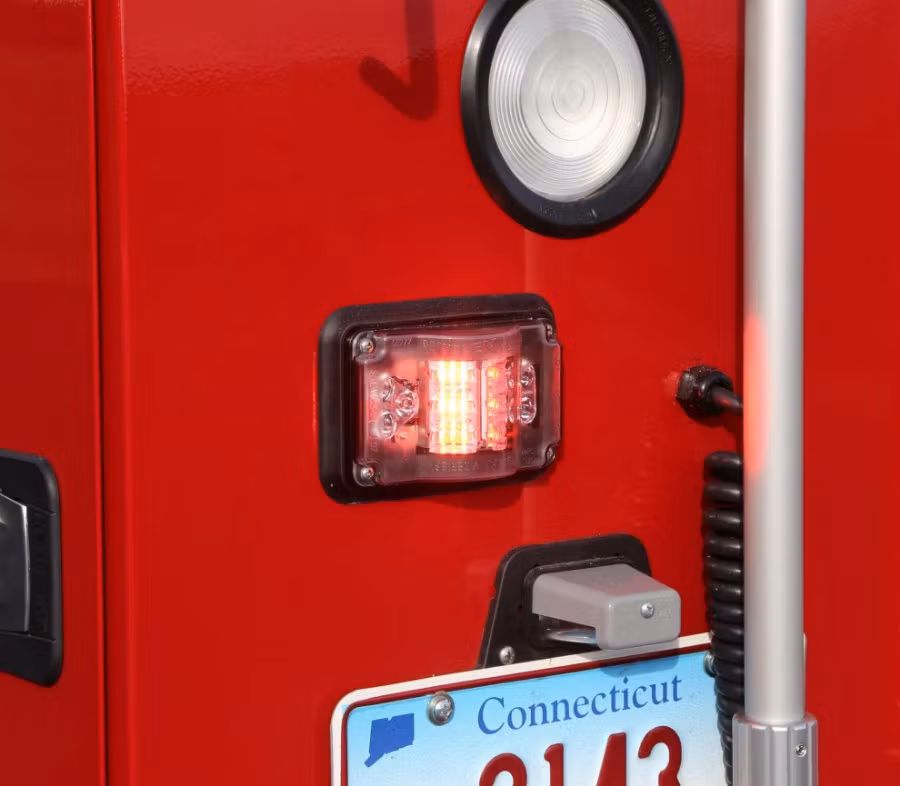

• Designed for lower-level mounting
• Voltage: 12 VDC
• Amps:
- Warning lights 1.2 amps (average)
- Alley lights 0.40 amps (average)
- Puddle lights 0.12 amps (average)
• Dimensions: 3″W x 1.614″D x 4.875″L
• Five-year warranty
