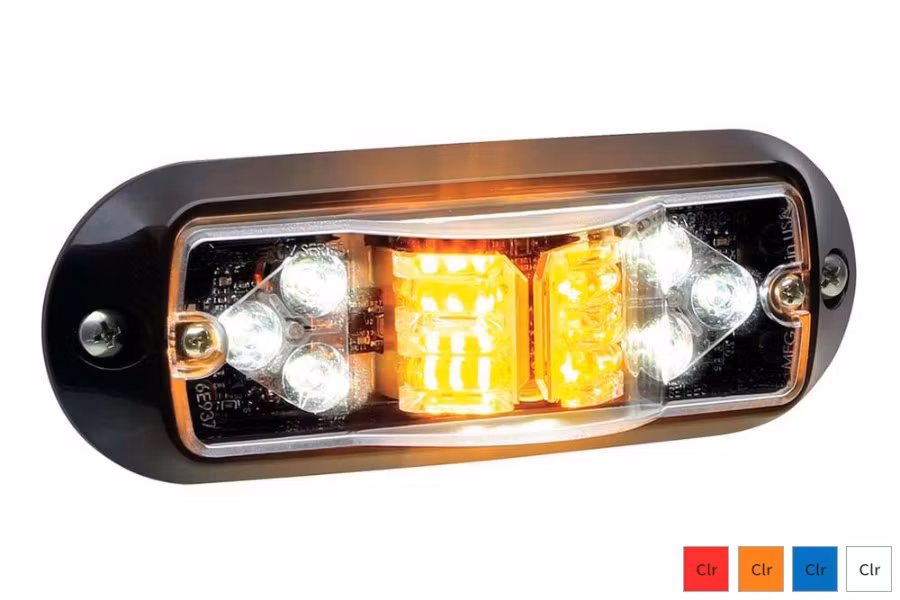

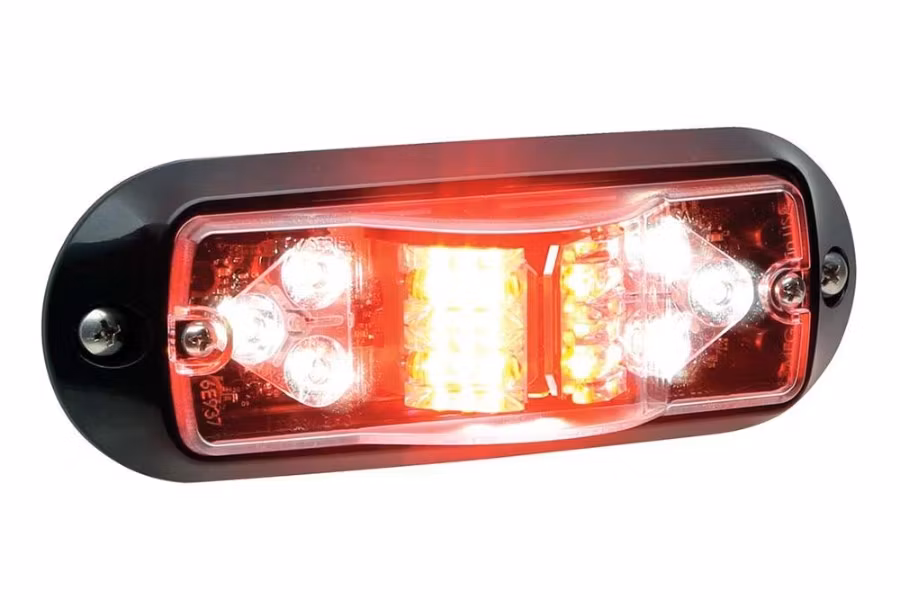

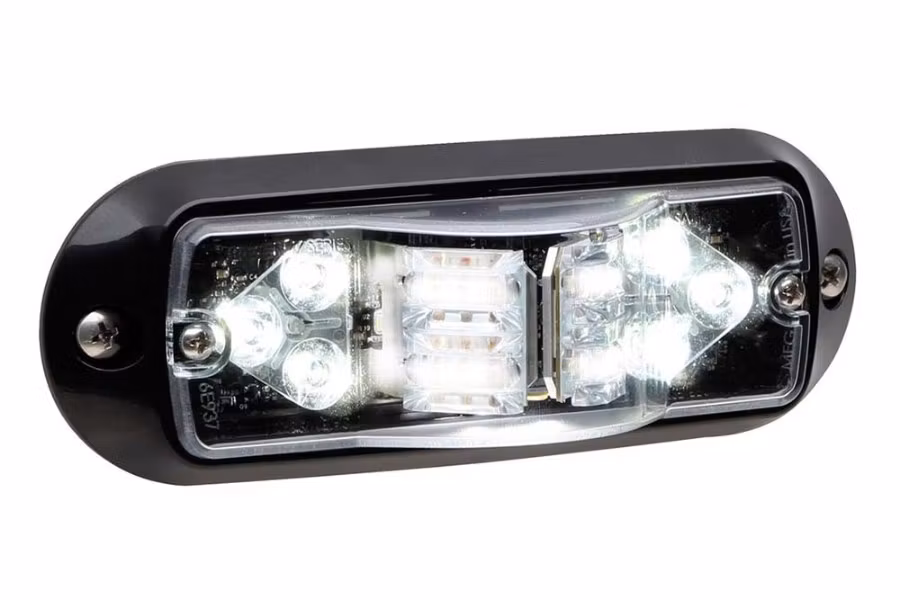

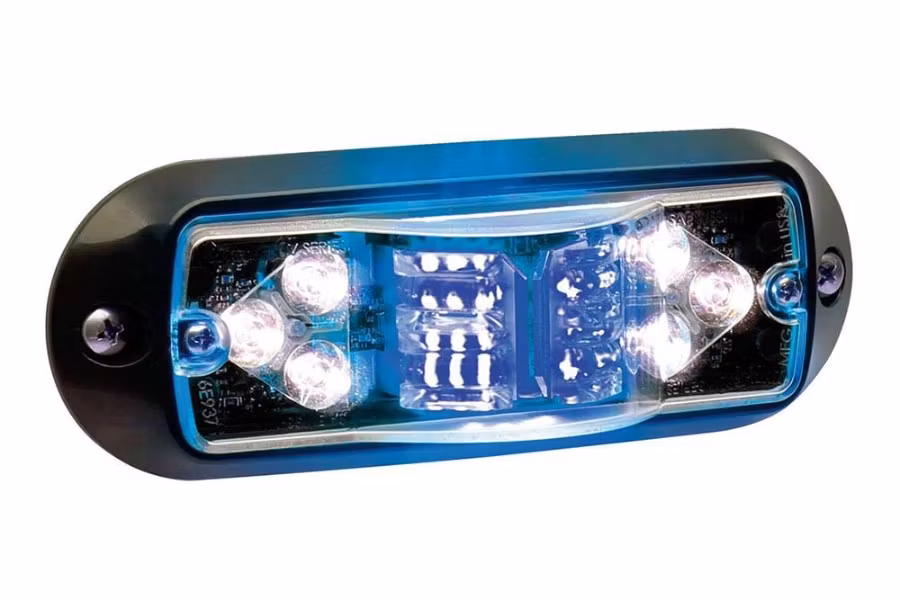

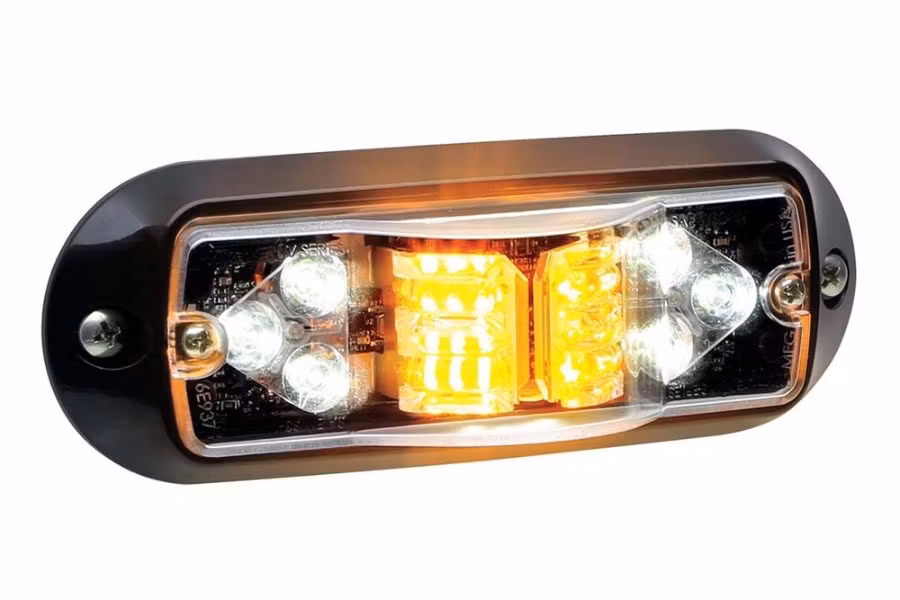

Whelen 500 V-Series TDP Warning Light

The 500 Series V-Series™ Light by Whelen is a versatile and reliable warning light designed for a wide range of applications. With hard-coated lenses, this light is built to withstand harsh environments. Featuring 25 Scan-Lock™ patterns, the 500 Series V-Series™ Light offers flexibility to so you can have the warning patterns you prefer. That versatility is further extended by its warning, alley, puddle and take-down features.

Its LEDs are rated for thousands of hours of operation, providing consistent and efficient illumination over extended periods. It comes with a six-inch pigtail cable for easy installation and connection. Operating at 12 VDC, this light offers compatibility with standard vehicle electrical systems. It uses only 0.12 amps for warning features, one amp for alley and 0.5 amps for puddle.

The 500 Series V-Series™ Light emits a 180° warning signal, maximizing visibility from different angles for enhanced safety. With dimensions of 2.125" x 5.375" x 1.625", it is easy to mount where it’s needed. Available with your choice of black or chrome flange. Finally, it’s backed by a five-year warranty.

• Hard-coated lenses
• 25 Scan-Lock™ patterns
• LEDs rated for thousands of hours of operation
• 12 VDC
• Amps:
• Warning lights 0.12 amps (average)
• Alley lights 1.0 amps (average)
• Puddle lights 0.5 amps (average)
• 6" pigtail cable
• 180° directional warning
• Dimensions: 2.125"W x 5.375"L x 1.625"D
• Five-year warranty
