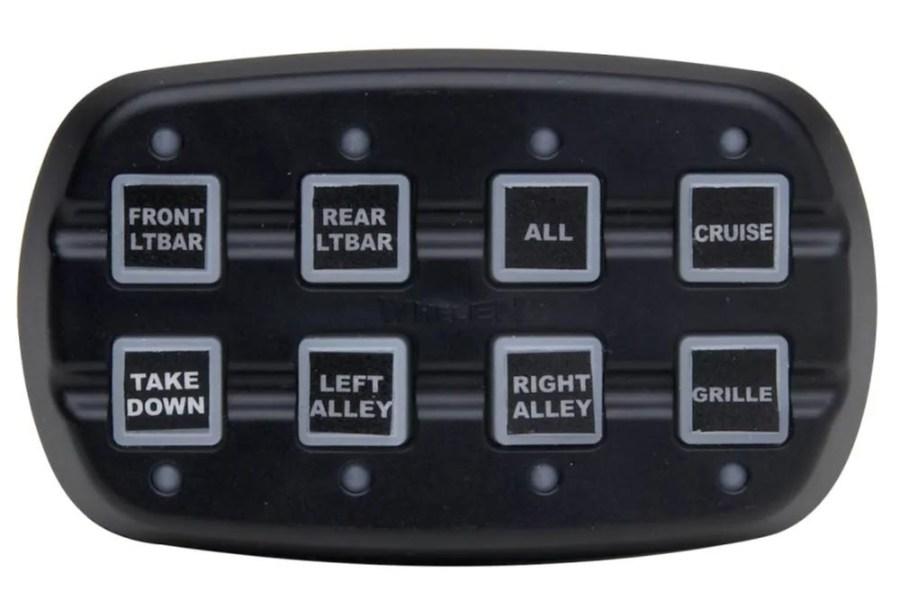

Whelen 8 Position Power Control Center

The PCC8R Power Control Center provides simple, dependable control of up to eight auxiliary vehicle functions in a compact, easy-to-use system. Designed for DOT, tow, recovery, and wrecker applications, the PCC8R pairs an intuitive 8-button keypad with a remote relay box, allowing each switch to directly control a dedicated relay for straightforward operation.

The keypad features LED backlit membrane switches with a durable, moisture-resistant rubber overlay for long-lasting performance in demanding work environments. Each output can be programmed for push-on/push-off or momentary operation, while built-in relay diagnostic feedback confirms output activation for added confidence. An onboard DIP switch also provides optional ignition-controlled operation for increased installation flexibility.

Capable of handling up to 70 amps total output, the PCC8R includes three 20-amp relays and five 10-amp relays, making it an ideal solution for controlling warning lights, work lights, auxiliary equipment, and other vehicle accessories.

• Controls up to 8 auxiliary vehicle functions
• Ideal for DOT, tow truck, recovery, utility, and service vehicles
• One switch controls one dedicated relay for simple operation
• Programmable push-on/push-off or momentary switch functions
• Built-in relay diagnostic feedback confirms output activation
• LED backlit membrane switches for improved nighttime visibility
• Moisture-resistant rubber switch overlay for enhanced durability
• Optional ignition-controlled operation via onboard DIP switch
• Maximum 70-amp total output capacity
• Includes (3) 20-amp relays and (5) 10-amp relays
• Can be mounted to the dash or console or used as a handheld controller
• Includes rear connector block and wiring harness for installation
• Voltage: 12 VDC
• Outputs: 8 Total
• (3) 20A Relays
• (5) 10A Relays
• Switch Type: LED Backlit Membrane Switches with Moisture-Resistant Rubber Overlay
• Mounting: Handheld or Dash/Console Mount
• Included: 8-Position Rear Connector Block and Wiring Harness
• Dimensions: 1.25"H x 7.25"W x 4.75"D
• Warranty: 2 Years
