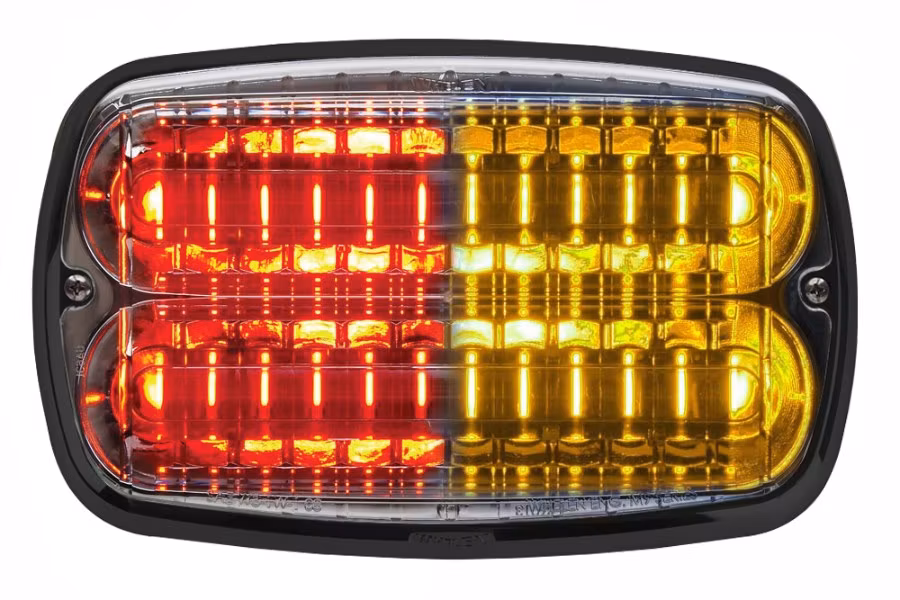

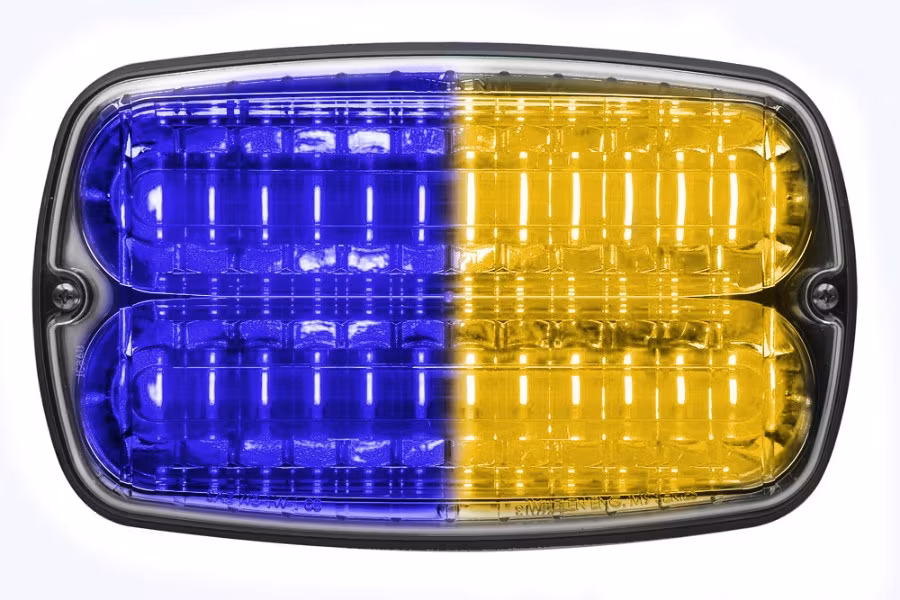

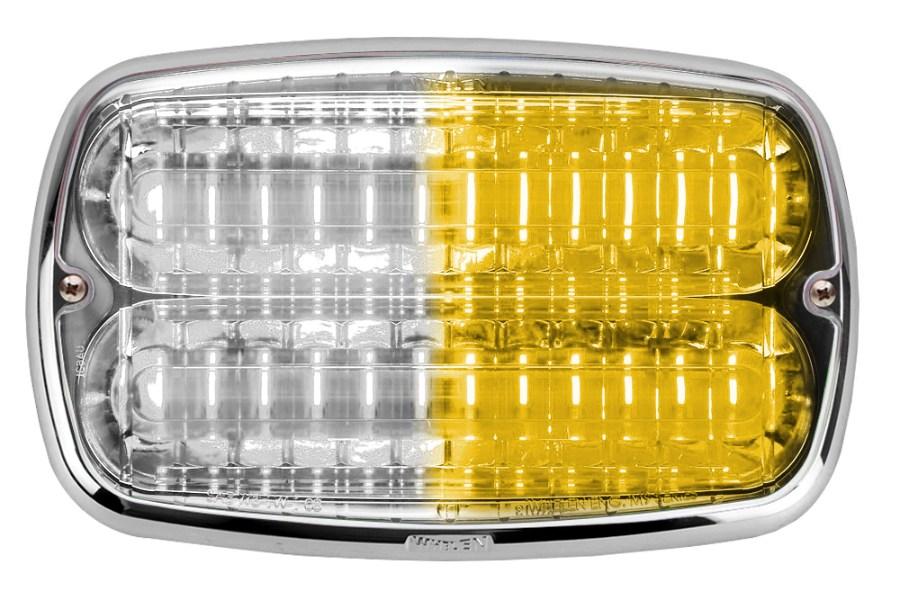

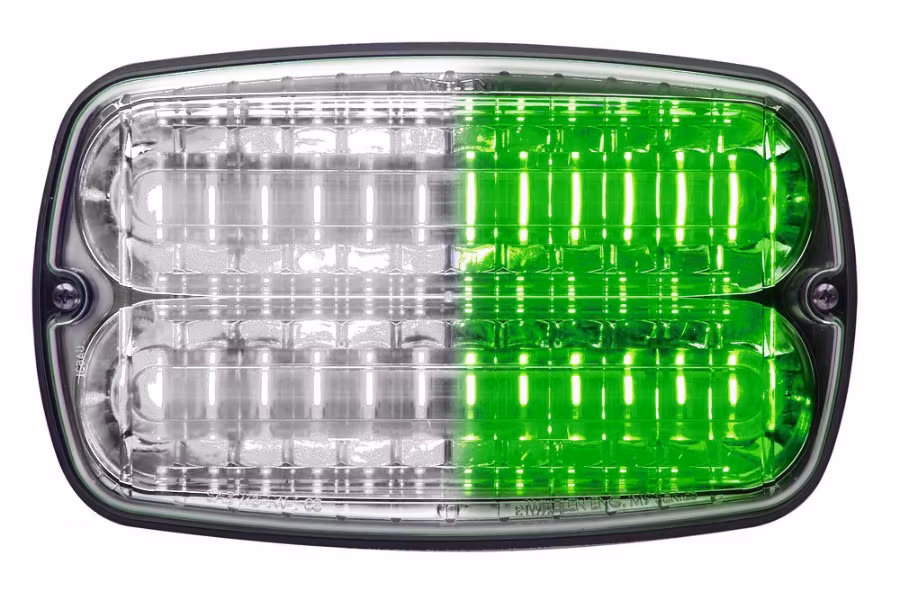

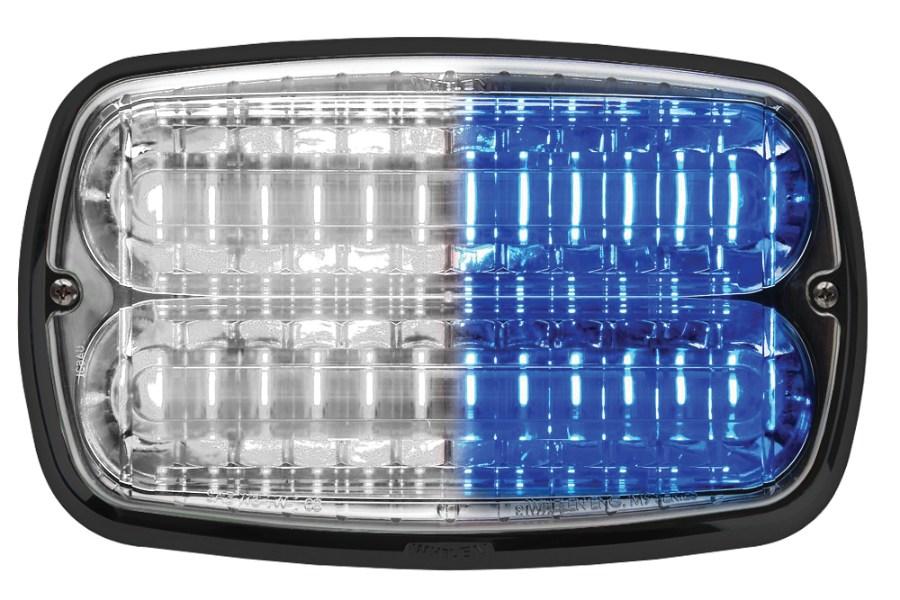

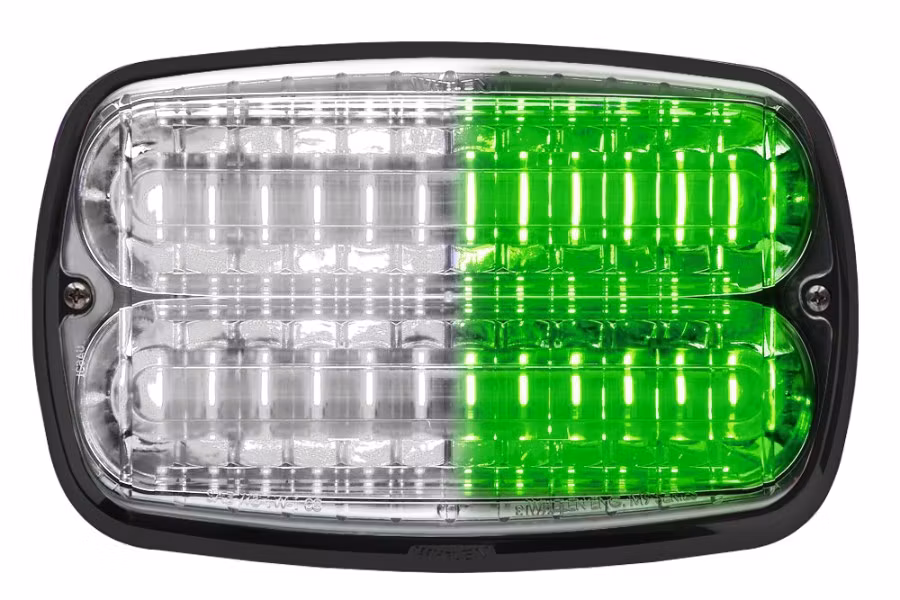

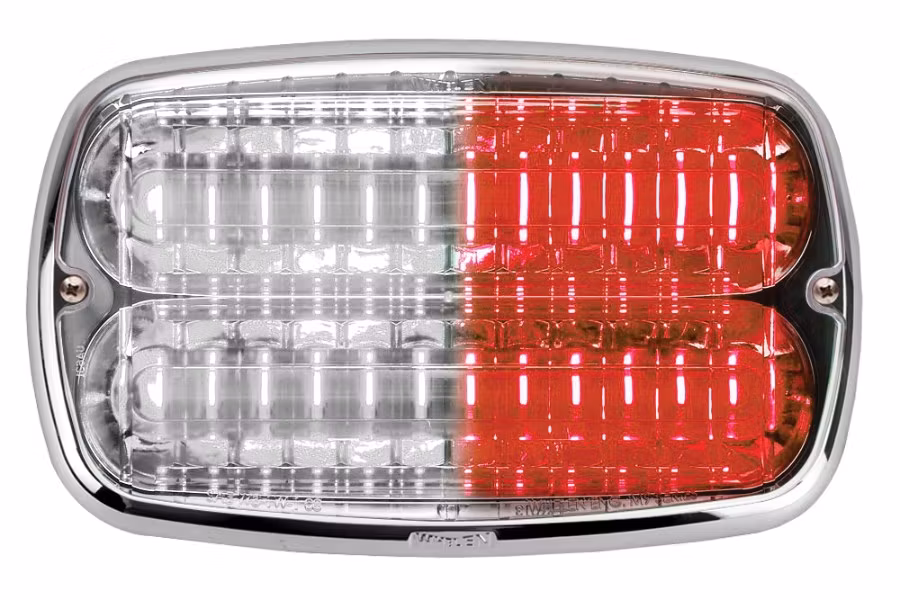

Whelen M9 Series Split Light Linear Super LED Warning Lightheads

Leave a Review

Shop all Whelen Engineering products

Picture of Whelen M9 Series Split Light Linear Super LED Warning Lightheads

Choose LED Color *

Choose Bezel Option *

SKU: M9SPLITLIGHT

Price: $317.99–$408.99

Qty:

Go Straight to Checkout

Qualifies for Free Shipping
with $199.00 minimum order

Description

Warning with Internal Flasher with Flash Patterns and Synchronize Feature with a unique lens shape and patented Linear-LEDr designed reflector assembly, M Series light heads are completely illuminated for unmatched high intensity warning and low current consumption.

SAE Class 1 Certified (warning)
Single colors
Available with Clear or color lenses
Solid color models have 159 Scan-LockT flash patterns
Available in warning, brake/tail/turn, turn, back-up, and scene light models
Choose flash patterns from solid, left/right, top/bottom, in/out, or diagonal sequencing
Brake/tail/turn, turn, and back-up lights meet applicable SAE requirements
Available in steady-burn or with an internal flasher
Warning lights with internal flasher have sync and low power functions
Hard-coated lenses minimize environmental damage from sand, sun, salt, and road chemicals
Surface mounts via two screws for easy installation
A variety of mounting brackets and optional Chrome or Black flanges are available
Multiple Scan-LockT flash patterns, many being California Title XIII compliant. Meets KKK-1822F, NFPA 1901, NFPA 1917, SAE, and EC65 specifications
Size with flange: 10-3/8"L x 6-1/2"H x 1-3/8"D
Five-Year warranty

Documents

Shipping & Returns

Expedited orders must be placed by 12 p.m. CST. Items under 110 lbs ship via standard parcel (UPS Ground). Items 110–150 lbs may ship via ground or truck freight depending on size and destination.
Larger or heavier items ship via truck freight, which may require additional delivery time.

Please inspect all shipments within 10 days of delivery. Return requests must be submitted within 45 days.

For full details, view our Shipping & Returns Policy.

Learn More

Product Information

Item #	MFG #	Bezel Option	Led Color
M9J-CB	M9J-CB	Chrome Bezel	Red/Blue
M9K-BB	M9K-BB	Black Bezel	Red/Amber
M9K	M9K	No Bezel	Red/Amber
M9M-CB	M9M-CB	Chrome Bezel	Blue/Amber
M9D	M9D	No Bezel	Red/White
M9H-CB	M9H-CB	Chrome Bezel	Green/White
M9D-BB	M9D-BB	Black Bezel	Red/White
M9D-CB	M9D-CB	Chrome Bezel	Red/White
M9E	M9E	No Bezel	Blue/White
M9J	M9J	No Bezel	Red/Blue
M9M	M9M	No Bezel	Blue/Amber
M9E-BB	M9E-BB	Black Bezel	Blue/White
M9K-CB	M9K-CB	Chrome Bezel	Red/Amber
M9F	M9F	No Bezel	Amber/White
M9J-BB	M9J-BB	Black Bezel	Red/Blue
M9M-BB	M9M-BB	Black Bezel	Blue/Amber
M9F-CB	M9F-CB	Chrome Bezel	Amber/White
M9E-CB	M9E-CB	Chrome Bezel	Blue/White
M9F-BB	M9F-BB	Black Bezel	Amber/White
M9H	M9H	No Bezel	Green/White
M9H-BB	M9H-BB	Black Bezel	Green/White
