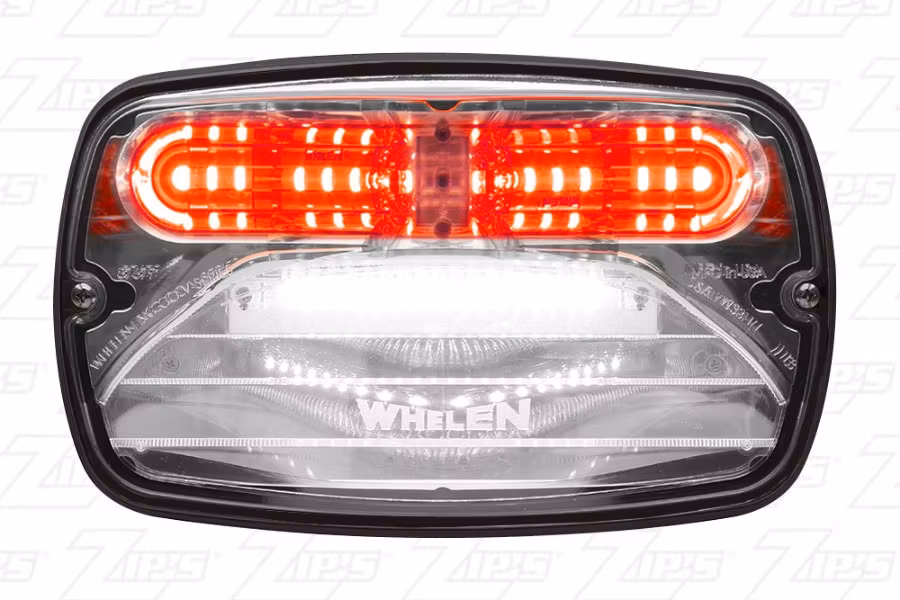

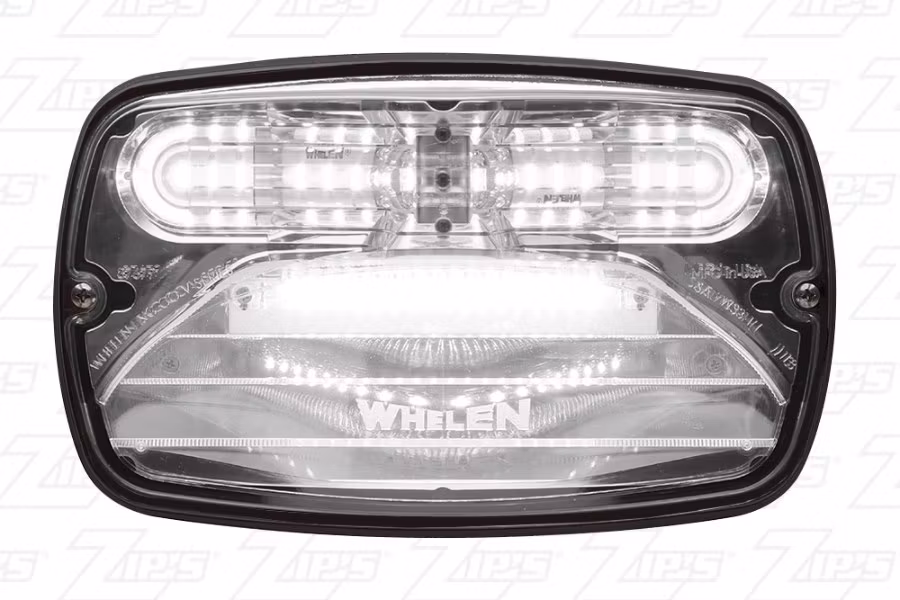

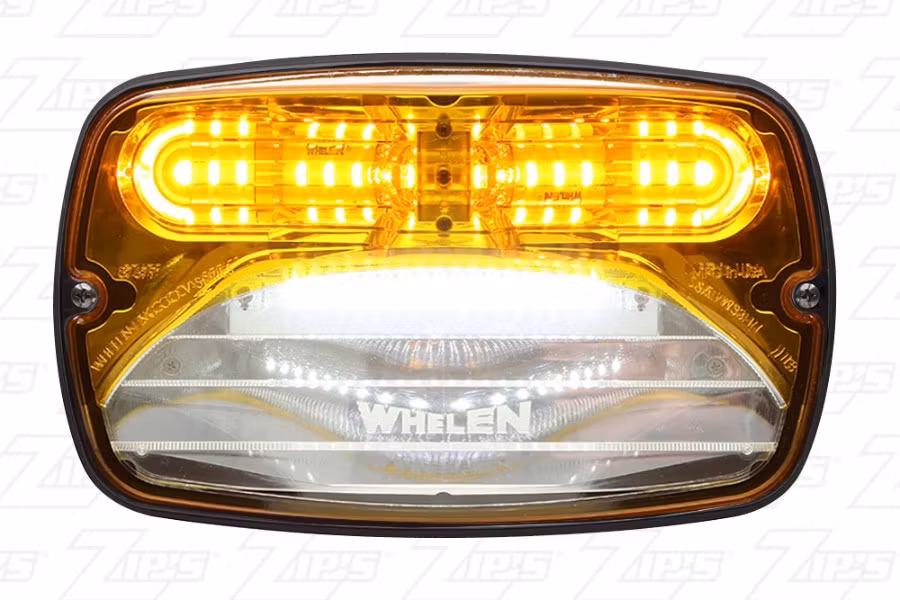

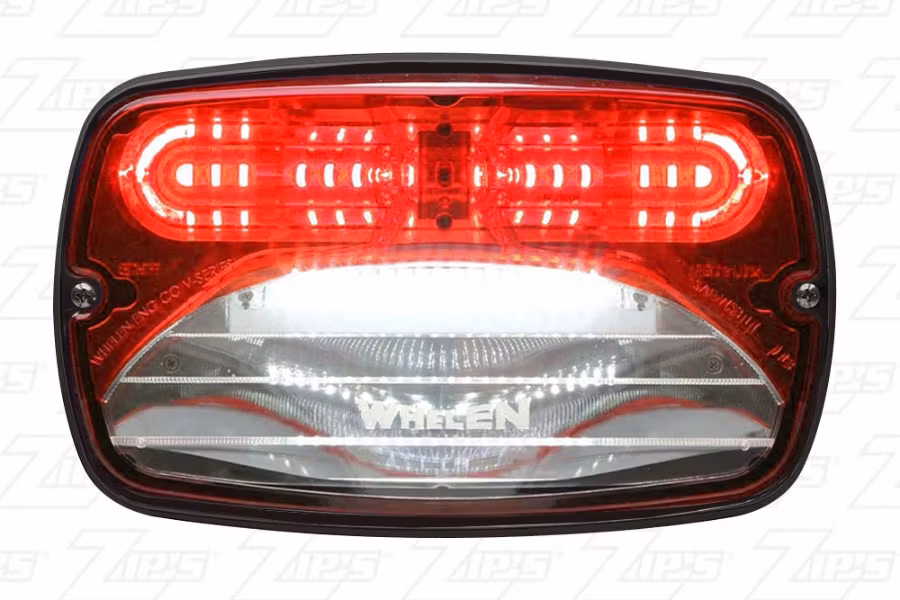

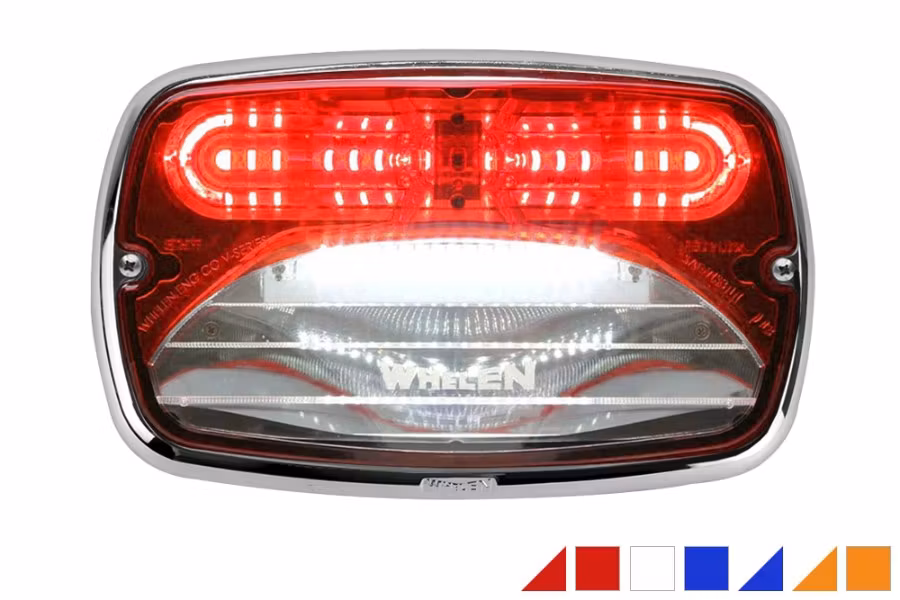

Whelen M9V2 Series Combination Warning and Scene Light

This combination light is a warning light and a perimeter light with a split color (color/clear) non-optic polycarbonate lens. The warning light consists of four PC boards containing three red Super-LEDs on each PC board. The warning light PC boards will be installed on a V-shaped mounting bracket.

• Single color LED warning light and a perimeter light with a split color (color/clear) non-optic polycarbonate lens
• Warning light consists of four PC boards containing three color Super-LEDs on each PC board
• The warning light PC boards will be installed on a V-shaped mounting bracket
• Two sets of three color Super-LEDs are installed on the main PC board to the left and right sides of The V-shaped bracket
• Clear V-shaped optic collimator and metalized reflector will be installed over the PC boards for maximum illumination
• The scene light consists of 18 clear Super-LEDs installed on the main PC board
• The scene light will be furnished with a clear optic collimator and metalized angled reflector for supreme radiance
• The warning light includes an internal flasher with 25 Scan-LockT flash patterns including low power and steady burn
• The M9V2R also provides a synchronize feature
• The M9V2R warning light meets KKK 1822F, NFPA 1901, and NFPA 1917 specifications
• The M9V2R perimeter light meets AMD 024 with two M9V2R on each side of the vehicle and NFPA 13.10.1.2 for one M9V2R up to six feet
• The lens/reflector assembly is sealed and resistant to water, moisture, dust, and other environmental conditions
• The hard coated lens provides extended life/luster protection against UV and chemical stresses
• The light engine is installed at the rear of the unit and is vacuum tested to ensure proper sealing
• The PC boards shall be conformal coated for additional protection
• The M9V2R is furnished with 12" unterminated pigtails
• Rubber gasket, screws, and screw grommets are included for installation
• The M9V2R, with the aid of two screws, and has the ability to be installed as a surface mount light
• The warning light is covered by a five year factory warranty
• Additional mounting options are purchased separately
• 12v
• 10-2/5"L x 6-1/2"H x 2-3/5"D
