Whelen Mini Century Series 23" Super LED Light Bar

Leave a Review

Shop all Whelen Engineering products

Picture of Whelen Mini Century Series 23" Super LED Light Bar

Choose MOUNT *

Magnetic

Permanent

Magnetic/Suction

Stud

Choose COLOR *

SKU: MC23LIGHT

Price: $478.99–$531.99

Qty:

Go Straight to Checkout

Qualifies for Free Shipping
with $199.00 minimum order

Description

This Mini Century series light bar that is 23-1/4" long and incorporates 4-corn er Linear Super-LED modules and 8 TIR6 inboard modules. This little titan has a hard-coated lens and an extruded aluminum platform for environmental protection and a long reliable life. This light can have a permanent, magnetic, magnetic/ suction, or a stud mount. This light bar is preconfigured and easy to install; with that being said they are also easy to service. In order to be able to fix it you need a way to get the dome off. Look no further, the Click-Lock system makes it easy to remove the dome to see what you are working with. Can't forget to mention that with the Click-Lock system, you will NOT compromise the weather resistant seal.

SAE Class 1 Certified
Extruded aluminum platform for long life reliability
Permanent mount models are supplied with a 12" pigtail
Standard current switching with 17 Scan-Lock flash patterns and pattern over ride
4 corner Linear-LED modules
8 TIR6 inboard modules based on length
Available in magnet, magnetic/suction, Permanent, and stud mount
Magnetic and magnetic/suction mount models are supplied with a 10' straight cable and cigar plug with On/Off and pattern selection switch
Low profile with compression fit gasket for superior moisture resistance
Clip-Lock system allows easy removal of light bar domes for service, without compromising the weather resistant gasket
Hard-coated lenses minimize environmental damage from sand, sun, salt, and road chemicals
Pre-configured light bars
23-3/4"L x 2"H x 7-3/4"D
Five-Year Warranty
Old Part Number for MC23PA: WMC2 3PA

Documents

Shipping & Returns

Expedited orders must be placed by 12 p.m. CST. Items under 110 lbs ship via standard parcel (UPS Ground). Items 110–150 lbs may ship via ground or truck freight depending on size and destination.
Larger or heavier items ship via truck freight, which may require additional delivery time.

Please inspect all shipments within 10 days of delivery. Return requests must be submitted within 45 days.

For full details, view our Shipping & Returns Policy.

Learn More

Product Information

Item #	MFG #	Color	Mount

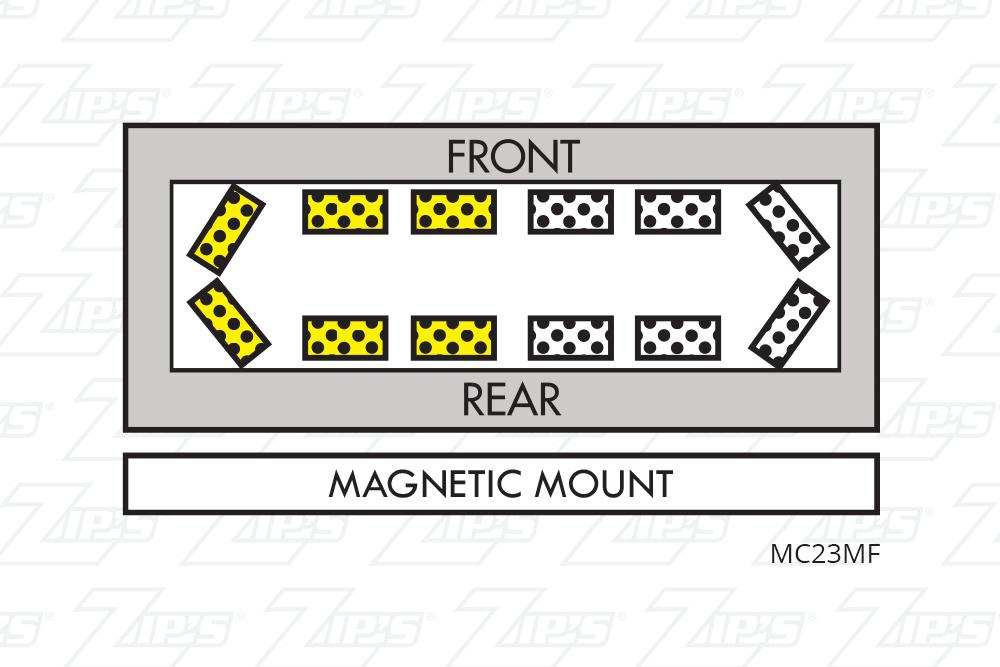

MC23MF	MC23MF	Amber/White w/ Clear Lens	Magnetic

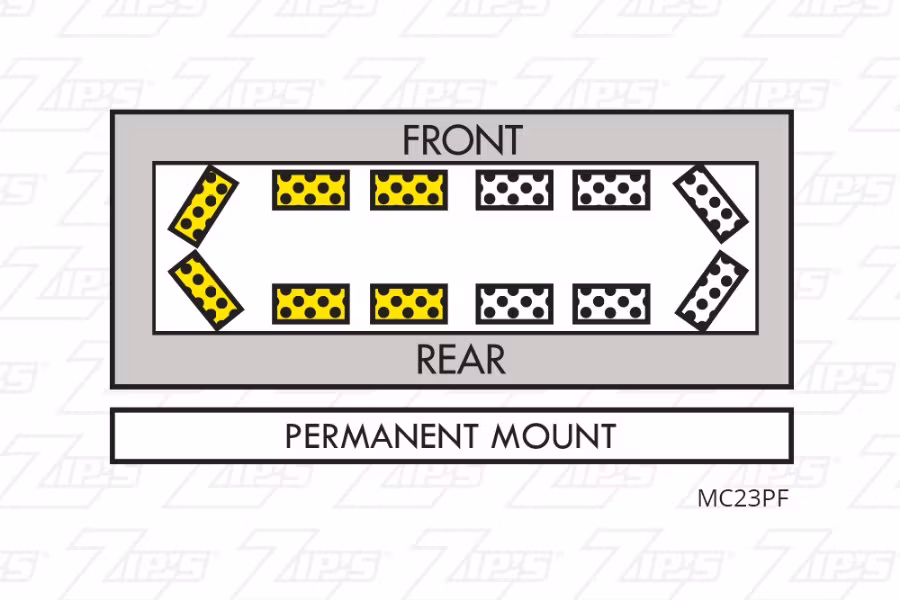

MC23PF	MC23PF	Amber/White w/ Clear Lens	Permanent

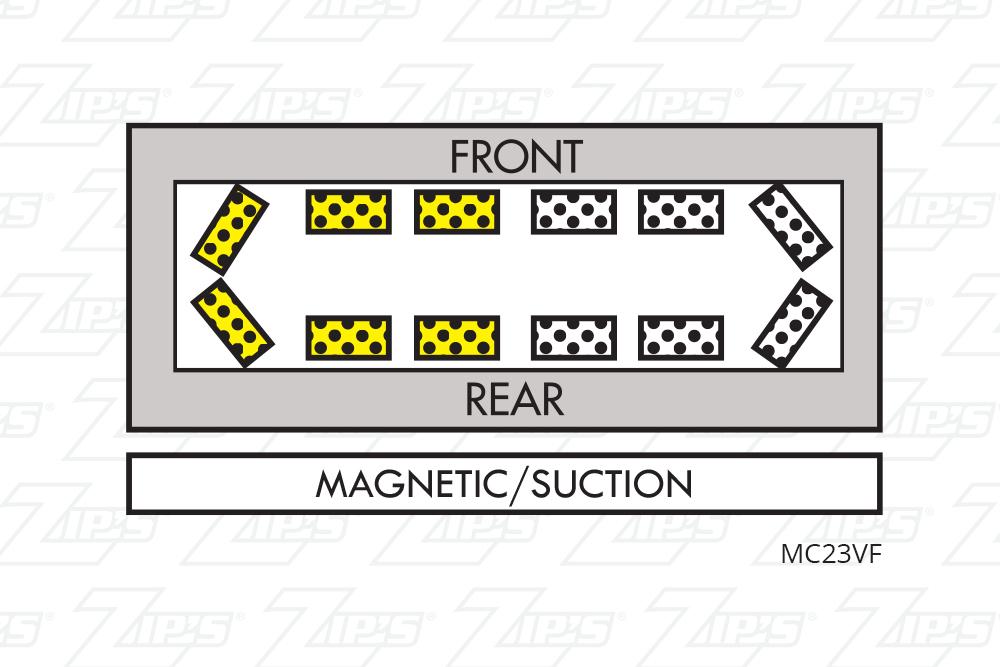

MC23VF	MC23VF	Amber/White w/ Clear Lens	Magnetic/Suction

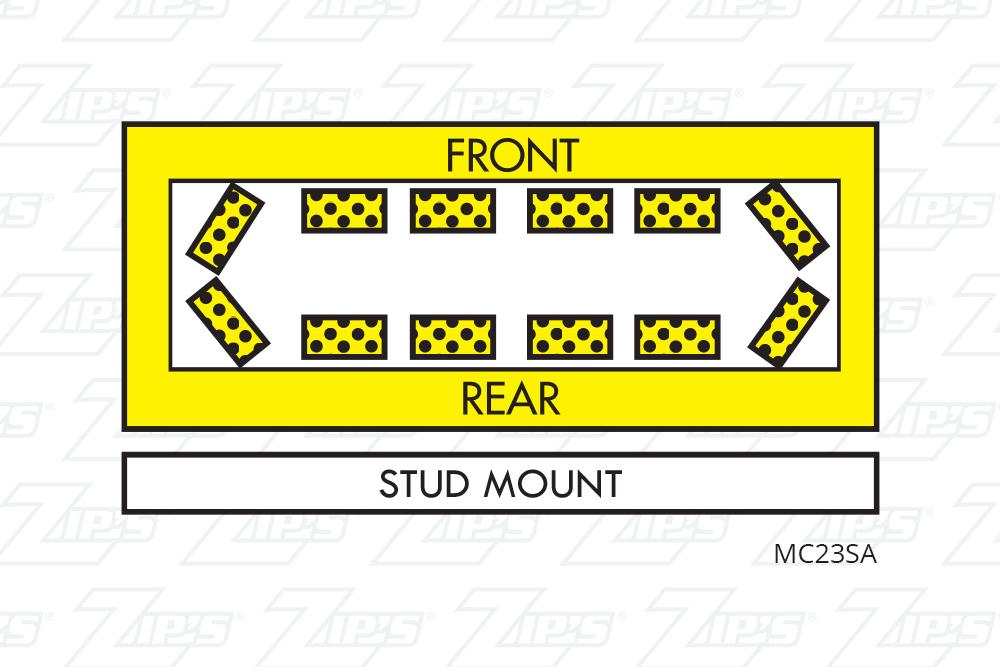

MC23SA	MC23SA	Amber	Stud

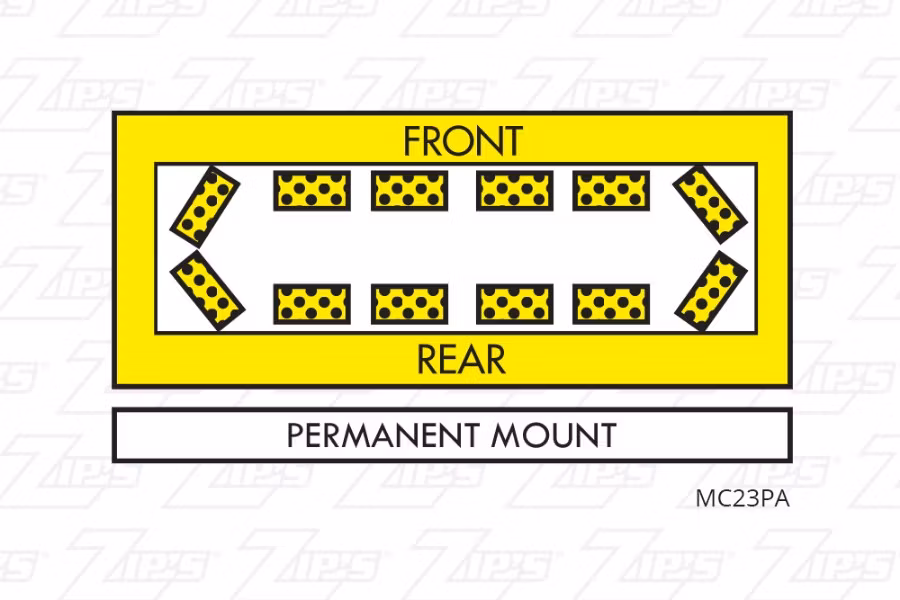

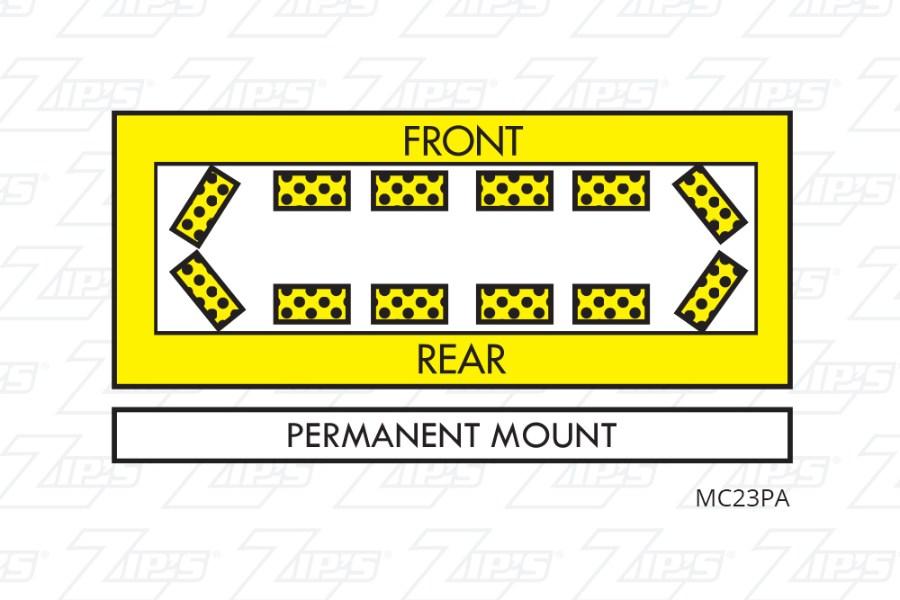

MC23PA	MC23PA	Amber	Permanent

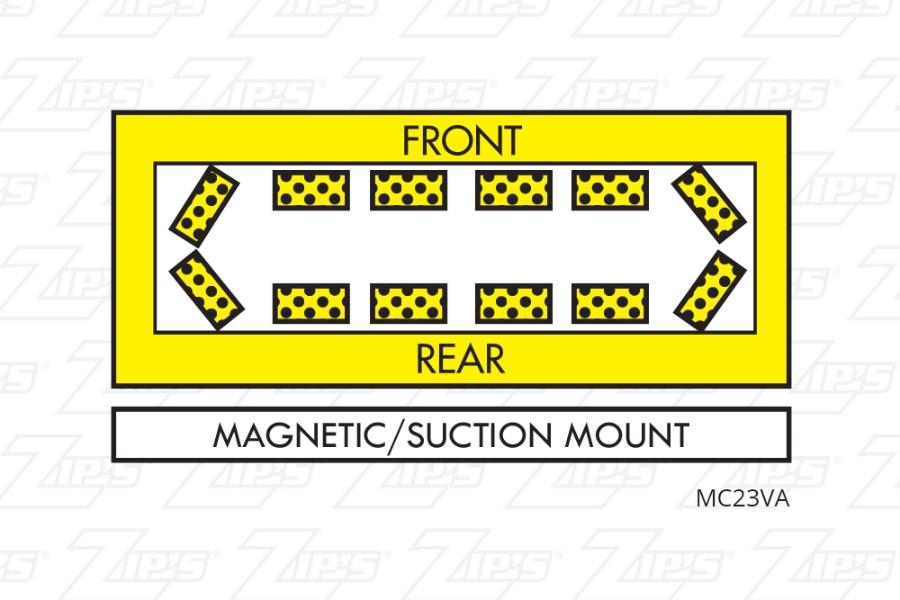

MC23VA	MC23VA	Amber	Magnetic/Suction

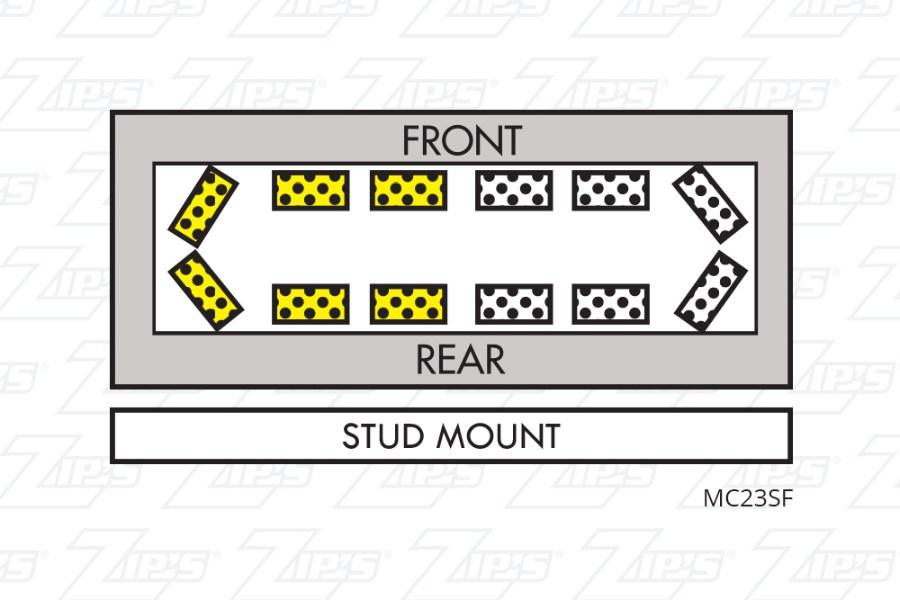

MC23SF	MC23SF	Amber/White w/ Clear Lens	Stud

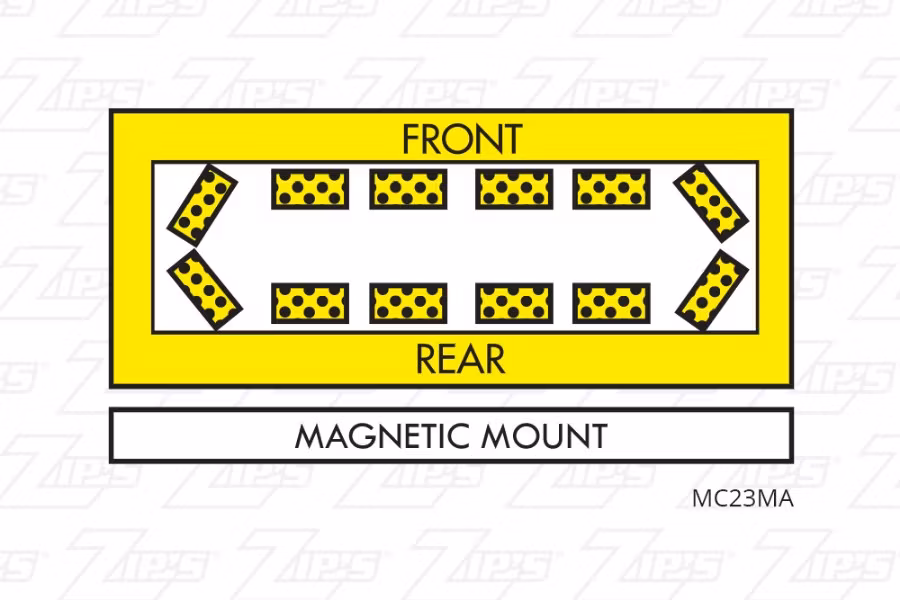

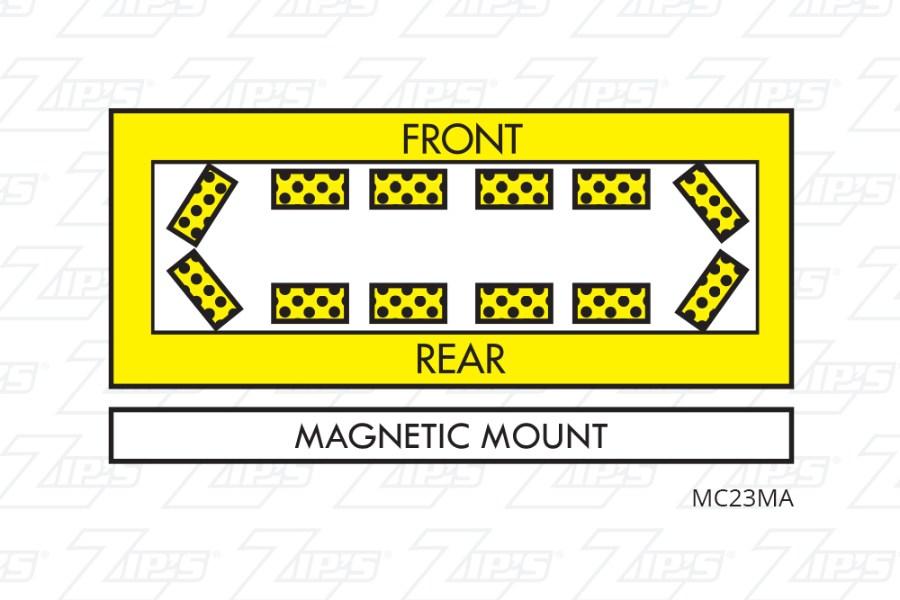

MC23MA	MC23MA	Amber	Magnetic
