Whelen Siren, 100 Watt

$355.99
SKU: 295SL100
View Cart
Qualifies for Free Shipping
with $199.00 minimum order
Description

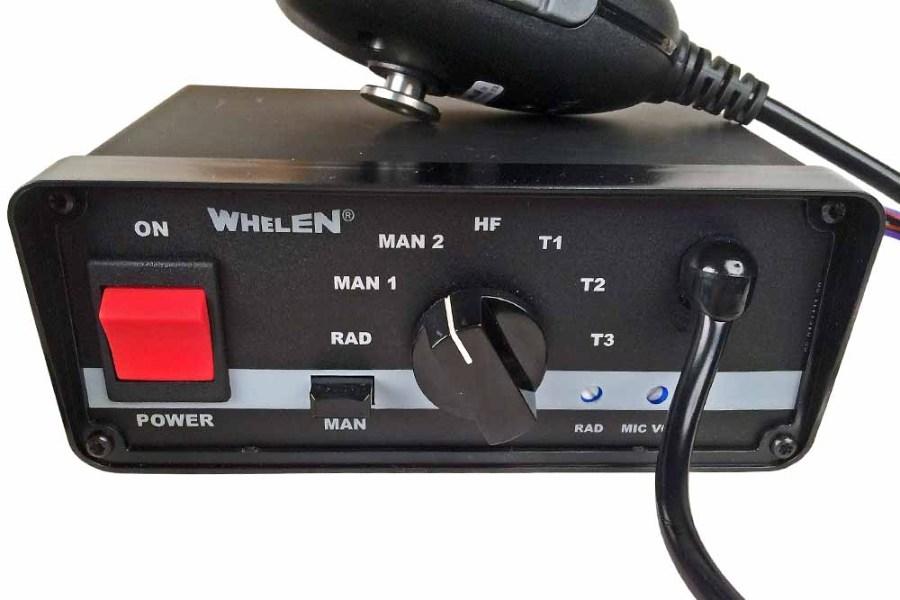

Economically priced. Full function siren plus radio repeat and public address. Operates up to two 100 watt speakers. Includes Hands-Free operation and Scan-Lock siren tones. Self-contained unit for under-dash mounting. Two models to choose from; hard-wired microphone or removable microphone with a volume control knob. Backward compatible to the original 295HF100 and WS2100 Series connector. Use with SA315P speaker.
  • 17 Scan-Lock Siren Tones to choose from (Pat. # RE38,795). The 295SL allows for user selectable siren tones via momentary recessed switch, located on the rear of the unit. Choose the placement of each siren tone on rotary knob for complete user customization
  • Economical six function siren plus radio repeat and public address
  • Meets California & SAE specifications, SAE J1849 & California Title 13
  • Model 295SL100 operates up to two 100-watt speakers
  • "Hands-Free" operation. Turn On/Off and access all three siren tones (default Wail, Yelp and PiercerT) without taking hands from steering wheel
  • Two manual functions allow for additional siren tone choices when you need it the most
  • PTT (push to talk) switch on microphone overrides all siren functions
  • Combination On/Off and horn ring transfer switch
  • Pre-wired unidirectional microphone
  • Optional plug-in microphone with volume control knob
  • Adjustable preset microphone volume
  • Adjustable preset radio repeat volume
  • Input polarity protection
  • Output short circuit protection
  • External spade-type fuse
  • Bi-polarity horn/ring control activation
  • "Aux Enable" activates siren tones via input (slide switch, power controls or relay-to-ground connection)
  • Quick disconnect plug for ease of service or replacement

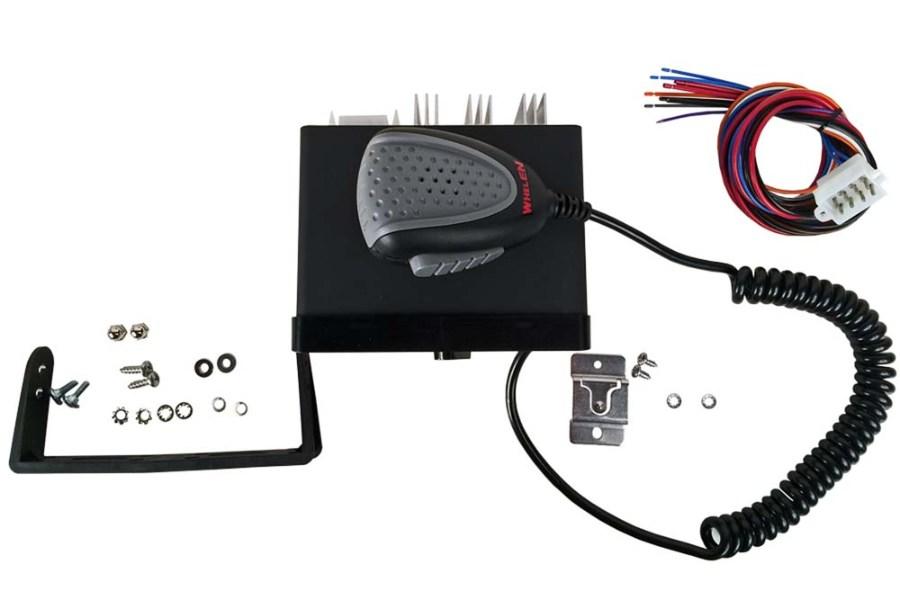

  • Adjustable bail bracket allows the mounting of the siren in a variety of positions
  • Backward compatible to the original 295HF100 and WS2100 Series connector
  • Optional 24VDC model available, contact factory
Specifications:
  • Input Voltage: 10-16VDC
  • Polarity: Negative ground
  • Polarity Protection: Diode / Fuse
  • Output Power: (2) 100 Watt Speakers
  • Output Load: Two 11 OHM Speakers
  • Input Current: 0 MA (OFF)
  • Standby Current: 100 MA (max) (backlight off)
  • Backlight Current: 150 MA (max)
  • Operating Current: 16 AMPS (max)
  • Fuse: 20 AMP auto fuse

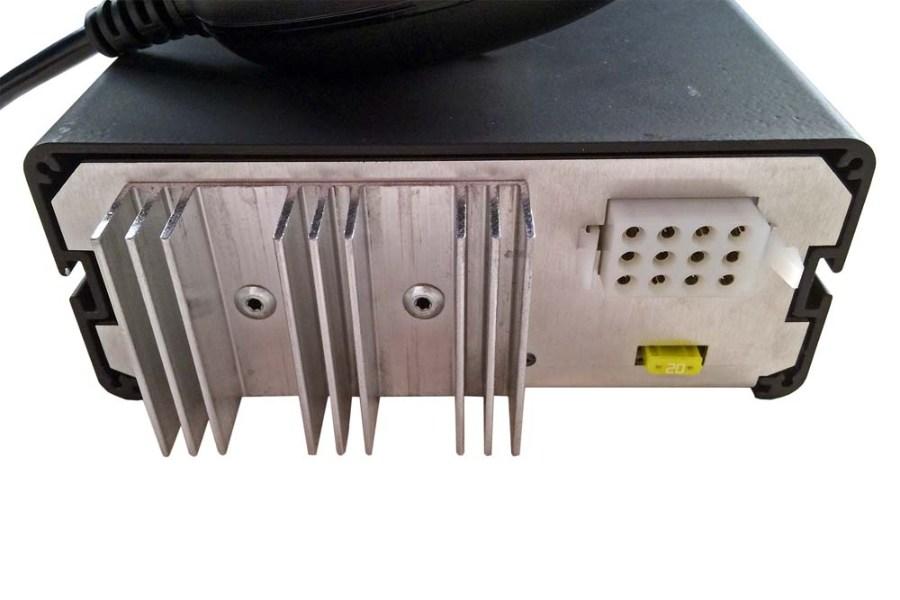

  • Fuse Mounting: Rear Panel
  • Output Short Protection: Fuse
  • Audio Frequency Range: 300Hz - 10000Hz +/-3dB
  • Distortion: <5% @ 1KHz @ 25 Watts
  • Radio Input Impedance: 1500 OHMS
  • Horn / Ring Control: +/- 12VDC or ground
  • Operating Temperature: -30 / +80 Degree C
  • Operating Humidity: 99% non condensing
  • Connector: 12 pin AMP Mate-N-Lokr, 24" pigtail wires
