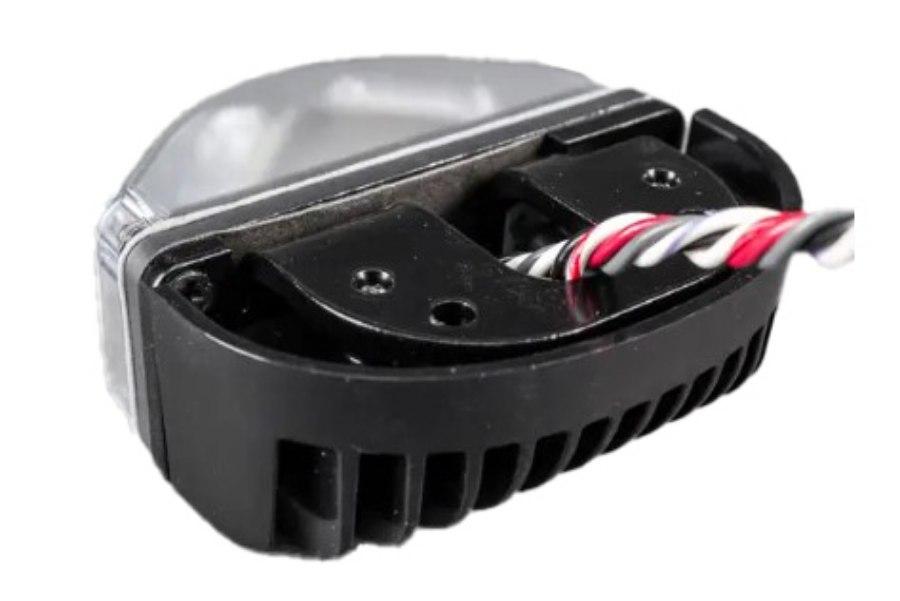

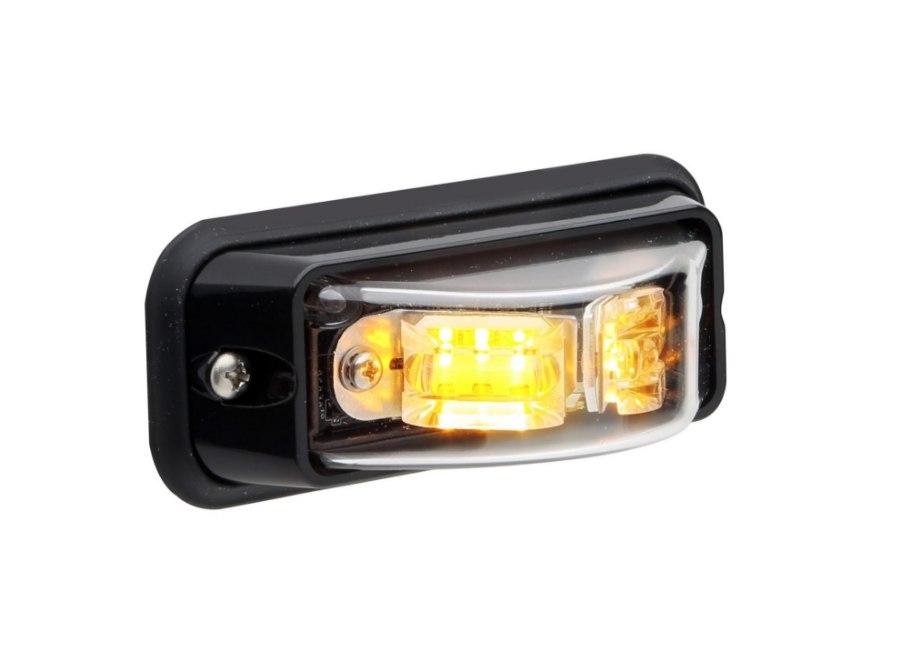

Picture of Whelen Surface Mount LINZ V-Series

Choose Color *

Choose Lens *

SKU: LINZ-V-SERIES

Price: $221.99–$275.99

Qty:

Go Straight to Checkout

Qualifies for Free Shipping
with $199.00 minimum order

Description

The LINV2™ Series Light by Whelen is a 2-in-1 combination warning and puddle light with 180° wide-angle lighting for effective light dispersion. With 25 Scan-Lock flash patterns and SAE J595 / SAE J845 Selective Coverage in Amber, it ensures effective signaling in various situations. Plus it allows for synchronization with up to eight light heads, enabling seamless coordination in warning scenarios. For enhanced customization, optional SAE Class 1 Certified Smoked lenses are available.

Designed for optimal visibility and convenience, this light features a right-angle bracket that mounts beneath a side view mirror, push bumper or under any flat mounting surface. Equipped with a six-inch pigtail and sync wire, it’s easy to install. Operating at 12VDC voltage, the light consumes minimal power, with warning mode averaging at 0.75 amps and puddle mode at 0.12 amps. Backed by a five-year warranty, the LINV2™ Series Light assures reliability and durability.

2-in-1 combination warning and puddle light

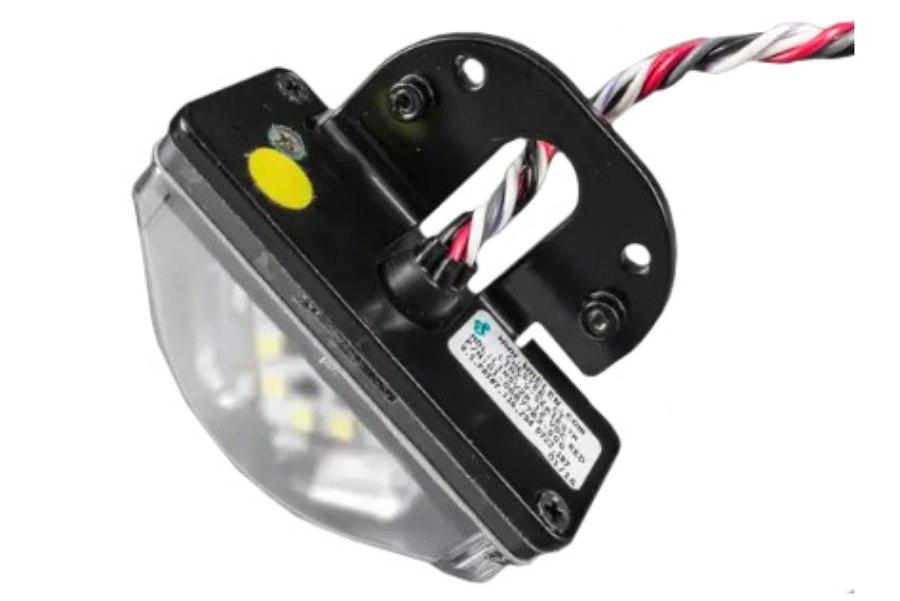

Right angle bracket mounts beneath a side view mirror, push bumper, or under any flat mounting surface
Six-inch pigtail with sync wire allows up to eight light heads to be synchronized together
Optional SAE Class 1 Certified Smoked lenses
Voltage: 12VDC
Amps: Warning: .75 amp (average) / Puddle: .12 amp (average)
25 Scan-Lock flash patterns
SAE J595 / SAE J845 Selective Coverage (Amber)
Five-year warranty
Multiple colors/combinations
180° lighting
LED
Voltage: 12 VDC
Dimensions: 1.578″H x 1.656″D x 3.859″L

Shipping & Returns

Expedited orders must be placed by 12 p.m. CST. Items under 110 lbs ship via standard parcel (UPS Ground). Items 110–150 lbs may ship via ground or truck freight depending on size and destination.
Larger or heavier items ship via truck freight, which may require additional delivery time.

Please inspect all shipments within 10 days of delivery. Return requests must be submitted within 45 days.

For full details, view our Shipping & Returns Policy.

Learn More

Product Information

Item #	MFG #	Color	Lens
LINSV2AX	LINSV2AX	Amber	Smoke
LINSV2RX	LINSV2RX	Red	Smoke
LINSV2G	LINSV2G	Green	Clear
LINSV2A	LINSV2A	Amber	Clear
LINSV2CX	LINSV2CX	White	Smoke
LINSV2C	LINSV2C	White	Clear
LINSV2B	LINSV2B	Blue	Clear
LINSV2R	LINSV2R	Red	Clear
LINSV2BX	LINSV2BX	Blue	Smoke
