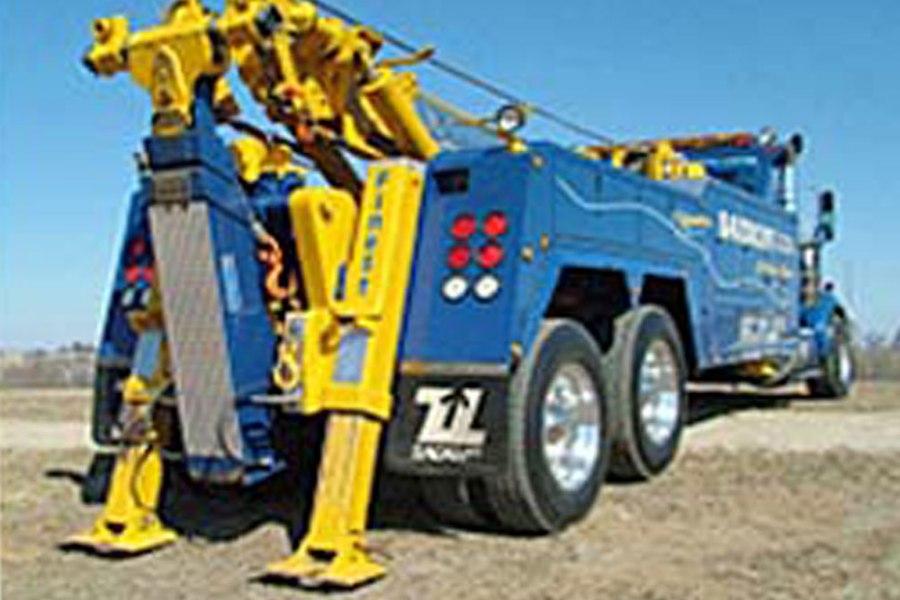

Zacklift 25,000# Stiff Legs for Permanent Mount Installation. They feature super wide surface pads, designed for the dual purpose of flat surface stabilization and recovery anchor stabilization. A single one man operation removes and replaces the holding pin moving between the powerful angle claw for digging and the wide, flat surface pad.
- Valve, Hoses, Fittings, Flipper
- End to end, foot in flat position 57"
- End to end, foot flipped down 59"
- End to end no feet 53"
- Feet width 12"
- Cylinder travel 24"
- Cylinder diameter 3"
- Positioning from ground level 12"
- Travel beyond ground level 12"
- Recommended mounting angle 15 degrees
- Outer tube diameter 5 x 5 x 3/8"
- Inner tube diameter 4 x 4 x 3/8"
- Cylinder output at 2600 psi. 38,000#
- P.O. Checks Yes
- Two valve sections Yes
- Hoses, fittings from legs to valves Yes
- Required gallons per minute 3 to 15
