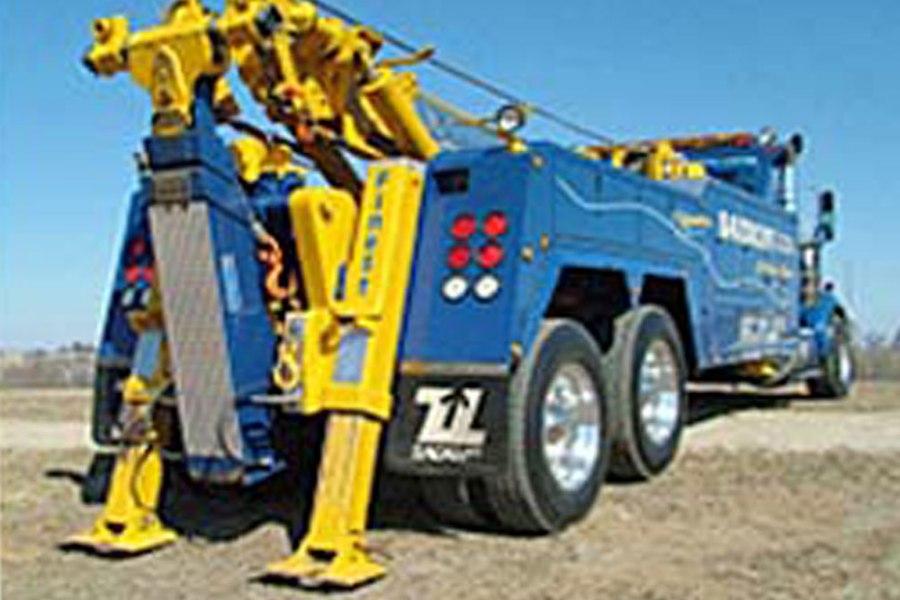

Zacklift 25,000 lb. Stiff Legs

Zacklift 25,000# Stiff Legs for Zacklift RTU Installation. They feature super wide surface pads, designed for the dual purpose of flat surface stabilization and recovery anchor stabilization. A single one man operation removes and replaces the holding pin moving between the powerful angle claw for digging and the wide, flat surface pad.

• Valve, Hoses, Fittings, Flipper
• End to end, foot in flat position 57"
• End to end, foot flipped down 59"
• End to end no feet 53"
• Feet width 12"
• Cylinder travel 24"
• Cylinder diameter 3"
• Positioning from ground level 12"
• Travel beyond ground level 12"
• Recommended mounting angle 15 degrees
• Outer tube diameter 5 x 5 x 3/8"
• Inner tube diameter 4 x 4 x 3/8"
• Cylinder output at 2600 psi. 38,000#
• P.O. Checks Yes
• Two valve sections Yes
• Hoses, fittings from legs to valves Yes
• Required gallons per minute 3 to 15
