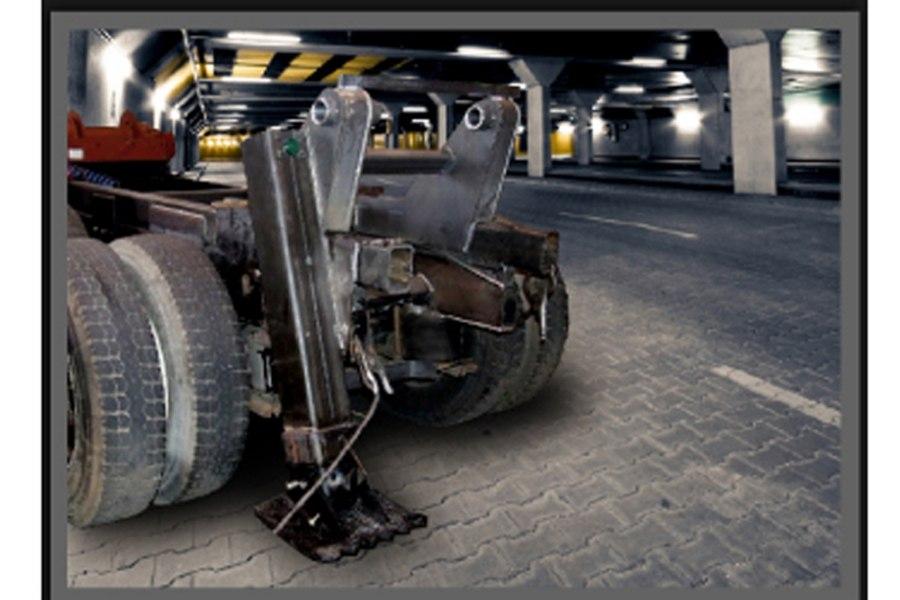

Zacklift Big Foot Stiff Legs - Permanent Mount. Engineered for the biggest recovery challenges, Bigfoot Stifflegs meet Zacklift's standard of excellences in design and power.
- Includes valve, hoses, fittings and flipper
- End to end, foot in flat position 53.5"
- End to end, foot flipped down 65"
- End to end no feet 47"
- Feet width 18"
- Cylinder travel 24"
- Cylinder diameter 3"
- Positioning from ground level 12"
- Travel beyond ground level 12"
- Recommended mounting angle 15 degrees
- Outer tube diameter 7 x 7 x 3/8"
- Inner tube diameter 6 x 6 x 3/8"
- Cylinder output at 2600 psi. 38,000#
- P.O. Checks Yes
- Two valve sections Yes
- Hoses, fittings from legs to valves Yes
- Required gallons per minute 3 to 15
