Zacklift Z252 Fifth Wheeler 98" Reach - Call for Pricing

Out of stock

Price: $52,300.00

SKU: 5TH-252

Qty:

View Cart

Truck Freight Required

Description

Zacklift Z222 Fifth Wheeler. The Fifth Wheeler is backed by Zacklift's 20 years of under reach experience. Zacklift's proven design is engineered for quick convenient attachment and removal. Lower the Zacklift flat to the ground, lifting pressure from the kingpin, release pins and drive out. Full unobstructed use of the truck fifth wheel plate is possible after the 5 minute drive-off procedure. This unit mounts on any heavy duty chassis with a compact under-boom location, transforming it into a money making rig.

* When this unit is ordered through our online parts store, you will receive a call from a Zip's representative to confirm your order and to discuss the related options and accessories.

Zacklift Fifth Wheeler Mounted Underlift
Retracted Lift Rating 25,000#
Extended Lift Rating 13,000#
Tow Rating 75,000#
Retracted Distance 56"
Reach, True Usable Reach 86"
Reach w/12" Reach Extensions 98"
Distance From Tailboard When Stored 10"
Upward Tilt, Max Lifting Height 22 Degrees, 48"
Tilt Below Ground 8 Degrees, 13"
Downstroke On Lift Cylinder 17"
Fifth Wheeler Weight - 2,583#
Standard Equipment Includes; One Pair Each 1" x 2.5" Fork, 6" x 6.5" Fork, 9" x 4" Fork, Torsion Bar Fork, Chain Fork Slotted For 1/2" to 5/8" chain, Chain Attachment Block, Safety Chains, MultiPositional Fork Receiver, 12" Reach Extender
No-Charge Option: Self-Contained Complete Power System - Includes Valve, Pump Motor, Reservoir, Lines and Remote Control OR Electric Over Hydraulic Valve, for Use With Existing PTO and Pump. Includes Lines & Remote Control.

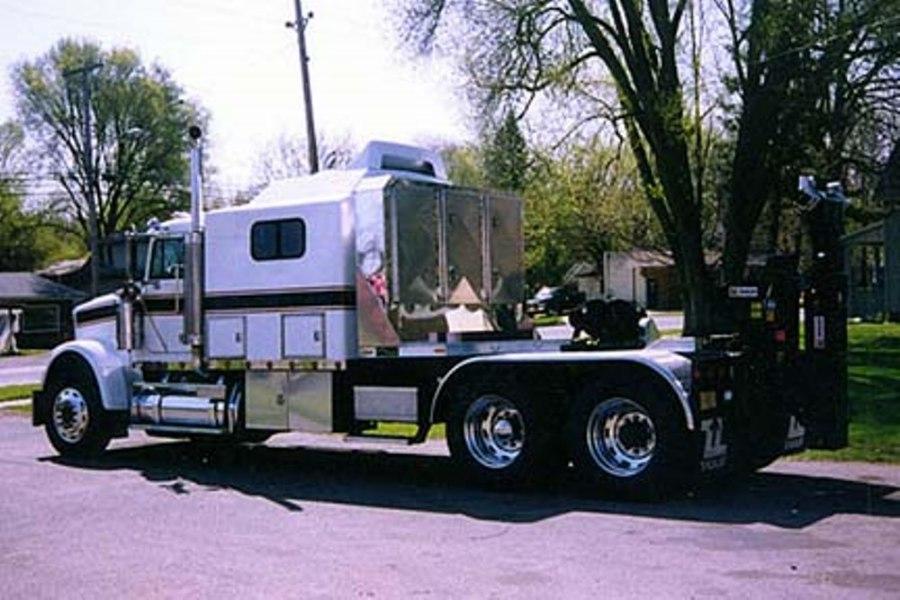

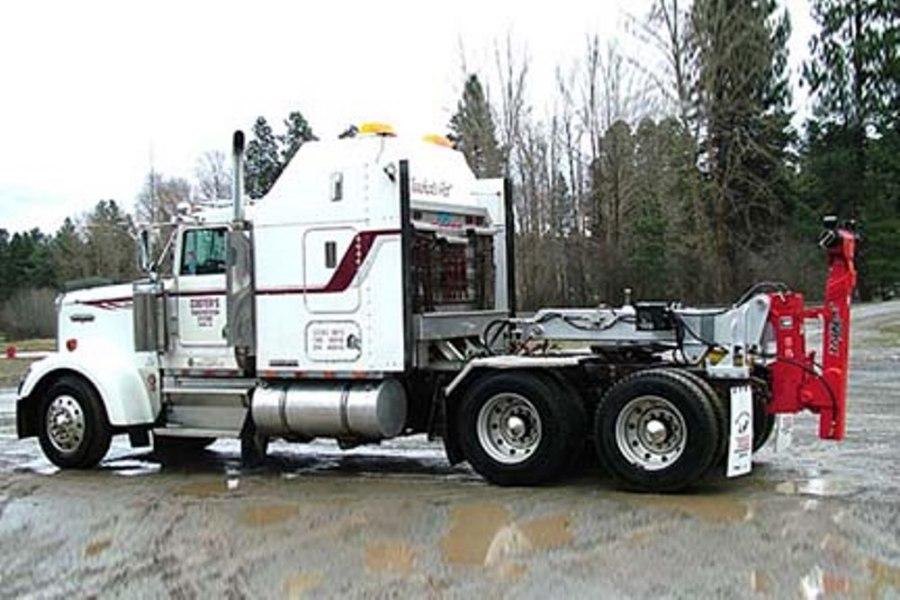

Photos Shown With OPTIIONAL Stiff Legs and 25,000 lb. Winch (Requires Electric Over Hydraulic Valve and Wet Kit Equipped Tractor).
