Zacklift Z453 Fifth Wheeler 147" Reach

Leave a Review

SKU: 5TH-453

Price: $70,100.00

Qty:

Go Straight to Checkout

Truck Freight Required

Description

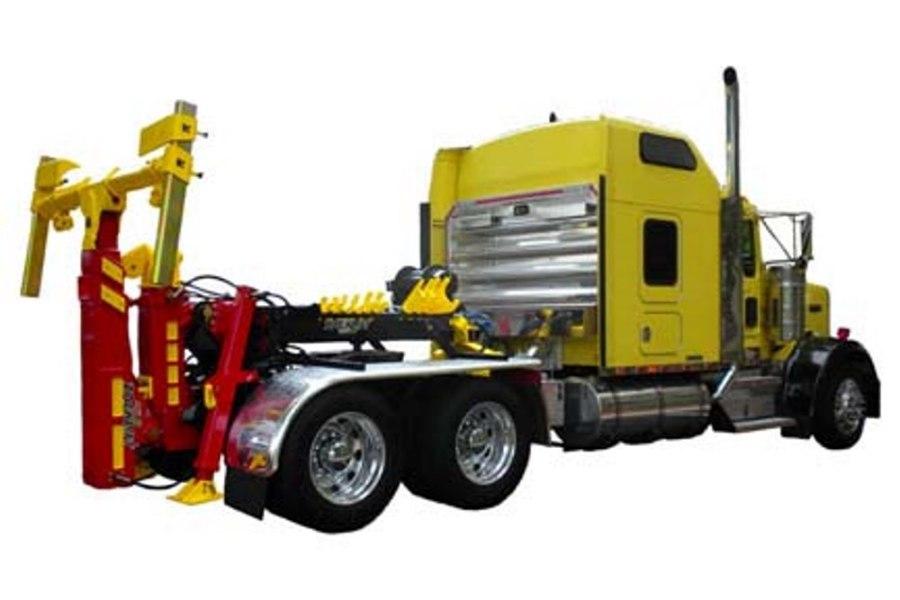

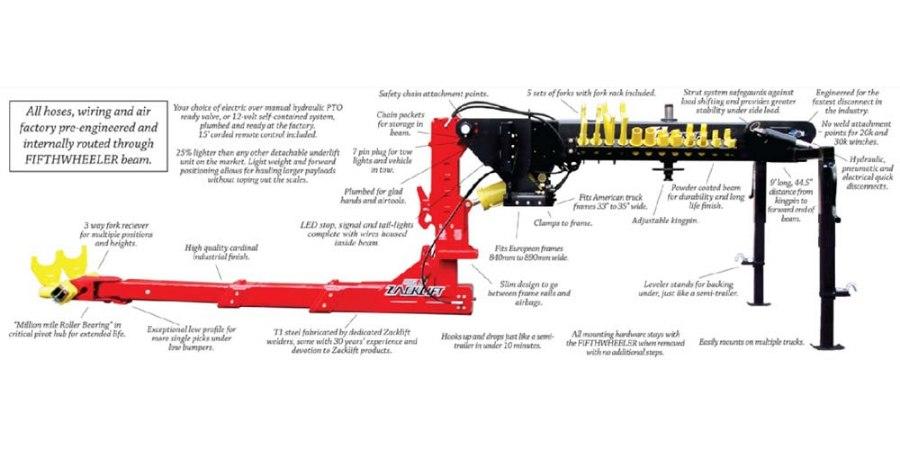

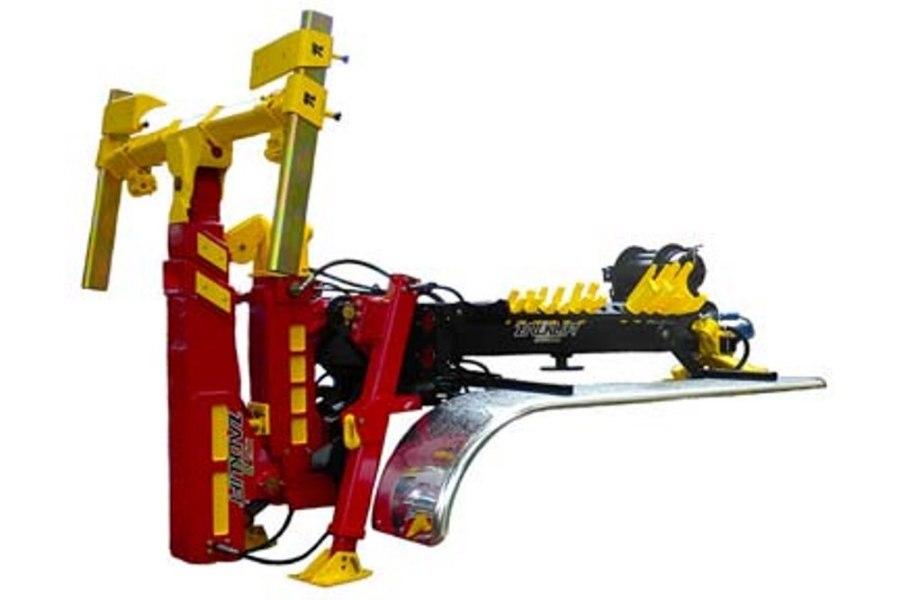

Zacklift Z453 fifth wheeler. The fifth wheeler is backed by Zacklift's 20 years of under reach experience. Zacklift's proven design is engineered for quick convenient attachment and removal. Lower the zacklift flat to the ground, lifting pressure from the kingpin, release pins and drive out. Full unobstructed use of the truck fifth wheel plate is possible after the 5 minute drive-off procedure. The unit mounts on any heavy duty chassis with a compact under-boom location, transforming it into a money making rig.

*When this unit is ordered through our online parts store, you will receive a call from a Zip's representative to confirm your order and to discuss the related options and accessories.

Zacklift Fifth Wheeler Mounted Underlift
Retracted Lift Rating 45,000#
Extended Lift Rating 18,000#
Tow Rating 100,000#
Retracted Distance 67"
Reach, True Usable Reach 135"
Reach w/12" Reach Extensions 147"
App. Reach, Center Of Axles To Forks 190"
Distance From Tailboard When Stored 12"
Upward Tilt, Max Lifting Height 20 Degrees, 59"
Tilt Below Ground 8 Degrees, 21"
Downstroke On Lift Cylinder 17"
Fifth Wheeler Weight - 4,109#
Standard Equipment Includes; One Pair Each 1" x 2.5" Fork, Torsion Bar Fork, 6" x 6.5" Fork, 9" x 4" Fork, Chain Fork Slotted For 1/2" to 5/8" chain, Chain Attachment Block, Safety Chains, Multi Positional Fork Receiver, 12" Reach Extender
No-Charge Option: Self-Contained Complete Power System - Includes Valve, Pump Motor, Reservoir, Lines and Remote Control OR Electric Over Hydraulic Valve, for Use With Existing PTO and Pump. Includes Lines & Remote Control.
