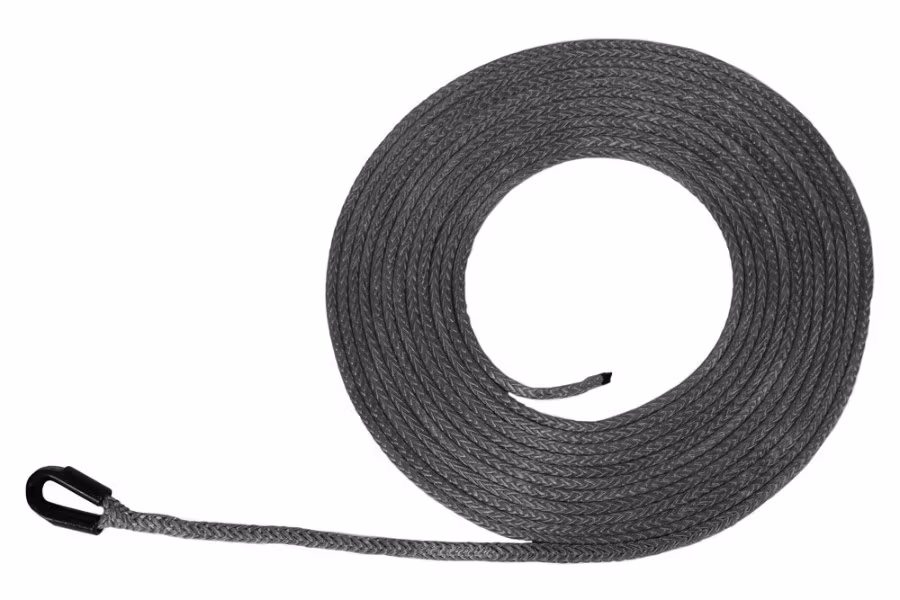

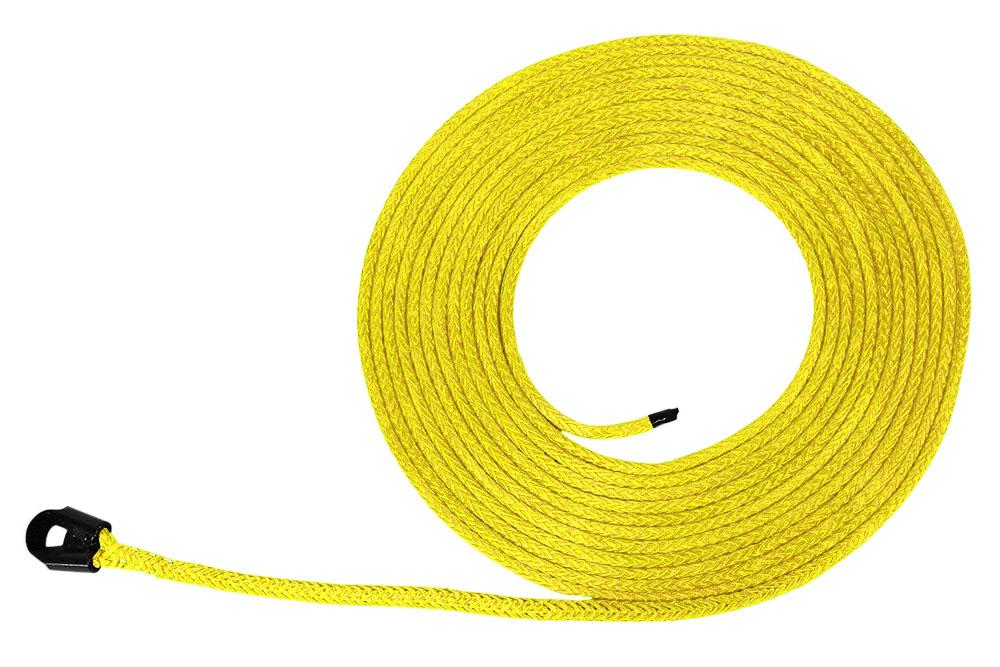

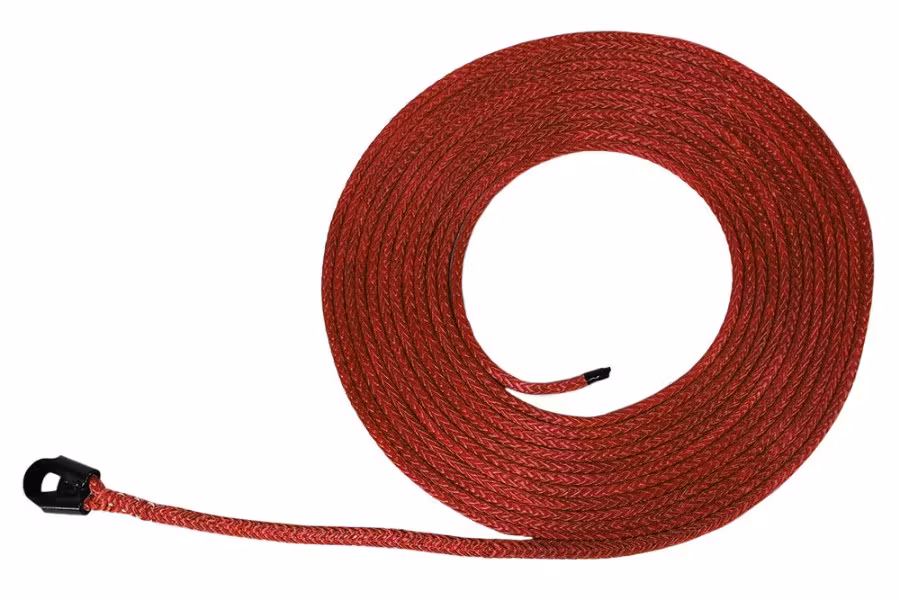

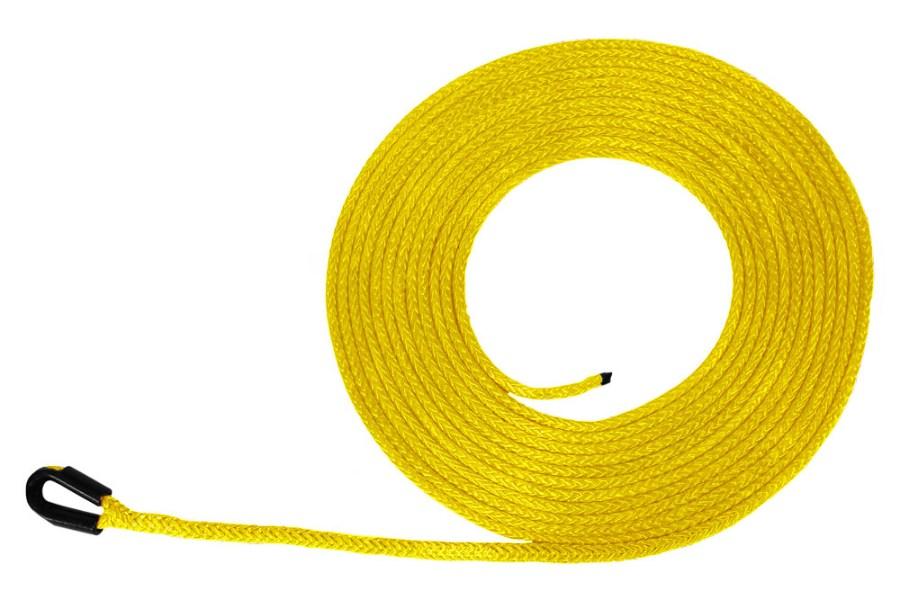

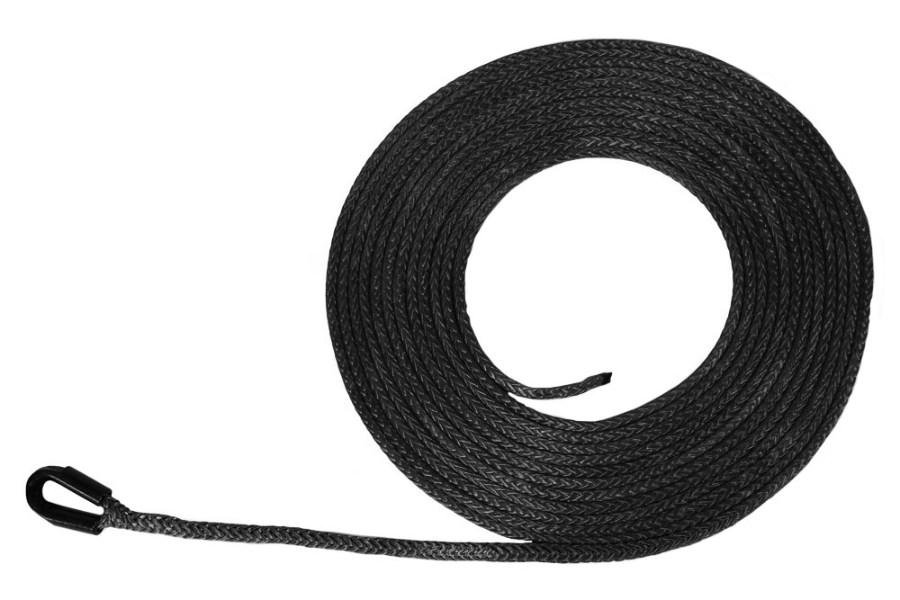

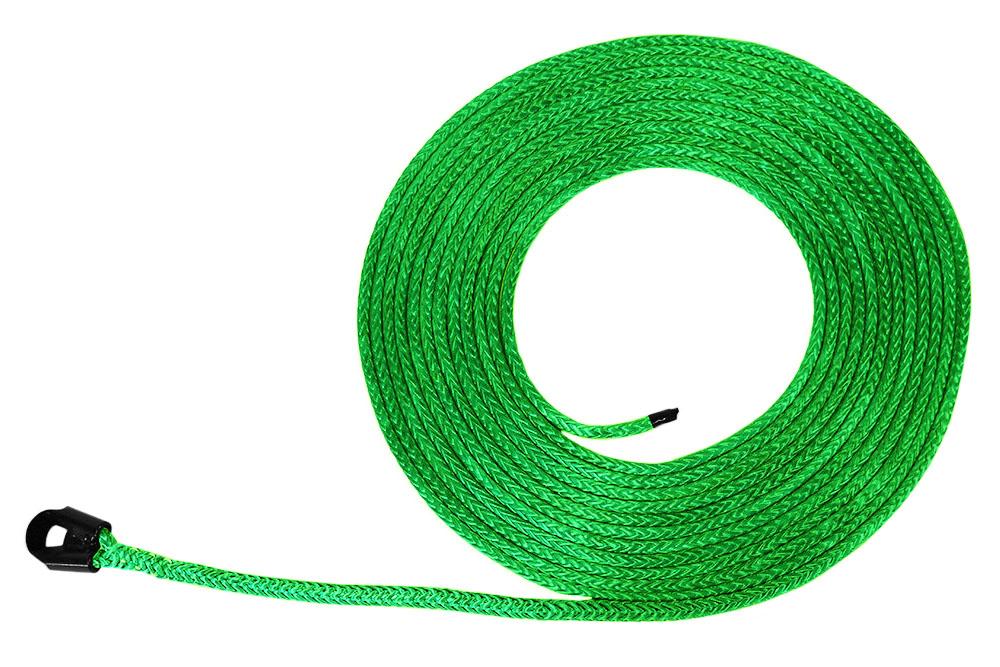

AmSteel-Blue Synthetic Winch Lines w/ Closed Thimble | 9/16" - 7/8"

AmSteel-Blue Synthetic Rope is a proven alternative to steel cables and steel winch lines. Size-for-size, AmSteel-Blue is the same strength as steel wire rope - yet it floats! These 12-strand, single braid winch lines yield the maximum in strength-to-weight ratio and are torque free. Meaning attachment hardware with a swivel is not necessary. AmSteel-Blue has extremely limited stretching - only 1% at full WLL (4:1). Also, AmSteel-Blue Rope has superior flex fatigue and is abrasion resistant. When compared to steel cables, AmSteel-Blue Winch Lines are a fraction of the weight. For example, a 3/4 " x 100' steel cable weighs 100 lbs while an AmSteel-Blue rope with the same dimensions only weighs 13.3 lbs - almost 8 times lighter! Just think about how much easier the handling of the synthetic Amsteel-Blue is for your operators verses a steel cable. Also, it drastically cuts down on the overall weight of your truck - especially heavy duty rotator wreckers which have up to 5 to 6 winches!

Here's a more in-depth look into the benfits of AmSteel Blue Synthetic Rope... Learn more by clicking here

Available in the following sizes

Size Diameter	Weight per 100 Ft.	Minimum Strength	WLL
5/16"	2.7 lb.	12,300 lb.	3,075 lb.
3/8"	3.4 lb.	17,600 lb.	4,400 lb.
7/16"	4.5 lb.	21,500 lb.	5,375 lb.
1/2"	5.9 lb.	30,600 lb.	7,650 lb.
9/16"	7.9 lb.	36,500 lb.	9,125 lb.

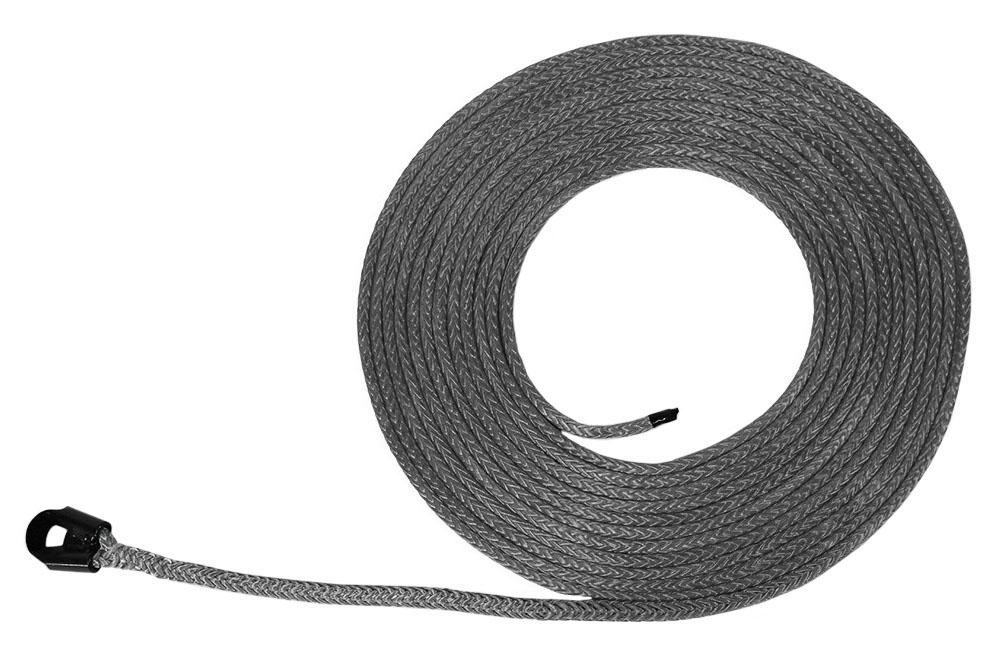

5/8"	10.2 lb.	47,500 lb.	11,875 lb.
3/4"	13.3 lb.	58,000 lb.	14,500 lb.

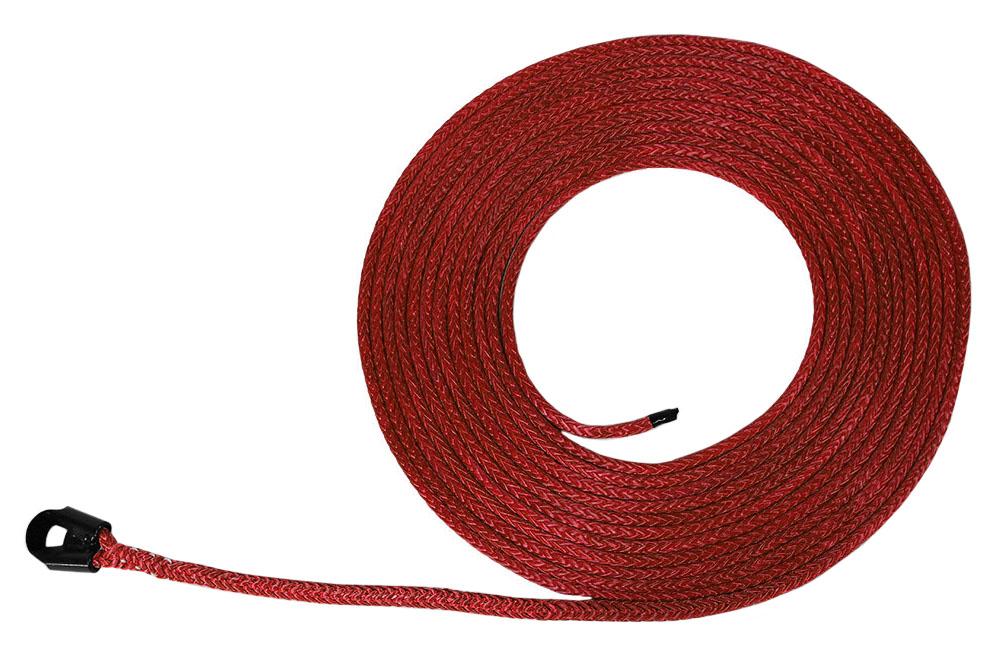

7/8"	19.6 lb.	81,700 lb.	20,425 lb.

• Abrasion resistant
• Easy to inspect
• Excellent wear characteristics
• Extremely low stretch
• Flexible
• Floats
• High strength
• Highly flex-fatigue resistant
• Lightweight
• Maximum strength-to-weight ratio
• Similar elastic elongation to wire rope
• Torque-free construction
• Wire rope replacement

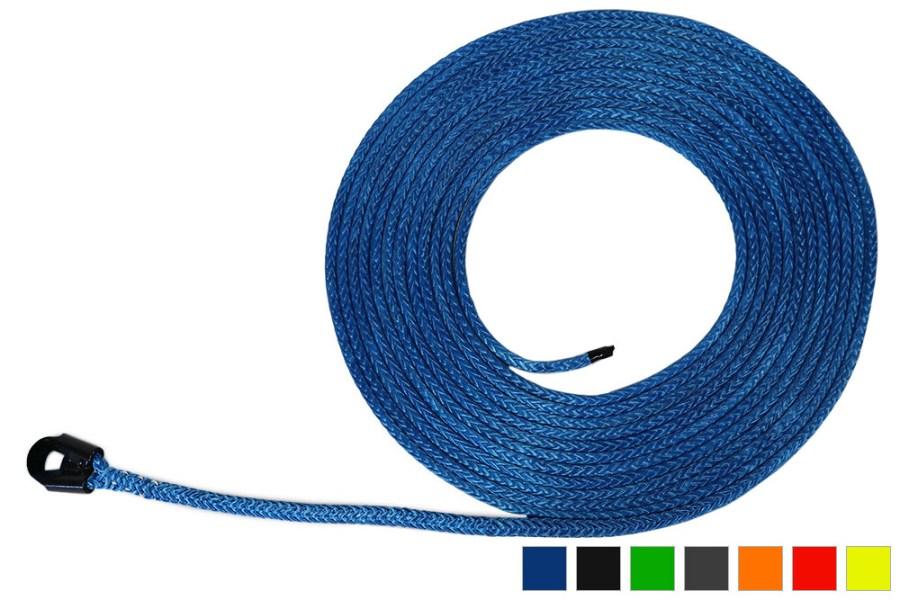

• Available in 7 different colors (Blue is Standard)
• Many more dimensions and custom lengths available
• Any other questions please call 800.222.6047

  Applications
• Competition grade running rigging
• Primary mooring line
• Lifting slings
• Trawl, bridle, and gilson lines
• Kite/Wakeboard/Waterski lines
• Trawl and bridle lines
• Wire replacement - Non jacketed
• High performance tug lines
• Climbing and rigging accessories
• Pulling and stringing lines
• Winch lines
• Low stretch support lines (Wire replacement)
• Horizontal lifelines
• Logging
• Wire replacement ropes
• General working lines
• Rig tow lines
