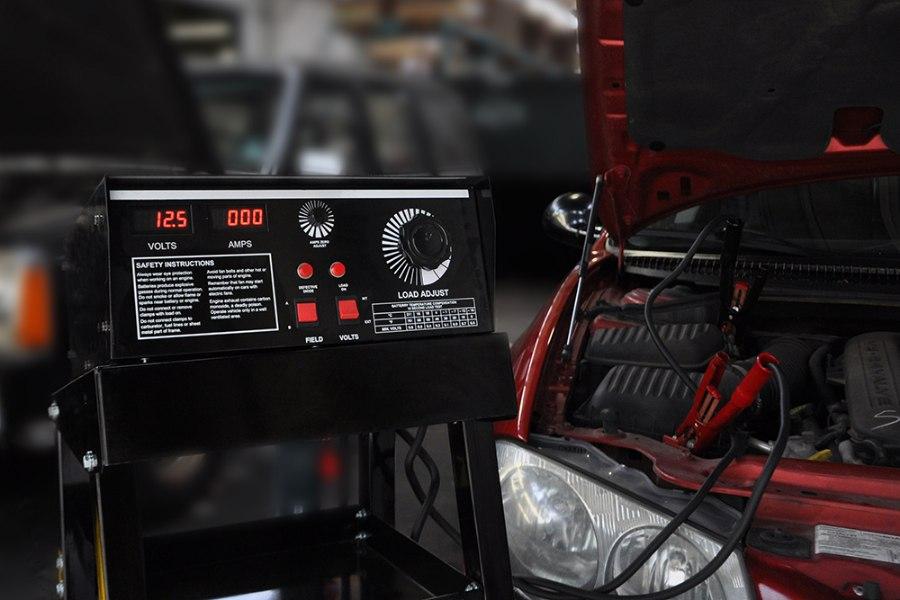

Associated Equipment Battery and Electrical System Tester

Designed with highest quality and versatility in mind. Interprets data from the charging/starting system on easy-to-read LED display voltmeter and ammeter. Also shows +/- amps for easy diagnosis of current leakage problems. The 500 amp, carbon pile variable load c apability, provides accurate load testing for up to 1,000 CCA batteries. A great time-saver for testing electrical systems on 12, 12 /24 and 24 volt vehicles. Features include Large, easy to read, LED digital AMPS and VOLTS meters. The Volt meter displays voltages to ?99.9 volts DC on the EXT position and up to 35.0 volts DC on the INT position. The AMP meter displays DC currents up to 999 amps and reads both + and - amps for easy diagnosis of leakage current problems. The input impedance of the meters is 10 Meg ohms for ac curate testing of solid state circuits. The carbon pile is rated 500 amps on 12 volt batteries for load testing batteries up to 1000 CCA capacity. Curved carbon discs allow better low end resolution of current and longer life. Amps Zero Adjust allows for maximum a ccuracy in AMPS reading. "Load On" light indicates the carbon pile is actuated and serves as a reminder to turn the load off. Defect ive Diode indicator light lets you know when alternator output diodes or GM diode trios have failed. The electronic circuits are pro tected by a fuse against excessive voltage inputs and reverse voltages caused by connecting leads incorrectly that may damage the un it. The electronic circuit board has a protective coating to prevent damage and meter inaccuracy due to moisture and dirt. 6038C Two Wheeled Cart & 6043 AC/DC Current Sensing Inductive pickup are included with the 6042

• Test batteries up to 1000 CCA
• Interprets data from the charging/starting system on easy-to-read LCD displays
• Shows positive & negative amps for easy diagnosis of current leakage problems
• 0-500 Amp variable carbon pile load tester
• 500 Amp safety clamps with ?Flexi-Spring?
• Patented side terminal adapters
• Separate light gauge test leads for tigher spots
• 10-meg ohm input impedance for today?s high tech systems
• Unique curved carbon discs ensure maximum contact, fewer hot spots, smoother operation and longer life
• Heavy-duty single extruded leads for testing up to 15 feet apart
• Test electrical systems on 12/24 Volt systems
• Test all battery types
• Ideal for testing remotely mounted batteries accurately

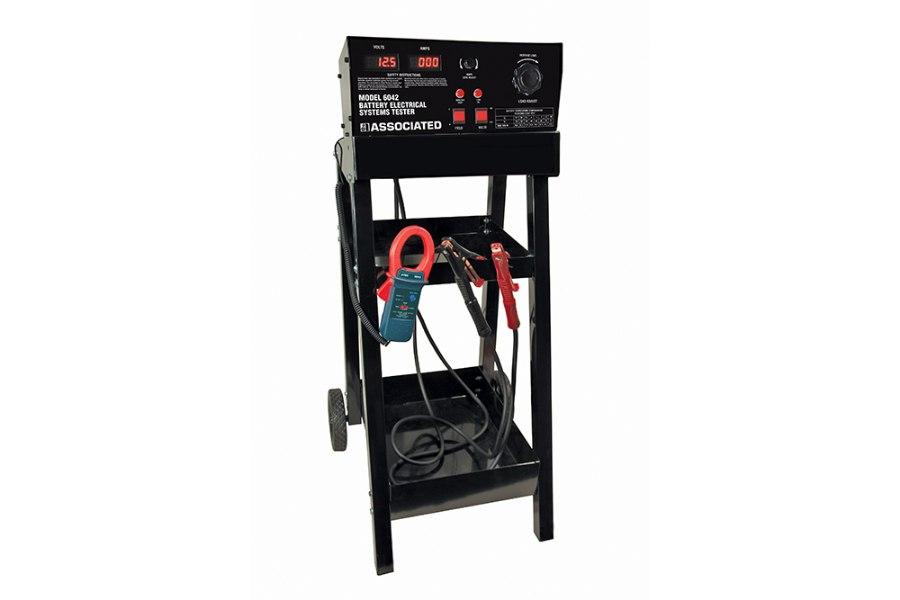

• Tilt-back cart and 2 tray included
• Made in USA of US and Global Components
• Load: 500 amp
• Ammeter: Digital LCD 0-999 amps
• Voltmeter: Digital LCD 0-32.0 volts DC
• Leads: 8ft 4 AWG
• Clamp rating: 500 amp
• Limited Warranty: 1 Year
• Shipping dimensions: (HxLxW) 8"x36"x19"
• Weight: 67 lbs.
