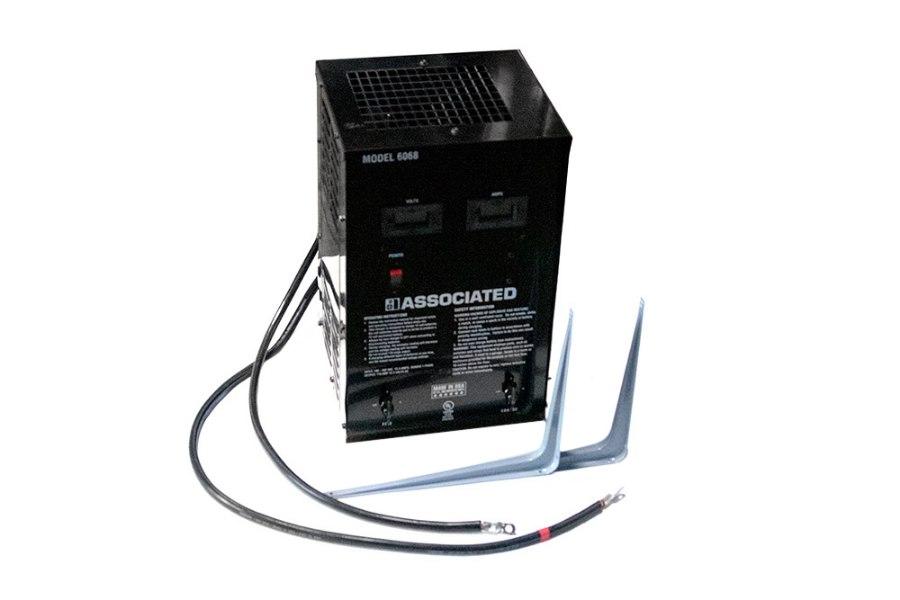

Associated Equipment Parallel 230 Volt Battery Charger

Charges up to 36 automotive batteries in parallel, in less than 24 hours. Can be wall-mounted or on a stationary bench, 16 charge rates for precise charging. Each battery accepts charge required, depending on size, state of charge and temperature. Engineered so that an initial high charge rate tapers down to a safe finishing level. A isolated transformer and a heavy-duty diode rectifier with deep reserve capacity are standard features on this model. Model 6068 Battery Charger is designed to charge 12 volt batteries in parallel. The multiple charge rates allow batteries to be slow charged or fast charged at a rate not to exceed 110 amps output of the charger. The output leads are terminated in ring terminals and designed to be permanently attached to the Associated 6086 Parallel Battery Charging Rack, the Associated 6075 Parallel Bus Bar Kit, the Associated 6075CB Parallel Bus Bar Kit or the Associated 6075S Smart Parallel Bus Bar Kit. This unit is not intended as a car starting unit.

• Heavy Metal Cabinet Construction
• Isolated transformer for safety
• UL listed
• Circuit breaker protection
• Mounts on wall or bench
• Made in USA
• Shipping dimensions: (HxLxW) 29"x17"x14"
• Weight: 83 lbs.
• DC Output: 110amp / 15.5volts
• AC Input: 190-262 volts / 13 .8 amps-50/60HZ
• Charging capacity: up to (36) - 12 volt batteries
• Charge rates: 16
• Voltmeter: Digital 1-19 volts
• Ammeter: 0-110 amps
• DC leads: 5ft.
• AC cord: Permanant Installation Only
