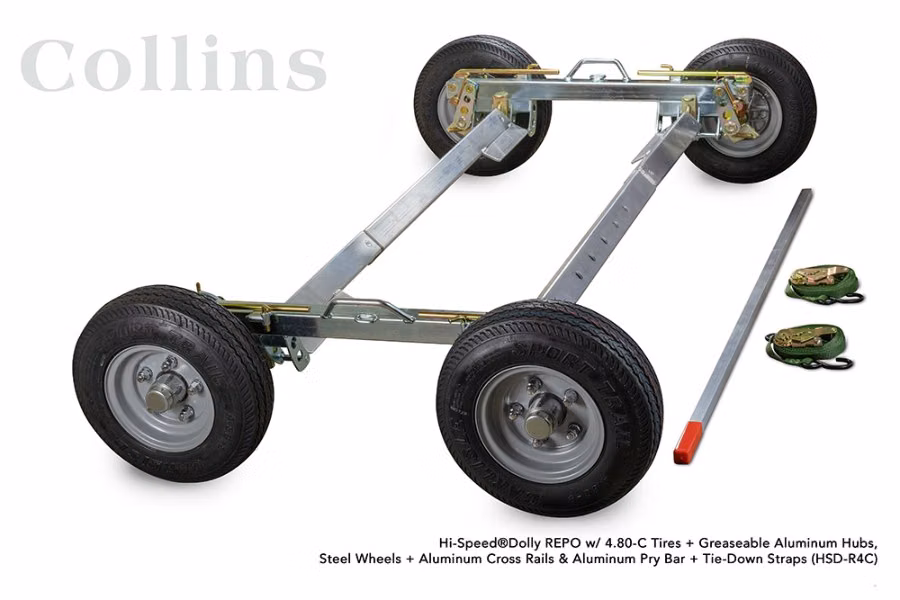

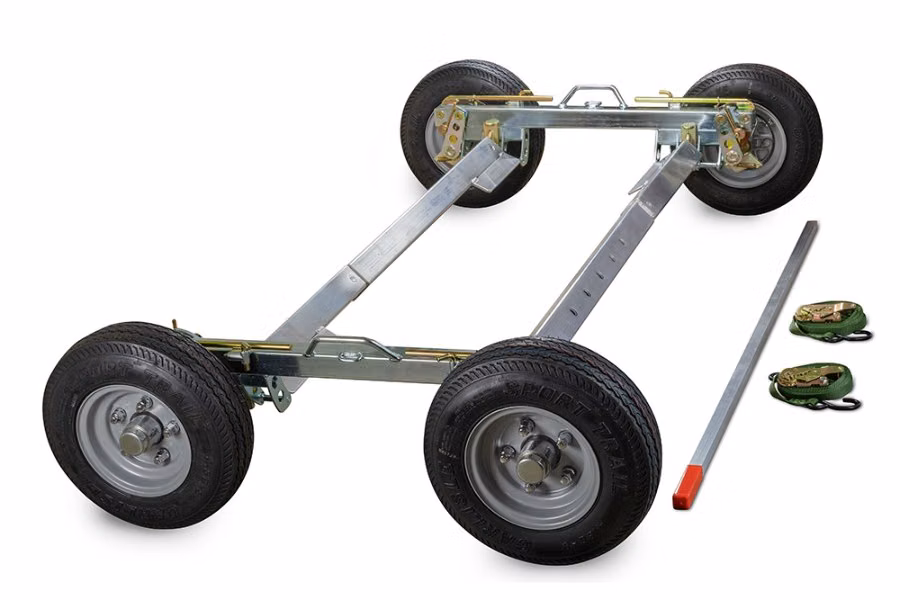

Collins Dollies Hi-Speed SLZ REPO Dolly w/ T10 Cross Rails & Steel Wheels 4.80 x 8

Leave a Review

Shop all Collins Manufacturing Corp products

Video of Collins Dollies Hi-Speed SLZ REPO Dolly w/ T10 Cross Rails & Steel Wheels 4.80 x 8

SKU: SL-480AS

Price: $2,199.99

Qty:

Go Straight to Checkout

Truck Freight Required

Description

Built specifically for repossession, recovery and towing professionals, the Collins Hi-Speed®? HSD-R4C SLZ REPO Dolly delivers dependable vehicle-moving performance at a value-focused price.

The REPO configuration combines Collins’ sixth-generation SLZ design with durable steel wheels, providing a cost-effective alternative to the premium all-aluminum wheels used on the PRO configuration.

Equipped with 4.80×8 C-rated tires and aluminum T10 telescoping cross rails, the HSD-R4C is designed for demanding recovery work while remaining practical for operators. Each set offers a 3,040-lb. vehicle capacity.

For added safety, the Collins Safety Ratchet System and True Positive Camber provide secure, controlled operation, while the 65 mph speed rating supports highway and freeway towing applications within the manufacturer's specifications.

Each set Includes:

2 Hi-Speed®? Dolly bodies
1 pair telescoping cross rails
1 square aluminum pry bar
Tie-down straps sold seperately (Part # DFZ-TDS)

Features:

4.80×8 C-rated tires
Durable steel wheels
3,040-lb. capacity per set
65 mph speed rating
Aluminum T10 telescoping cross rails
Sixth-generation SLZ design
Collins Safety Ratchet System
True Positive Camber
156-lb. set weight

Tire Specifications

4.80 X 8 static load range c = 760 lb. @ 90 Psi or 3,040 lb per set (3,040 lb @ 55 mph, 2,865 lb @ 60 mph)
4.80 X 8 static load range c = 345 kg. @ 6.2 Bar or 1,379 kg per set (1,379 kg @ 88 kph, 1,300 kg @ 97 kph)

T-10 Cross Rails

Telescopic, 10-Hole Center-Cambered, Aluminum
59″ outside dimension when fully collapsed
90″ of usable span when fully extended
True positive camber with camber in the ends and in the tubing material itself

Dolly Dimensions

Aluminum 6-hole cross rail collapsed od: 61”
Aluminum 6-hole cross rail extended usable: 84”
4.80 Dolly loaded length: 46.0”
4.80 Dolly stowed length: 36.5”
4.80 Dolly height: 16.5”
4.80 Dolly depth: 10.0”

Zip's Part #	Collins Part #	Dolly Frame & Name	Tire	Cross Rails	Hubs	Wheels	Weight	Capacity	Speed Rating
SL-570SD	HSD-H5D	SLZ (6th Generation) Hero	5.70x8 D Rated	Aluminum T12	Aluminum	Aluminum	230 lbs	4280 lbs	65 MPH
SL-480SD	HSD-H4D	SLZ (6th Generation) Hero	4.80x8 D Rated	Aluminum T12	Aluminum	Aluminum	214 lbs	3968 lbs	65 MPH
SL-570AD	HSD-P5D	SLZ (6th Generation) Pro	5.70x8 D Rated	Aluminum T10	Aluminum	Aluminum	176 lbs	4280 lbs	65 MPH
SL-480AD-D	HSD-P4D	SLZ (6th Generation) Pro	4.80x8 D Rated	Aluminum T10	Aluminum	Aluminum	160 lbs	3968 lbs	65 MPH
SL-480AD	HSD-P4C	SLZ (6th Generation) Pro	4.80x8 C Rated	Aluminum T10	Aluminum	Aluminum	156 lbs	3040 lbs	65 MPH
SL-480AS	HSD-R4C	SLZ (6th Generation) Repo	4.80x8 C Rated	Aluminum T10	Aluminum	Steel	156 lbs	3040 lbs	65 MPH

Documents

Collins-Hi-Speed-Dolly-Operations-Manual

Shipping & Returns

This product requires truck freight delivery. Standard parcel carriers are not available for this item.

Expedited orders must be placed by 12 p.m. CST. Items under 110 lbs ship via standard parcel (UPS Ground). Items 110–150 lbs may ship via ground or truck freight depending on size and destination.
Larger or heavier items ship via truck freight, which may require additional delivery time.

Please inspect all shipments within 10 days of delivery. Return requests must be submitted within 45 days.

For full details, view our Shipping & Returns Policy.

Shipping & returns policy

Product Information

Item #	MFG #
SL-480AS	HSD-R4C
