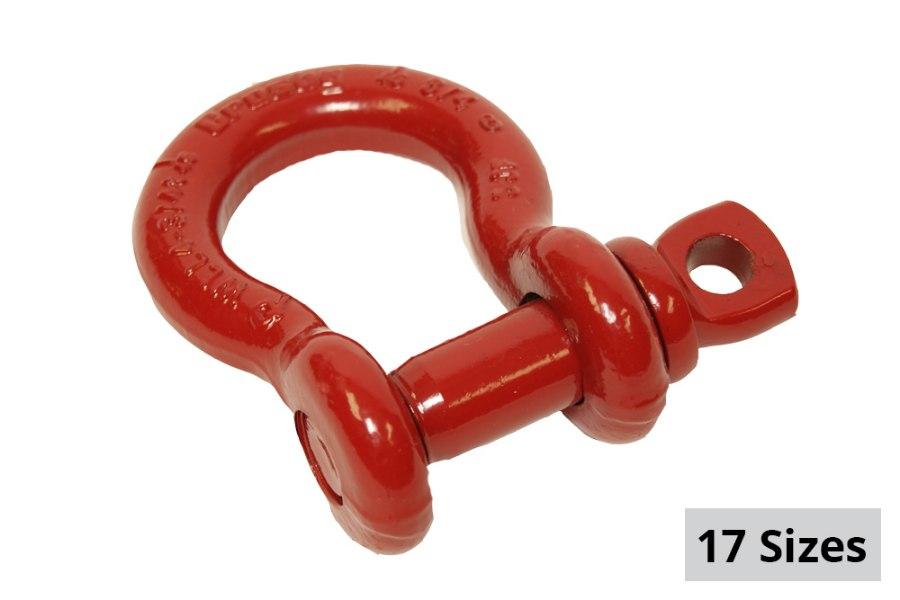

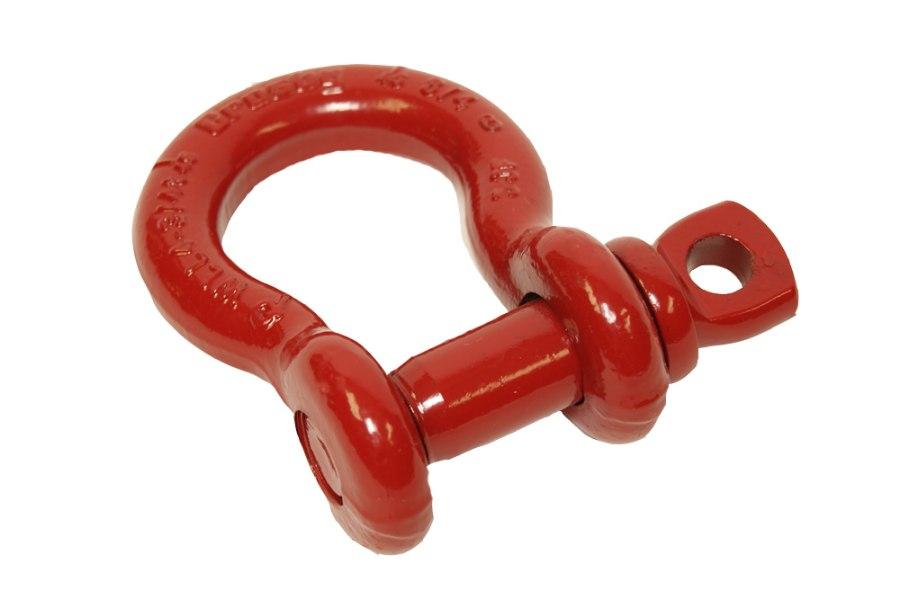

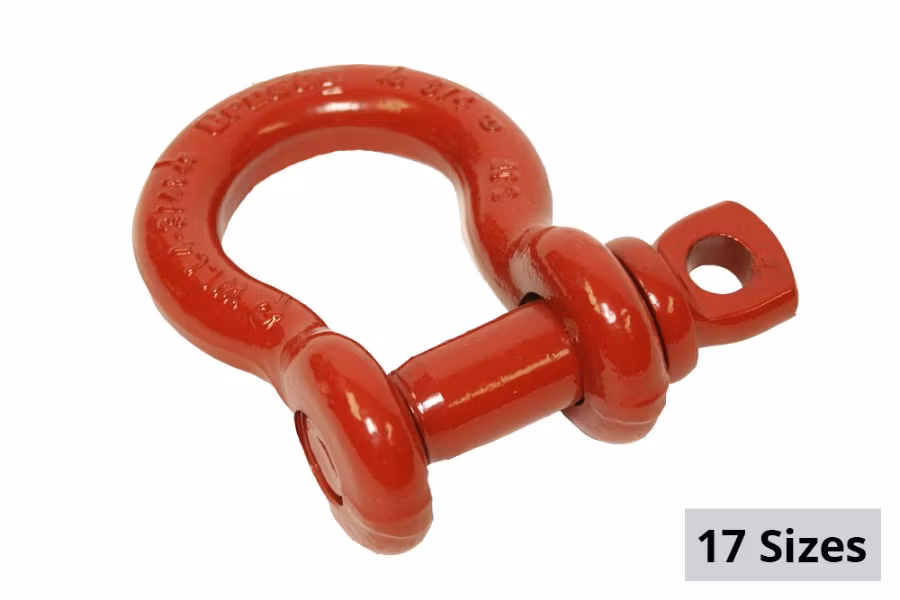

Crosby Anchor Shackle Screw Pin

With 17 different sizes, you can find one of Crosby’s Anchor Shackle Screw Pin for you. So, for whatever situation you need it, you can pick one up for it. Plus it’s forged, quenched and tempered, with alloy bolts. Also, the sizes that are 3/8"" and below are mechanically galvanized, making it even more durable.

Not only is it durable, but it’s also reliable. With it being fatigue-rated at 20,000 cycles at 1.5 times the working load limits, you can trust it to work under reasonable conditions. Finally it is approved for use at extreme temperatures..

• Meets performance requirements of Grade 60 shackles.
• Forged, Quenched & Tempered, with alloy pins.
• Working Load Limit and Grade 6 permanently shown on every shackle.
• Hot-dip galvanized (G) or self-colored (S).
• Sizes 3/8 inch and below are mechanically galvanized.
• Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
• Approved for use at -40° F (-40° C) to 400° F (204° C).


Available in the following sizes



Item #	Size	WLL
WS-18357	3/16"	1/3 Ton
WS-18384	1/4"	1/2 Ton
WS-18400	5/16"	3/4 Ton
WS-18428	3/8"	1 Ton
WS-18446	7/16"	1-1/2 Ton
WS-18464	1/2"	2 Ton

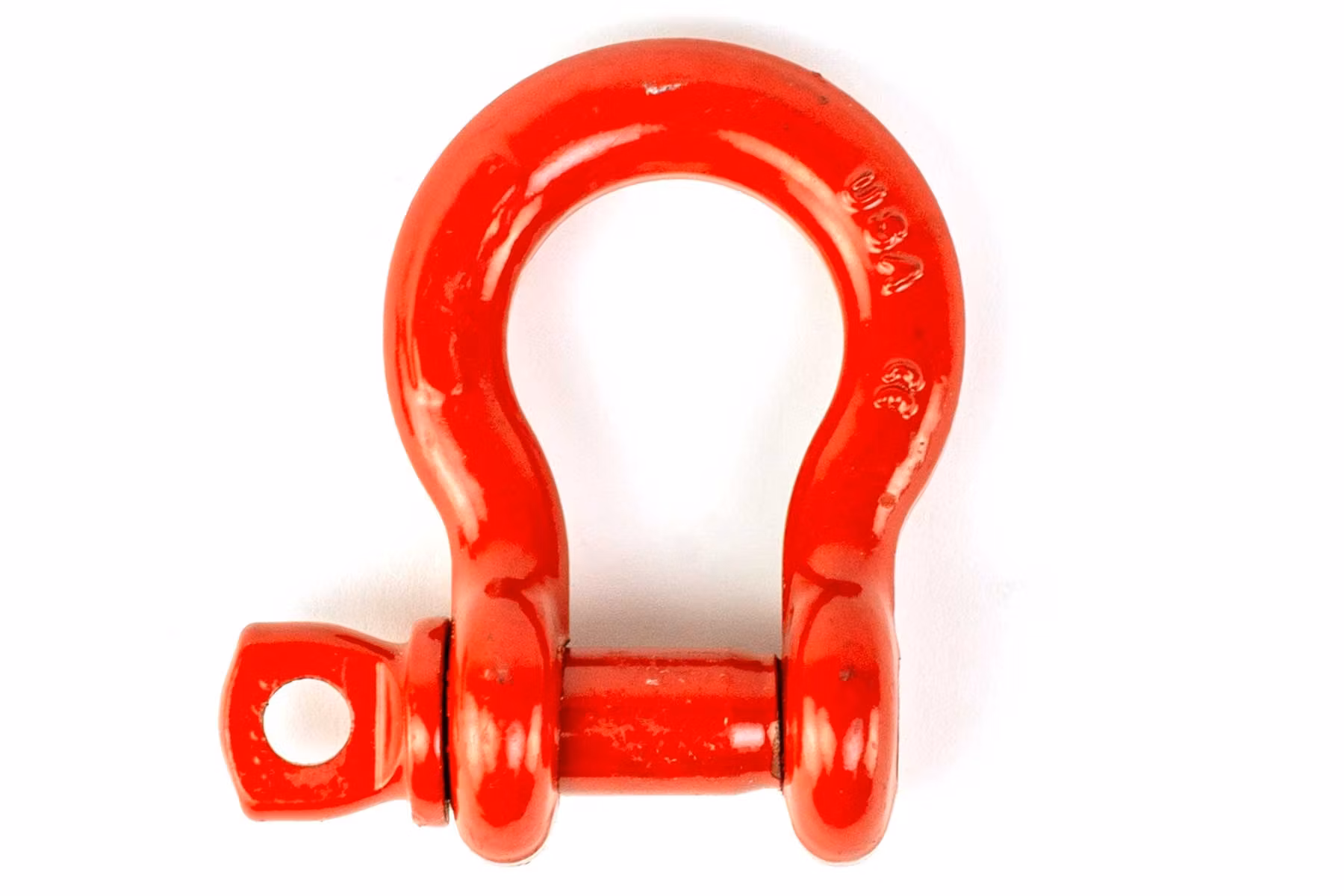

WS-18482	5/8"	3-1/4 Ton

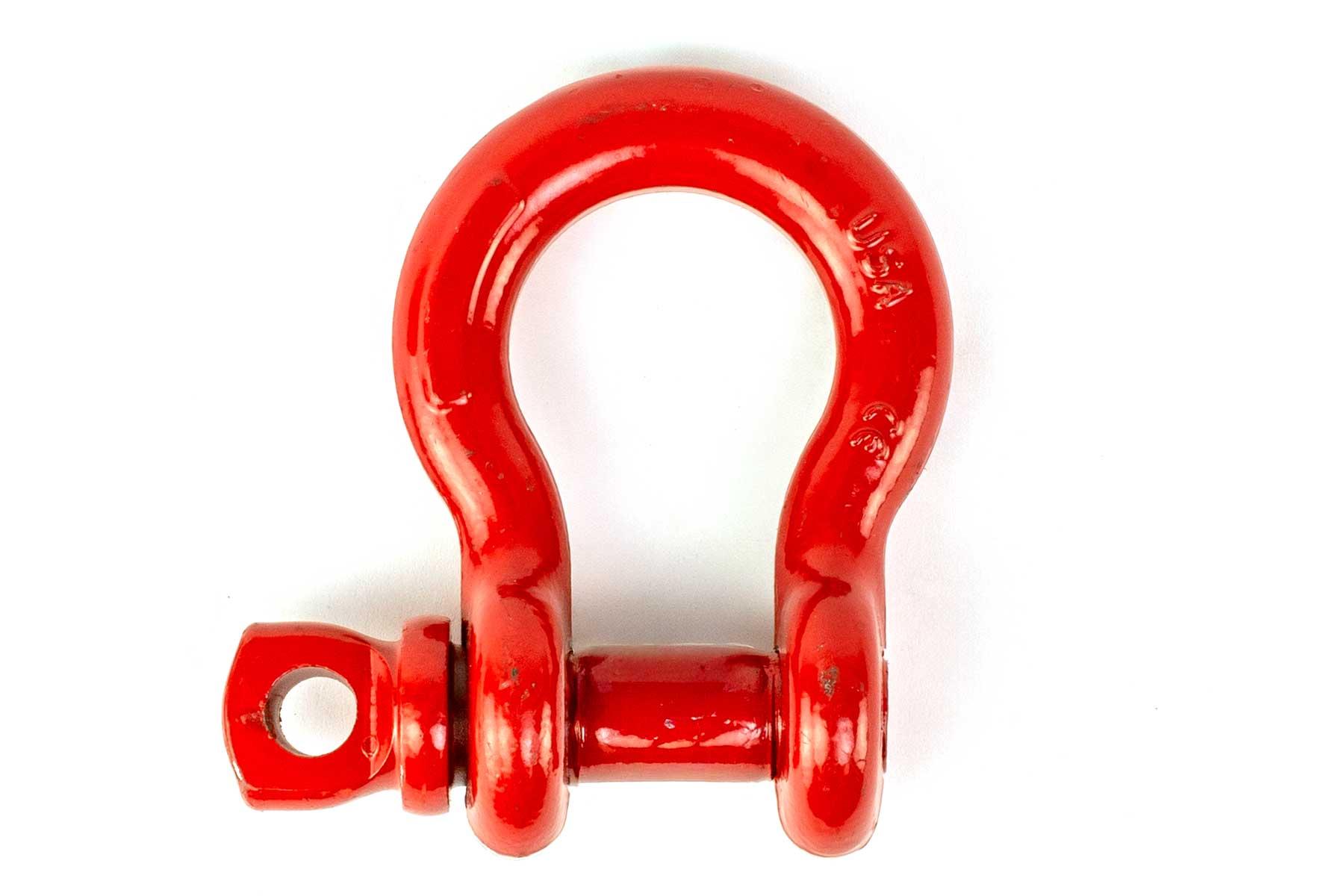

WS-18507	3/4"	4-3/4 Ton

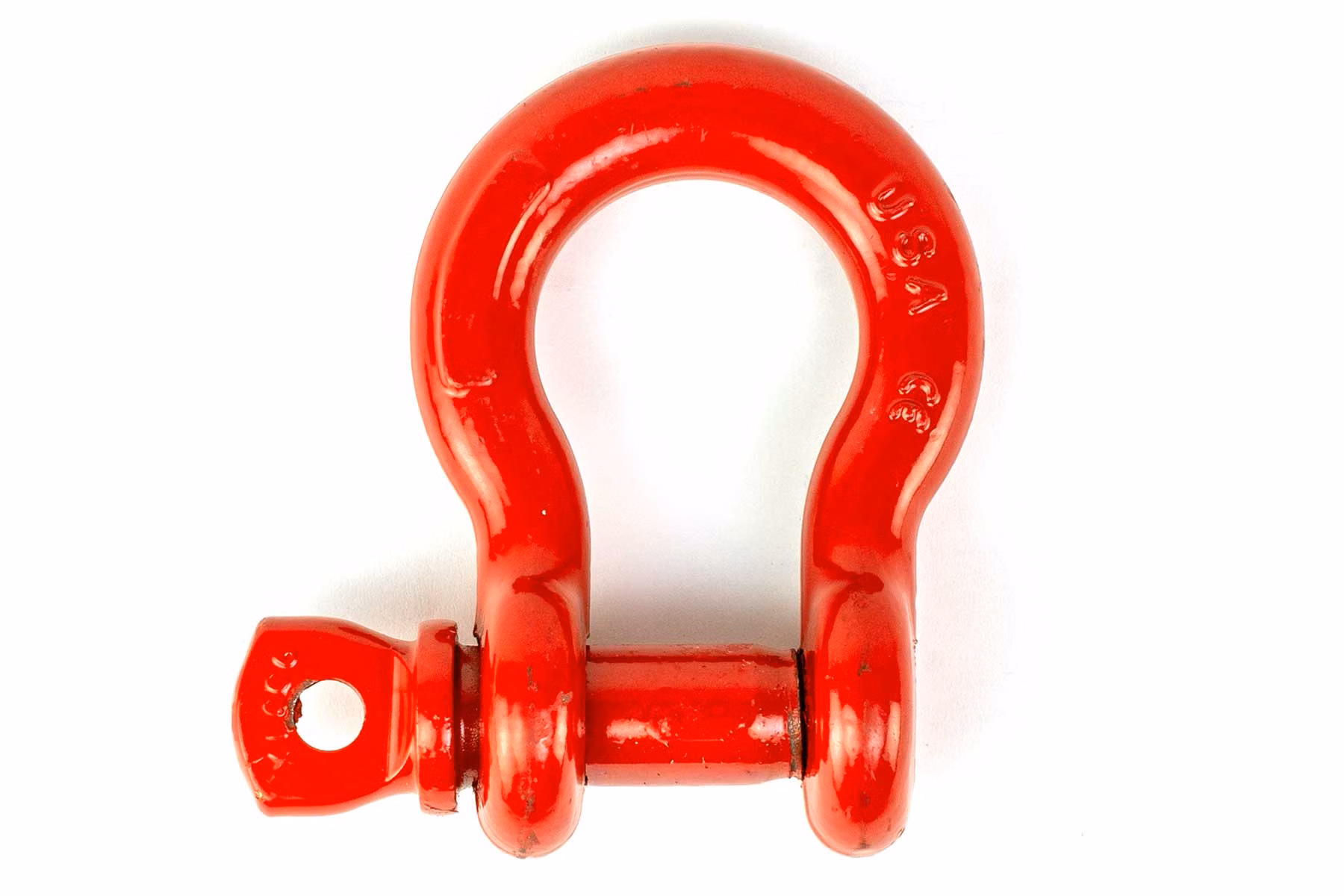

WS-18525	7/8"	6-1/2 Ton

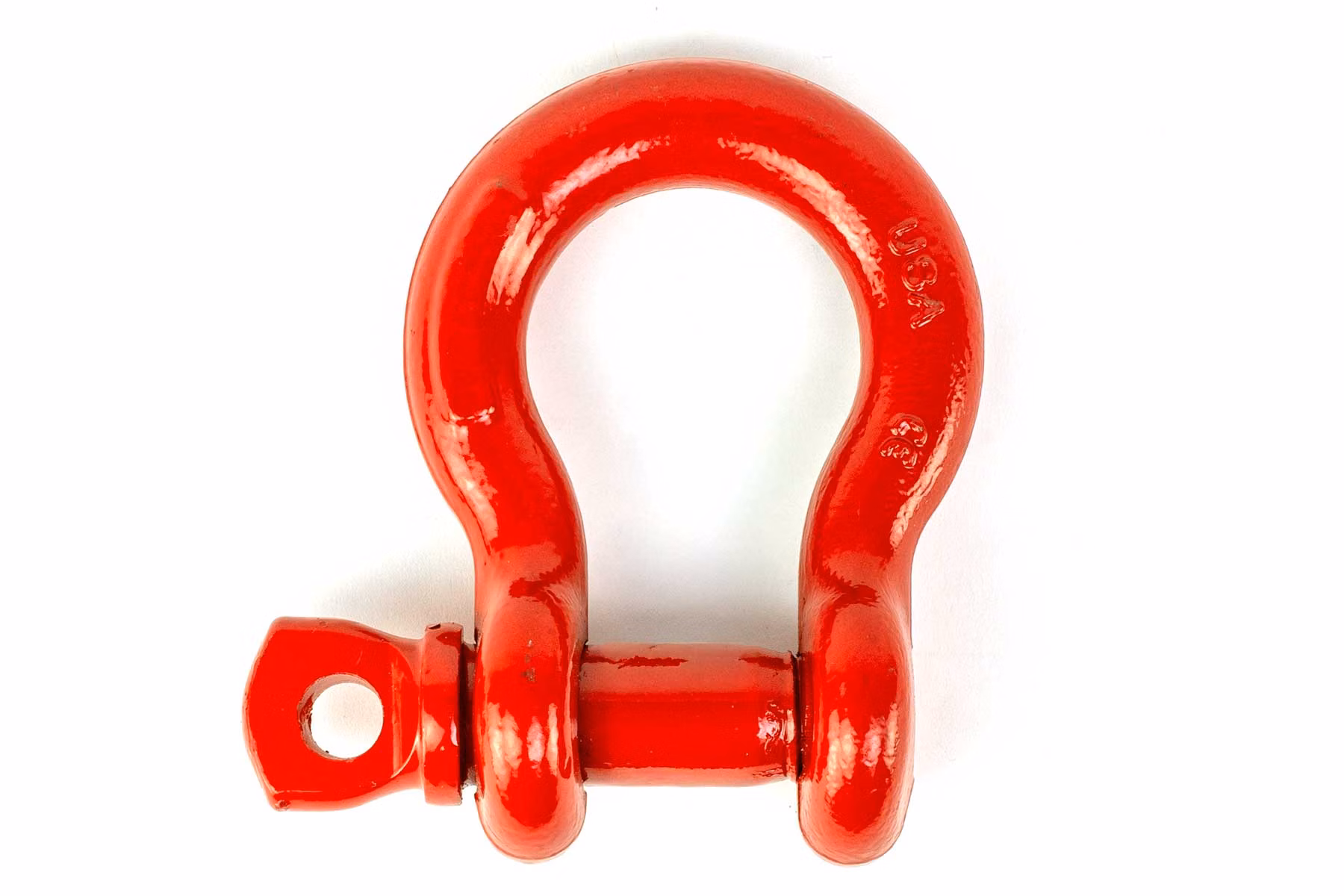

WS-18543	1"	8-1/2 Ton
WS-18561	1-1/8"	9-1/2 Ton

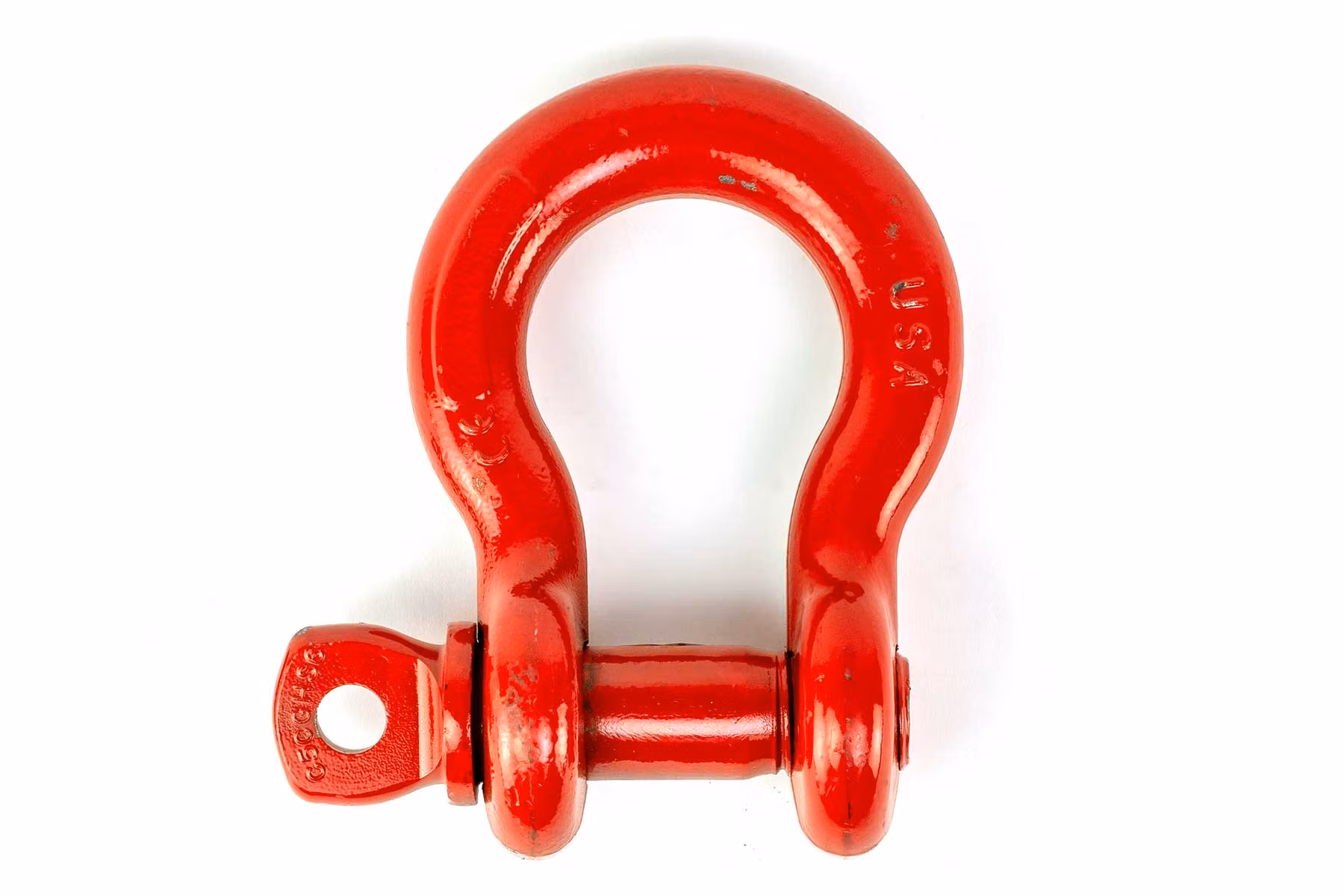

WS-18589	1-1/4"	12 Ton
WS-18605	1-3/8"	13-1/2 Ton
WS-18623	1-1/2"	17 Ton
WS-18669	2"	35 Ton
WS-18687	2-1/2"	55 Ton
