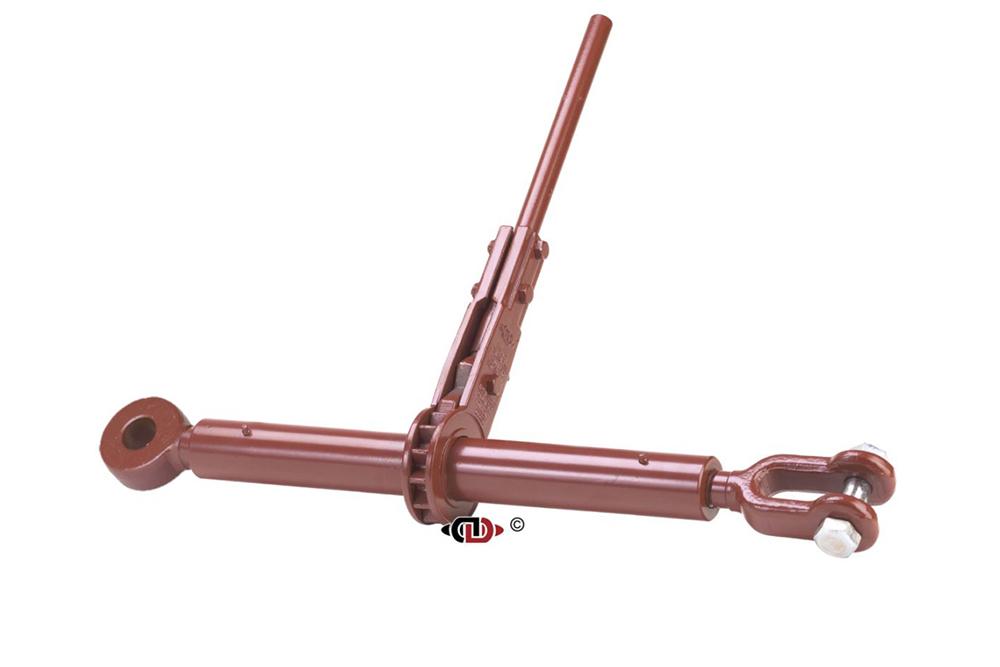

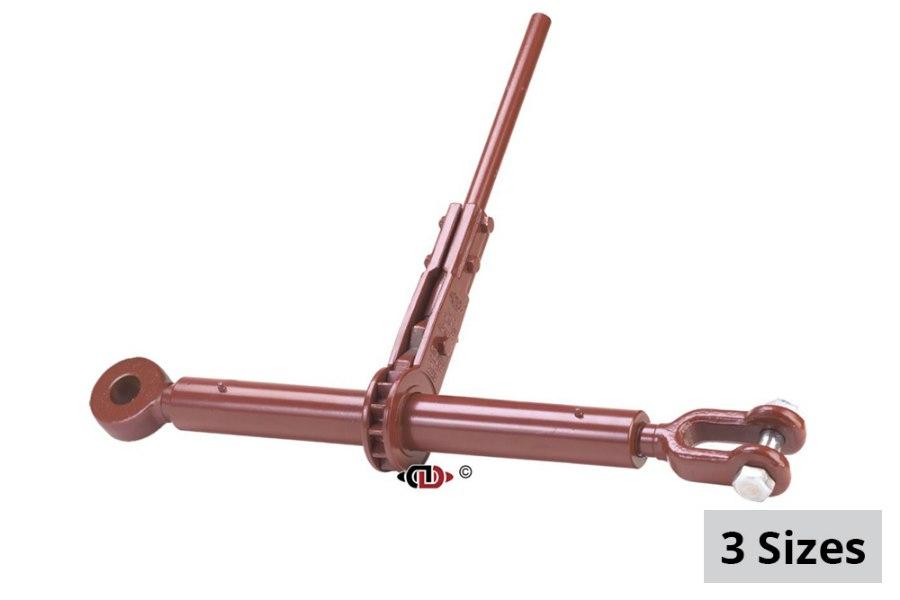

Durabilt (CDR) Specialty Compactor Series Jaw-Eye Binder

Sometimes you just need a binder to last. You have that with the Durabilt Specialty Compact Series Ratchet Binder with Jaw-Eye and 1-3/4" Screw Diameter. This heavy-duty steel binder is sure to handle the pressure of whatever job you have. Plus, with its powder coating and zinc-plated end fittings, you can be sure there won't be any corrosion anytime soon.

Not to mention, the Durabilt Specialty Compact Series Ratchet Binder with Jaw-Eye and 1-3/4" Screw Diameter can handle a working load limit of up to 42,000 lbs. For your convenience, that limit is cast into the handle. Plus, it comes in three different sizes, so no matter what job you need to take on, you can find the right binder for it.

• End fittings: jaw-eye
• Series: Specialty-Compactor
• Handle lengths (inches): 24
• Screw diameter (inches): 1-3/4
• Ratchet binder
• Steel construction (forged)
• Powder-coated body and zinc-plated end fittings
• WLL cast into handle
• Color: red


Available in the following sizes



Item #	CDR-12-134-J-E	CDR-18-134-J-E	CDR-24-134-J-E
Barrel Length	12"	18"	24"
Take Up	10"	16"	22"
B to B (closed-open)	21.3"-31.3"	27.3"-43.3"	32.3"-54.3"
Eye hole diameter/ throat opening	J:2-3/8" and E:1-3/4"	J: 2.4" and E: 1.75"	J:2-3/8" and E:1-3/4"
Weight	41.4 lbs.	51.2 lbs.	56.4 lbs.
Proof Load Limit	84,000 lbs.	84,000 lbs.	84,000 lbs.
WLL	42,000 lbs.	42,000 lbs.	42,000 lbs.
