Ramsey HD-234R 8,000 lb. FORS Hydraulic Worm Winch
Note: Special Handling Fees Apply for Specific Items
One of the most popular winches in the Towing & Recovery industry. These 8000 lb. Ramsey Winches are used on most Chevron and many other tow trucks and car carriers. These winches are just the basic winch with no hydraulic motor. This makes it more economical to replace your old winch rather than to repair it.
One of the most popular winches in the Towing & Recovery industry. These 8000 lb. Ramsey Winches are used on most Chevron and many other tow trucks and car carriers. These winches are just the basic winch with no hydraulic motor. This makes it more economical to replace your old winch rather than to repair it.
- Model: HD-234R
- Line Pull: 8,000 lbs
- Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
- Gear Ratio: 34:1
- Motor Included: No
- Angles Included: No
- Drum Length: 11"+-/16"
- See Brochures for Product Drawings
- Adjustable/Automatic Brake: No
- Fast Line Speed
- Recommended cable 3/8
- Meets SAE-J706
- Made in the USA
Applications
- Replaces Chevron Car Carrier OEM Winches
- Replaces Jerr-Dan Car Carrier OEM Winches
- General Industrial
- Mining & Construction
- Railroad
- Specialty Vehicle
- Towing & Recovery
- Towing & Recovery (Carrier)
- Towing & Recovery (Light Wrecker)
- Trailer
Winch Mount Configuration
Model Specifications
- Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable)
- 1st Layer Line Speed: 28'/min / 8.5m/min
- Gear Ratio: 34:1
- Weight w/o Cable: 110 lbs / 50 Kg
- Brake: "Optional auxiliary brake is available", Yes - brake is self-locking (Includes auxiliary brake)
- Cable: None
- Drum Size (L x F x B): 11.31" x 7.25" x 3.50" / 287.3mm x 184.2mm x 88.9mm
- Cable Capacity: 140' / 42.7m
- Recommend Cable Size: 3/8" / 9.5mm
- Hydraulic Pressure Required: 2,375 PSI (164 Bar)
- Hydraulic Flow Required: 15.0 GPM (57 LPM)
- Motor Size: 3.6 Cu. In. (59 cc)
- Clutch Type: Blocked, RAM-LOK?, DOW-LOK?, Lever Style
- Clutch Control: Air, Manual, Electric
HD-234R Specifications:
- Ramsey Part Number: 121807
- Model: HD-234R
- Line Pull: 8,000 lbs
- Clutch: Ram-Lok
- Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
- Gear Ratio: 34:1
- Motor Included: No
- Angles Included: No
- Drum Length: 11"+-/16"
- Adjustable/Automatic Brake: No
- Fast Line Speed
- Recommended cable 3/8
- Meets SAE-J706
- Made in the USA
HD-200R Specifications:
- Ramsey Part Number: 121818
- Model: HD-234R
- Line Pull: 8,000 lbs
- Clutch: Lever
- Mounting Configuration: Front Right Overwind Side/Rear Overwind Left Side
- Gear Ratio: 34:1
- Motor Included: No
- Angles Included: No
- Drum Length: 11"+-/16"
- Adjustable/Automatic Brake: No
- Fast Line Speed
- Recommended Cable: 3/8"
- Meets SAE-J706
- Made in the USA
- For an alternative winch see part number H-246
- Replaces part number 12-0300250
HD-234RA Specifications:
- Ramsey Part Number: 121797
- Model: HD-234R
- Line Pull: 8,000 lbs
- Clutch: Air Shift
- Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side
- Gear Ratio: 34:1
- Motor Included: No
- Angles Included: No
- Drum Length: 11.125"+-/16"
- Adjustable/Automatic Brake: No
- Fast Line Speed
- Recommended Cable: 3/8"
- Meets SAE-J706
- Made in the USA
$1,208.99
–
$1,674.99
Related products
Chevron Pin and Link Assembly
This Pin and Link Assembly from Miller Industries is used on the Control
Components Assembly of Chevron Car Carriers. These include 14, 16, 20 and 30
Series Car Carriers. Please see the features below for a list of trucks and see
the brochure tab for breakdowns.
$33.99
Miller 6.5" Thrust Washer Century / Challenger / Holmes
This 6.5" Thrust Washer from Miller Industries is used with a pivot pin in many
different Miller Wrecker assemblies. These assemblies include the boom, wheel
lift, crossbar, and underlift assemblies of Century, Challenger, and Holmes
Wreckers. Please see the brochure for a full list of breakdowns.
$12.99
Miller Inner Boom Bushing
This Bronze Bushing from Miller Industries is used on the Inner Boom of the
Wheel Lift Assembly of Champion Car Carriers made before 2001. This busing has
a 3" inner diameter. See the features below for a full list of carriers.
This part can be used to replace Part Numbers: 12-0301914 and 12-0301383.
$86.99
Handle Bracket
This is a handle bracket for Gresen V20 Valve. This piece bolts onto the valve
assembly itself and is use to hold the control rod linkage to the valve.
$39.99
Ramsey Seal Kit
This gasket and seal kit is for the H-200 series Ramsey winch with the " keyhole style " worm gear housing cover.
$73.99
Cable Tie, Black, 11.1"
Fastenal 11.1" 50 lbs. tensile UV black nylon 6.6 Power Phase cable tie.
Cable ties secure wire bundles, harnesses and components quickly without
slipping. Sold Each (Individually)
$0.19
Miller Grommet, Rubber, Century and Vulcan Wreckers
This Rubber Grommet from Miller Industries is used on the Body Assembly and Light Accessory Assemblies of Miller Wreckers. These include Century, Challenger, Holmes and Vulcan Wreckers. Please see the features below for a list of wreckers and see the brochure tab for breakdowns. This part can be used to replace Part Number FF-116.
$2.99

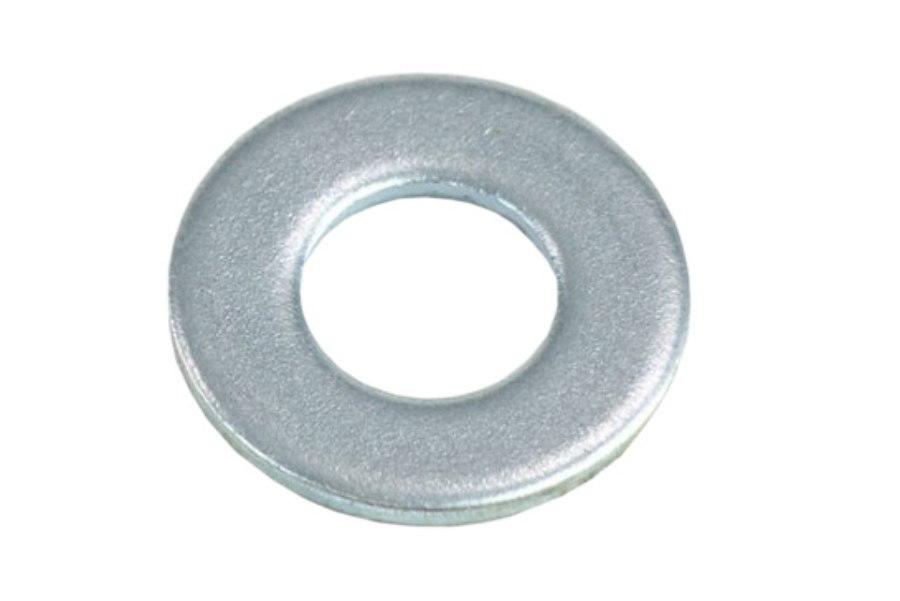

Washer, Flat 5/16" Stainless Steel 18-8
